2019 جيني SX135XC

Maximum lift capacity: 454.00
Transport dimensions (LxWxH): 19.76x2.49x3.05
Front tyres remaining: 60
Rear tyres remaining : 60
Internal stock no.: GENIE - SX135XC - 63734
Gross Weight: 21712.00
Tyre brand: Outrigger
VAT: 0.00
Power type: Diesel
Working height: 4315.00
Max horizontal reach: 2743.00
Other information:

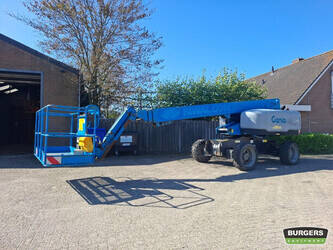

Genie SX-135XC (Xtra Capacity) ROUGH TERRAIN BOOMLIFT.

Manufacturer: Genie
Typ: SX-135 XC
Mnuf. year: 2019
Serial number: SX135H-434
Working Hours: 1.617 h

Working height max: 43.15m
Horizontal reach max: 27.43m
Below ground reach: 6.00m

Length - storage/transport (jib tucked under) 13.28m
Width (axles retracted) 2.49m
Width (axles extended) 3.94m
Height - stowed (tires) 3.05m

Lift capacity max. - 300 kg
Lift capacity max. - 454 kg Restricted

Platform rotation 160°
Vertical jib rotation (up/down) 130°
Turntable rotation 360°
Turntable tailswing (axles retracted) 1.14m
Turntable tailswing (axles extended) 1.70m
Drive speed - stowed (tires) 4.3 km/h
Drive speed - raised (tires) 0.65 km/h

Tires: Outrigger 445D50/710 (60%)

CE (Declaration of Conformity).

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors
