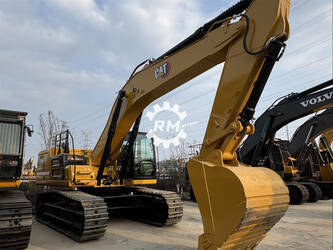

2019 كاتربيلر 336GC

Power system.
Engine model: Cat C7.1 ACERT.
Rated power: 194kW (ISO 9249 standard).
Displacement: 7.1L, cylinder diameter x stroke: 105mm x 135mm.
Emission standard: National III (some models have been discontinued). ‌‌
Hydraulic and Performance.
Main pump flow rate: 559 L/min (dual pump).
Maximum system pressure: 35000 kPa (equipment/driving circuit).
Rotation torque: 137 kN · m, rotation speed: 8.74 r/min.
Bucket excavation force: 197 kN (ISO standard), boom excavation force: 148 kN
Size and working range.
Working weight: 33900kg (standard).
Transportation dimensions (length x width x height): 11170mm x 3190mm x 3170mm.
Maximum excavation depth: 7520mm, maximum excavation height: 10300mm.
Track gauge: 2590mm, ground clearance: 510mm
Oil capacity.
Fuel tank: 600L.
Total capacity of hydraulic system: 373L (including 161L oil tank).
