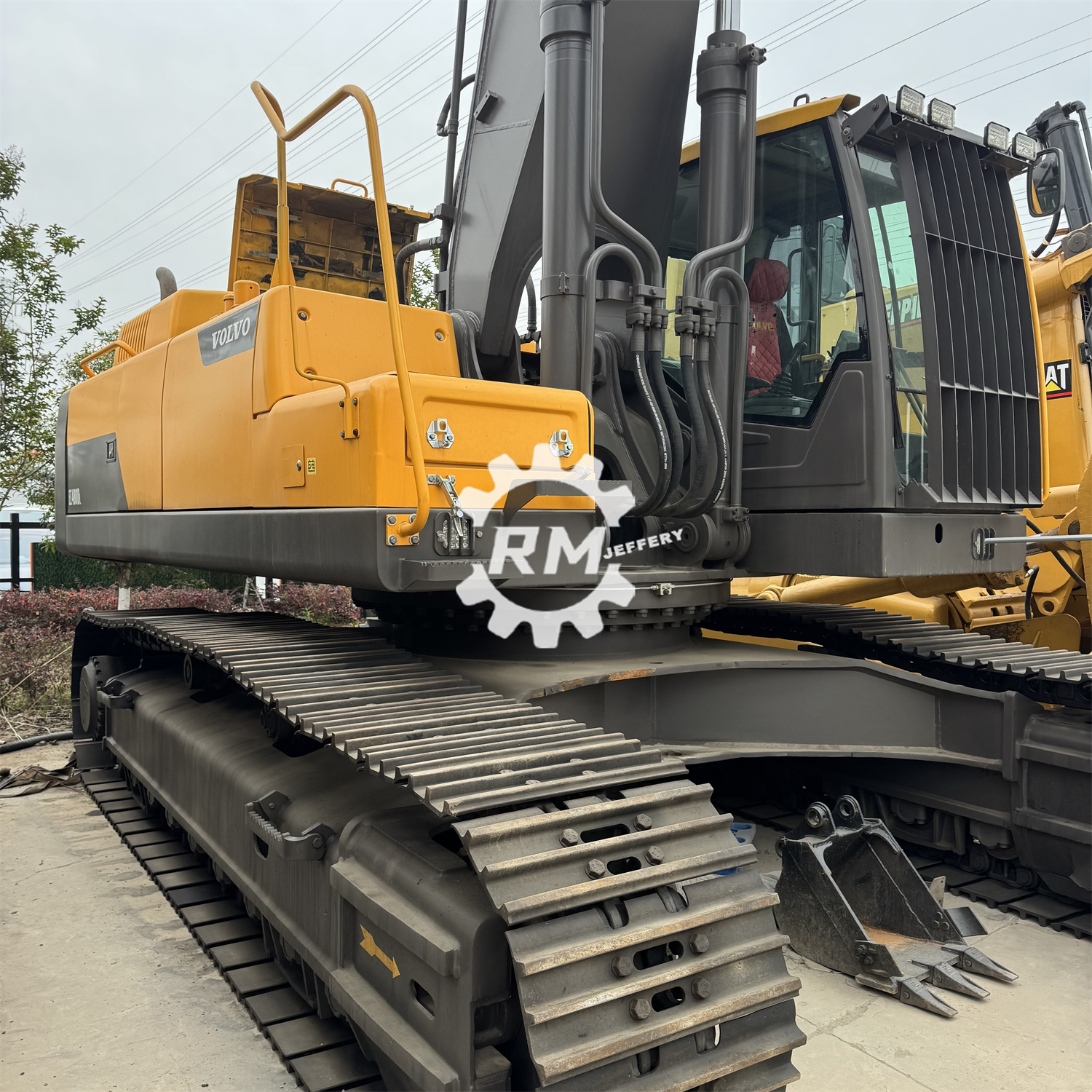

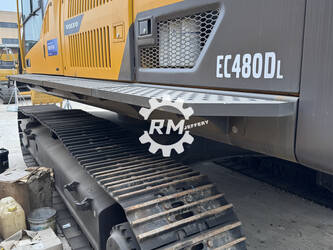

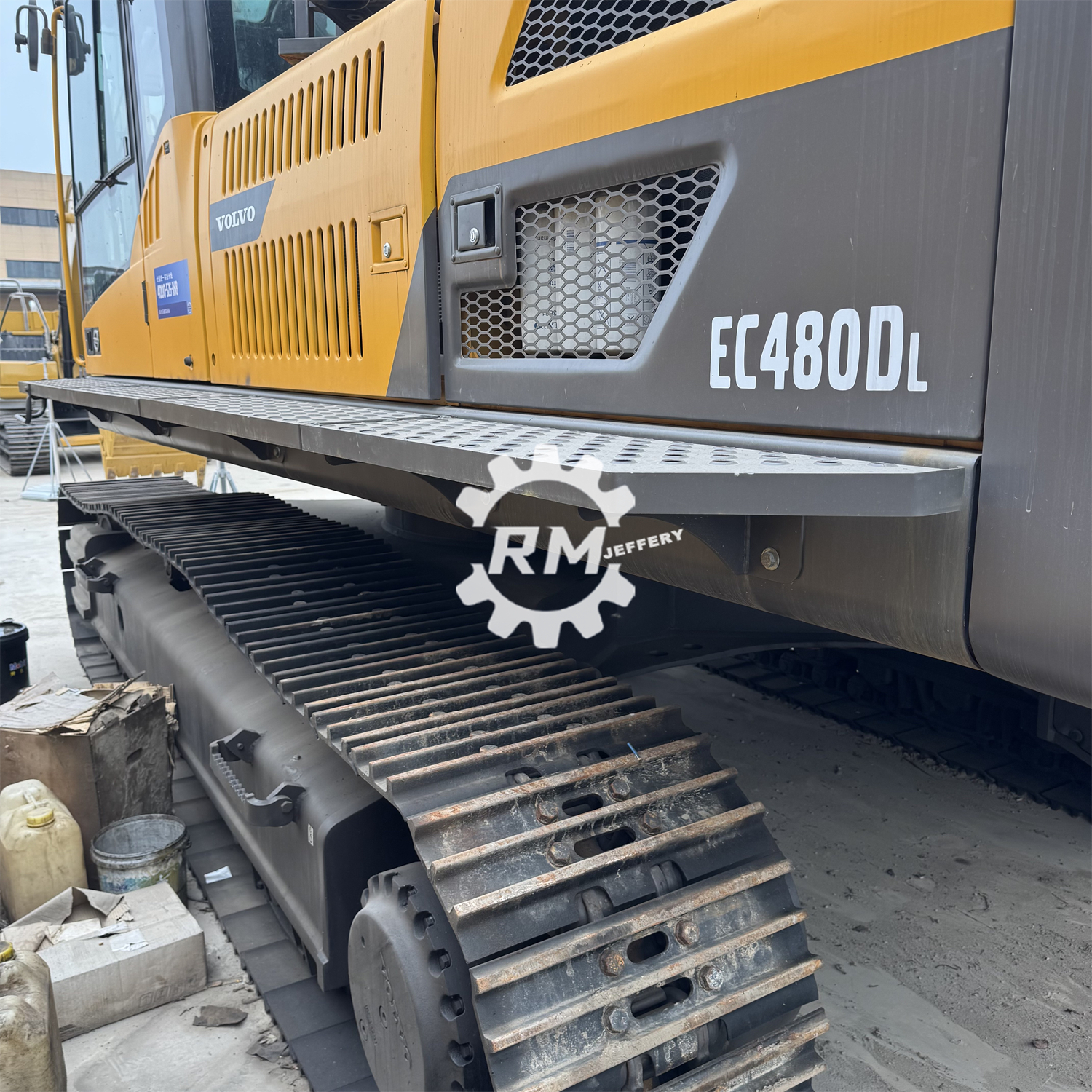

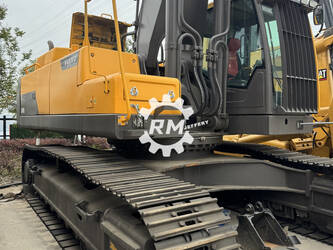

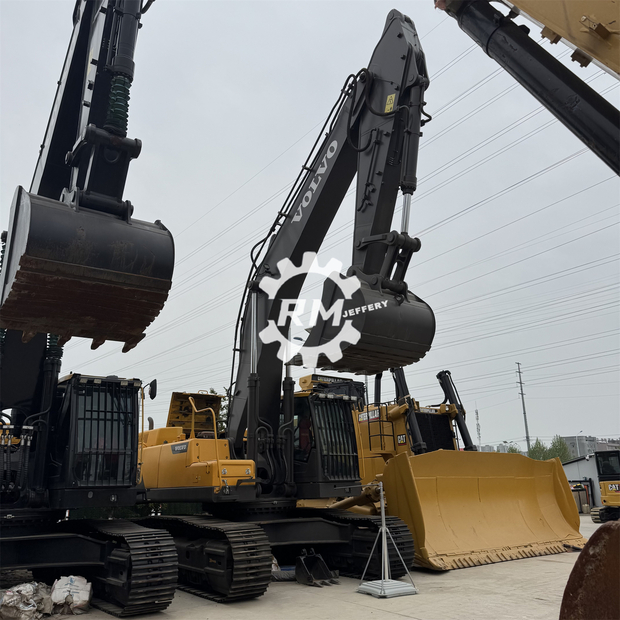

2018 فولفو EC480

Overall dimensions:
11.63×3.34×3.257m

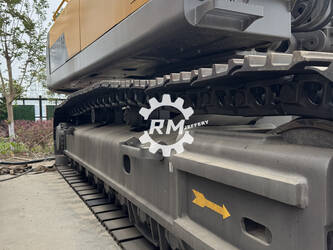

Track shoe width:
600mm
Track gauge:
2740mm
Minimum ground clearance:
550 centimeters
Ground clearance of counterweight:
1275mm
Rear turning radius:
3880mm
Engine parameters
Engine model:
D13F
Maximum output power:
265kW
hydraulic system
Maximum flow rate of main pump:
2 x 358L/min
Working hydraulic oil circuit:
Walking hydraulic circuit:
32.4Mpa
Rotary hydraulic circuit:
25.8Mpa
Oil capacity
Fuel tank capacity:
685L
Hydraulic oil tank:
270L
Engine oil change quantity:
42L
Coolant:
60L
Performance parameters
Walking speed:
3.1 / 5.1km/h
Bucket excavation force:
Excavating force of boom:
Maximum Traction Force:
Scope of work
Maximum excavation radius:
10930mm
Maximum excavation depth:
6580mm
Maximum excavation height:
10600mm
Maximum unloading height:
6970mm
Maximum vertical excavation depth:
5990mm
