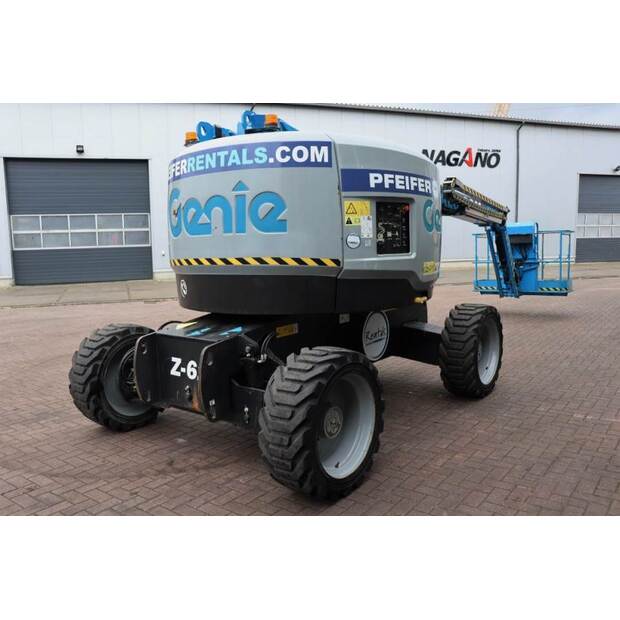

2015 جيني Z62/40

Maximum lift capacity: 227.00
Transport dimensions (LxWxH): 7.58x2.49x2.9
Front tyres remaining: 60
Rear tyres remaining : 60
Internal stock no.: GENIE - Z62/40 - 60029
Gross Weight: 10366.00
Tyre brand: Outrigger
VAT: 0.00
Power type: Diesel
Working height: 2090.00
Traction type: 4 WD
Max horizontal reach: 1250.00
Other information: Manufacturer: Genie.. Typ: Z62/40 4WD Building year: 2015 Fuel: Diesel Serial number: Z6215A211 Loading / lifting capacity: 227 kg Working height: 20.9 m Horizontal reach: 12.5 m Tyres Manuf / Size: Outrigger / 355/55D625 (60%) * Up and over clearance max: 8.13 m * Platform length: 0.91 m /0.76 m * Wheelbase: 2.51 m * Ground clearance: 0.37 m * Lift capacity: 227 kg * Platform rotation: 160° * Vertical jib rotation: 135° * Turntable rotation: 360° continuous * Turntable tailswing zero * Drive speed - stowed: 4.8 km/h * Drive speed - raised: 1.1 km/h * Gradeability stowed: 44% * Turning radius: 3.04 m * Turning radius - outside: 5.54 m * 115 v Generator. CE (Declaration of Conformity) More detailed pictures / product movie on our website. pfeifermachinery.com Above specifications are subject to change without prior notice and subject to errors
