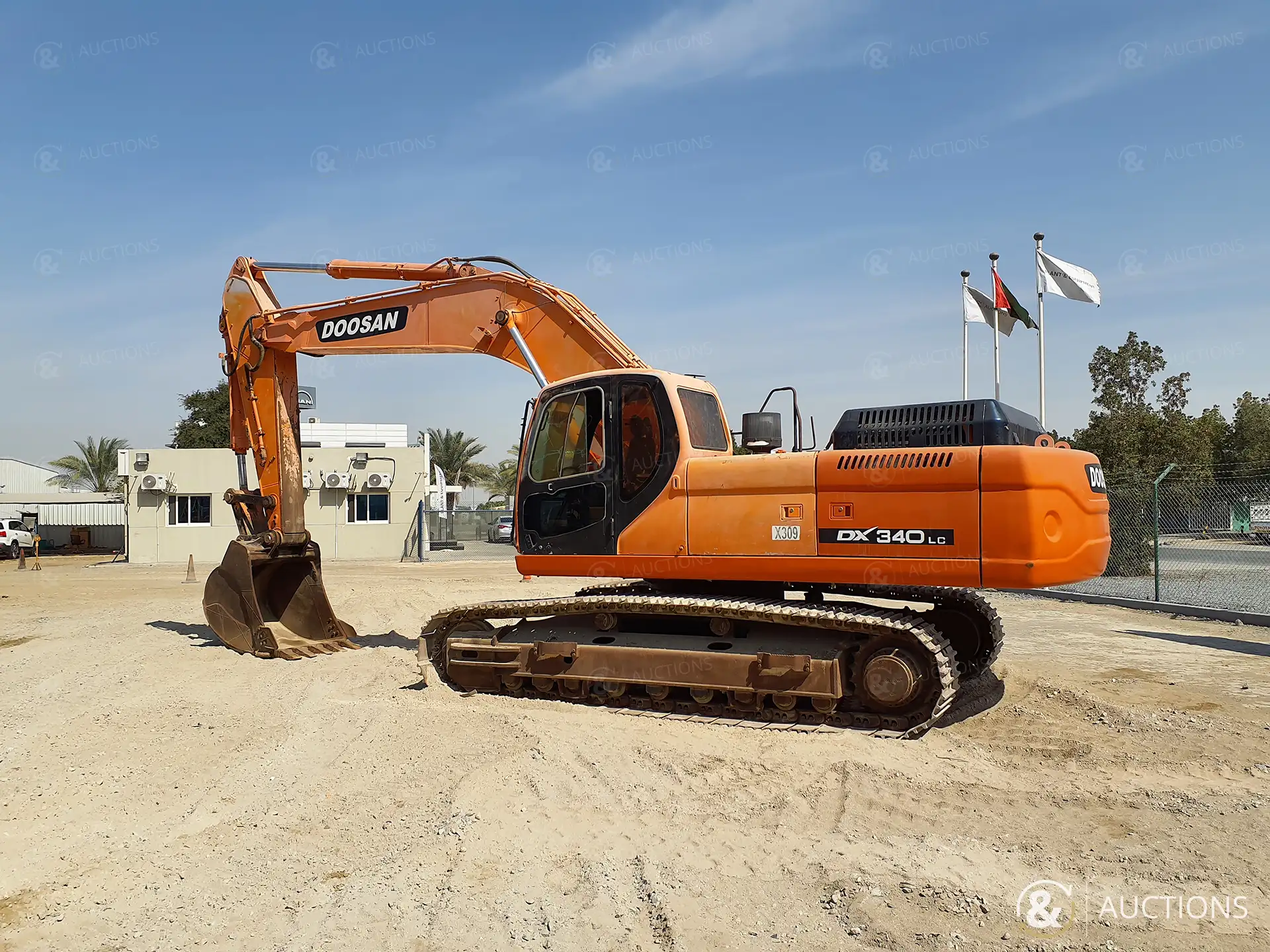

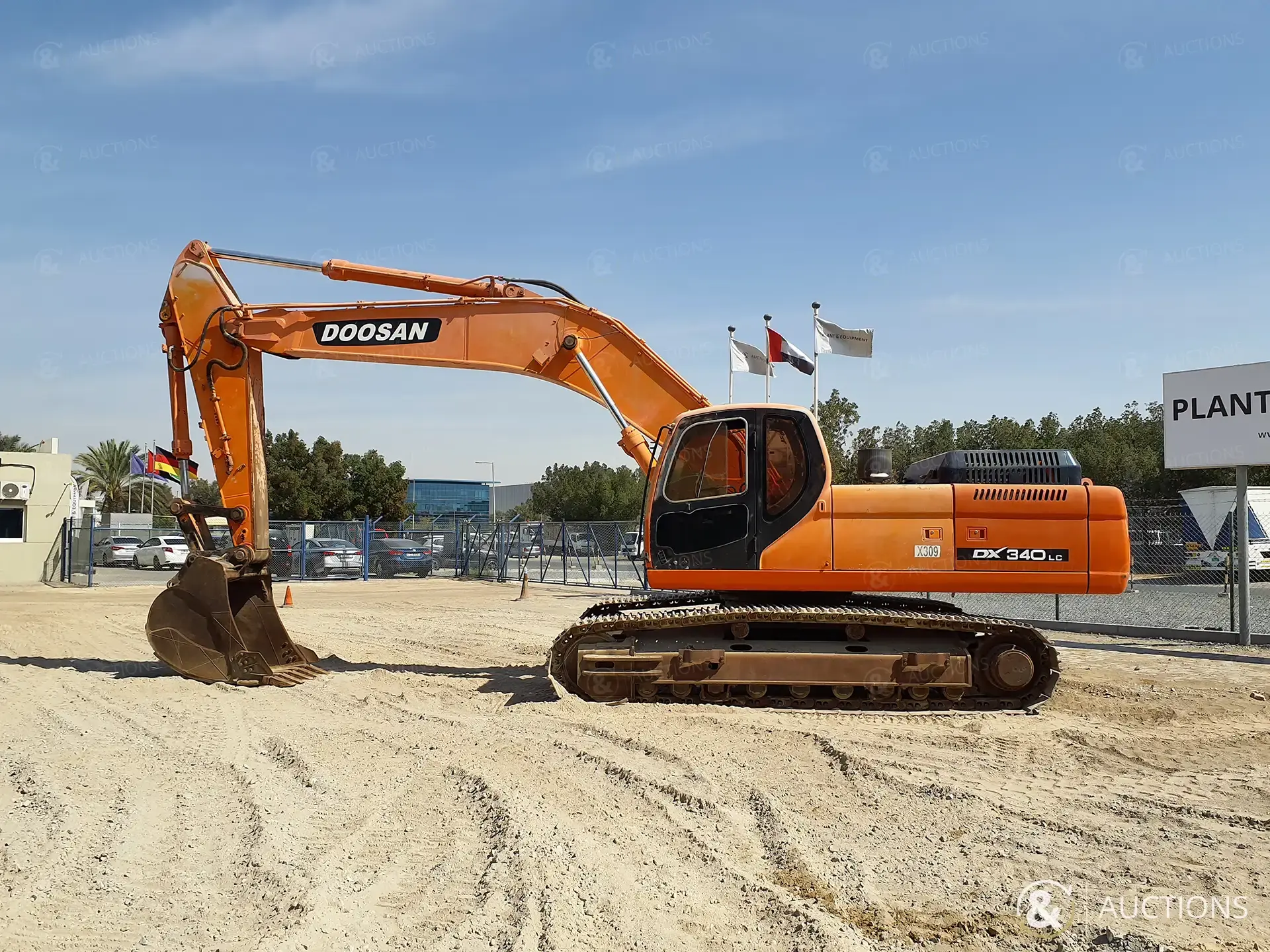

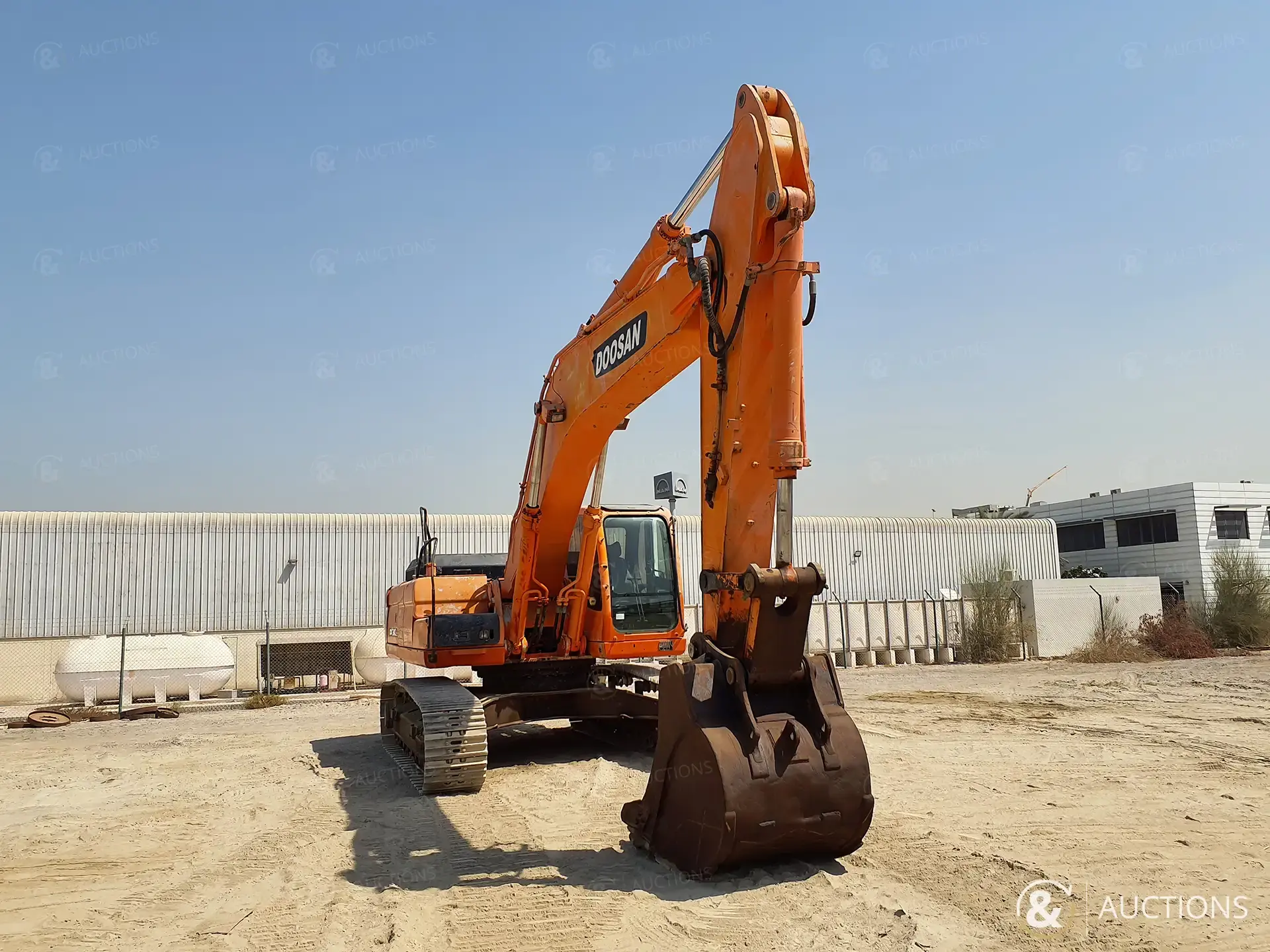

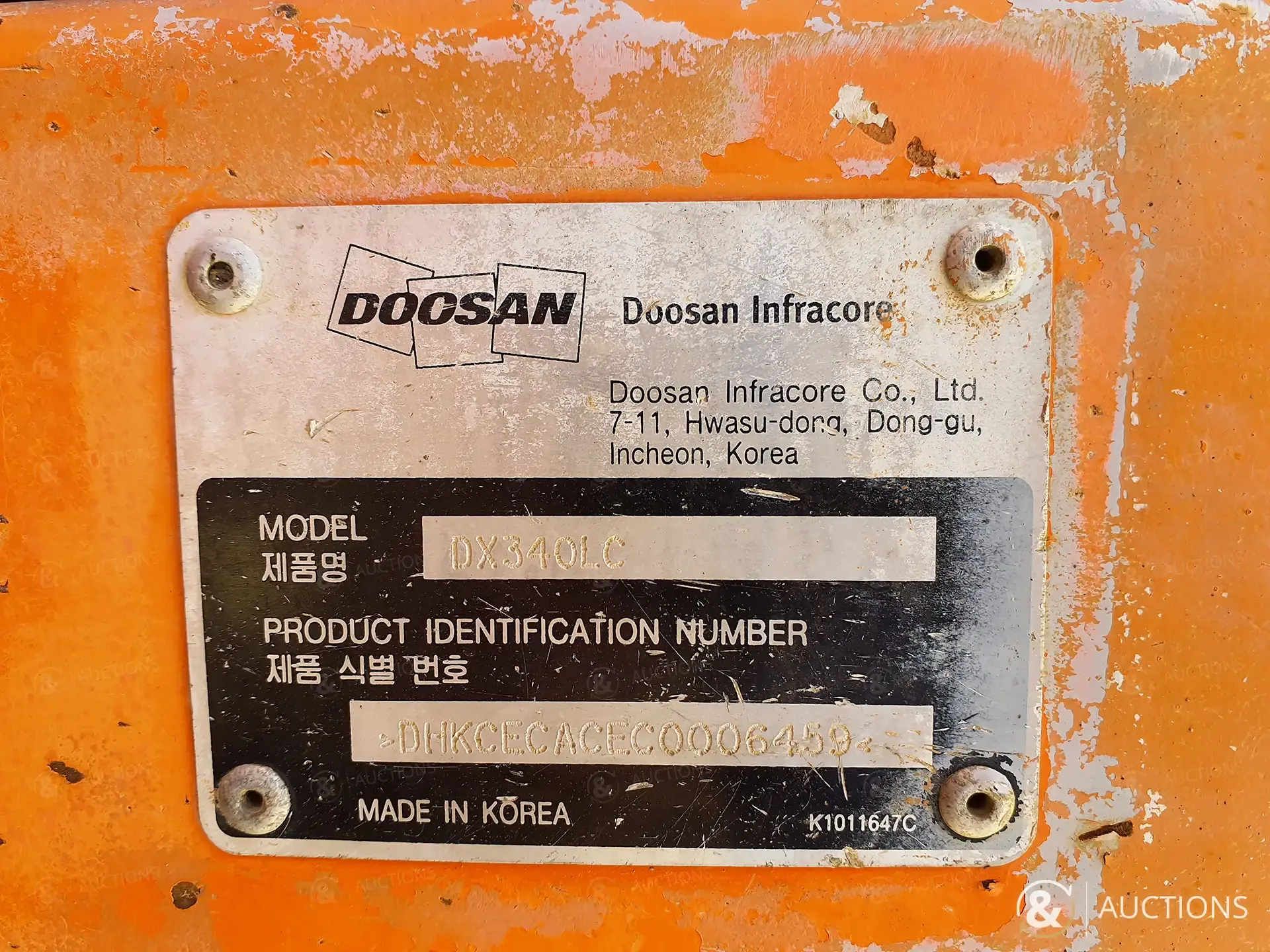

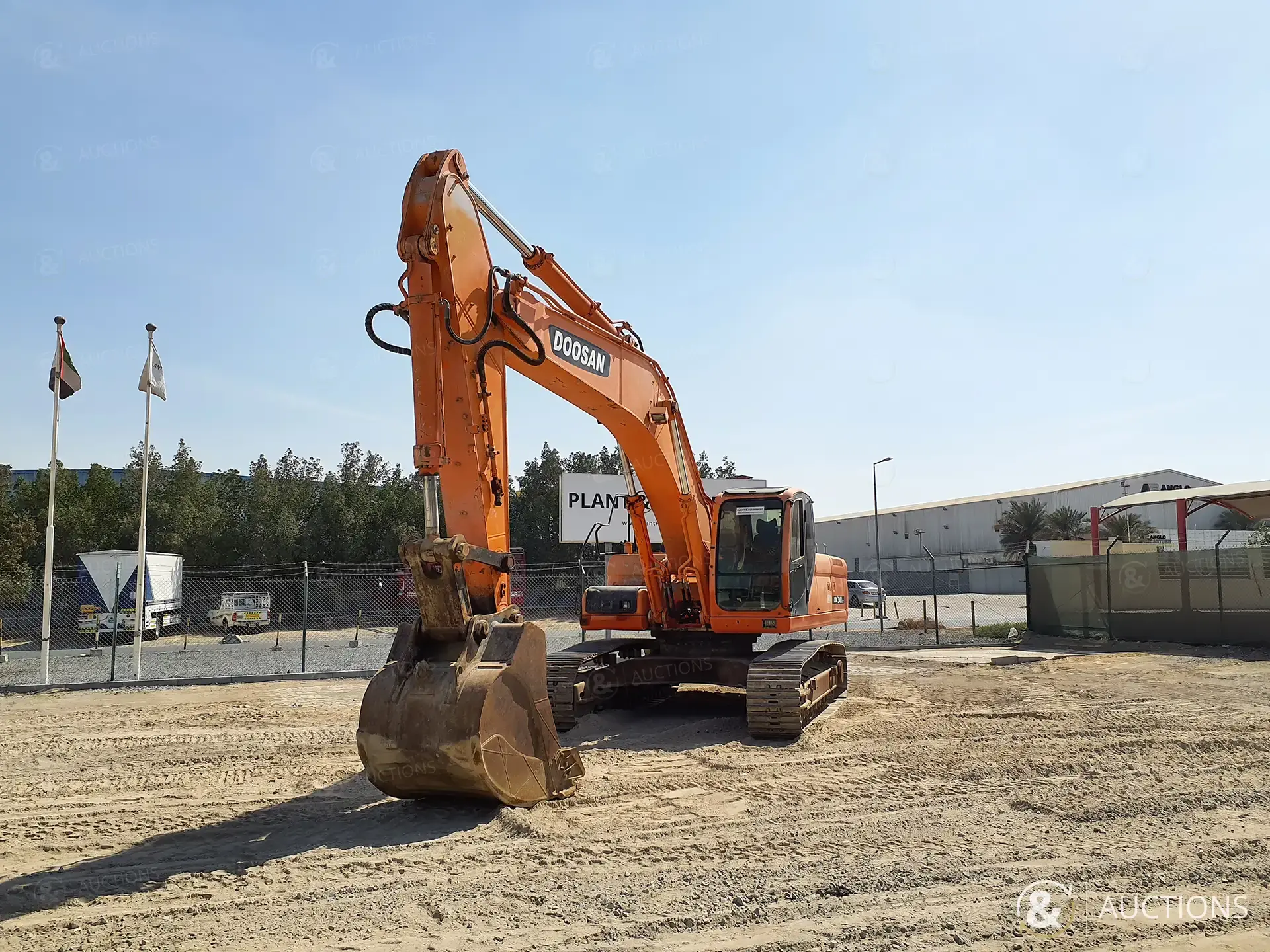

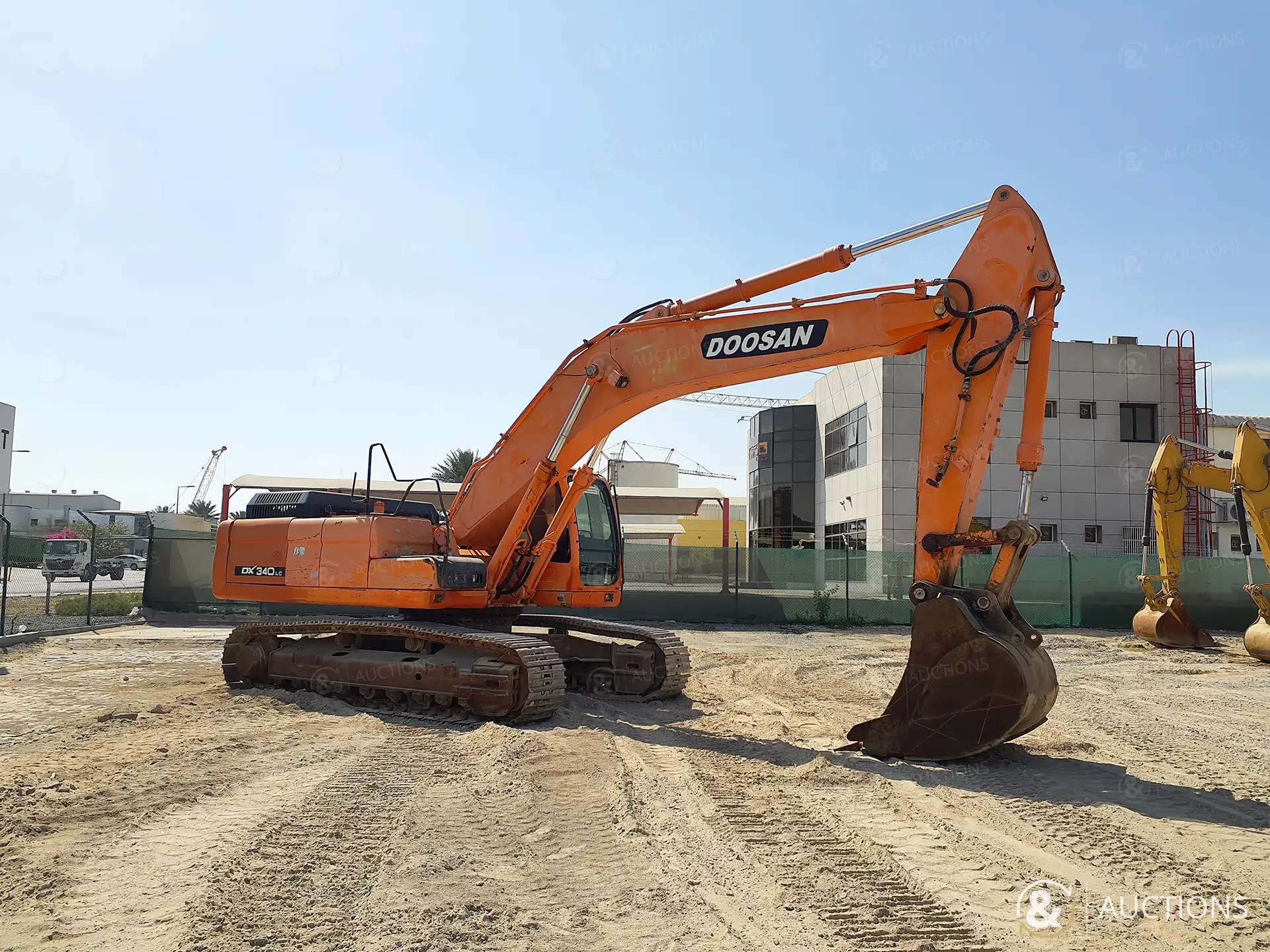

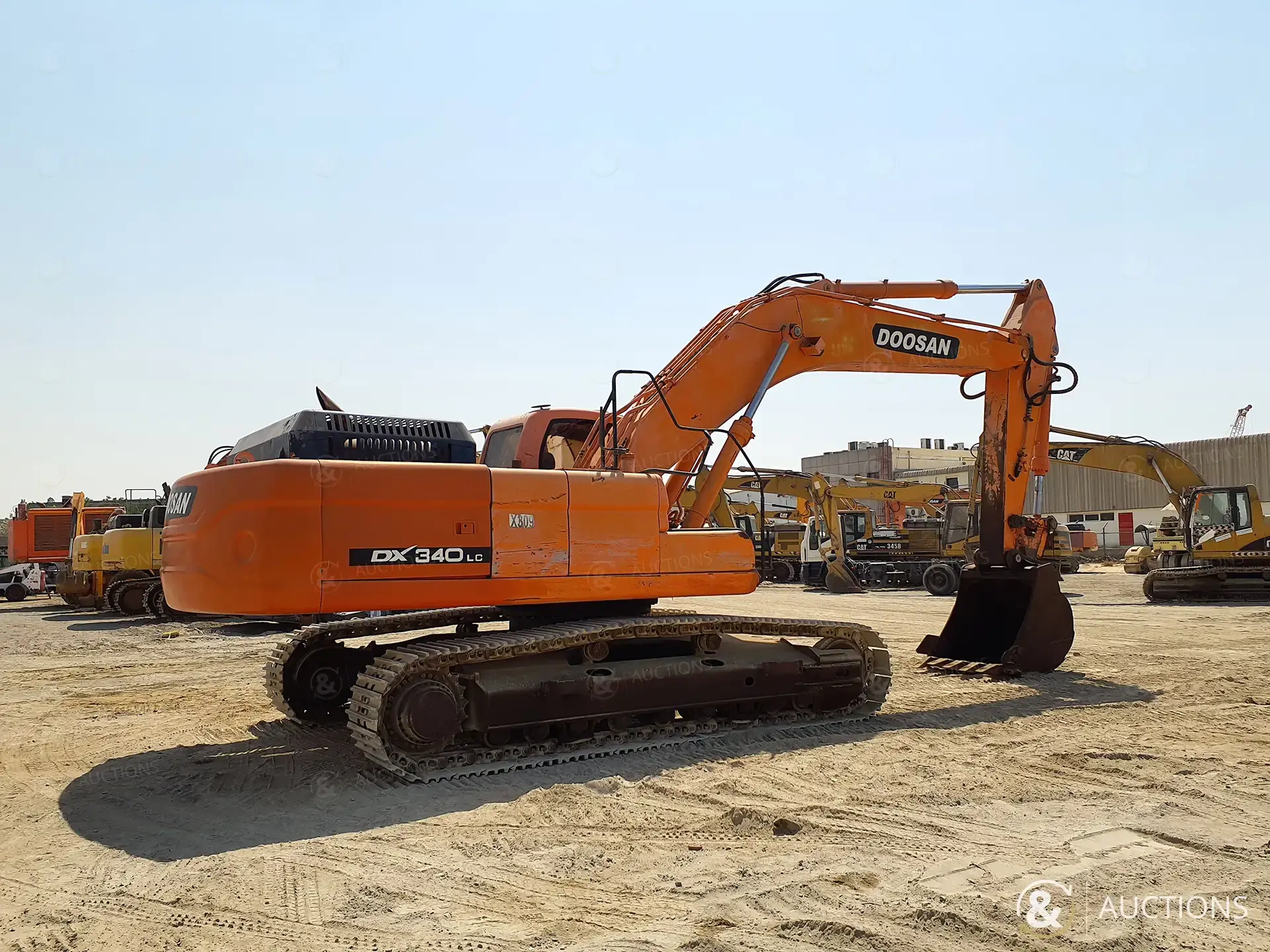

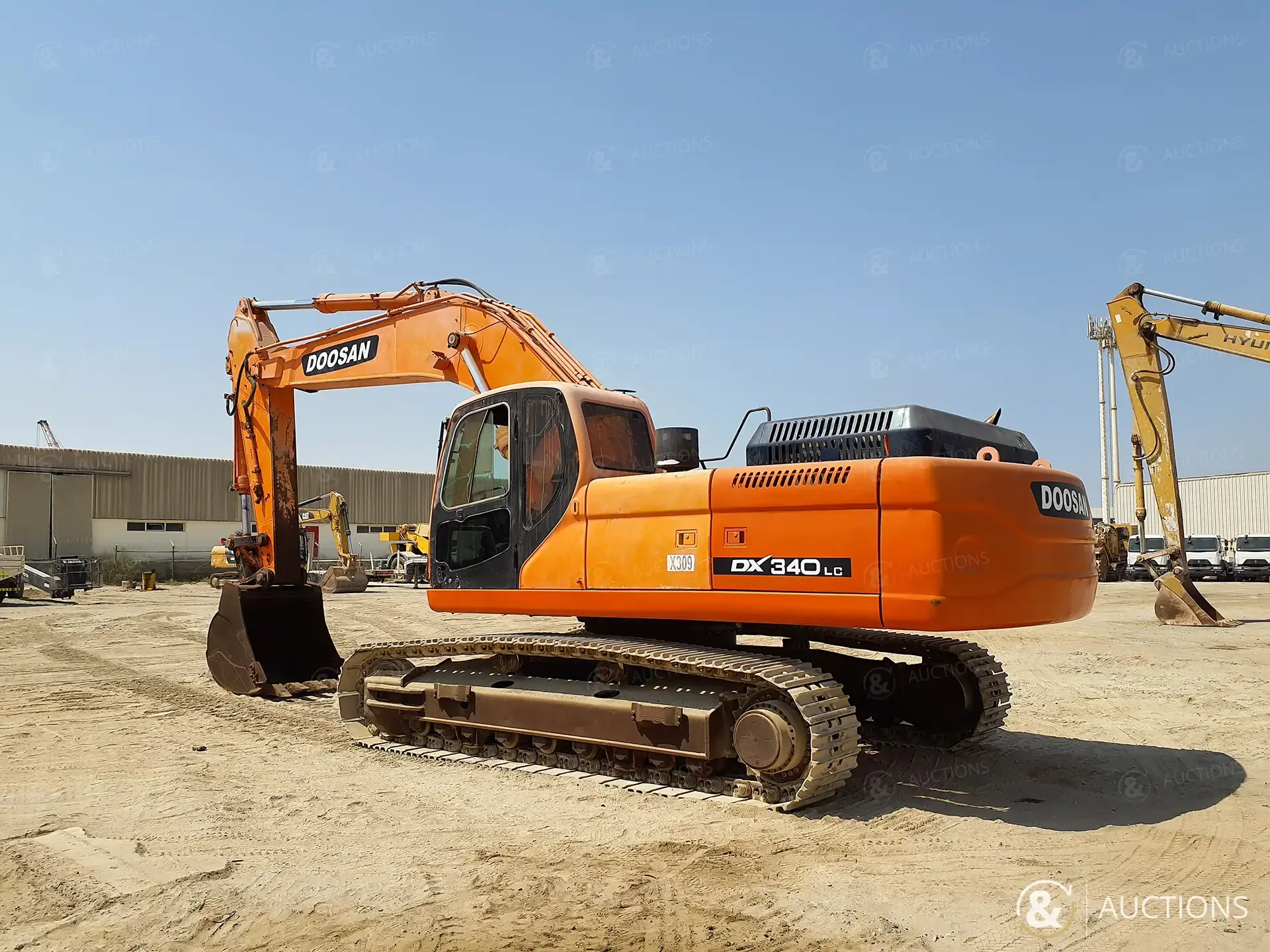

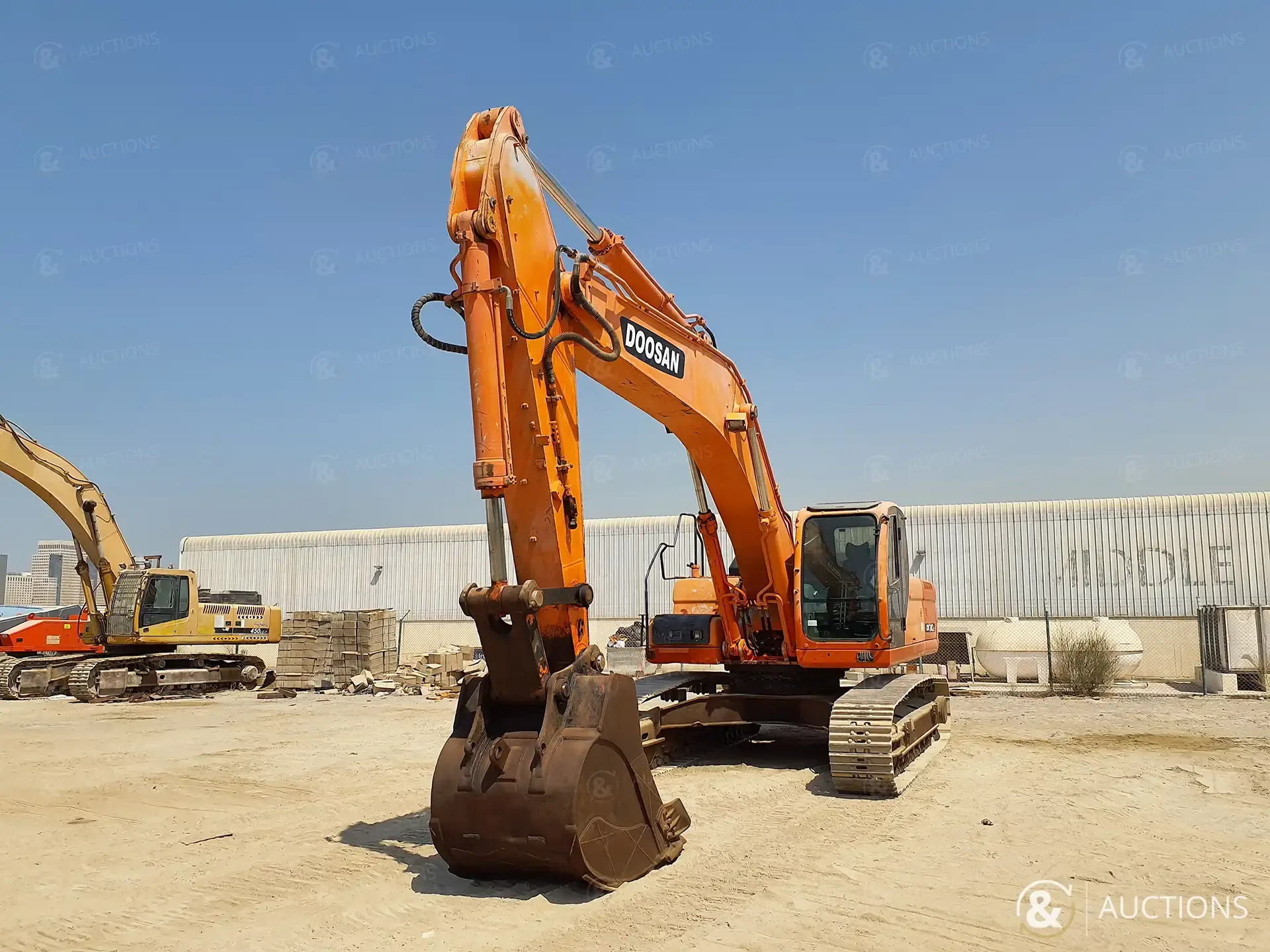

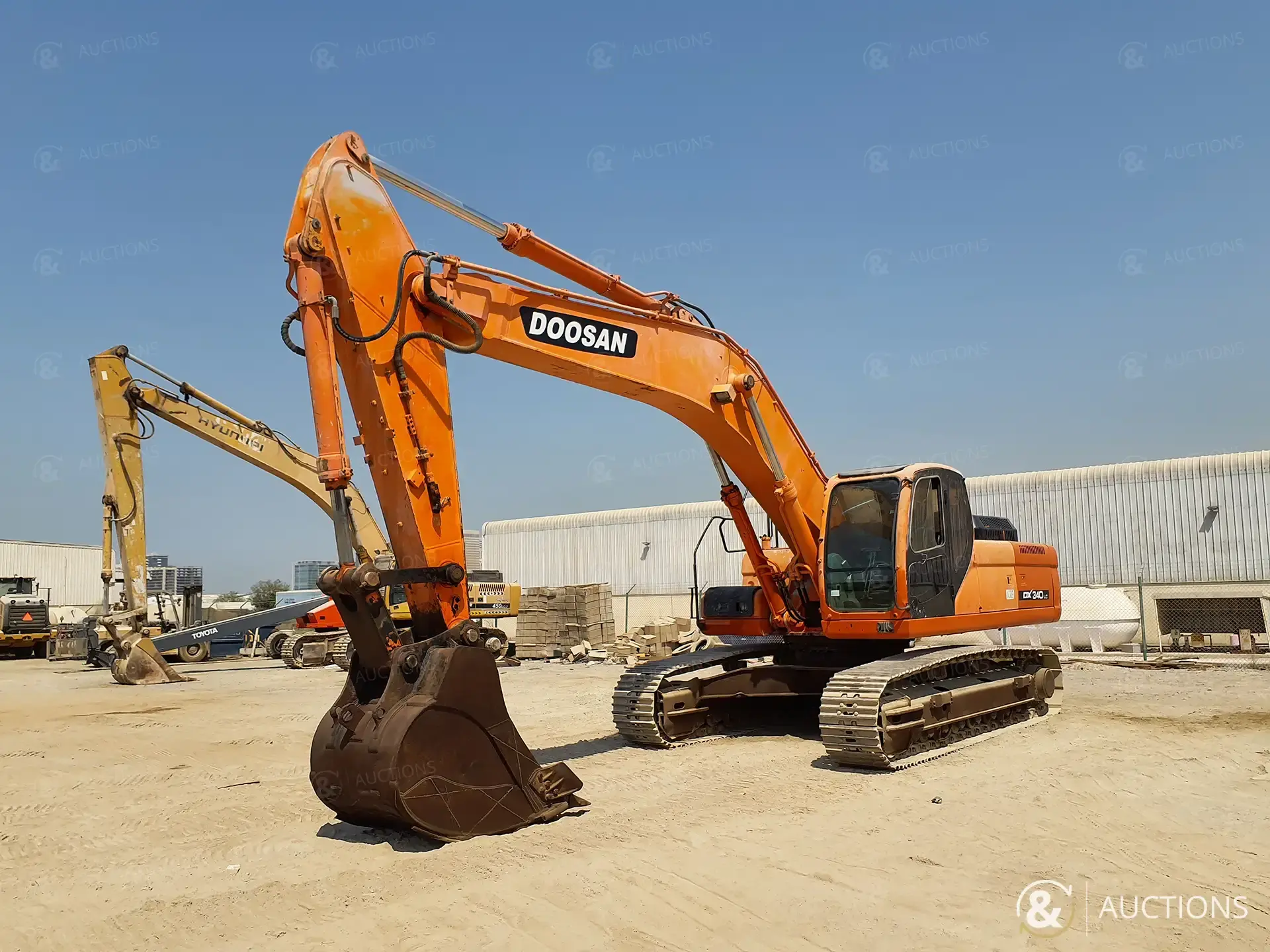

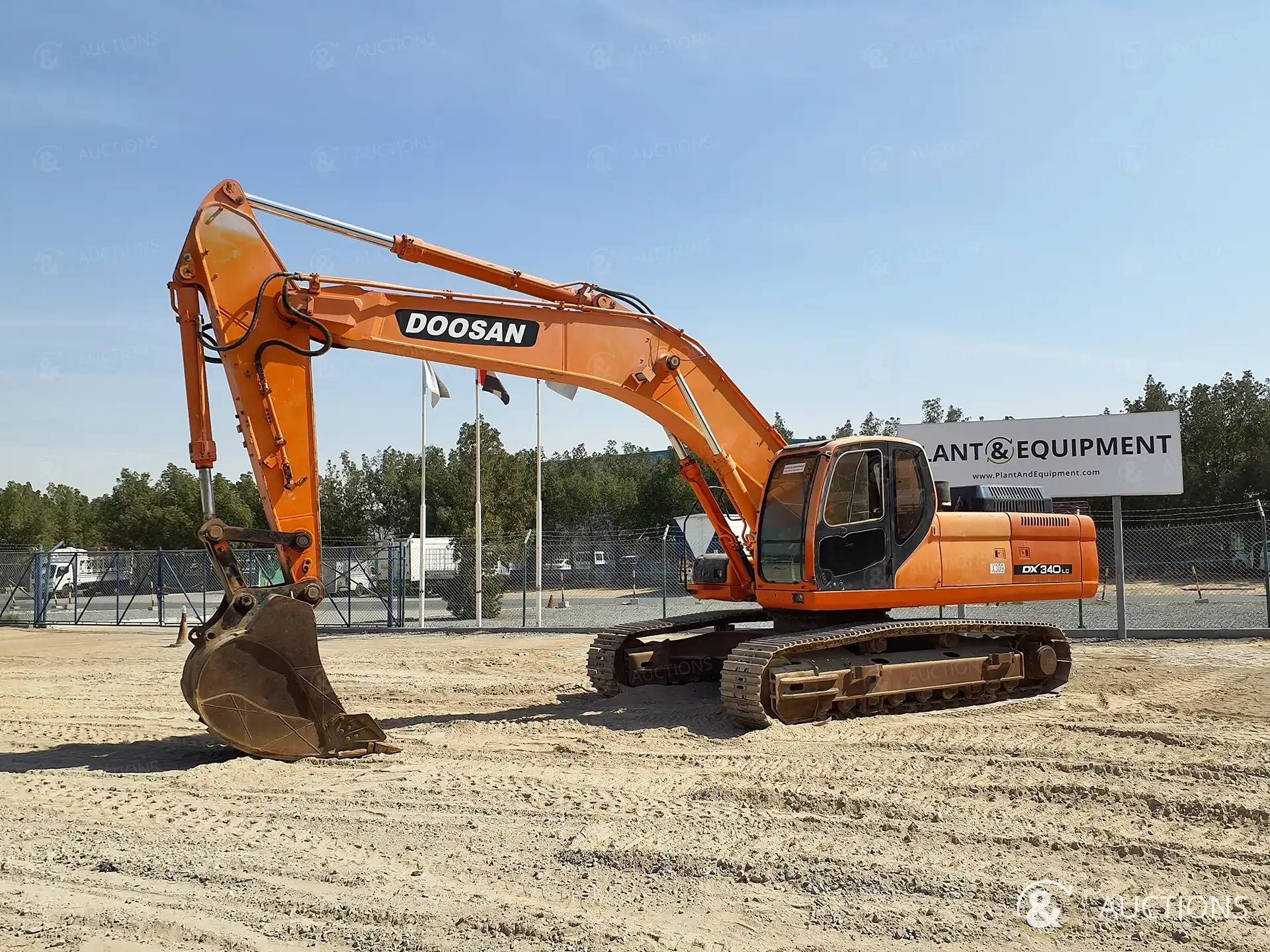

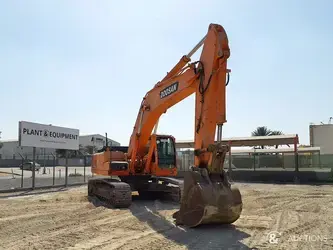

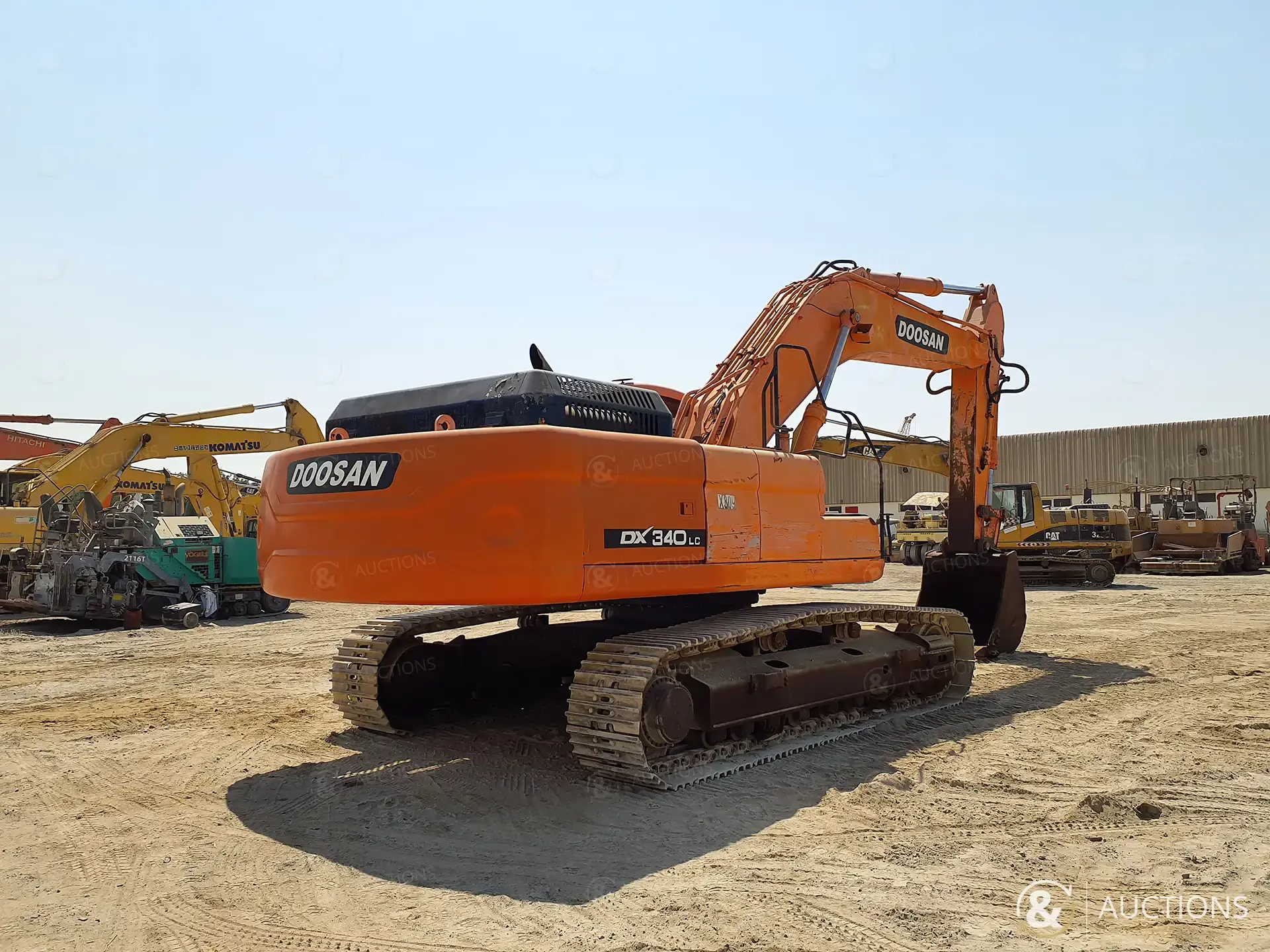

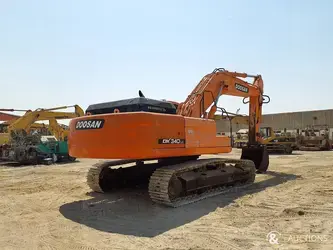

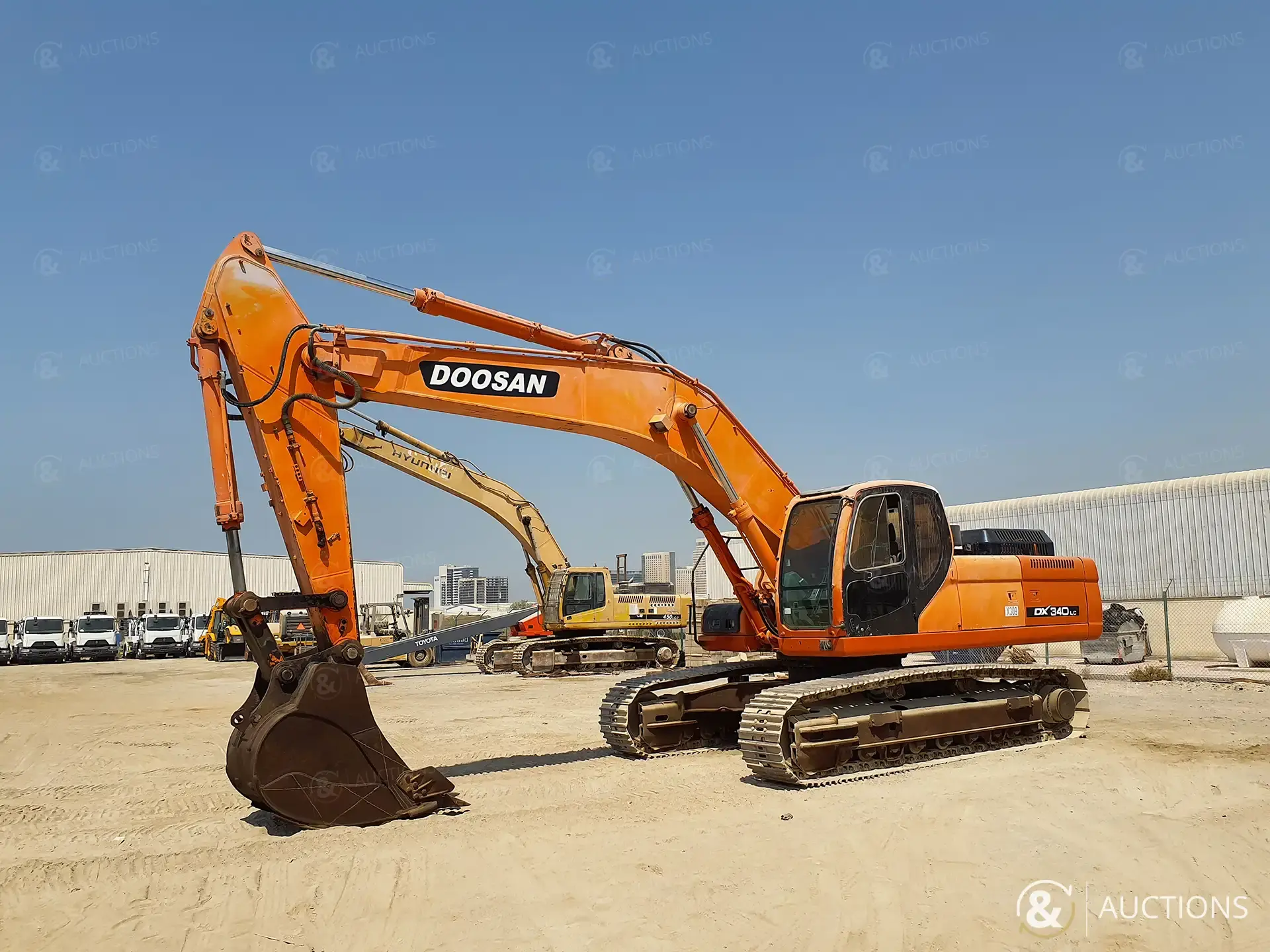

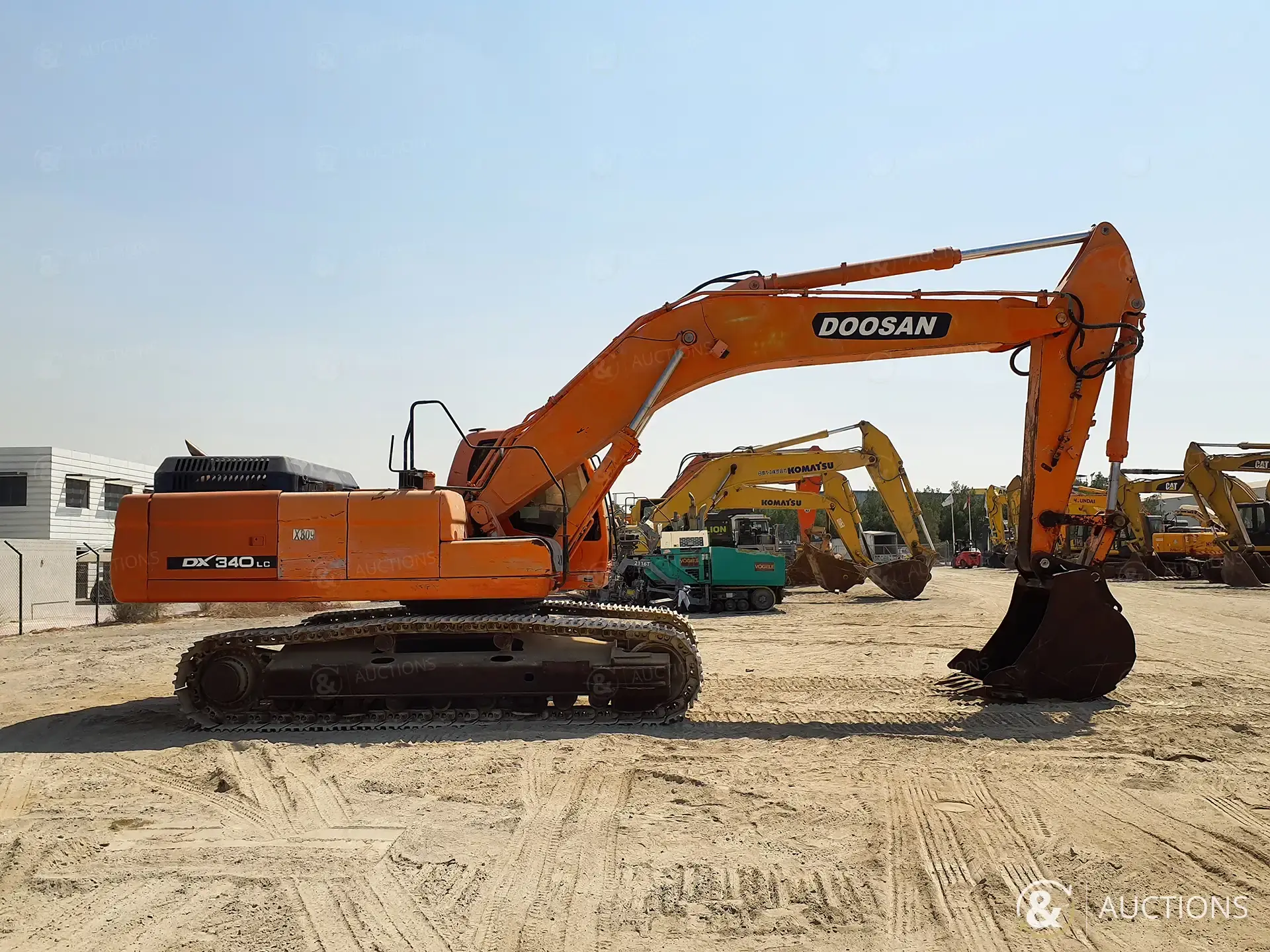

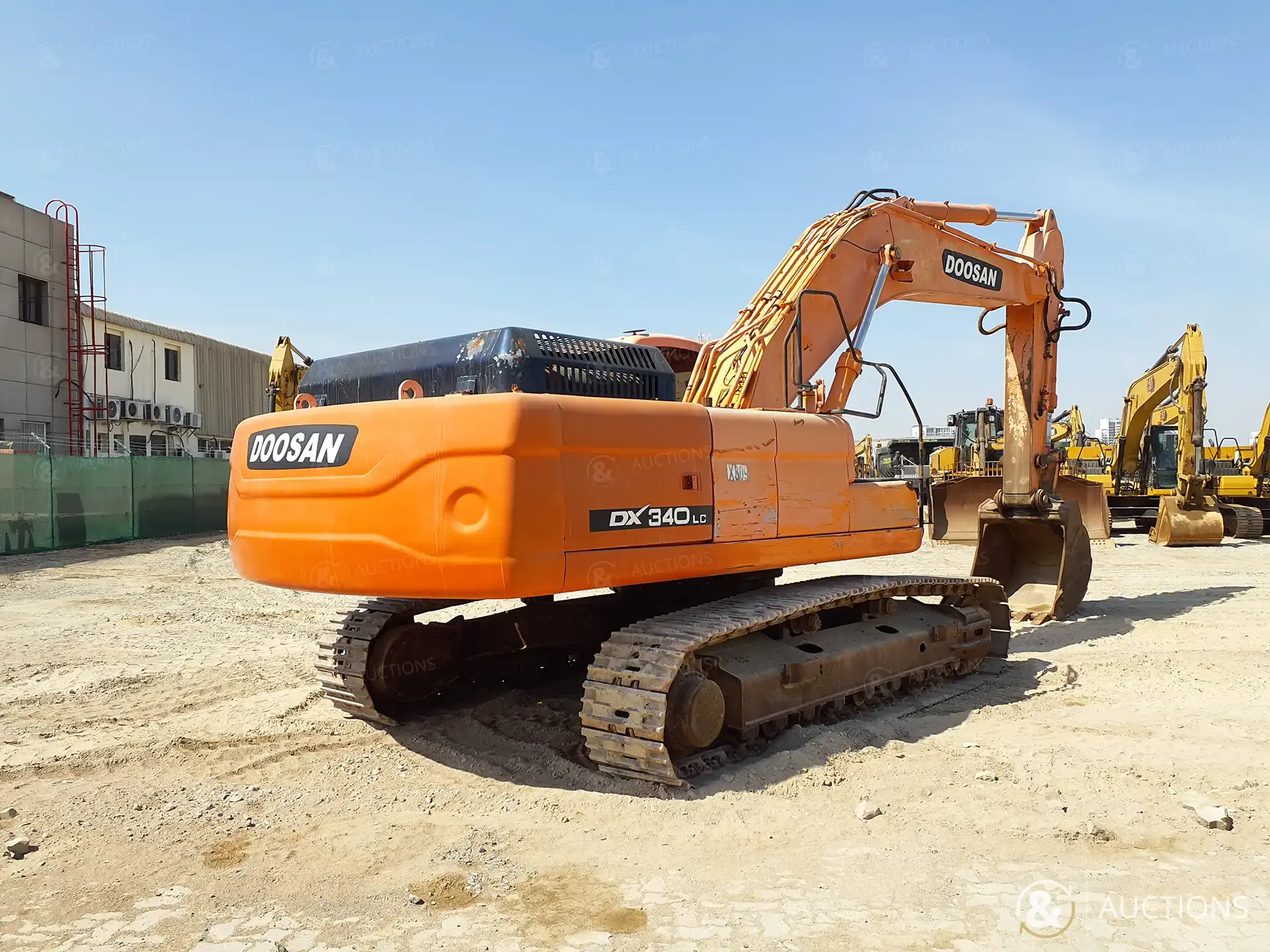

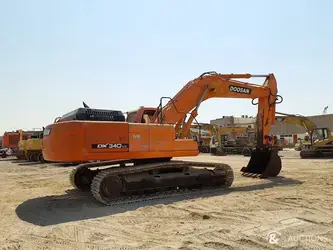

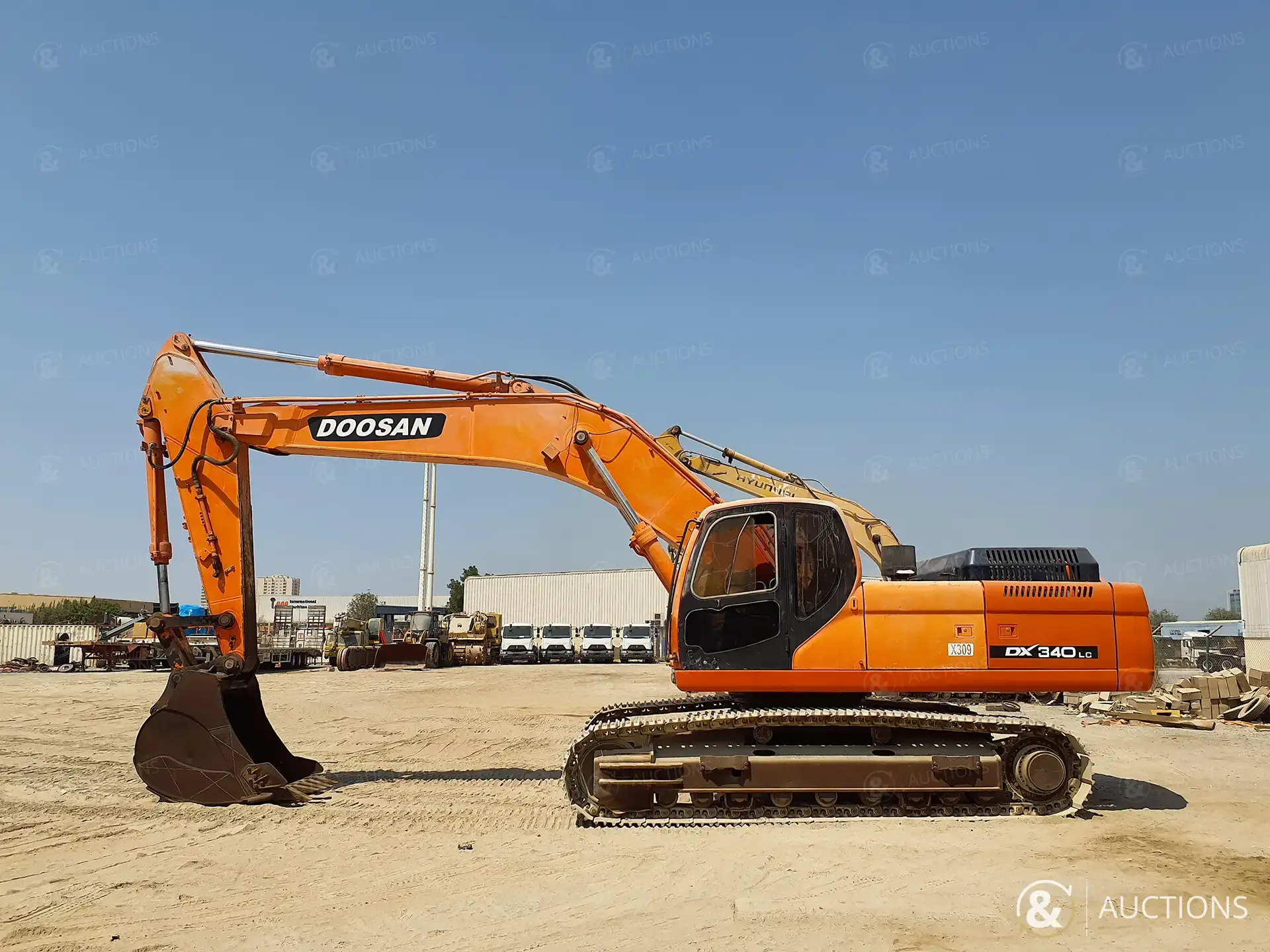

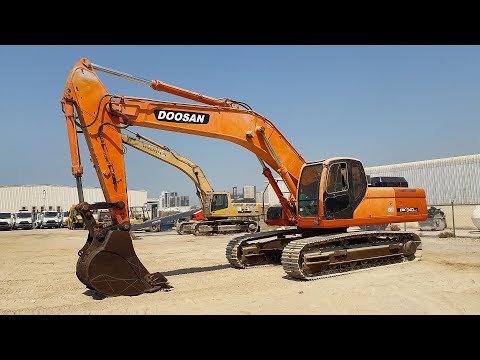

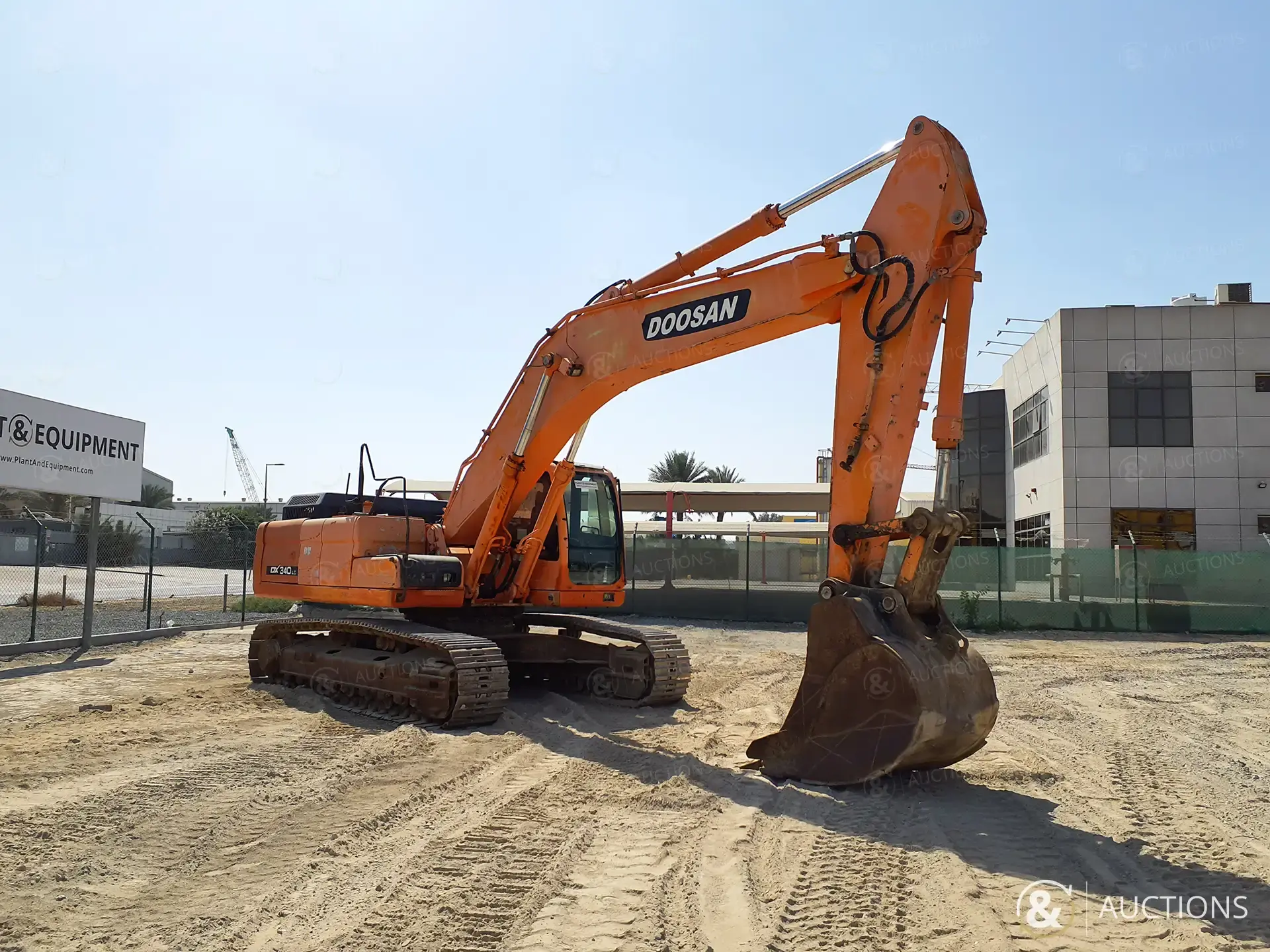

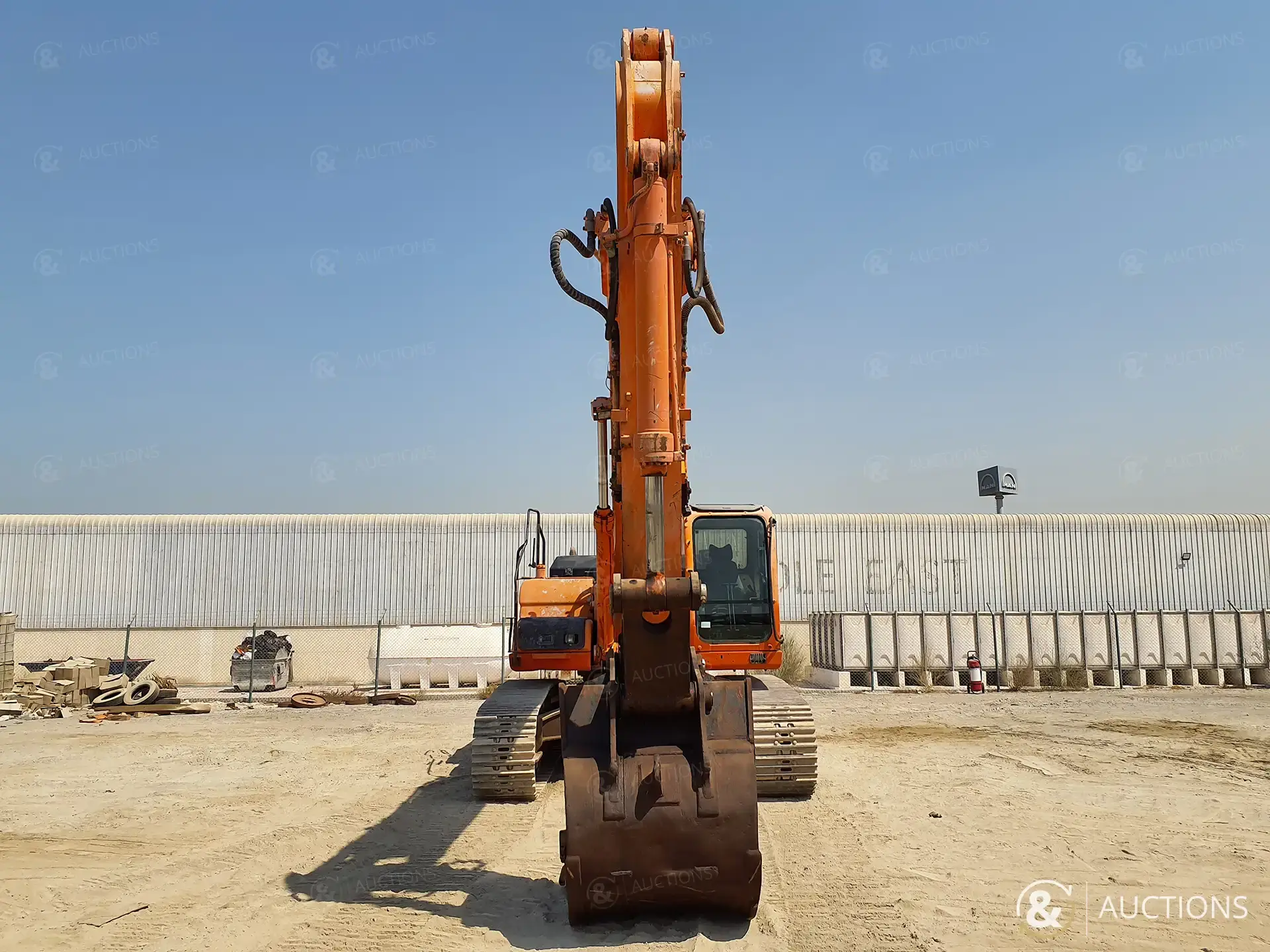

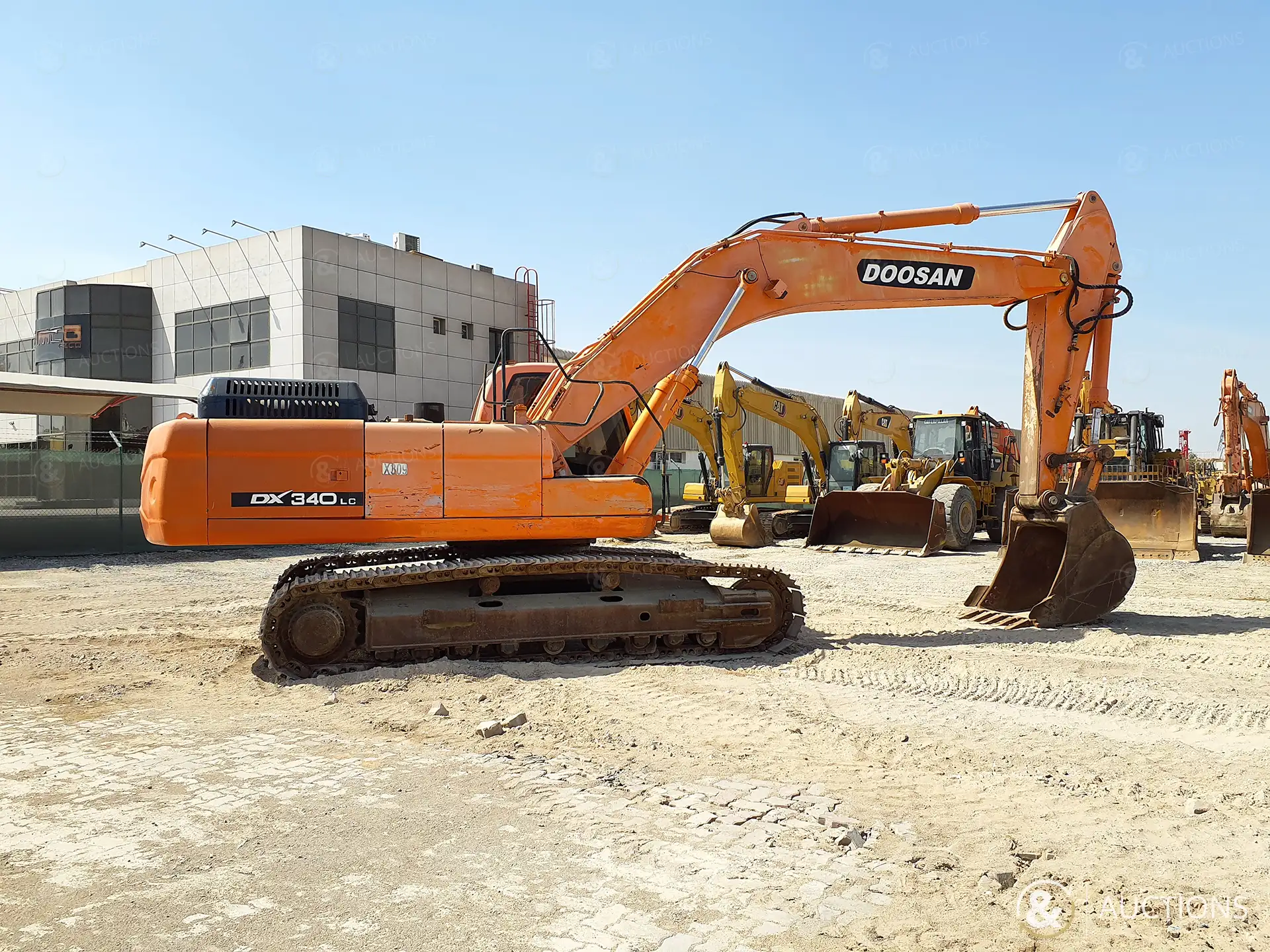

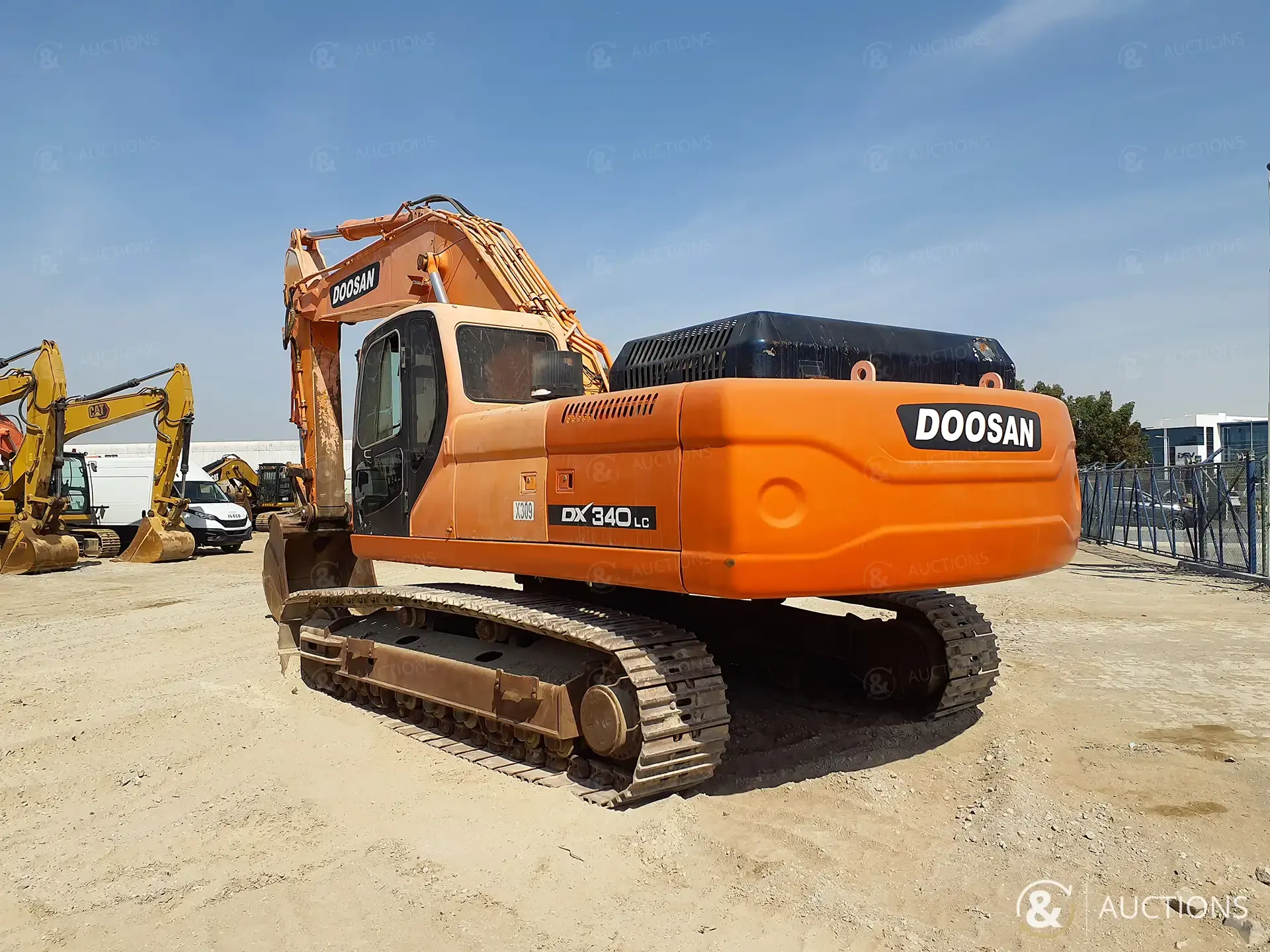

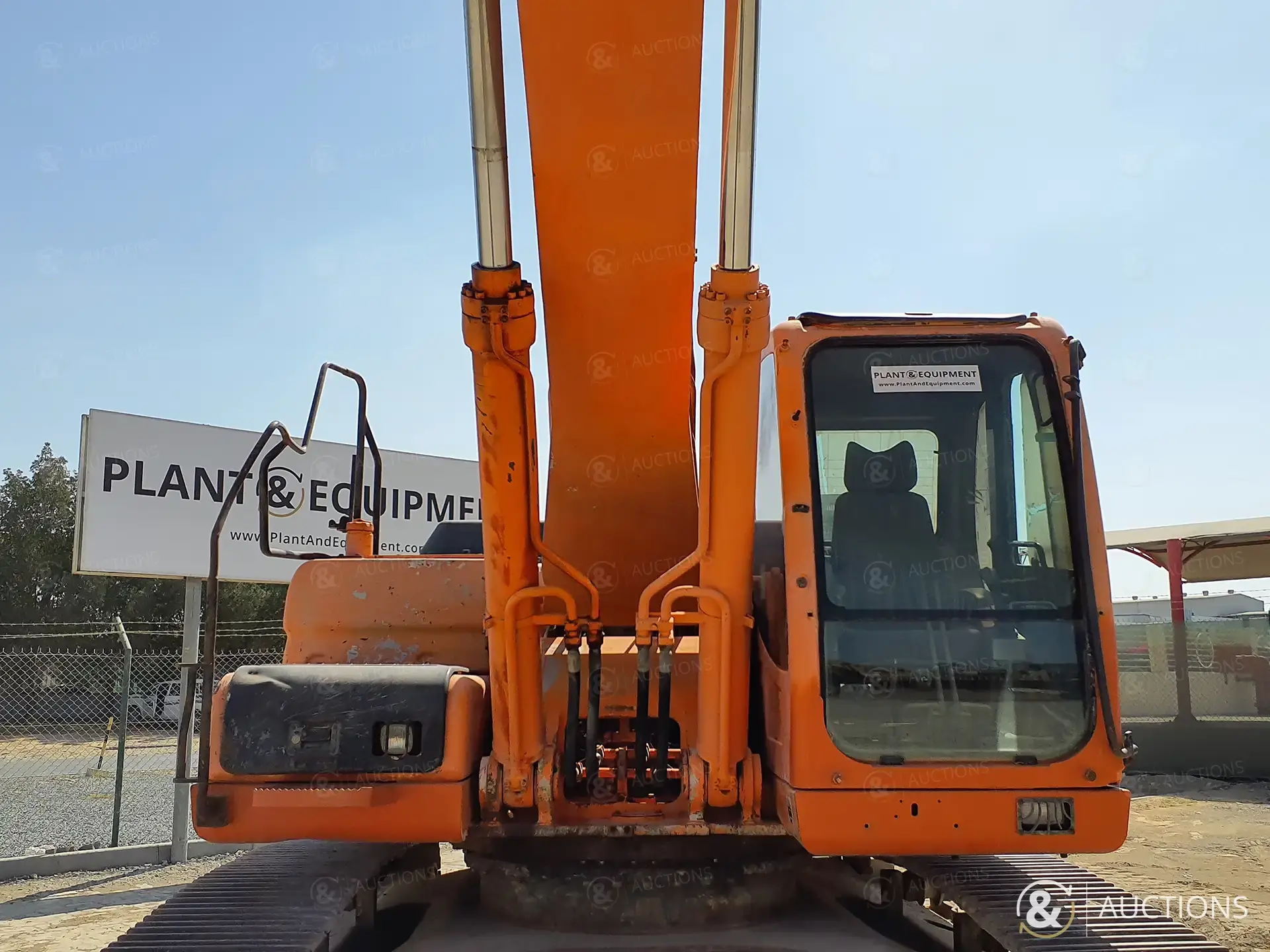

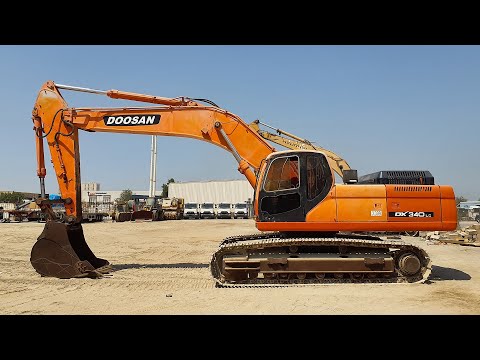

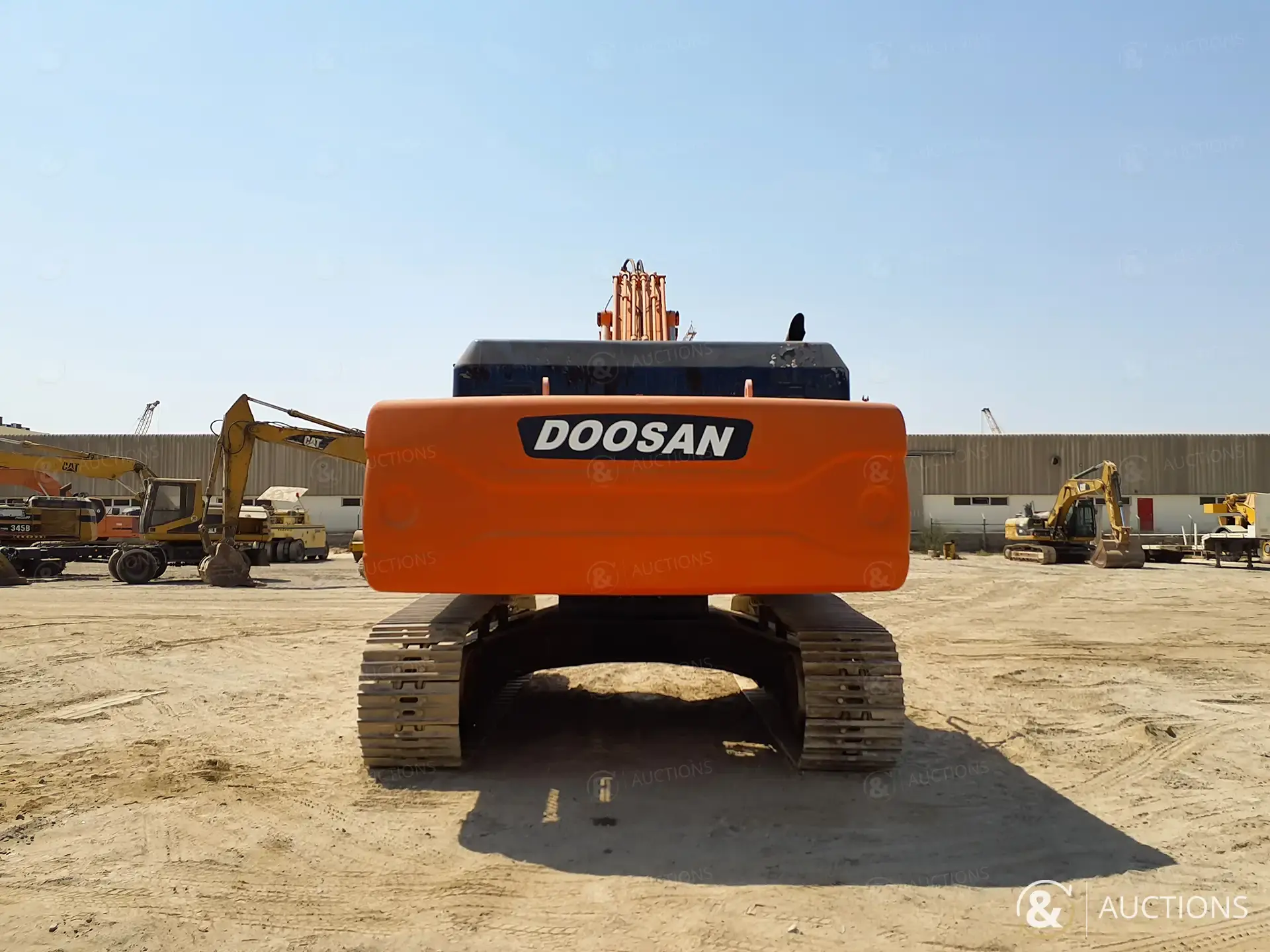

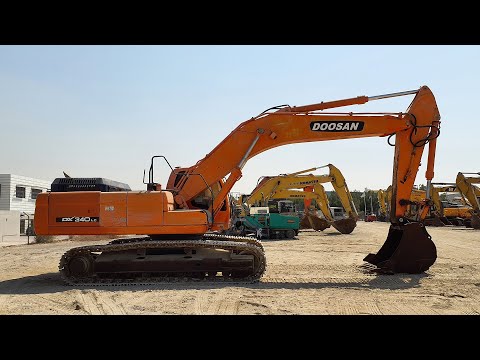

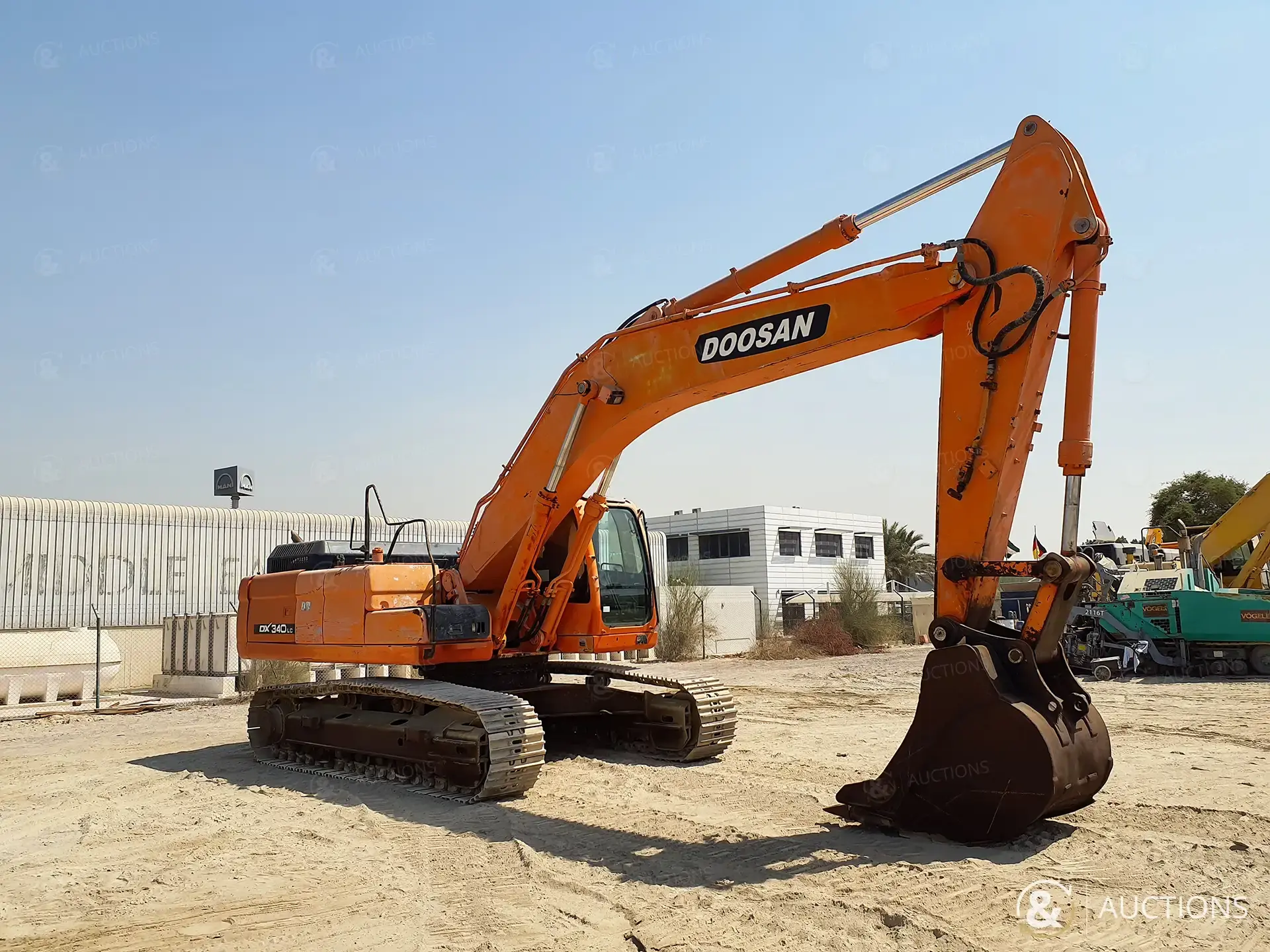

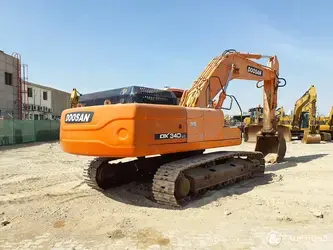

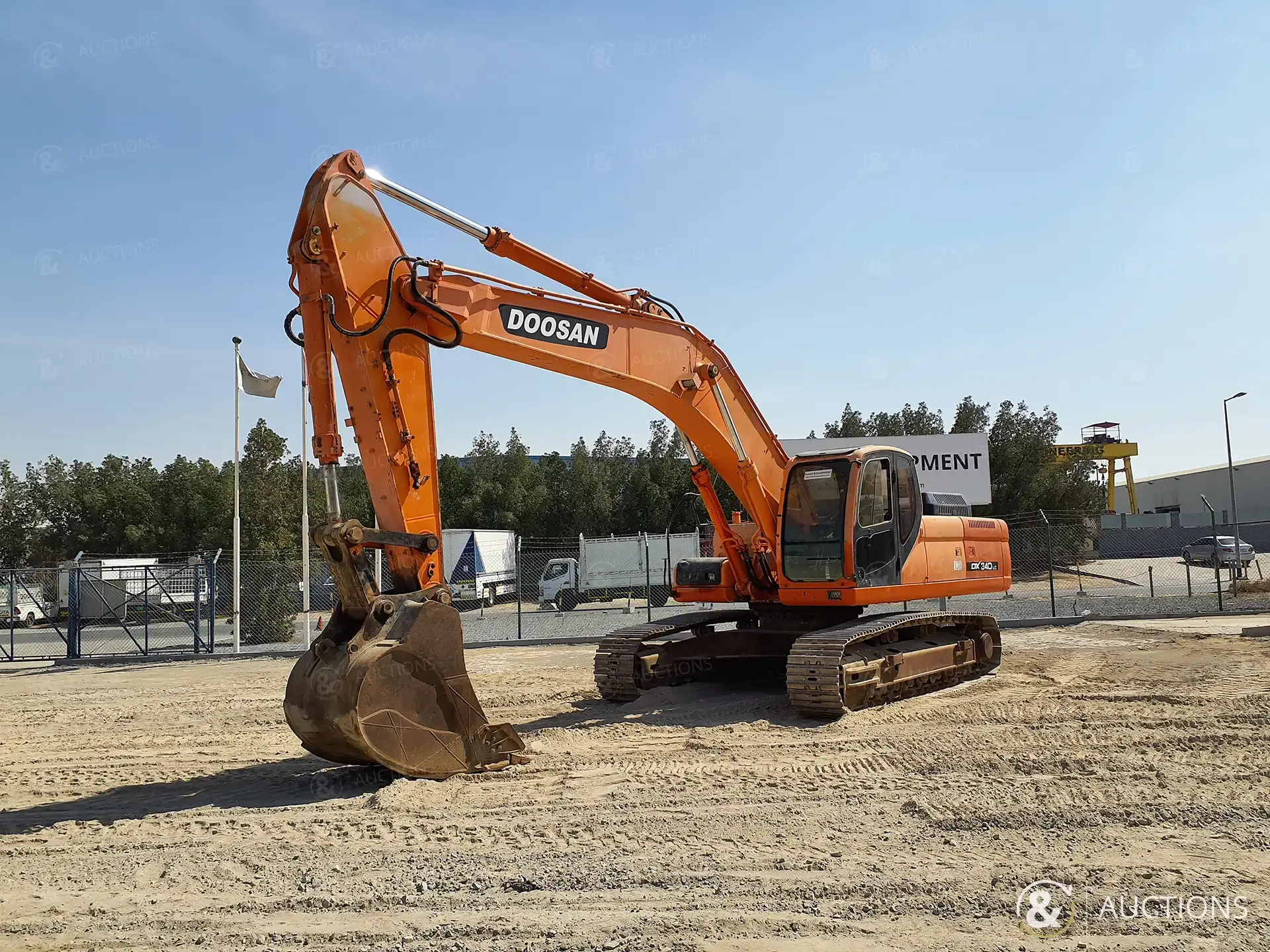

2012 دووسان DX340LC
2012 دووسان DX340LC
السنة
٢٠١٢
١
/
٨٥
تقديم عرض
١
/
٨٥
نظرة عامة
عنوان موقع المعدات والآليات
الشركة العالمية لتجارة المعدات م.م.ح.
(شركة تابعة لشركة بلانت آند إيكويبمنت القابضة)
المنطقة الحرة بجبل علي (جافزا)، قطعة الأرض رقم S10516، بالقرب من البوابة 9 - دبي، الإمارات العربية المتحدة
الوصف
GCC DUTIES NOT PAID
Operating Weight: 35200 kg
Shipping Height: 3360 mm
Shipping Length: 11280 mm
Transport Width: 3280 mm
Engine Model: Doosan DLo8
Engine Power: 184 kW 247 hp @ 1750 rpm
GCC DUTIES NOT PAID
Operating Weight: 35200 kg
Shipping Height: 3360 mm
Shipping Length: 11280 mm
Transport Width: 3280 mm
Engine Model: Doosan DLo8
Engine Power: 184 kW 247 hp @ 1750 rpm
أظهر المزيد عرض أقل
تقرير الفحص
مشاهدات
خدمة الفحص مقدمة من قبل
تقرير الفحص
Key Features & Condition
| Safety Certification Label | N/A |
| Boom Hydraulic Check Valve | N/A |
| Adjustable Boom System | N/A |
| Automatic Lubrication System | N/A |
| Arm Hydraulic Check Valve | N/A |
| Diesel Particulate Filter | N/A |

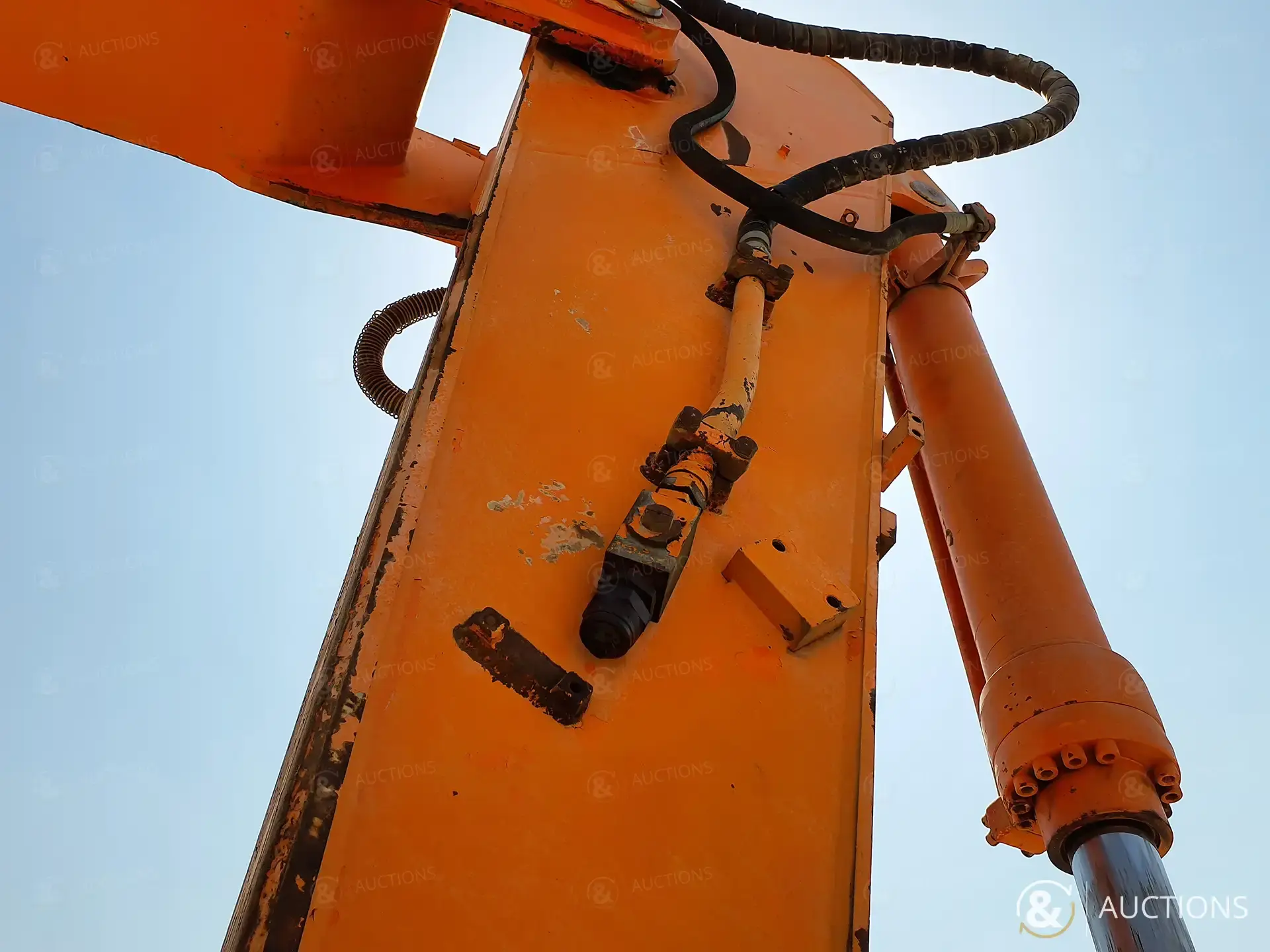

| Hydraulic Hammer Lines | Yes |
| Grapple And Shear Hydraulic Lines | N/A |
| Diesel Exhaust Fluid System Addblue | N/A |
| Stabilizer Blade Condition | N/A |
| Horn | Yes |

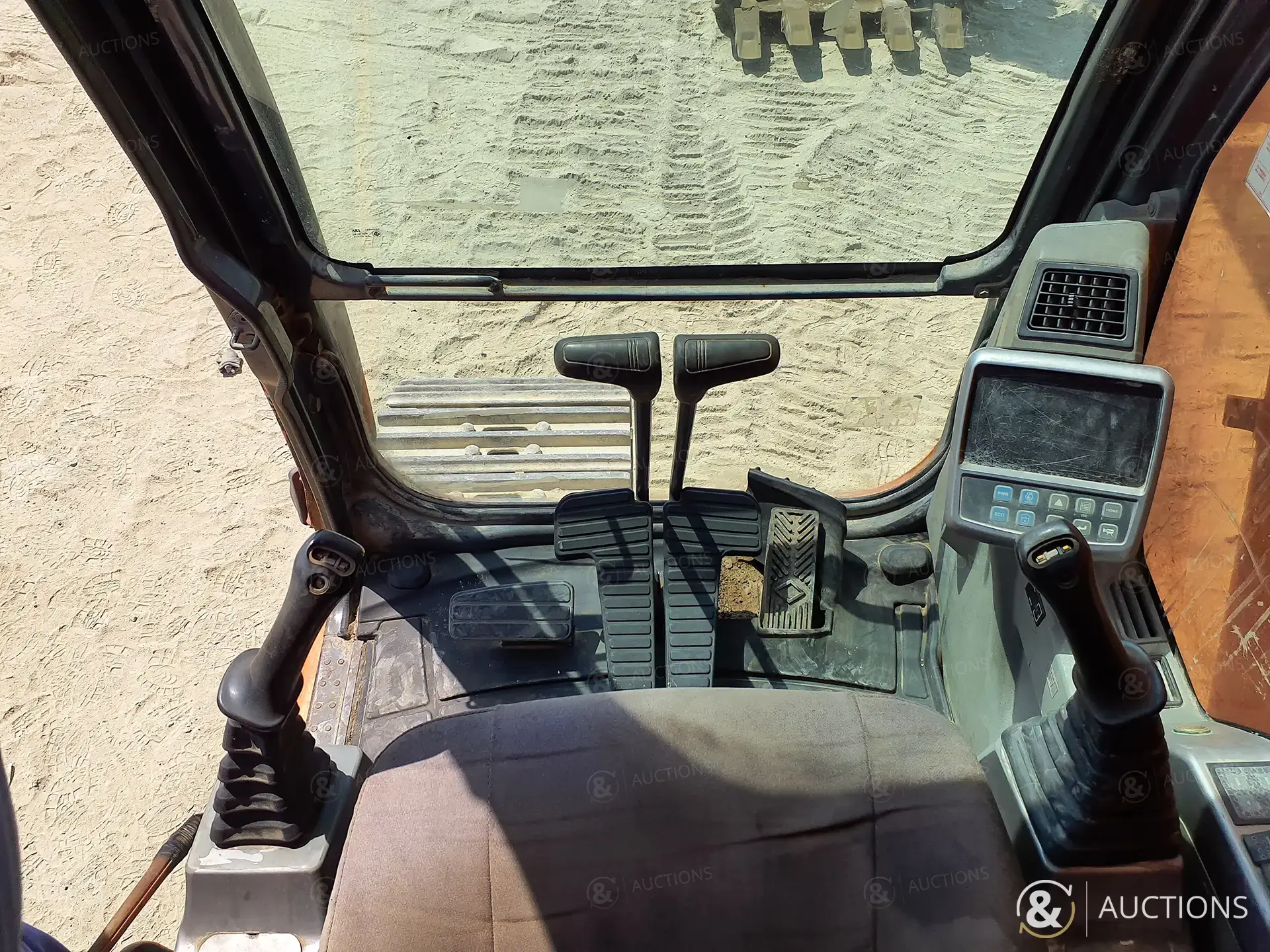

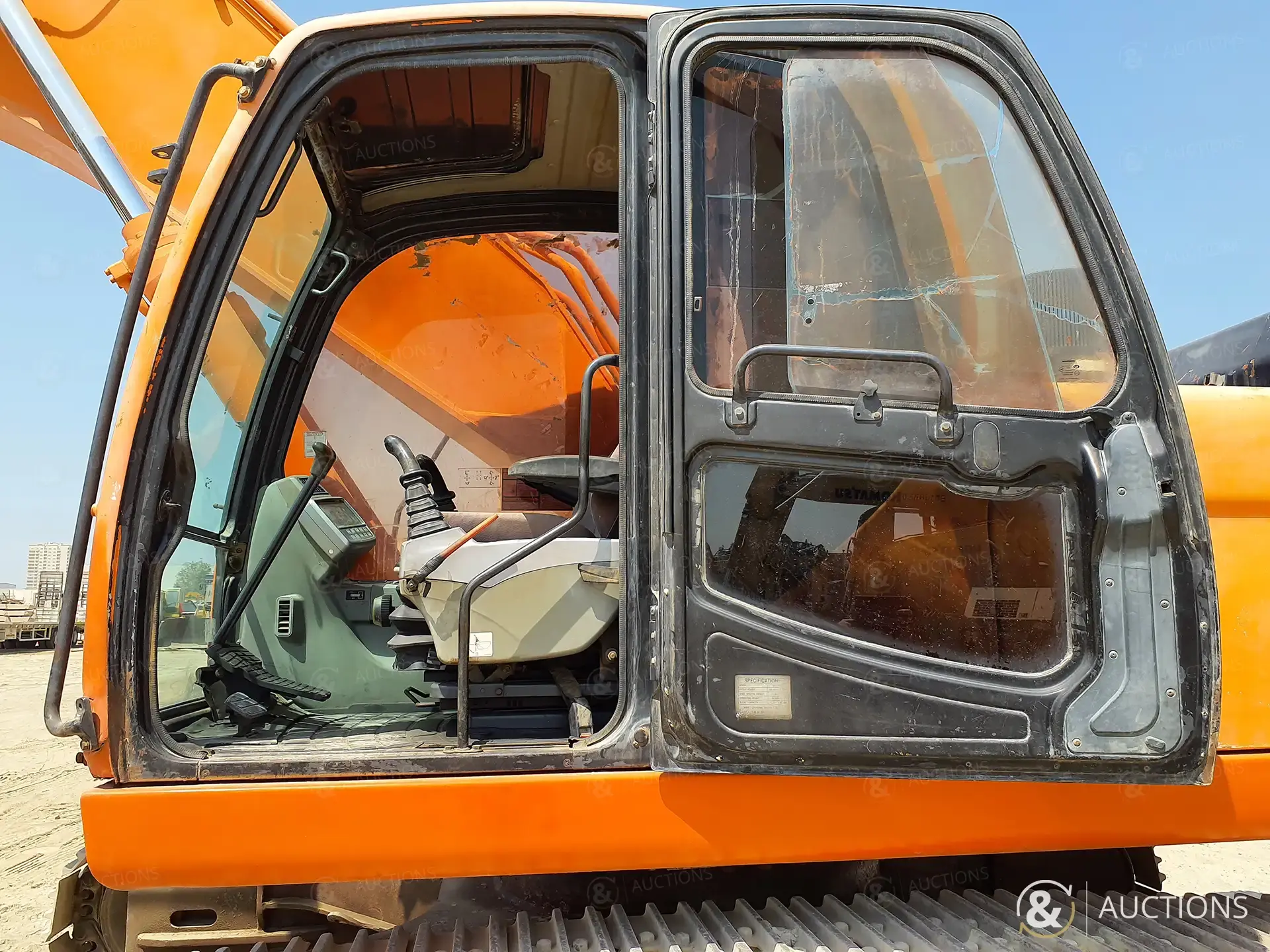

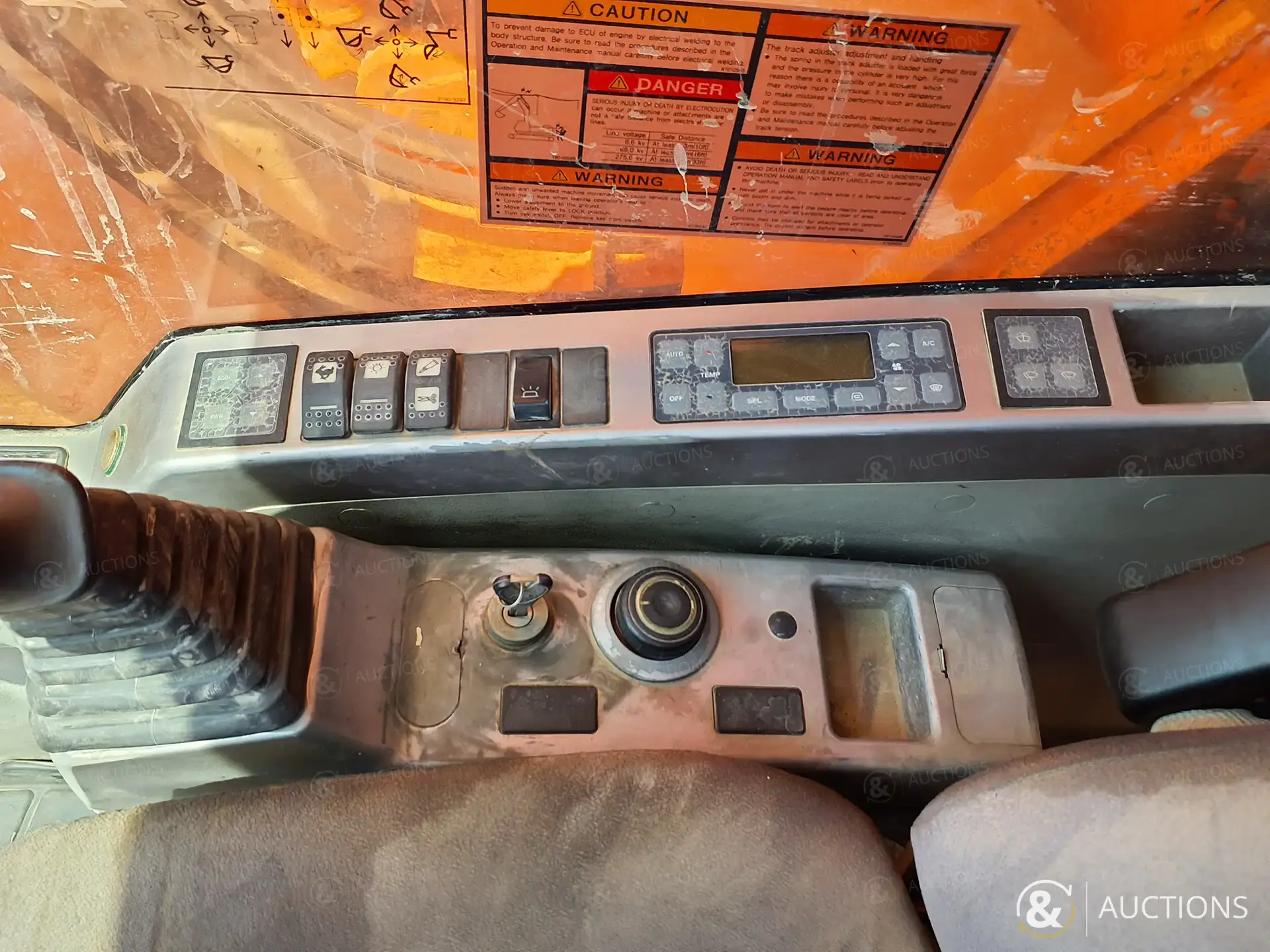

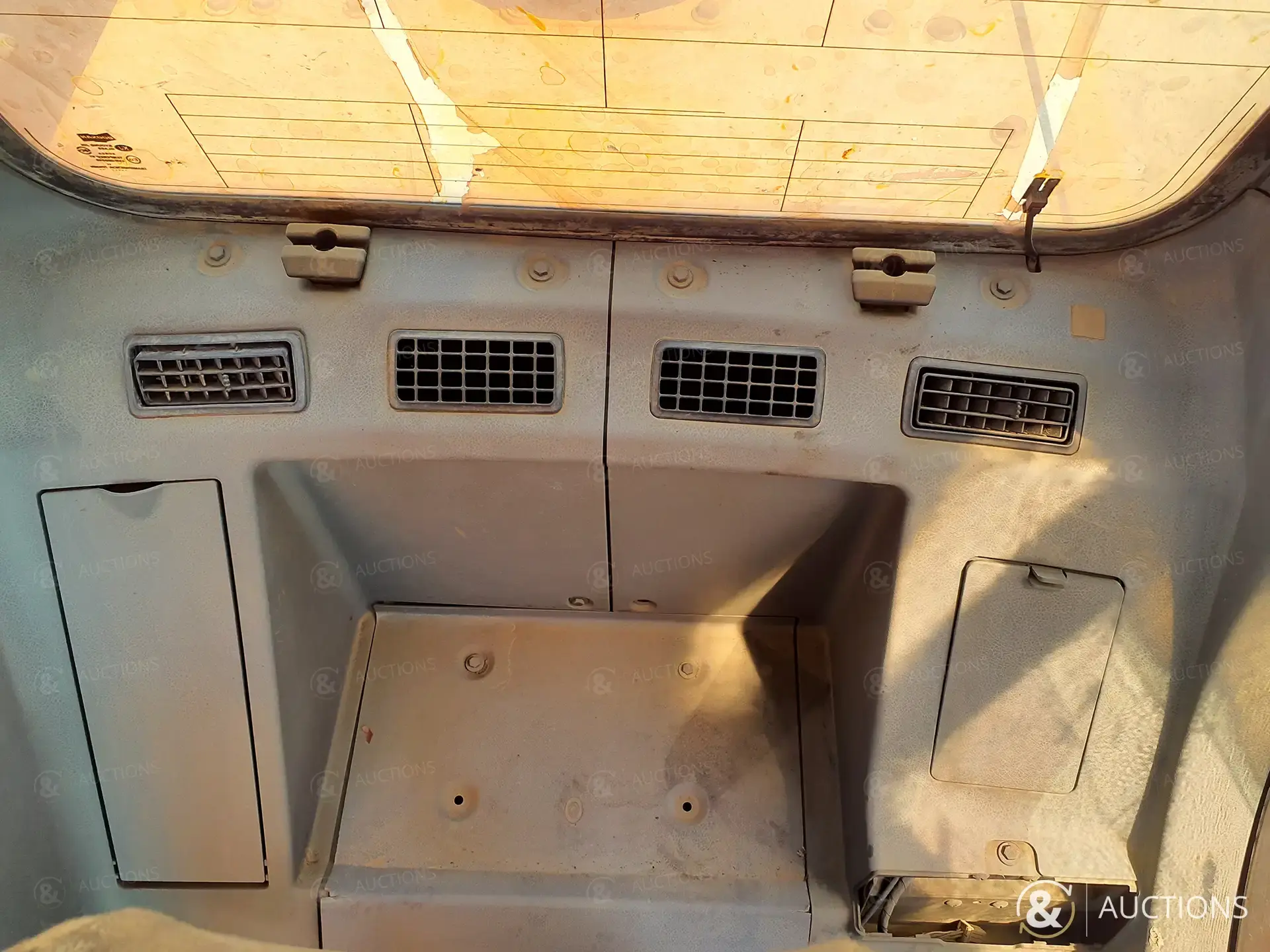

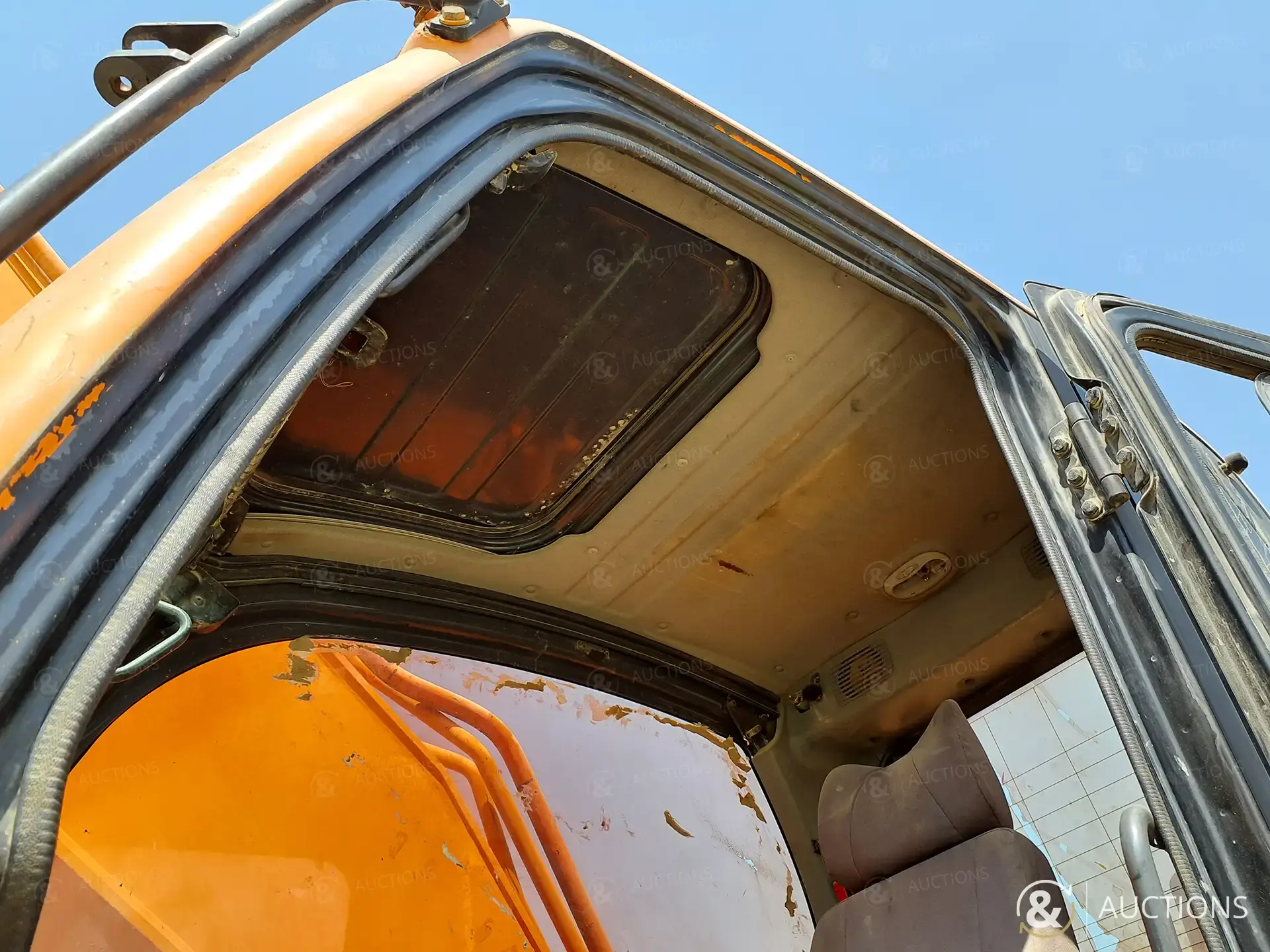

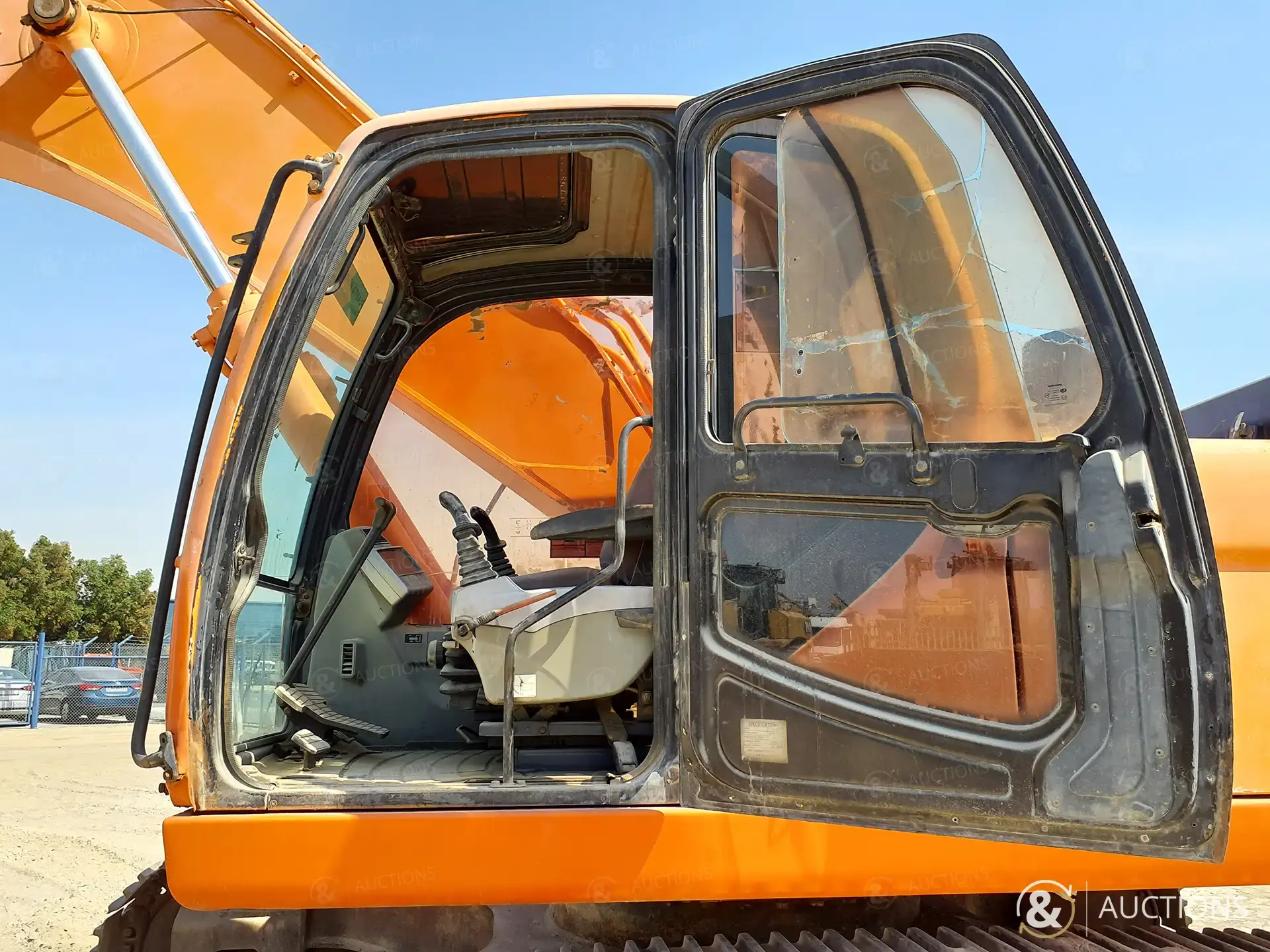

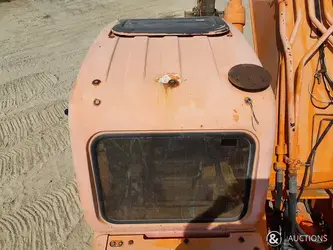

Operator Cabin Details

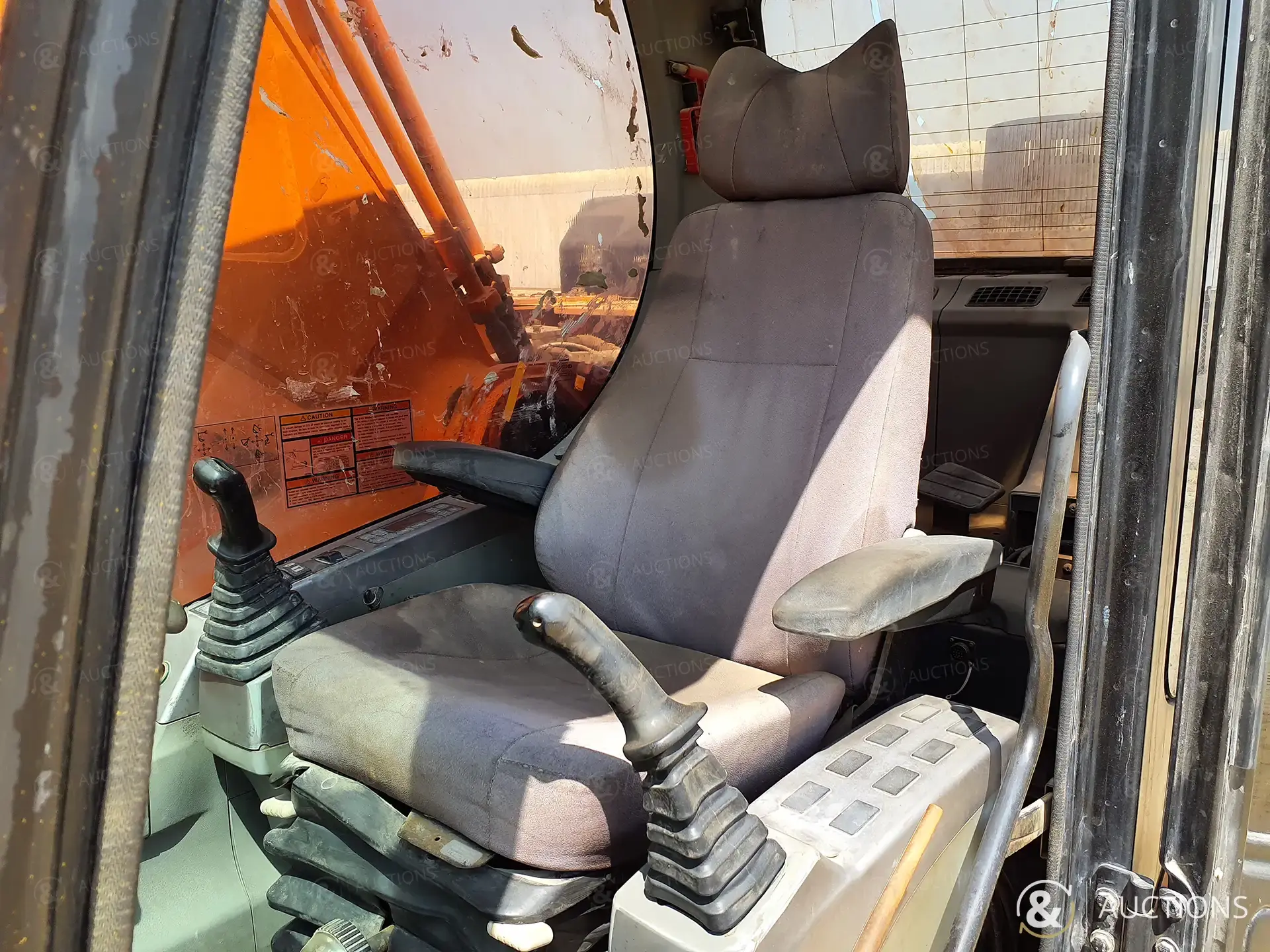

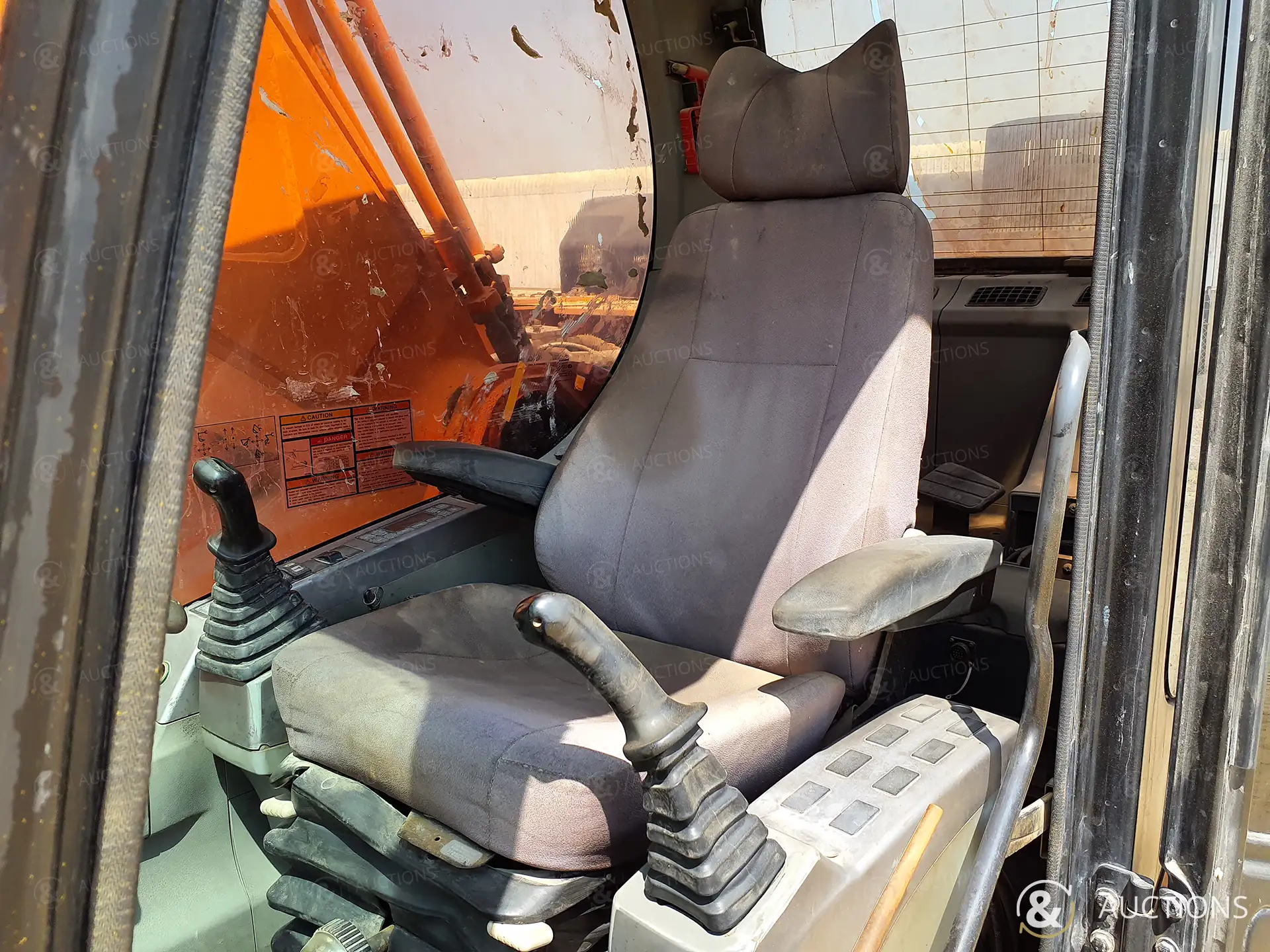

| Seat And Arm Support | Ok |

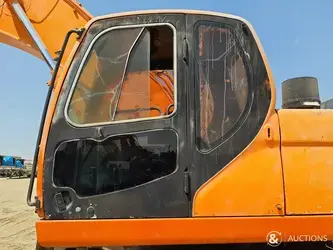

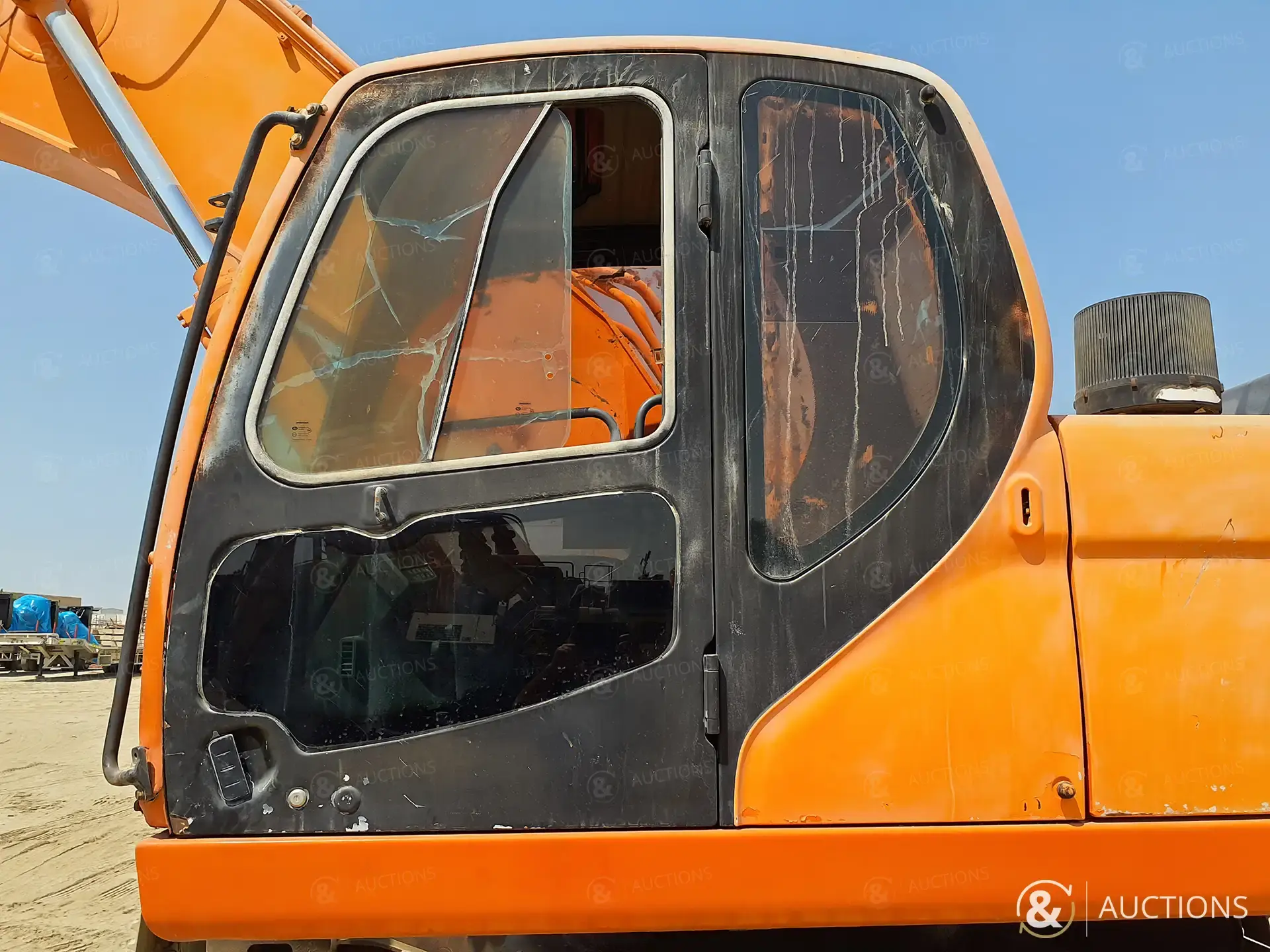

| Cab Doors & Covers | Ok |
| Control Levers, Control Stick | Ok |

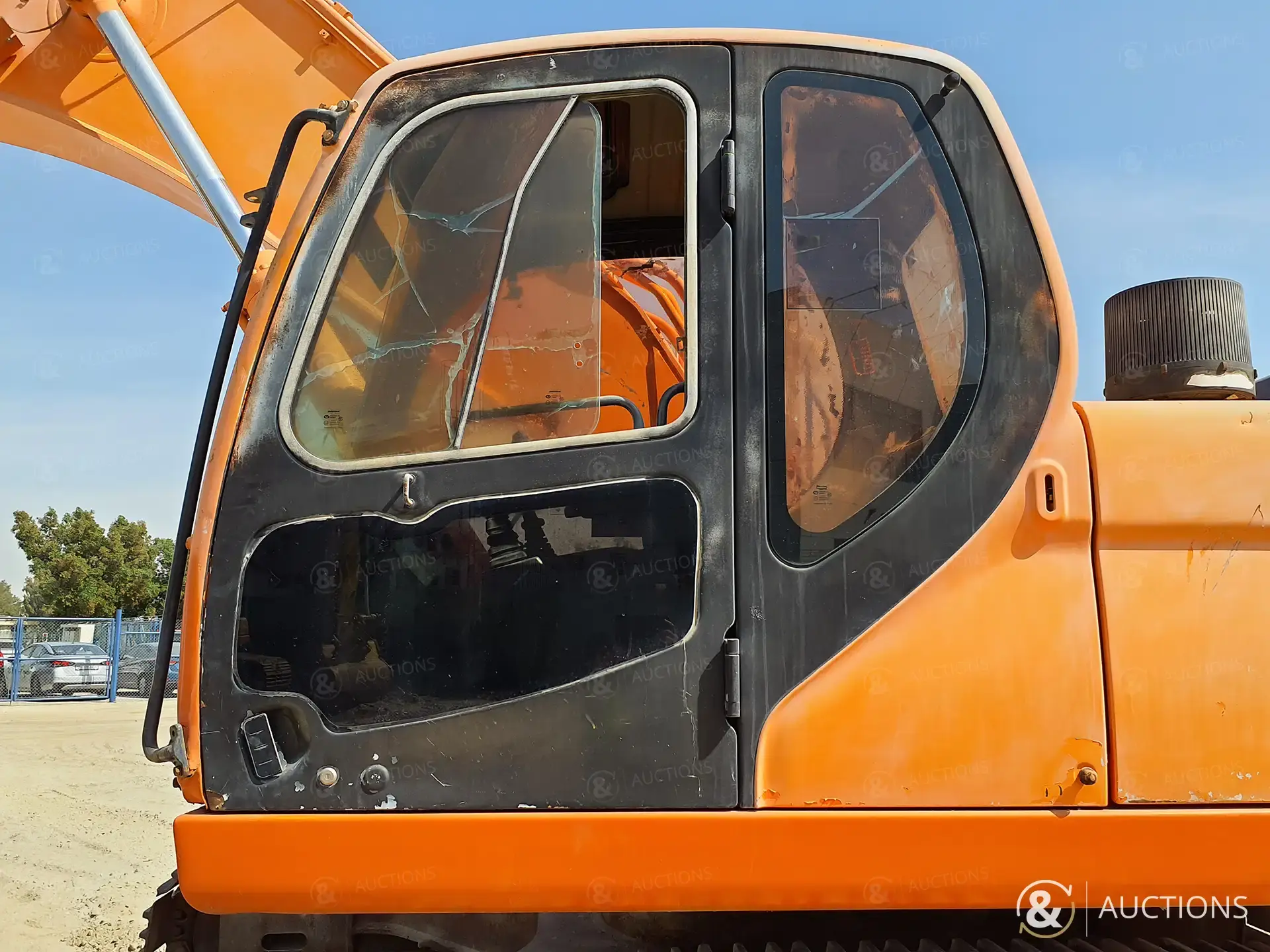

| Windows And Mirrors | Ok, no mirrors |

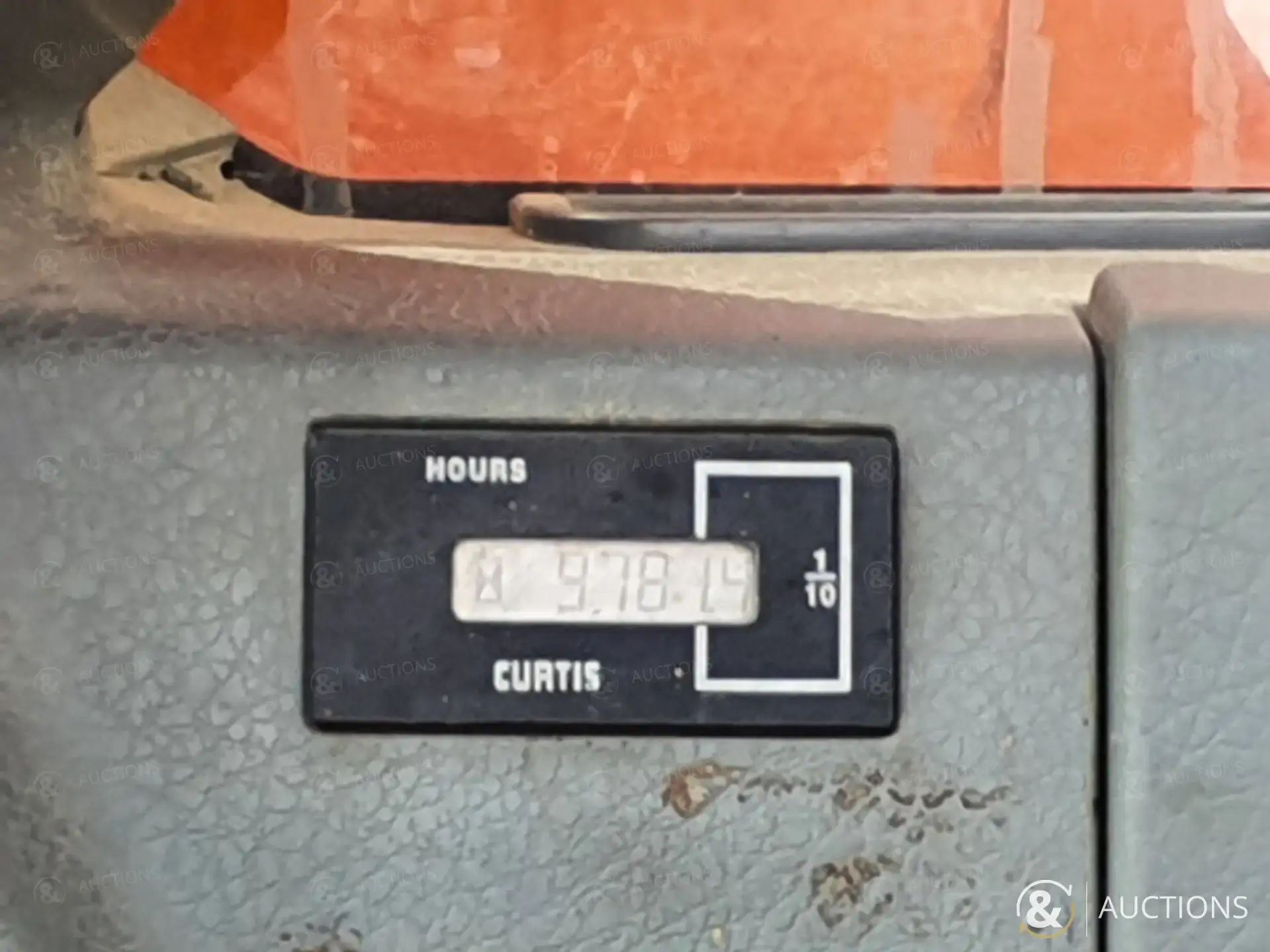

| Dashboard Screen, Gauges | Ok |
| Warning Alarms Message | Ok |
| Washer, Wipers | Missing |
| Air Conditioning & Heating System | Not functional |
| Cab Floor Covering | Ok |
| Cab Structure, Gard | Ok |
| Electrical System | Ok |

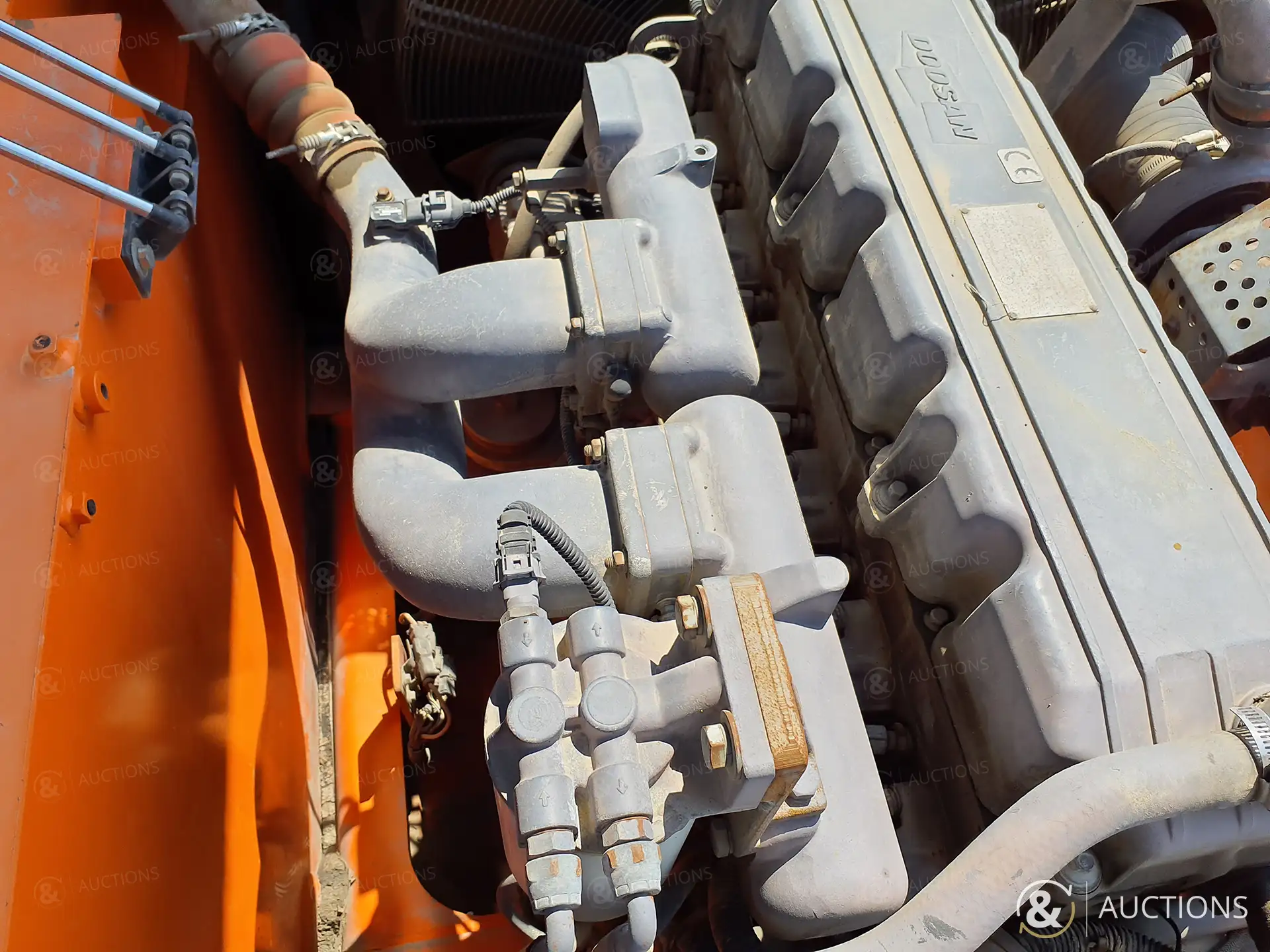

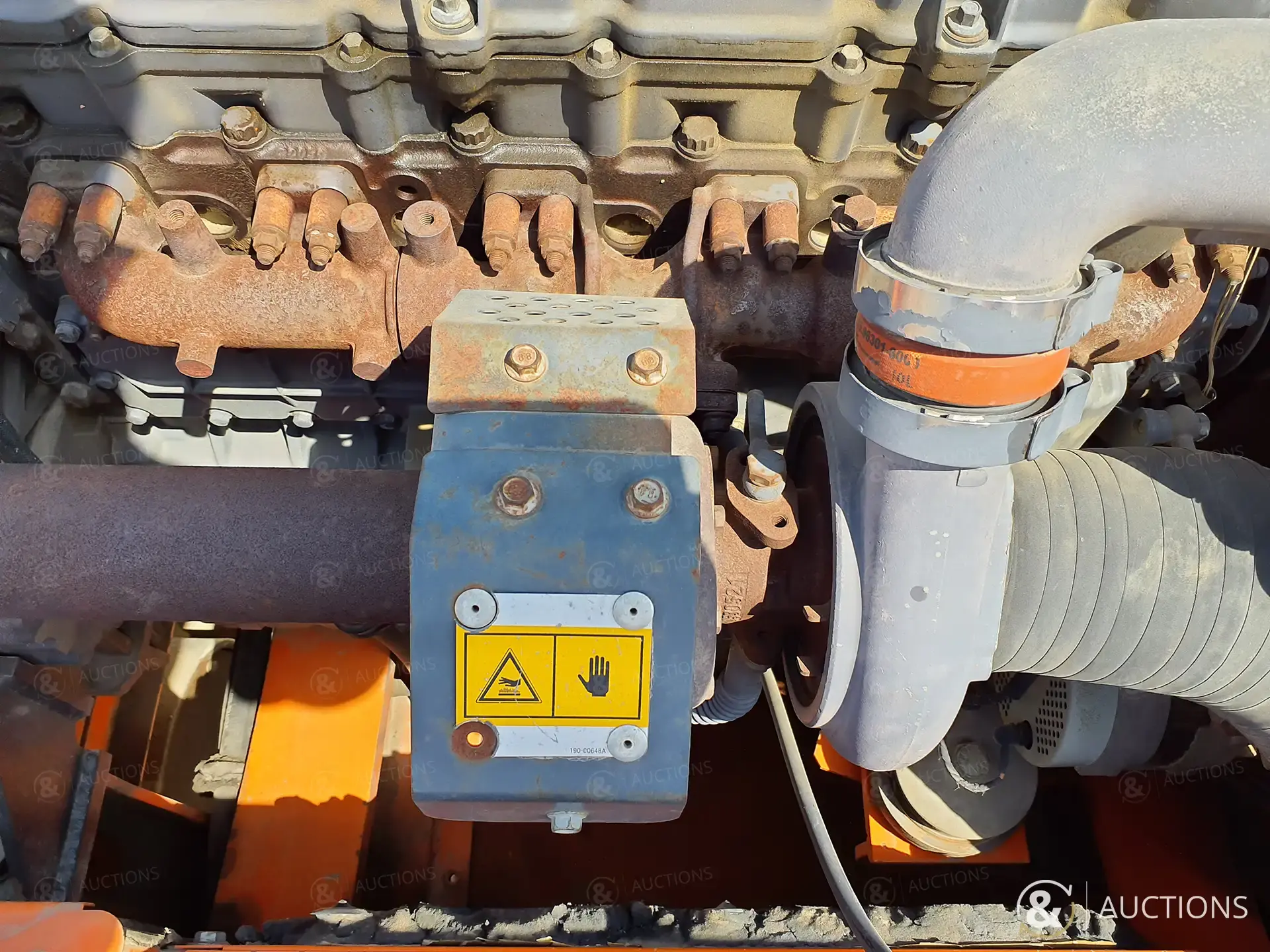

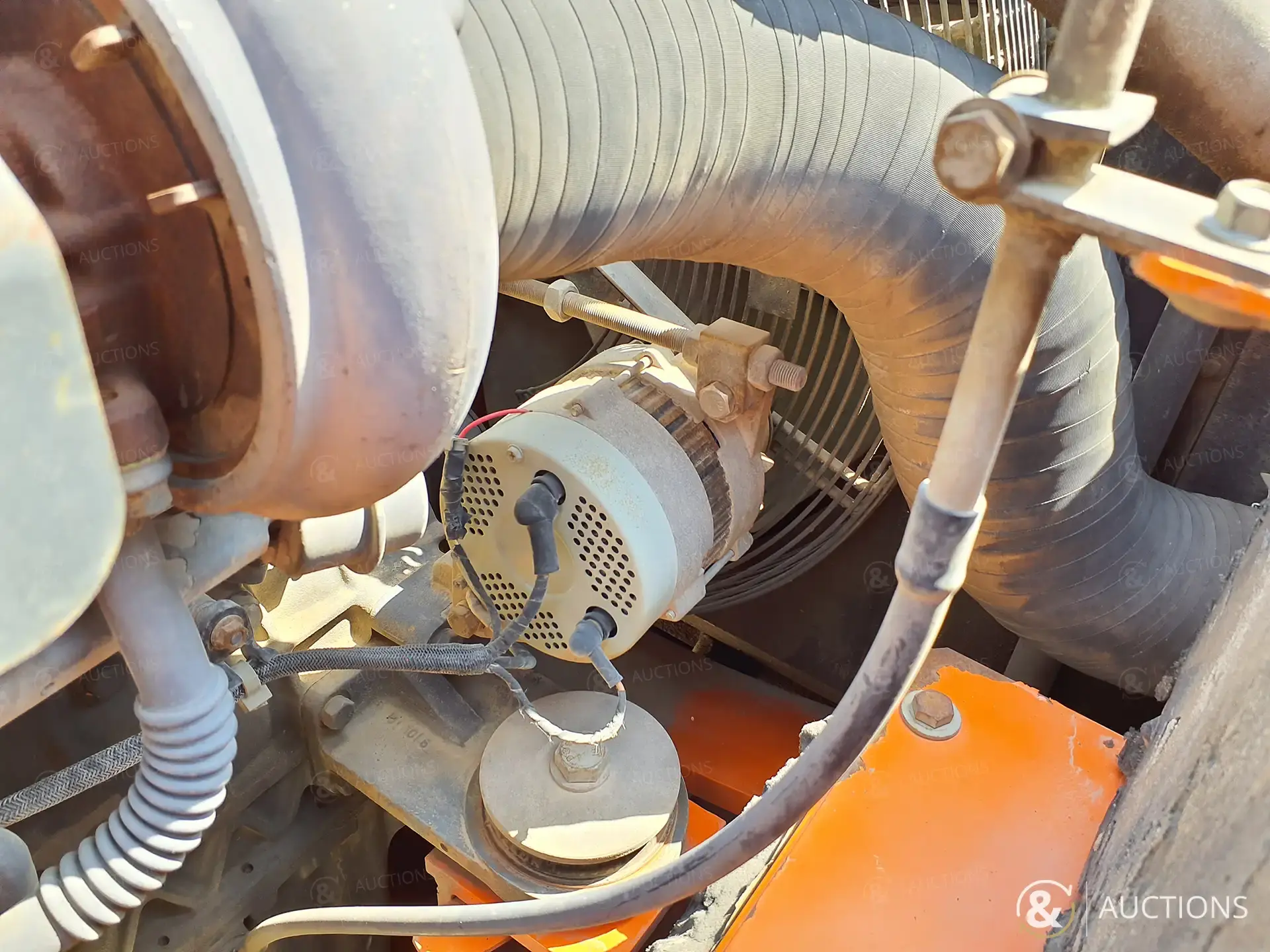

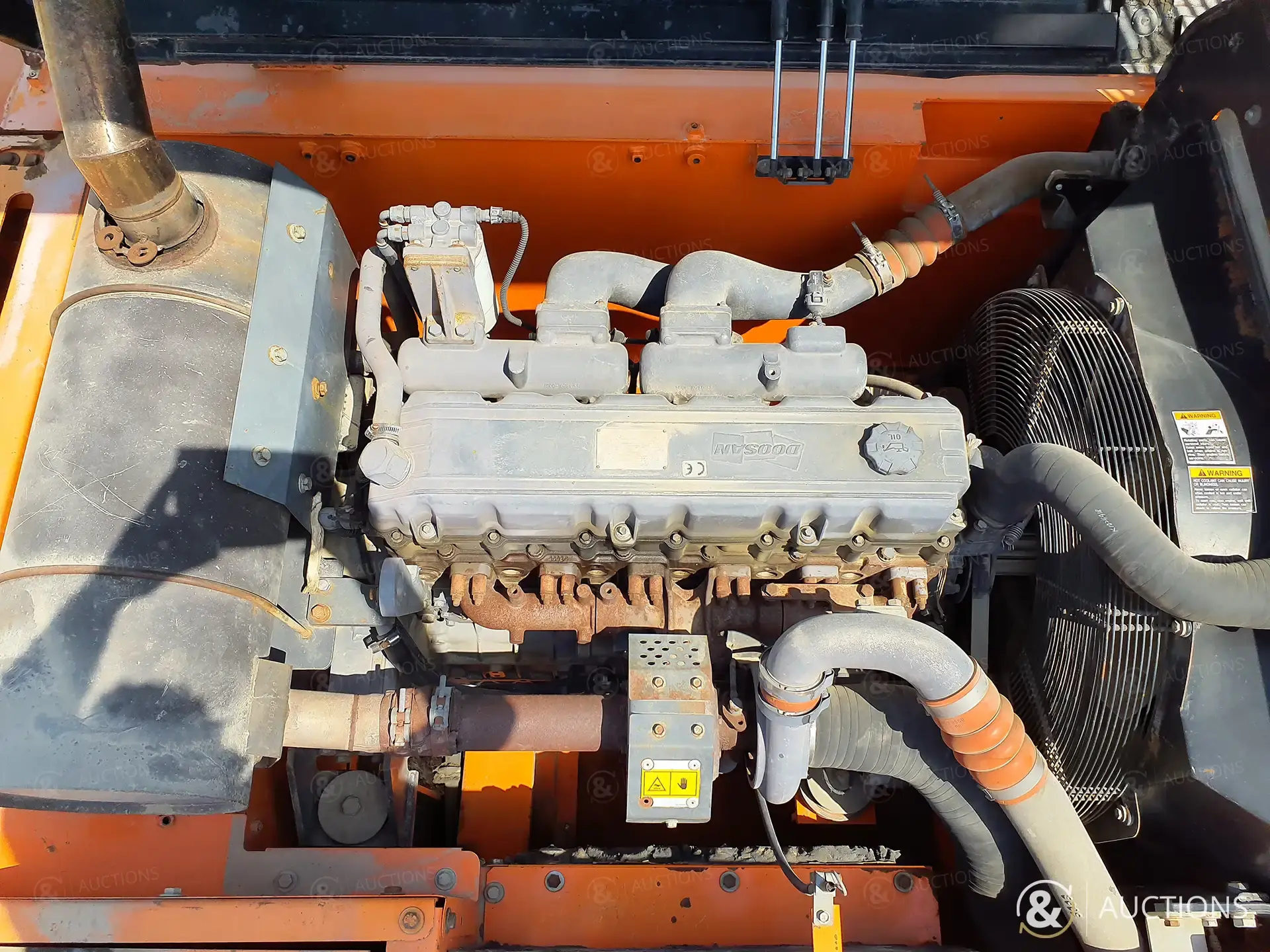

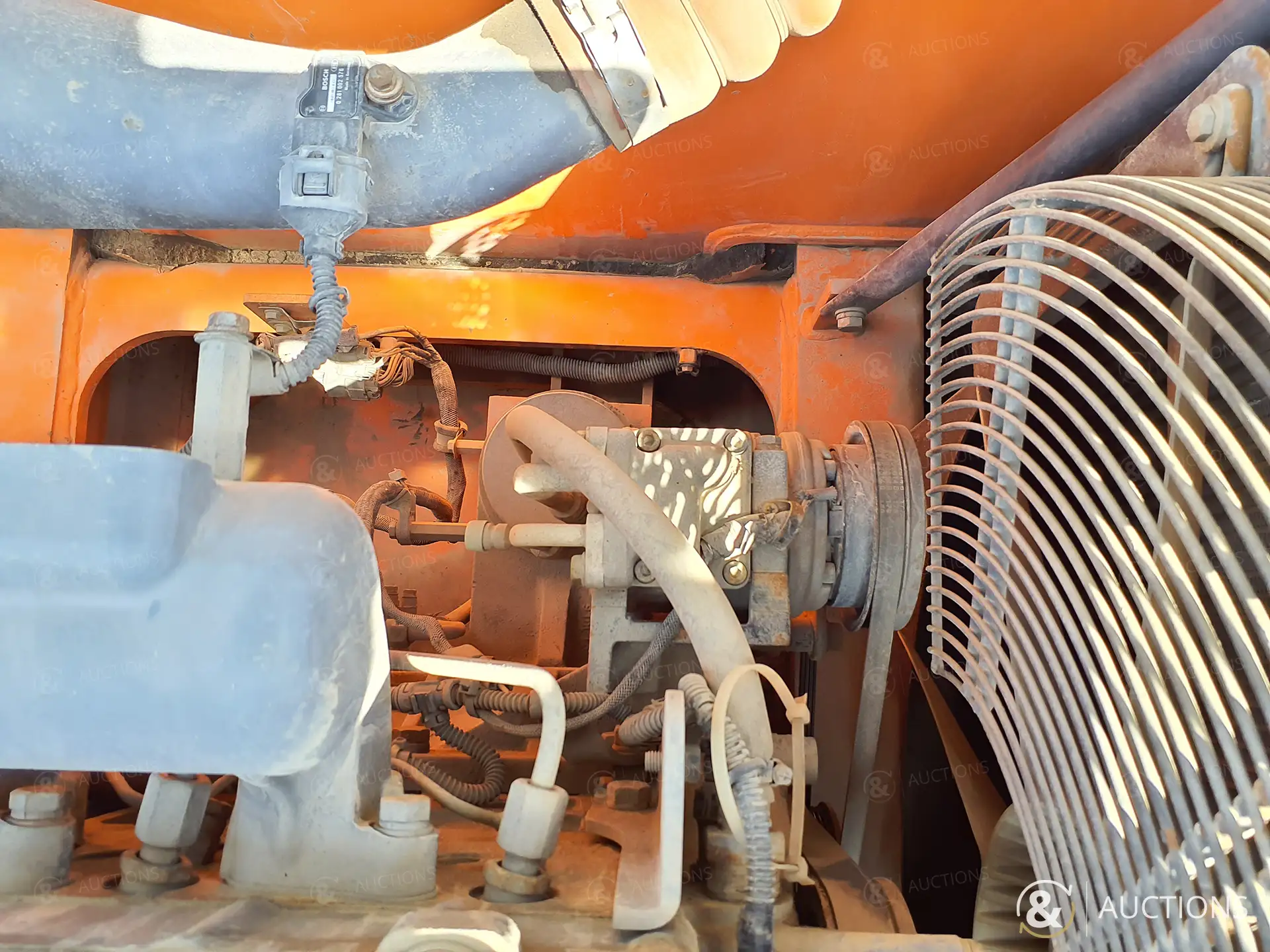

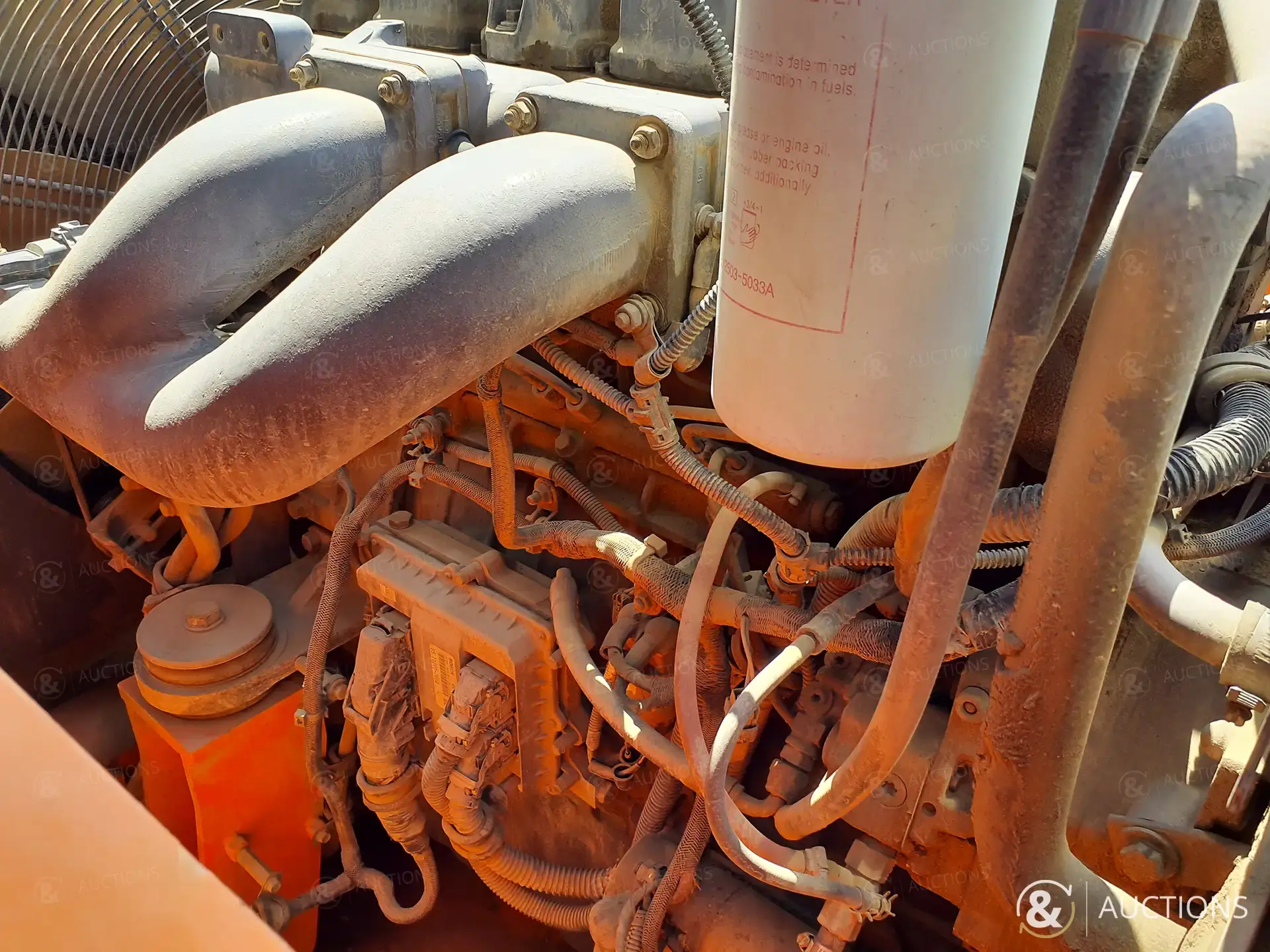

Engine & Performance
| Fuel Injection System | Electronic |
| Engine Model | Doosan DL08 |

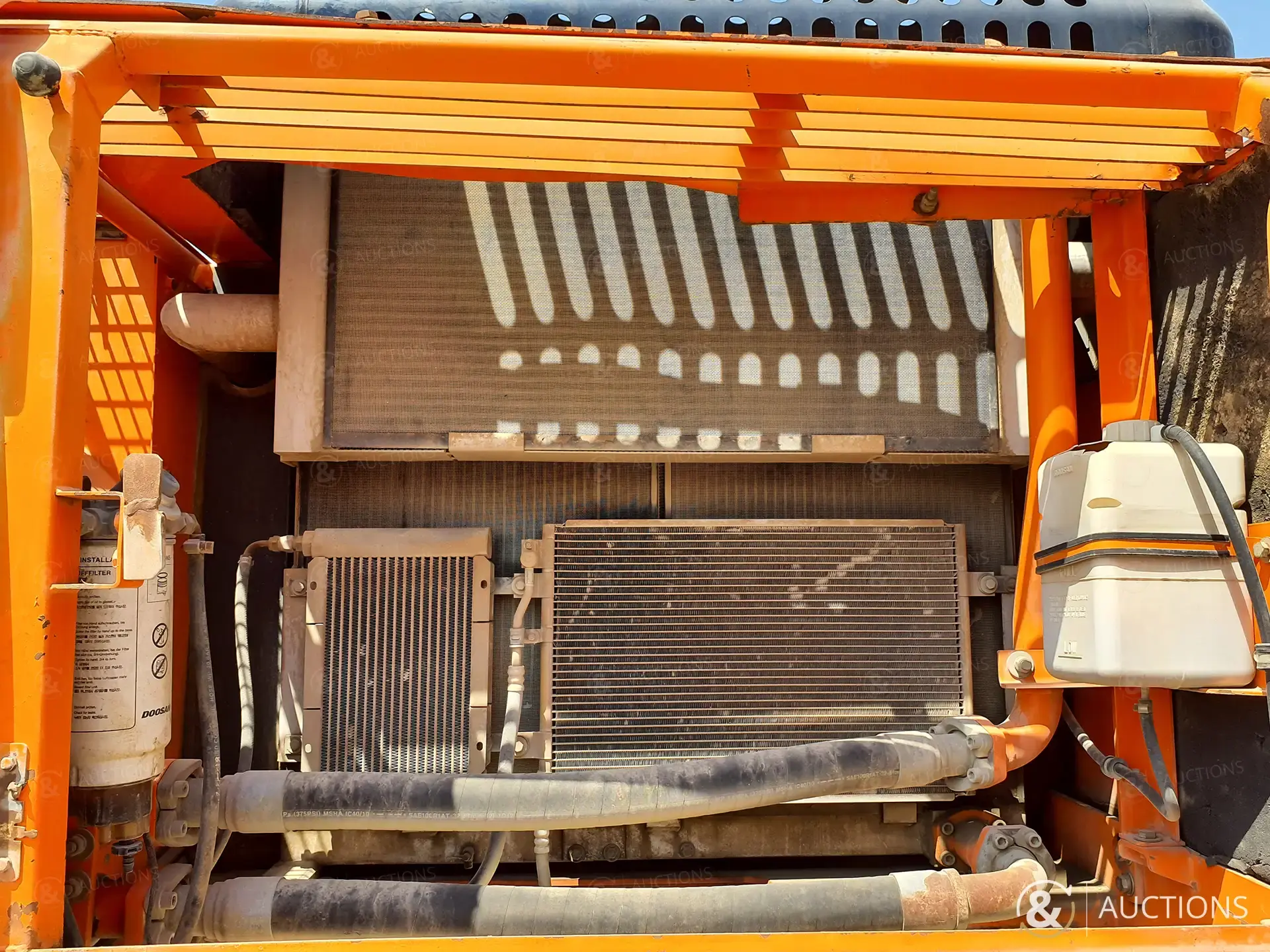

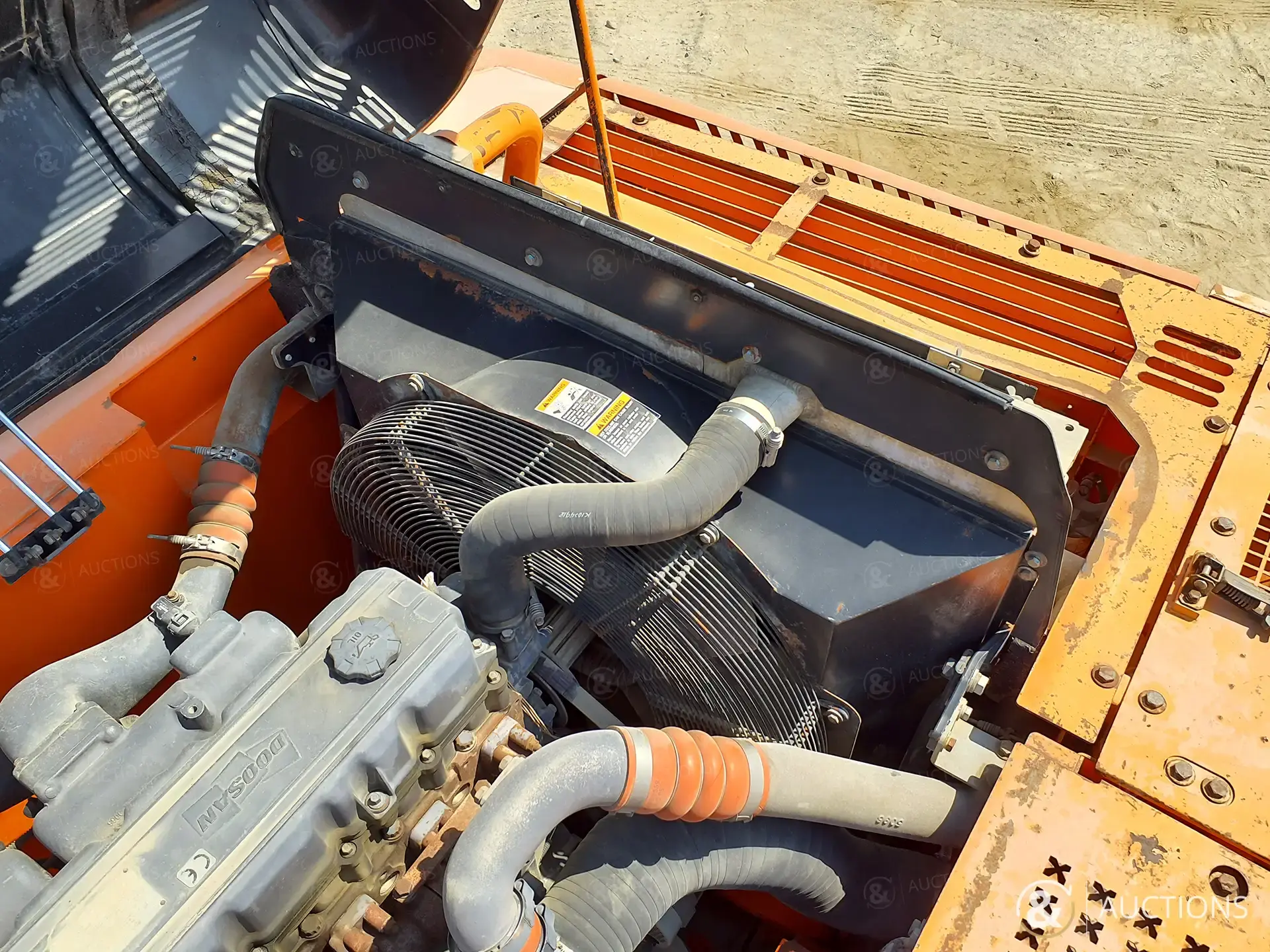

| Engine Cooling System | Ok, need rust cleaning |
| Engine Oil Check | Ok |
| Cooling System | Ok, normal water |
| Coolant | Ok, end muffler need minor welding |

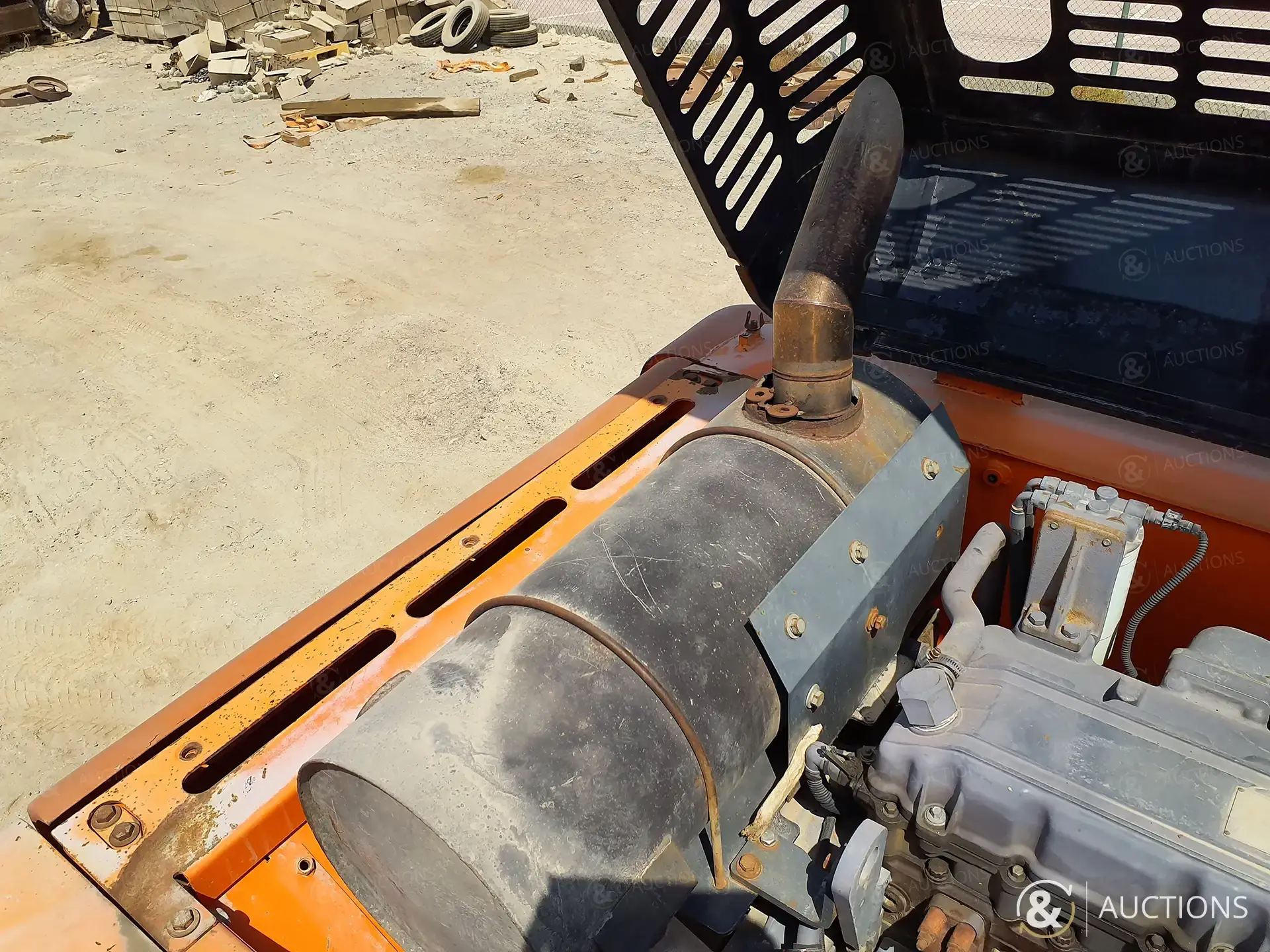

| Exhaust System & Muffler | Ok |

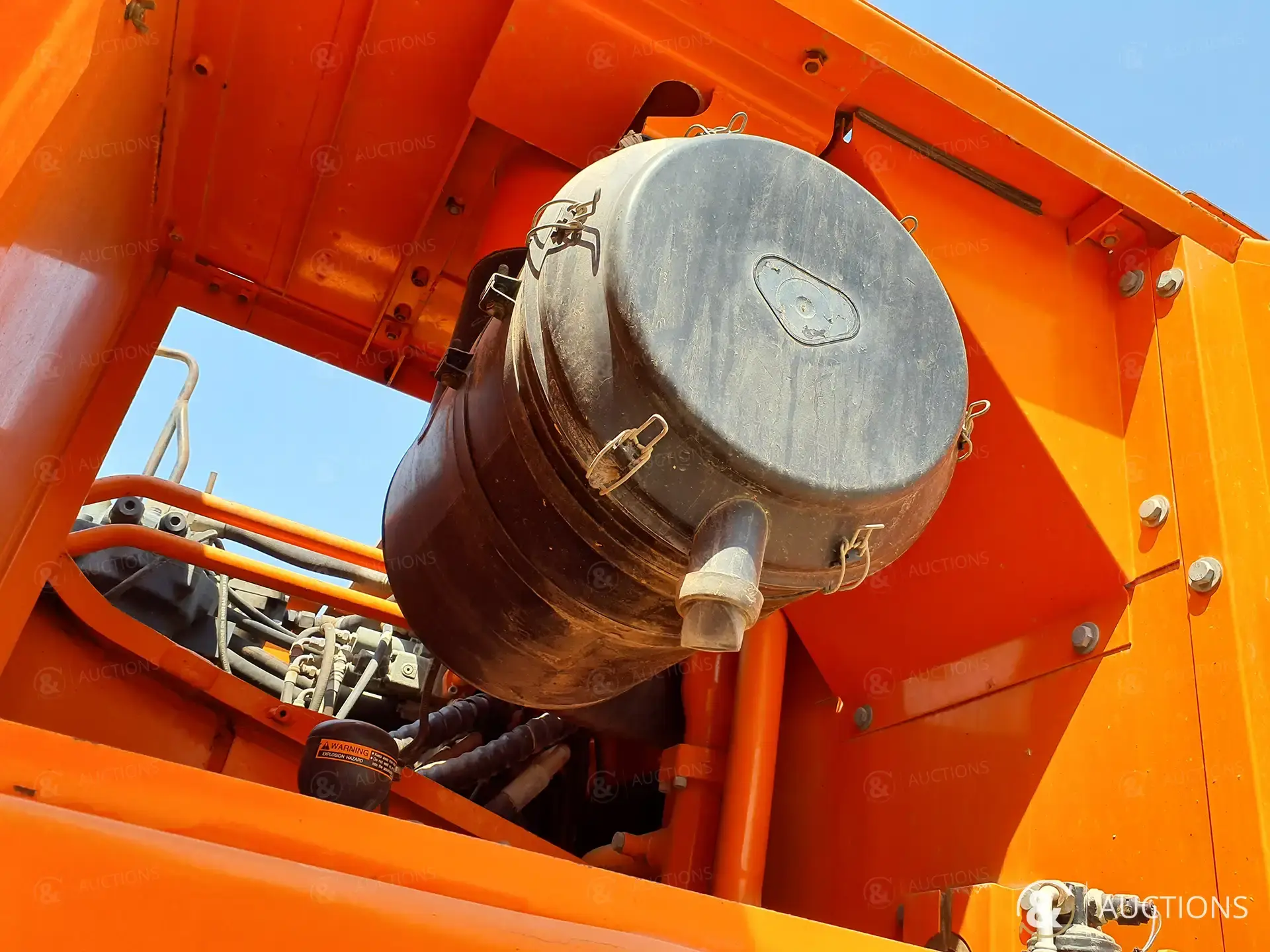

| Belts & Air/Oil Filters | Ok |
| Smoke Check | Normal |
| Blowby | Normal |
| Leaks & Seals | Ok, minor oil leak from head cover gasket |
Exterior Condition & Visual Inspection
| Main Frame & Track Frame | Ok |
| Protective Covers & Sheets | Ok |

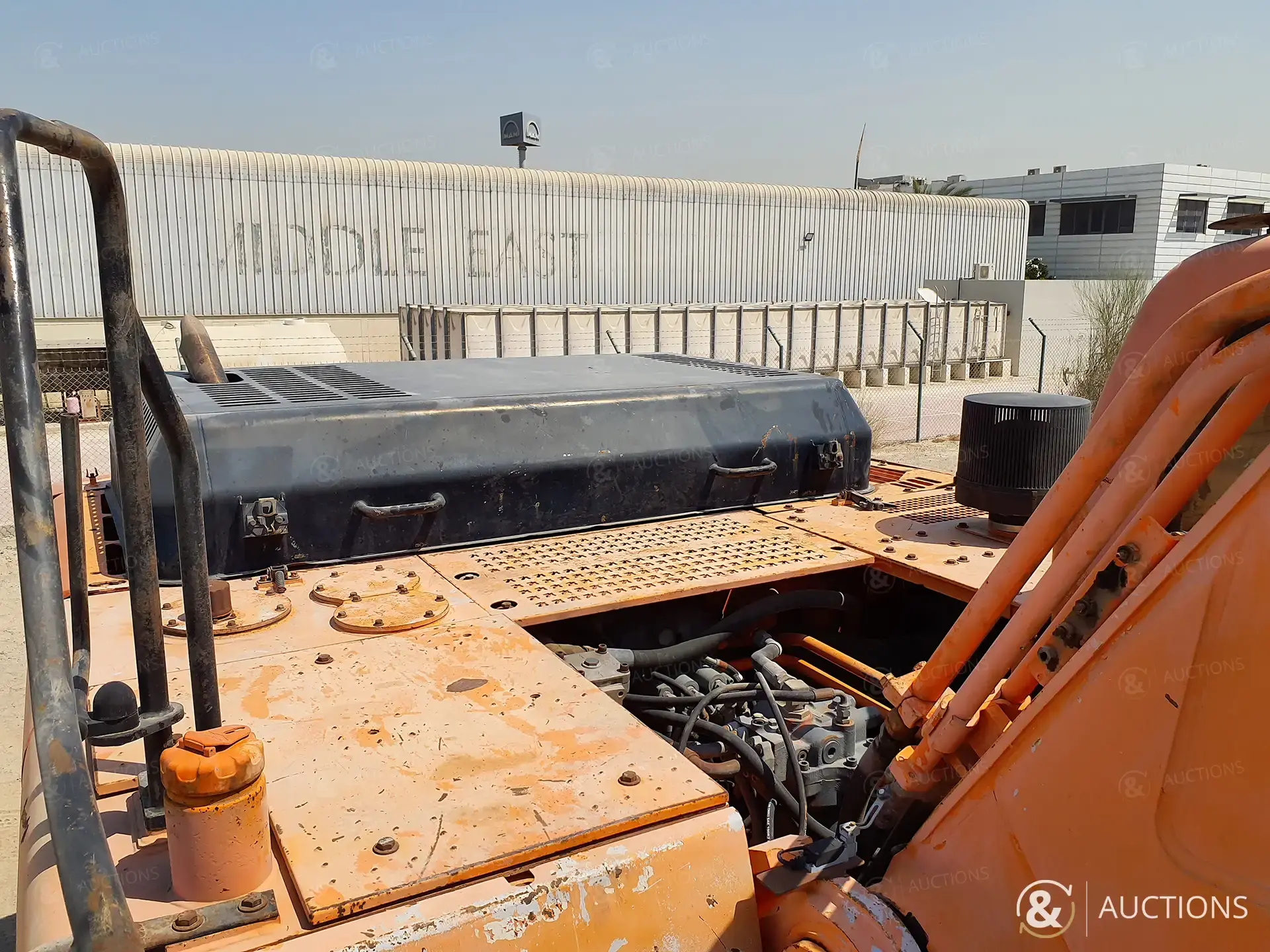

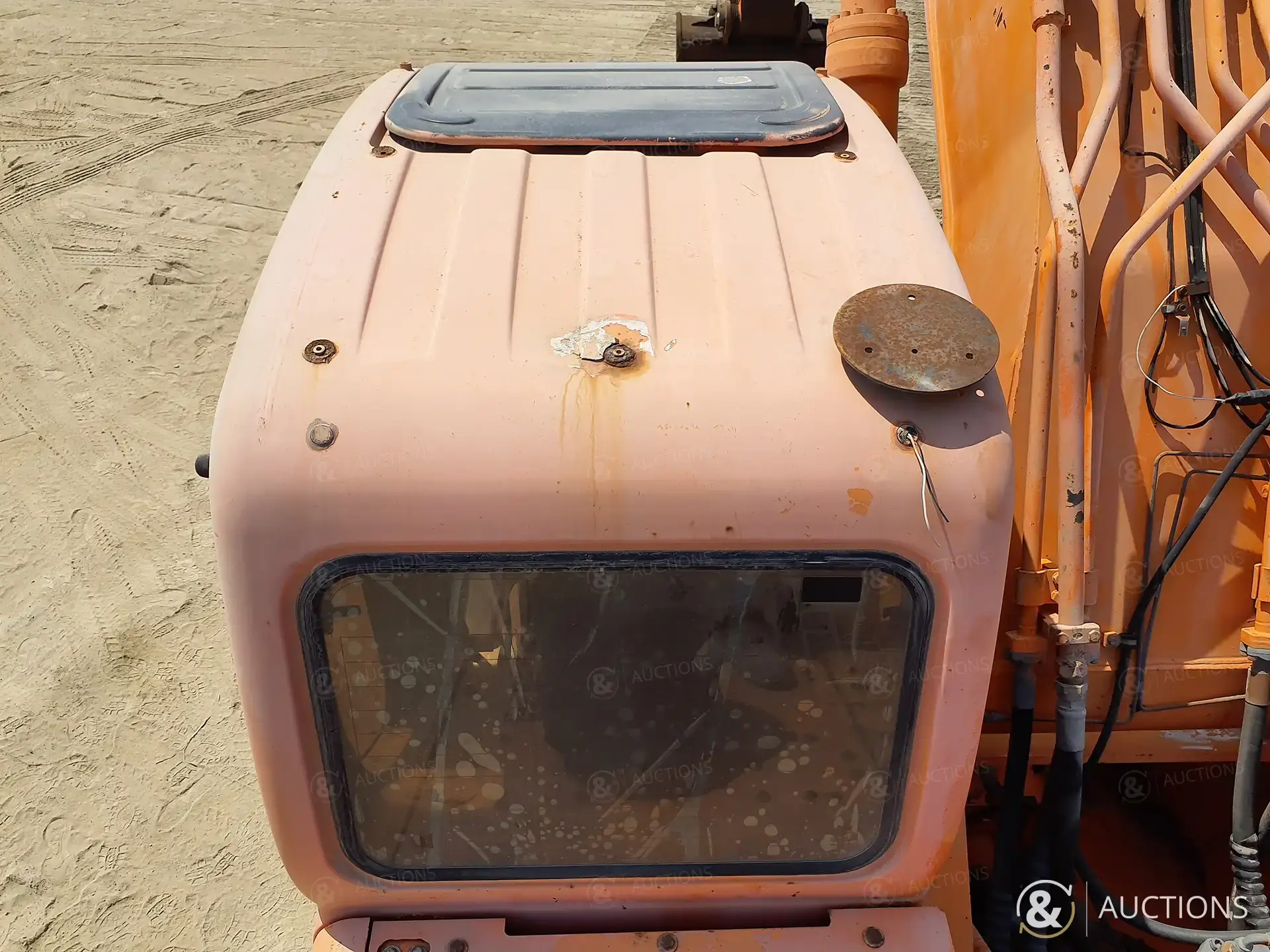

| Engine Hood | Ok |
| Side Access Doors | Ok |
| Steps And Handrails | Ok |

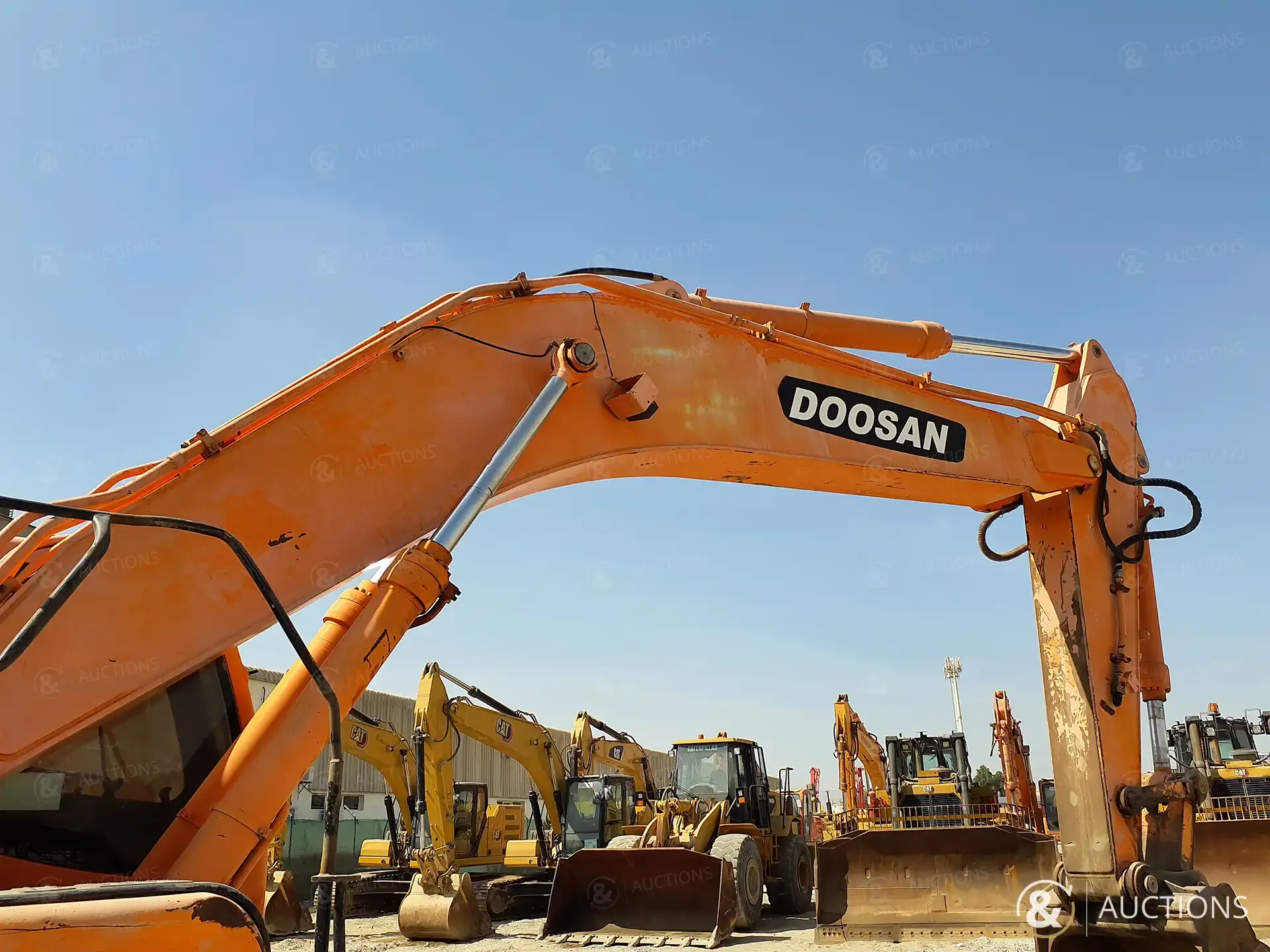

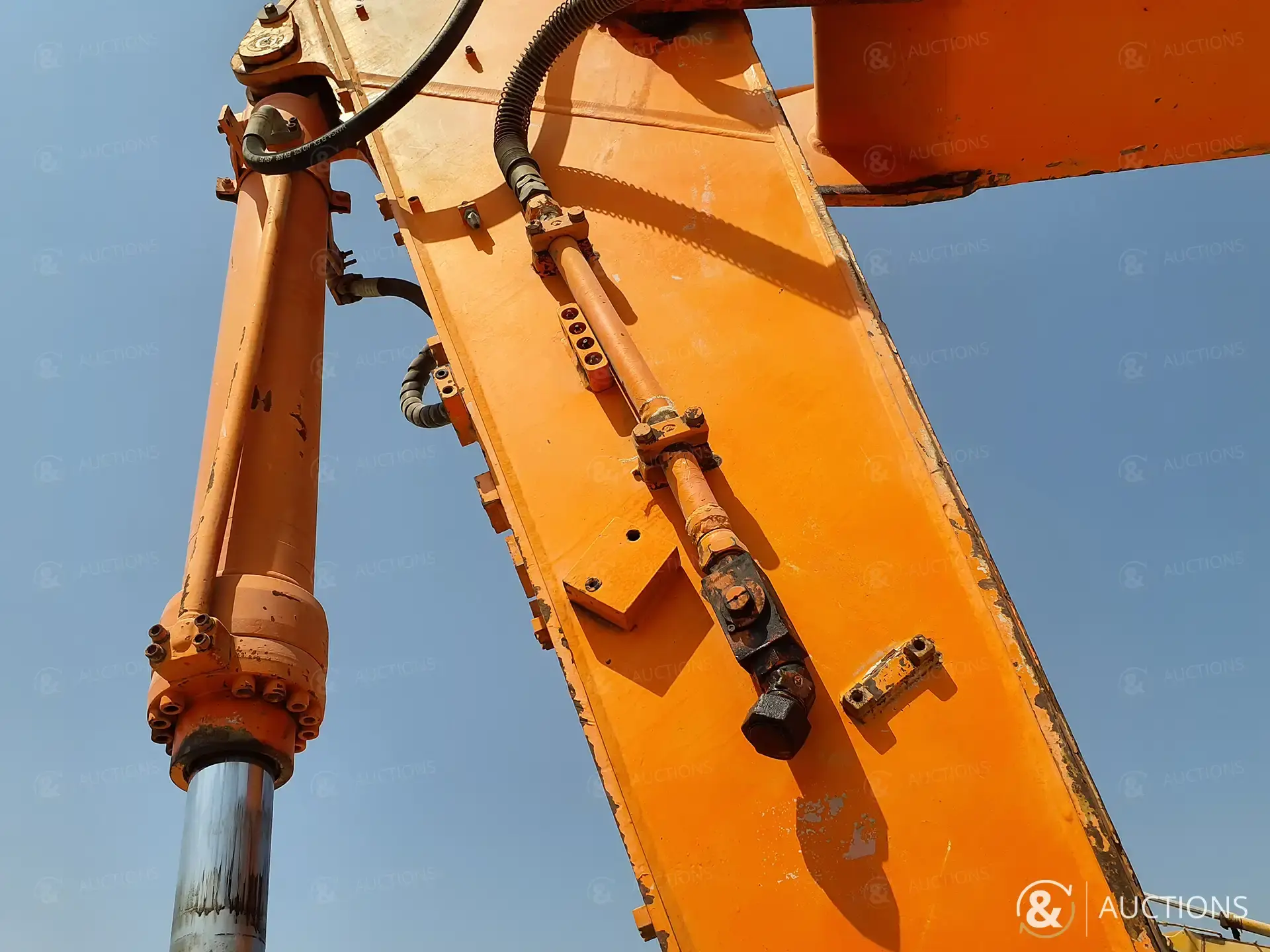

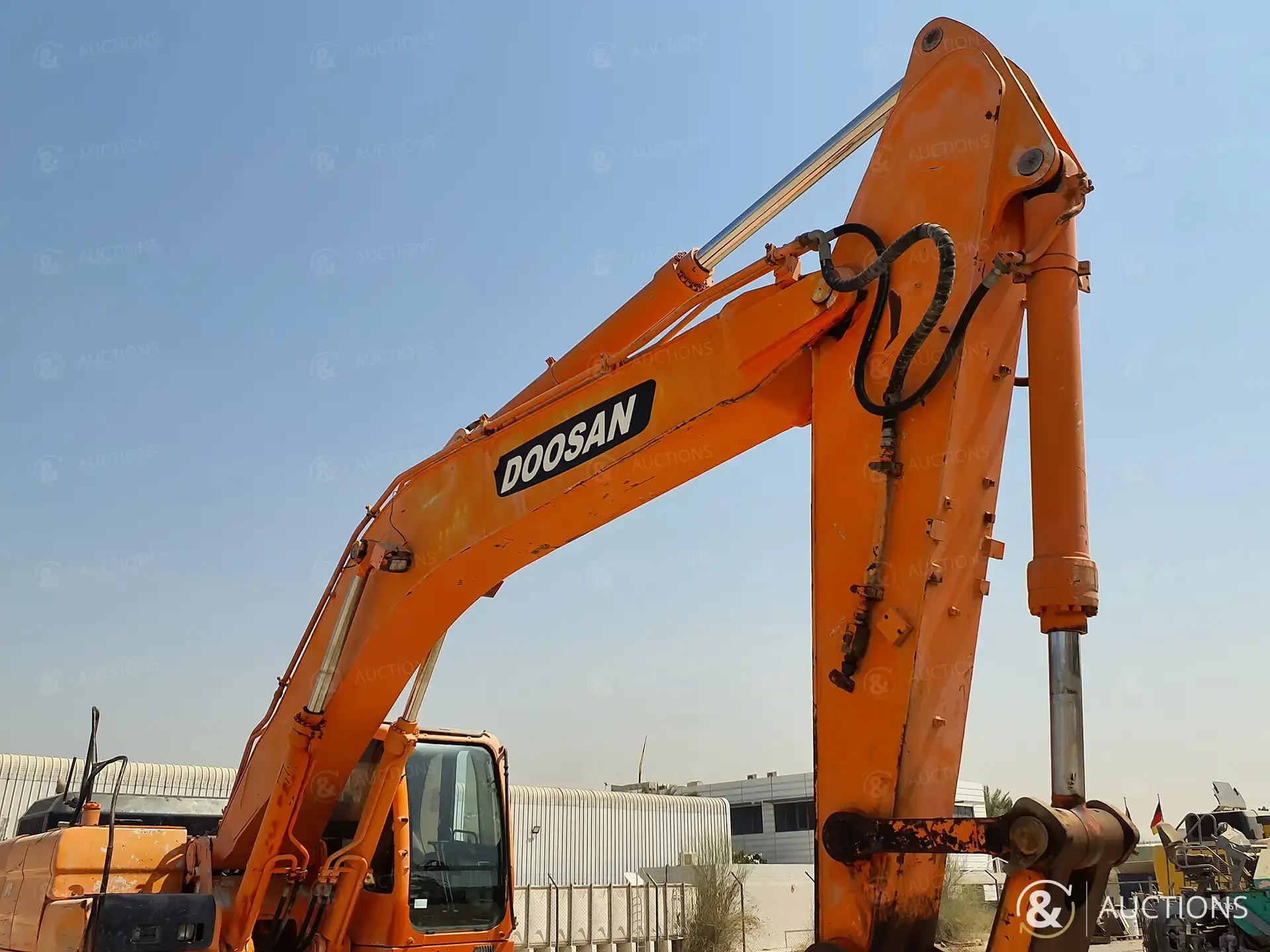

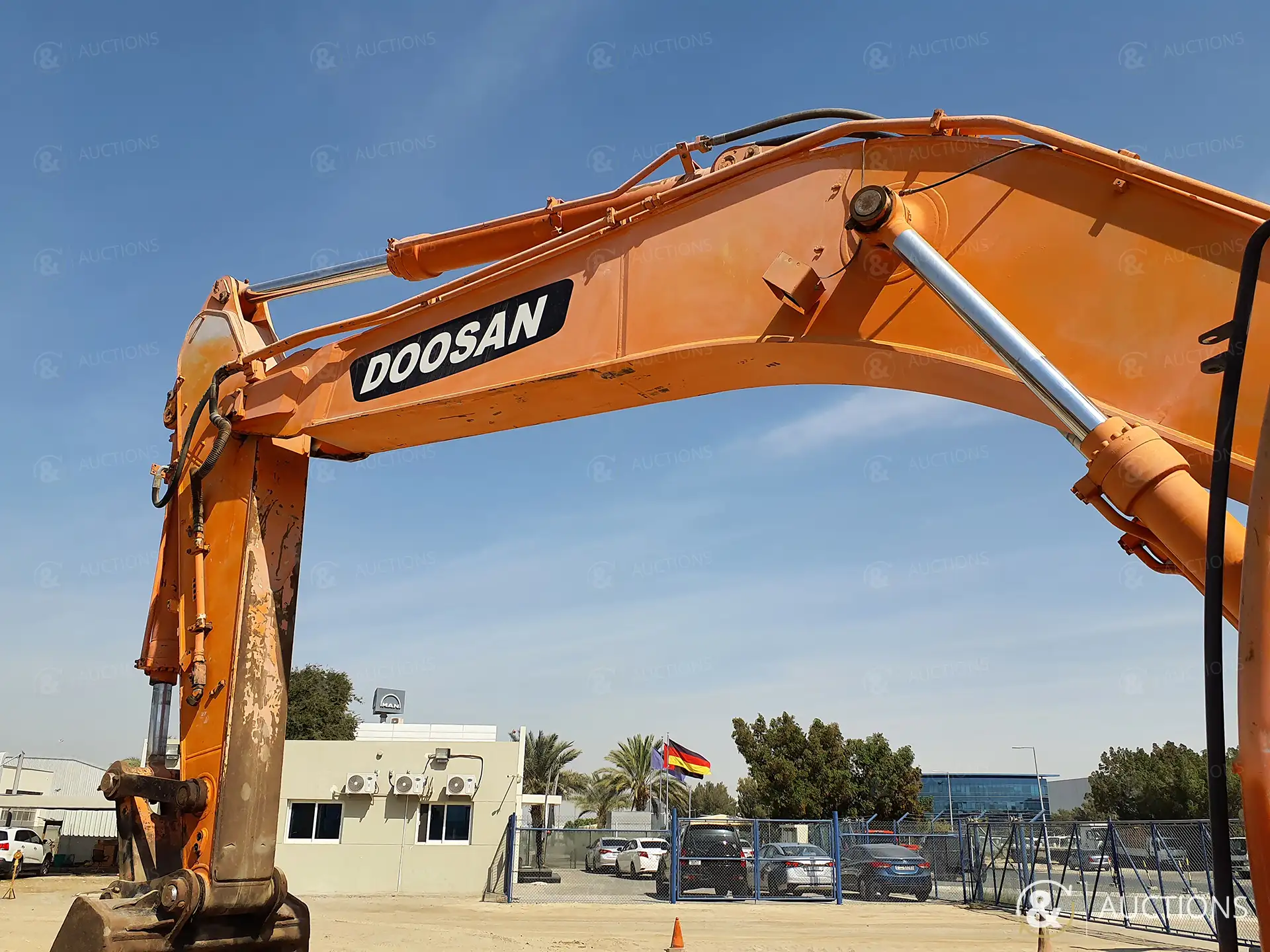

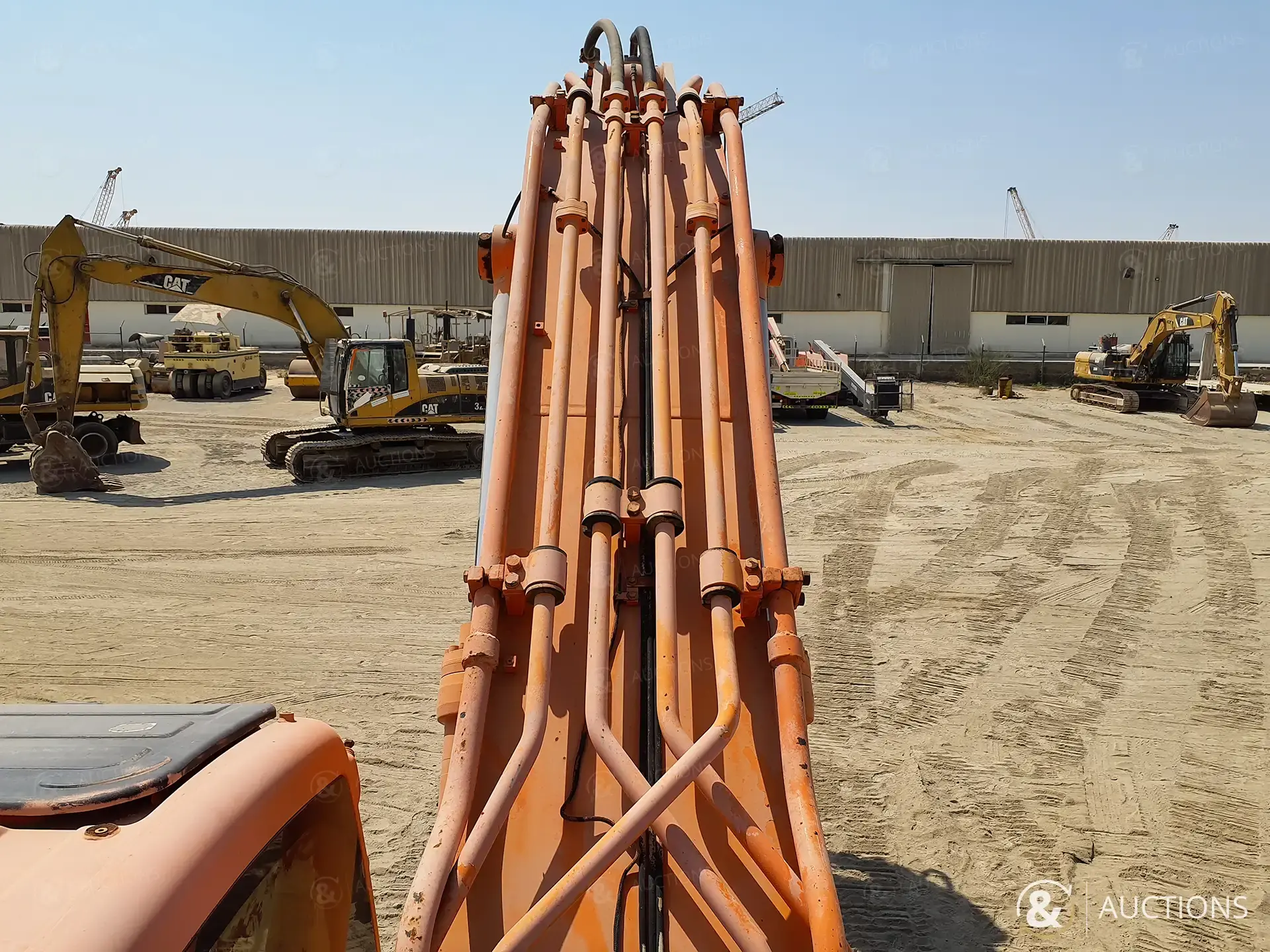

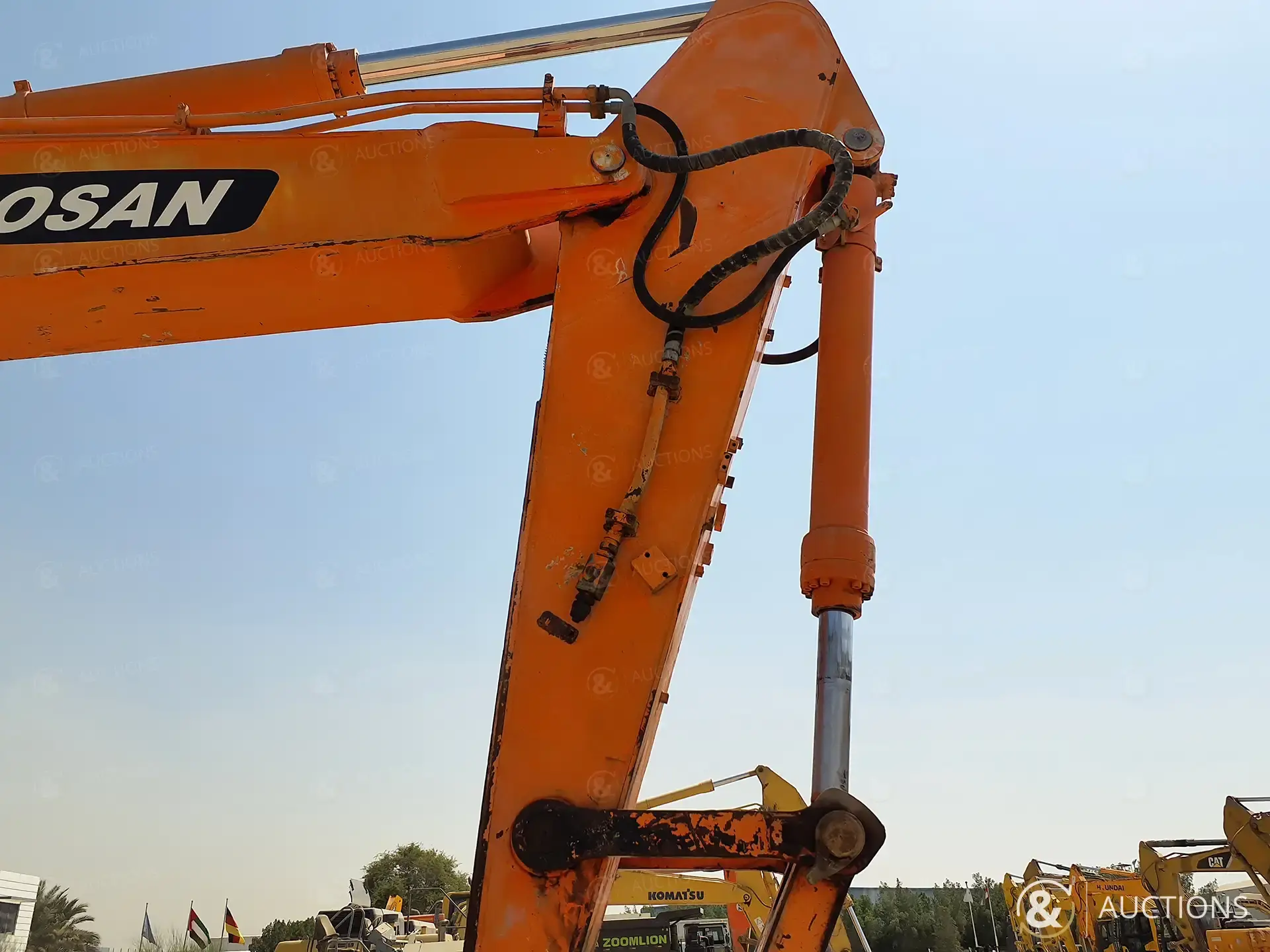

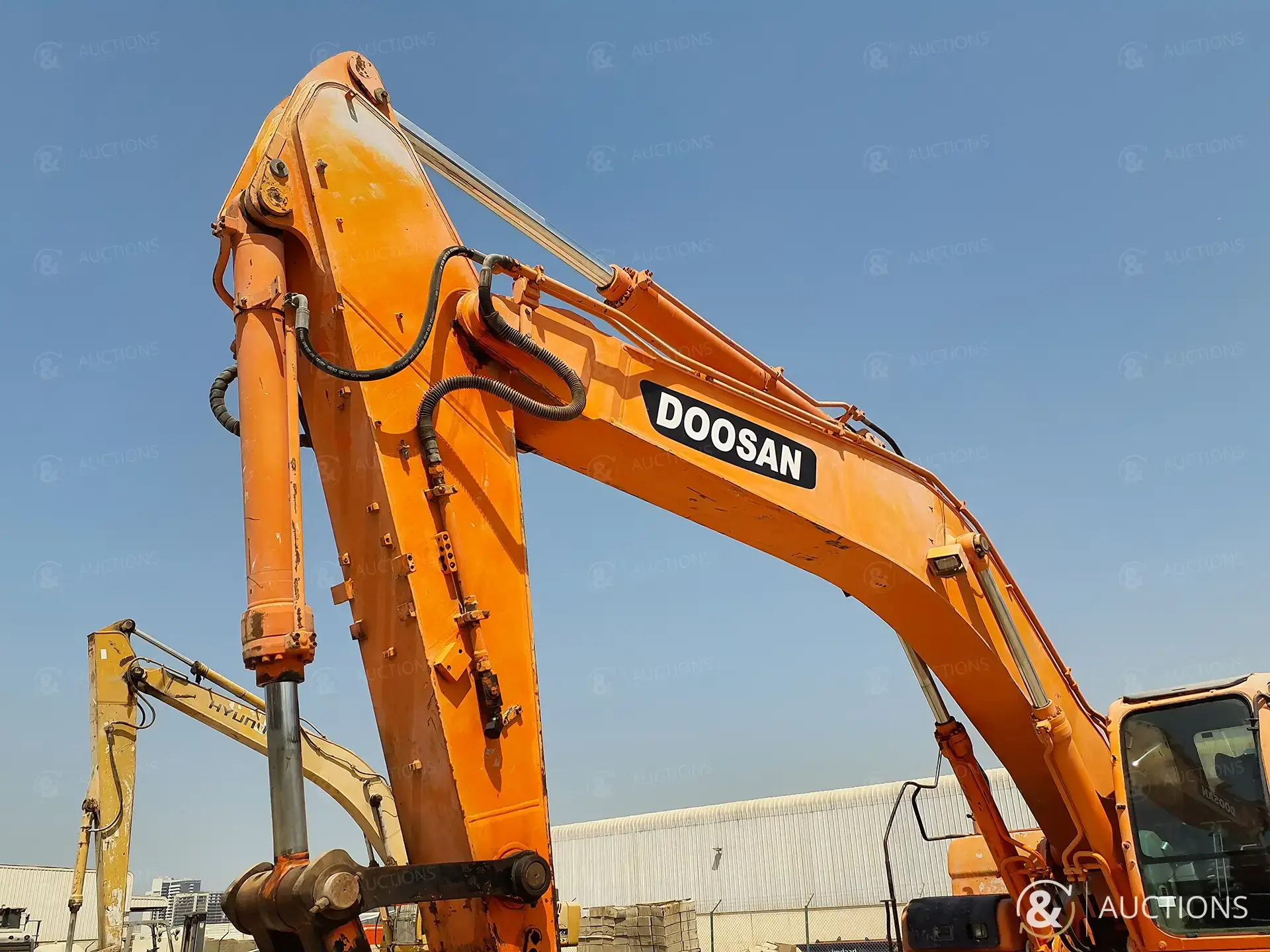

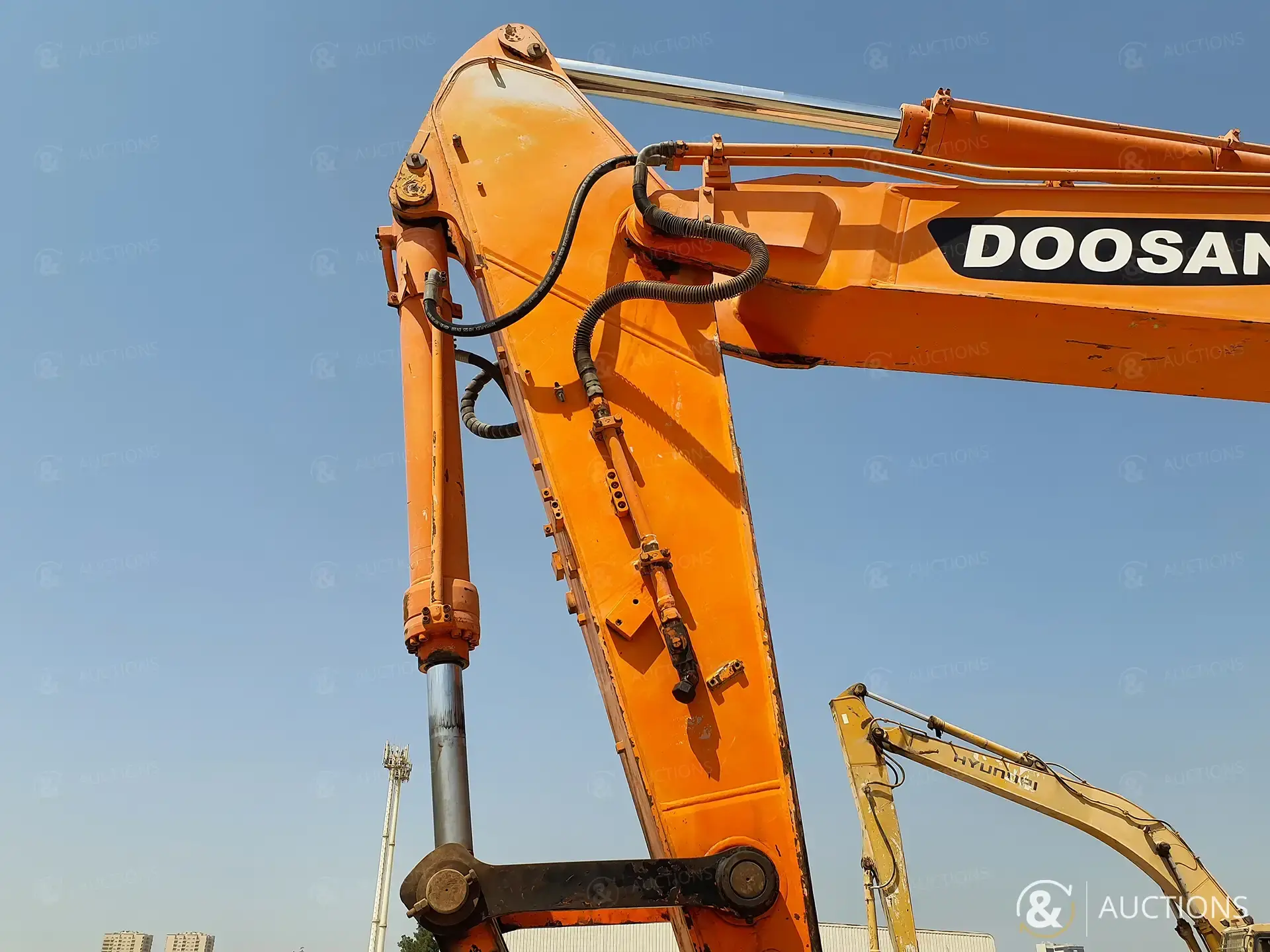

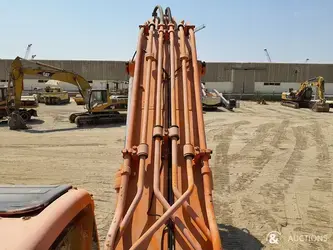

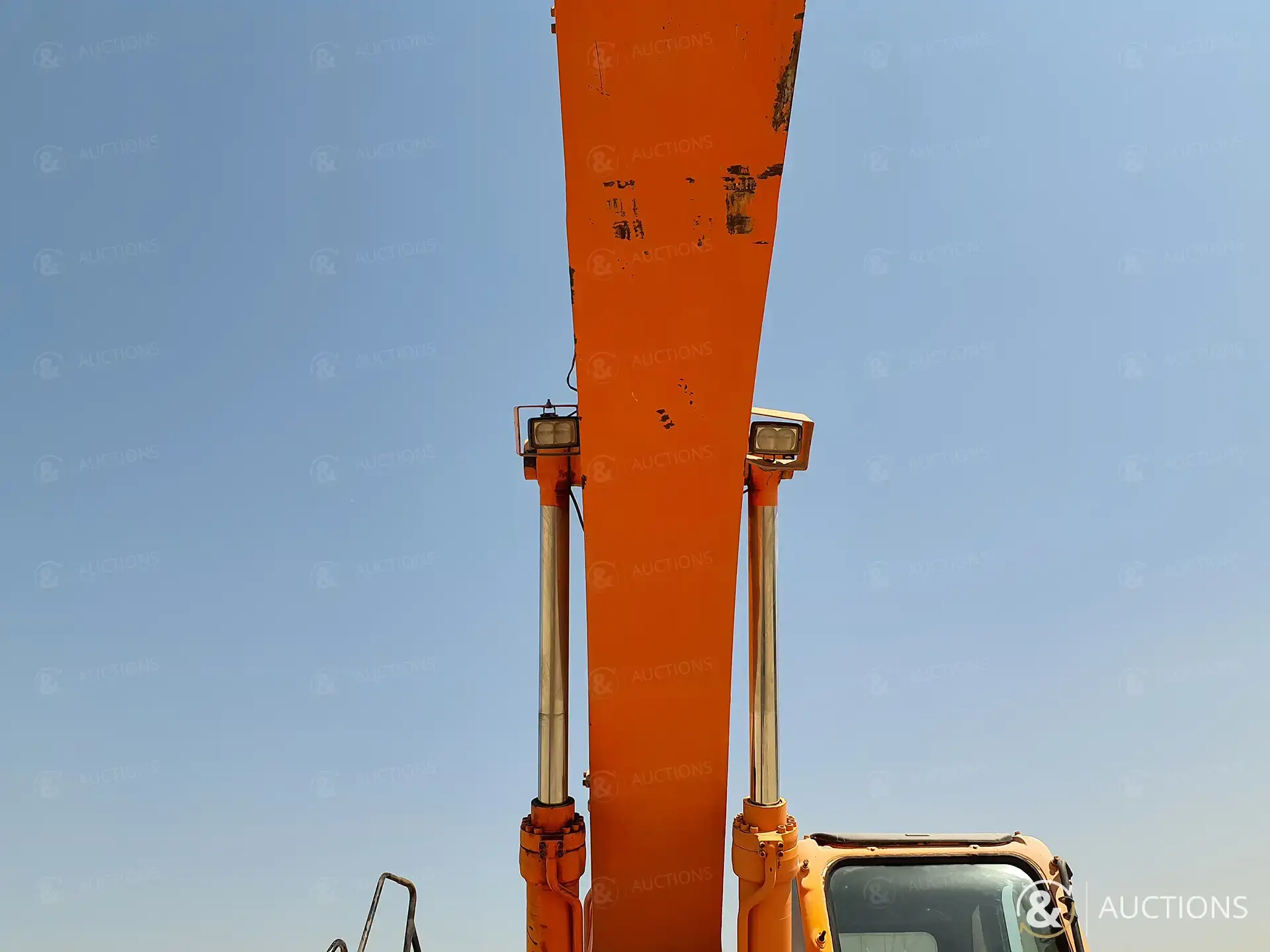

| Boom Condition | Ok |
| Bumpers & Catwalk Condition | Ok |

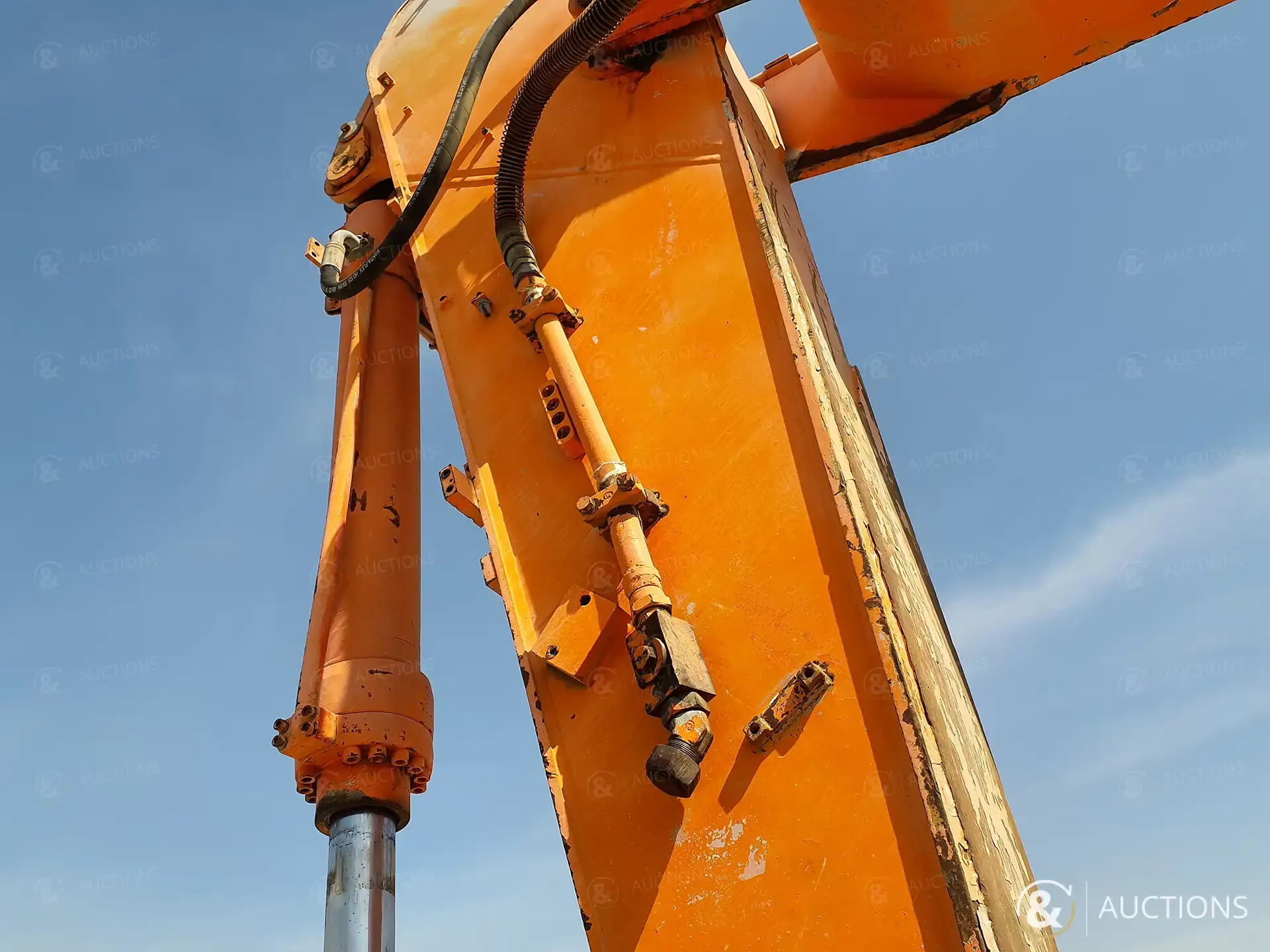

| Arm Condition | Ok |
| Lights | Ok |
| Battery Check | Ok |
| Cabin Compartments | Ok |
| Exterior Paint Condition | Ok, some parts repainted |

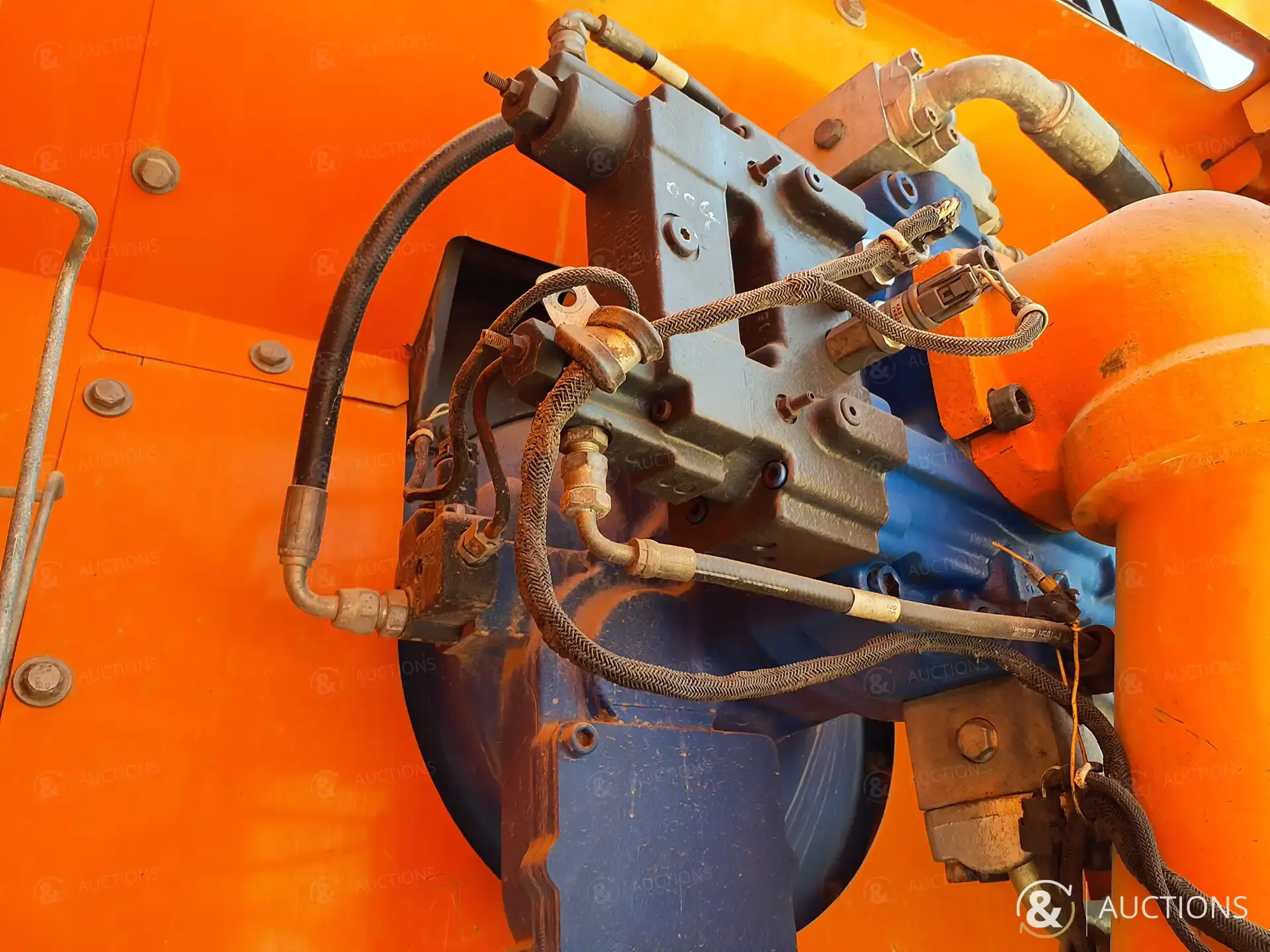

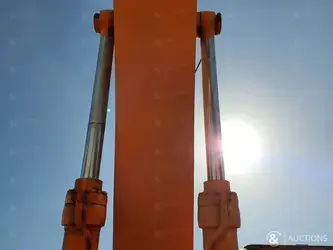

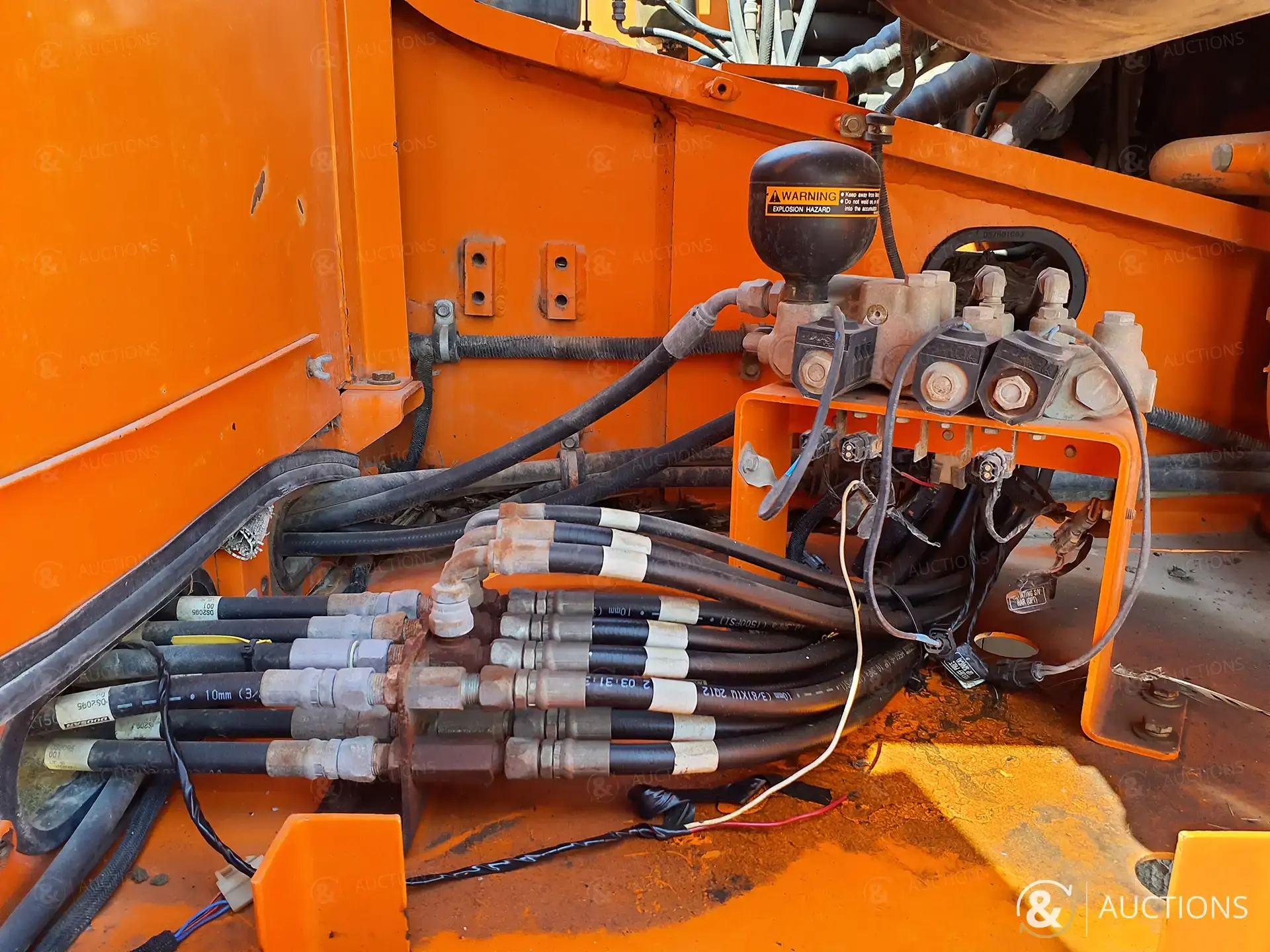

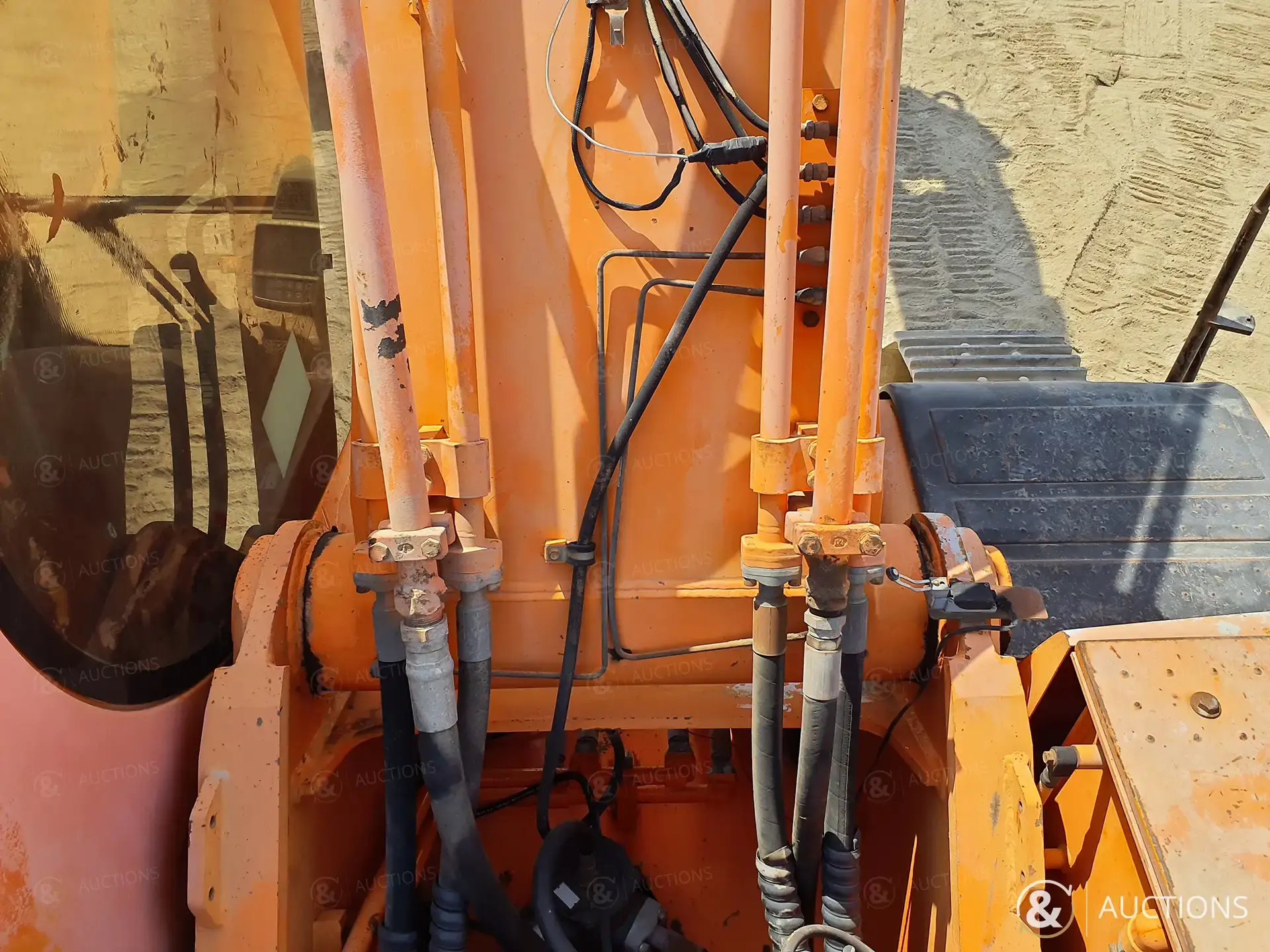

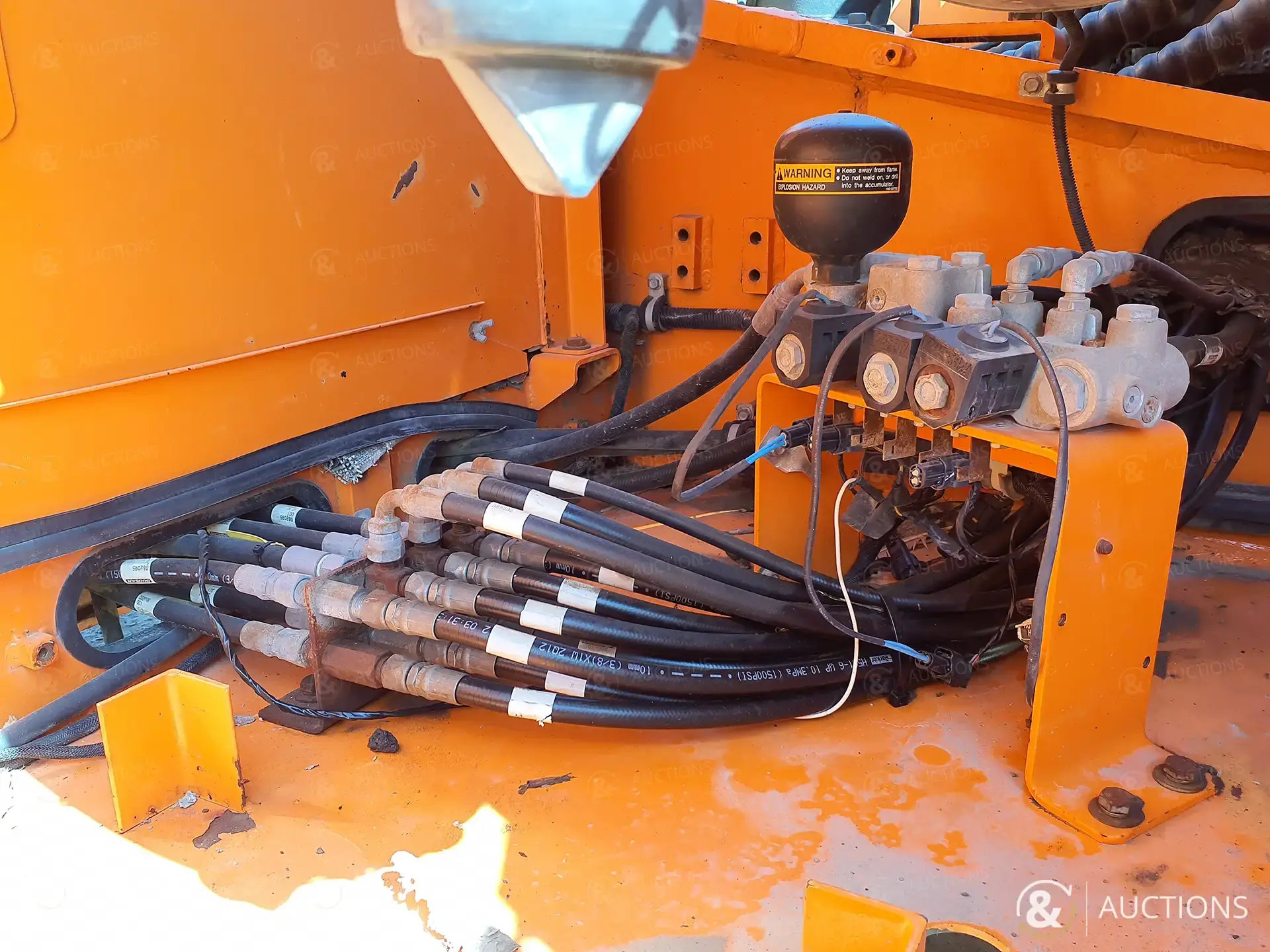

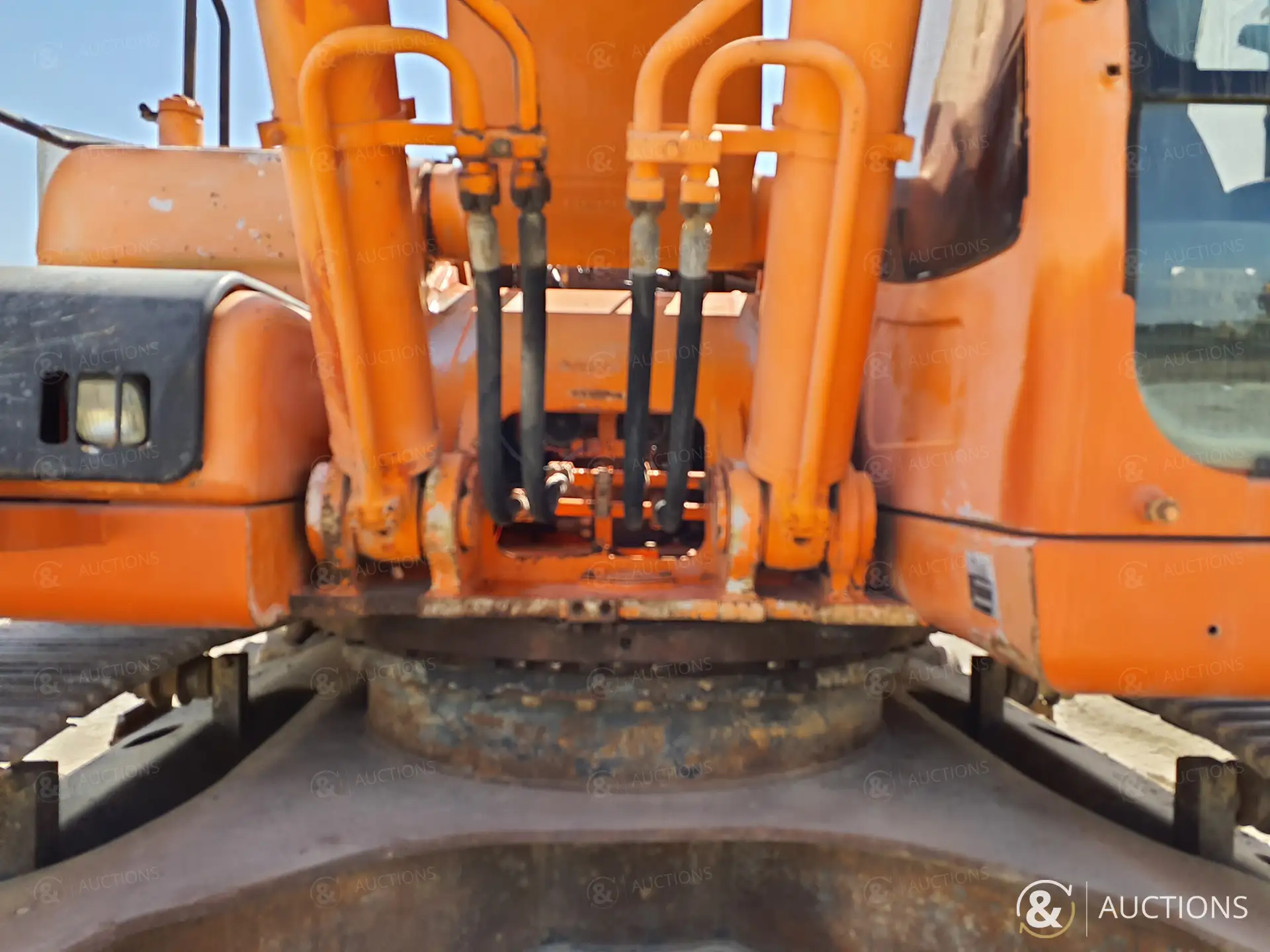

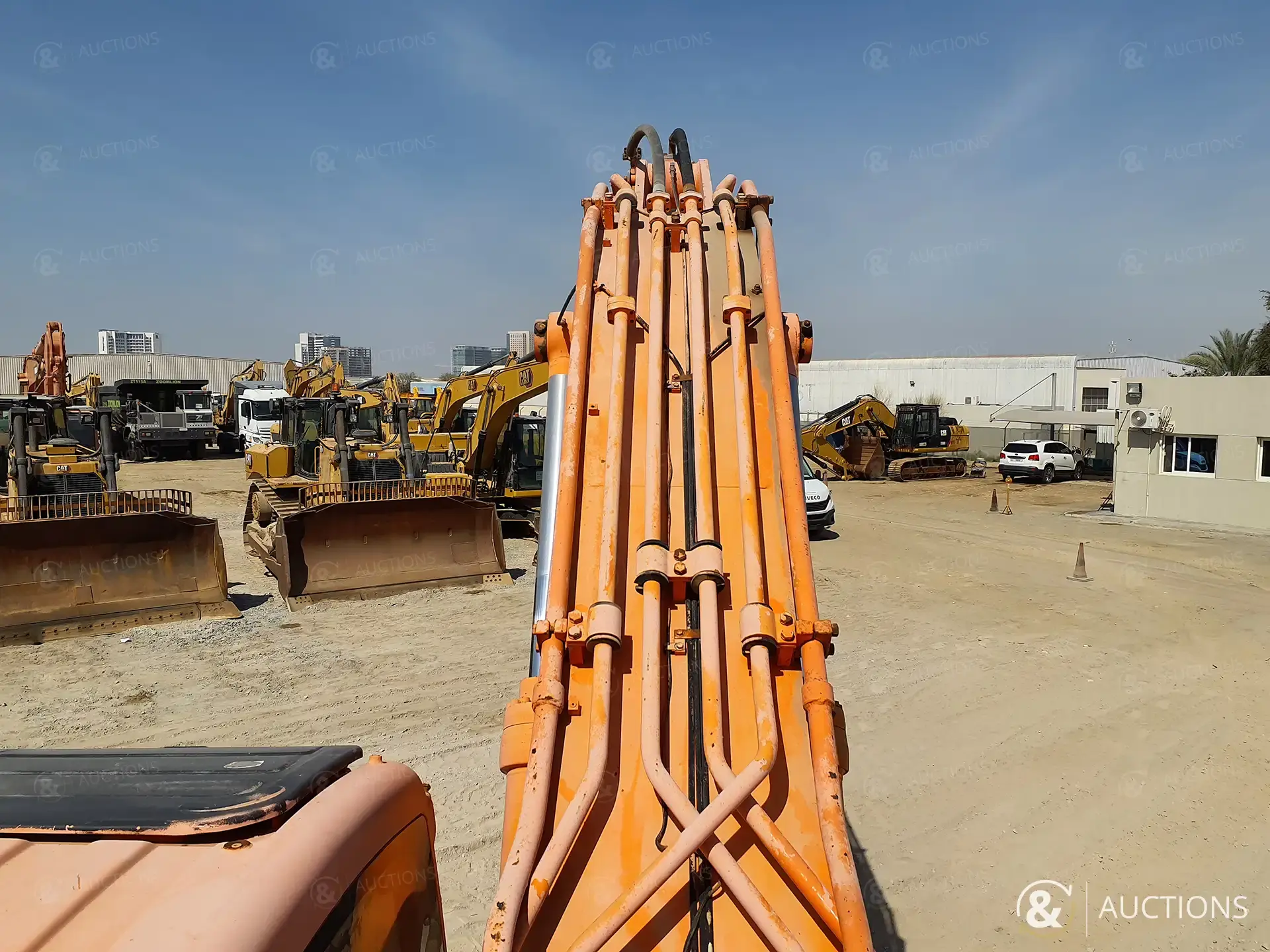

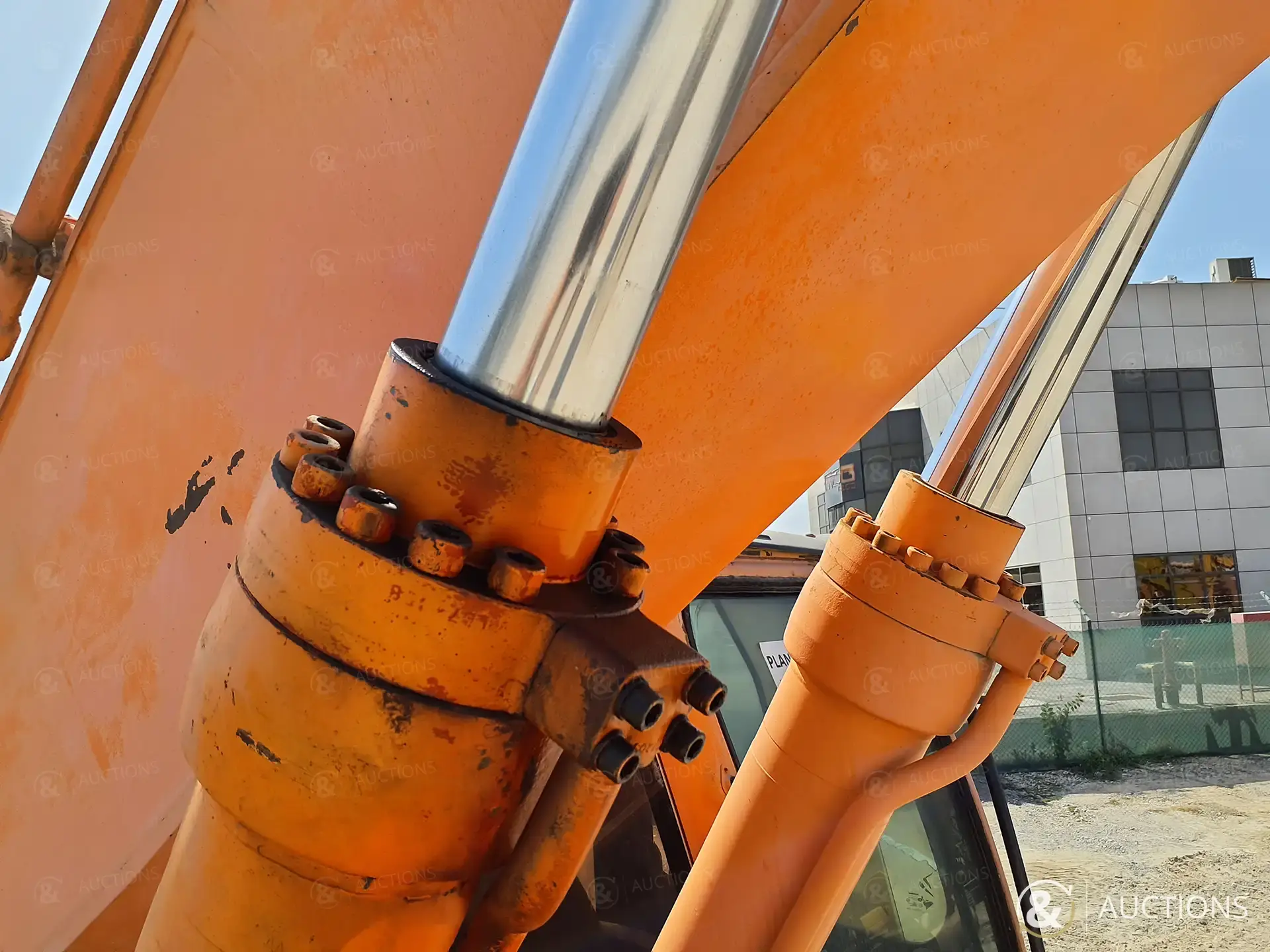

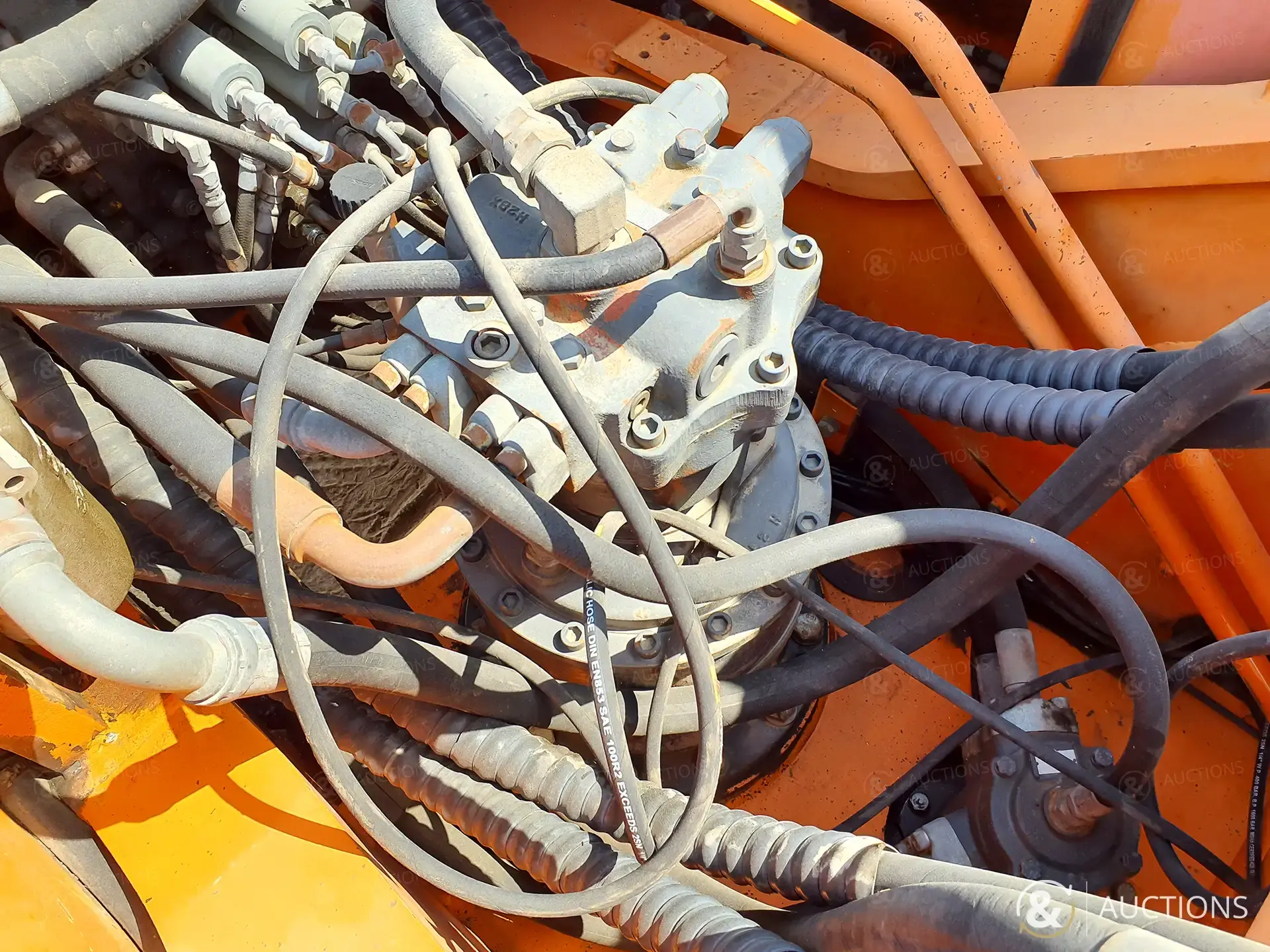

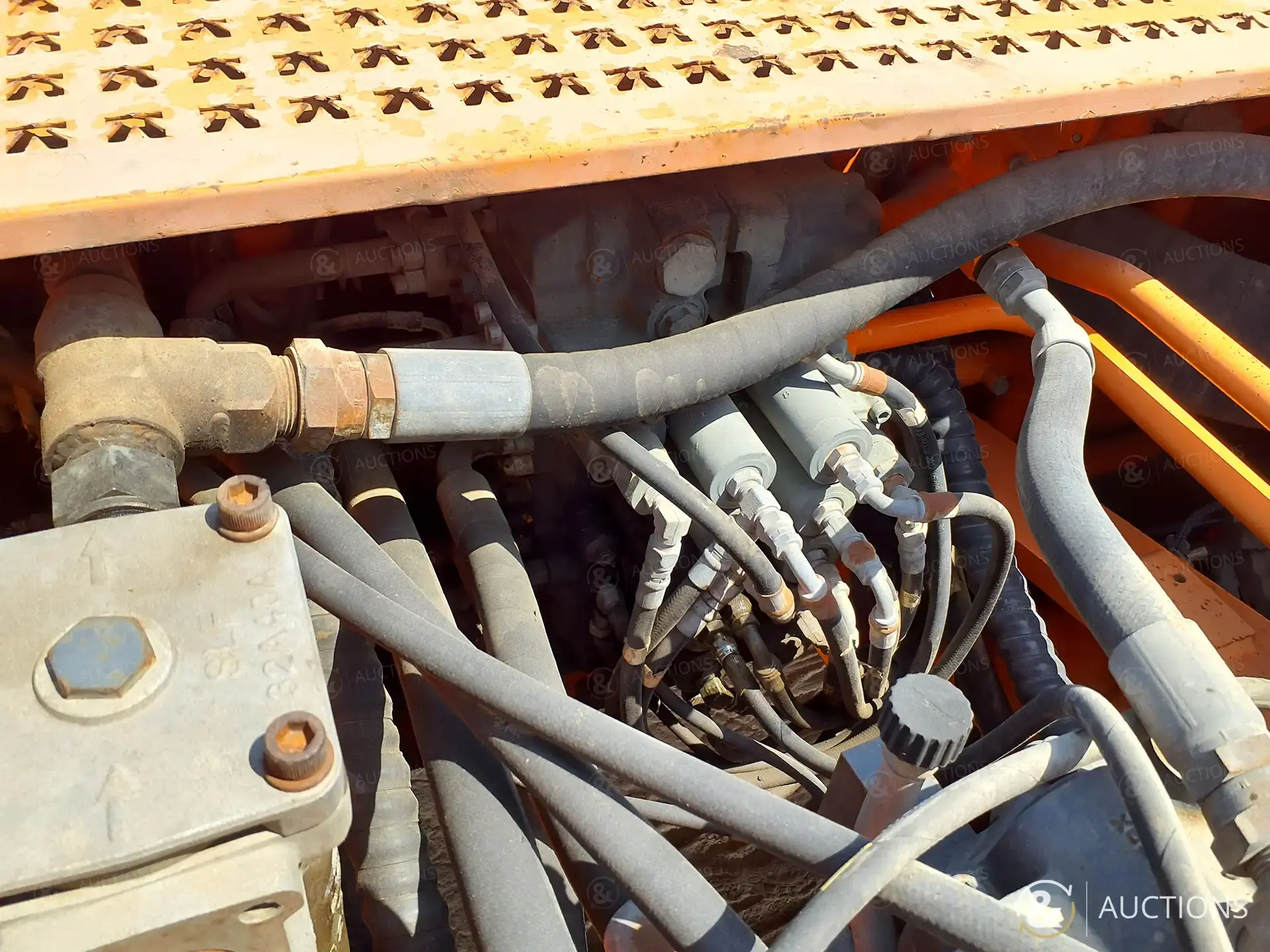

Hydraulic System
| Hydraulic Leaks | Ok |

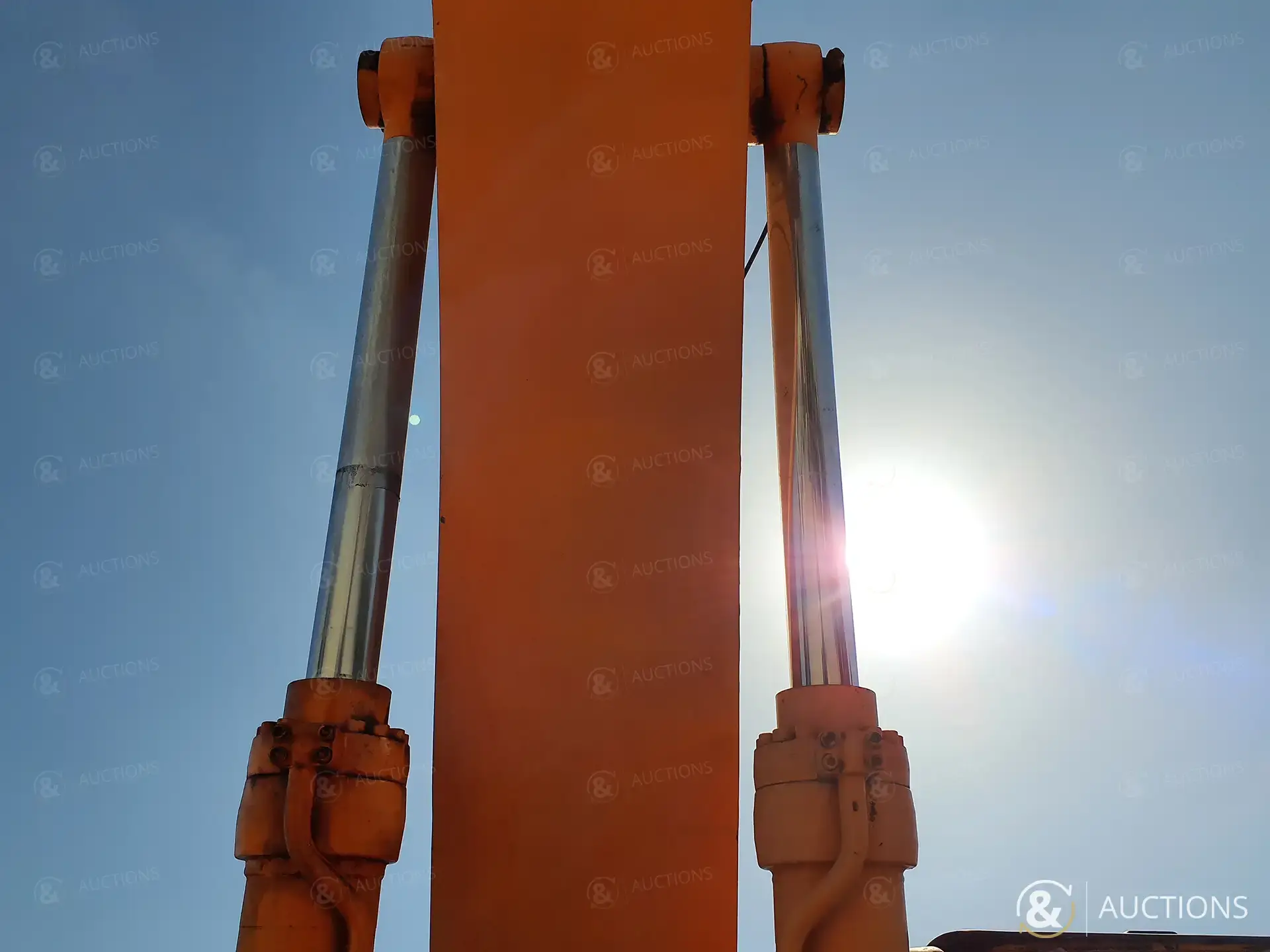

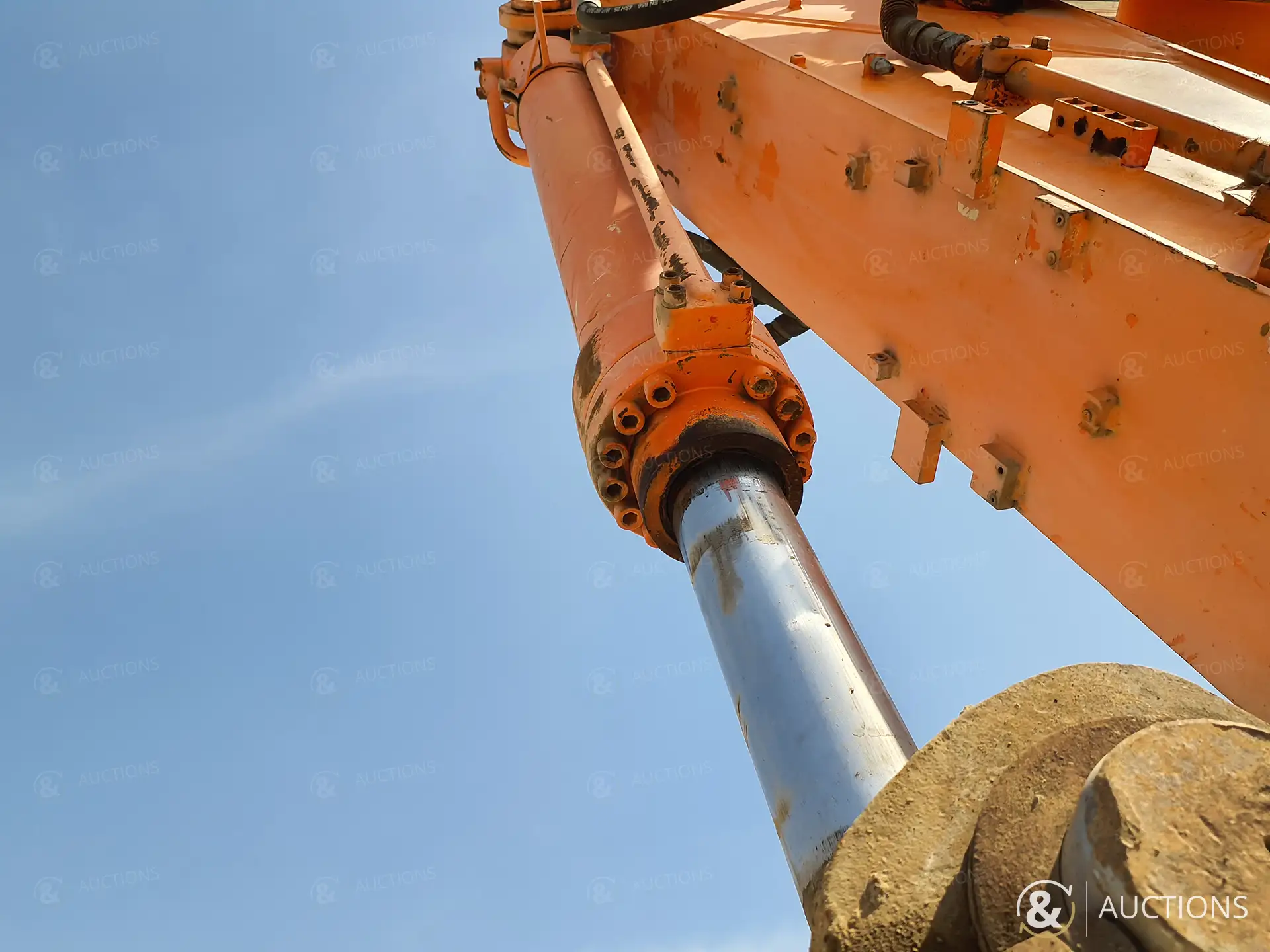

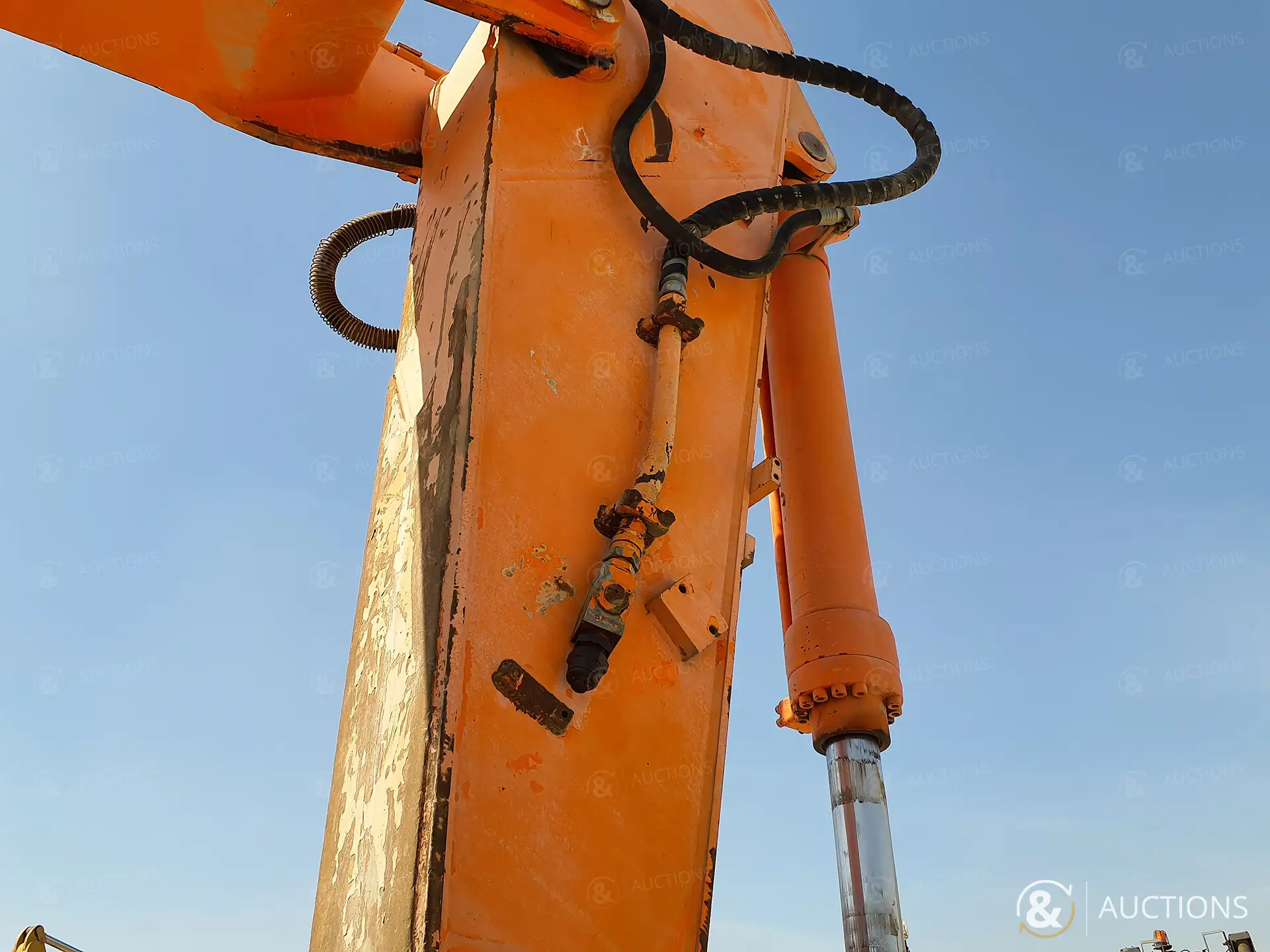

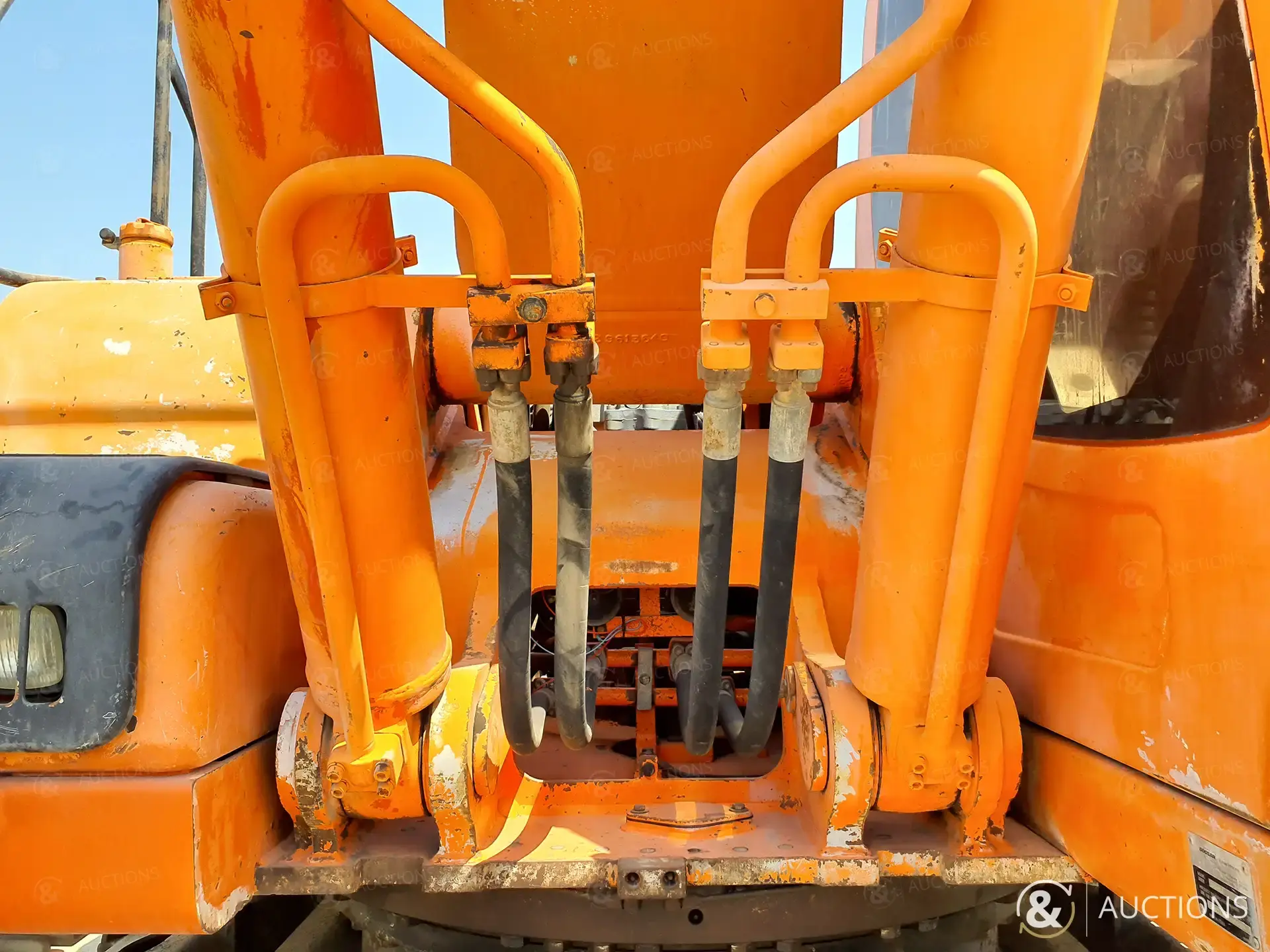

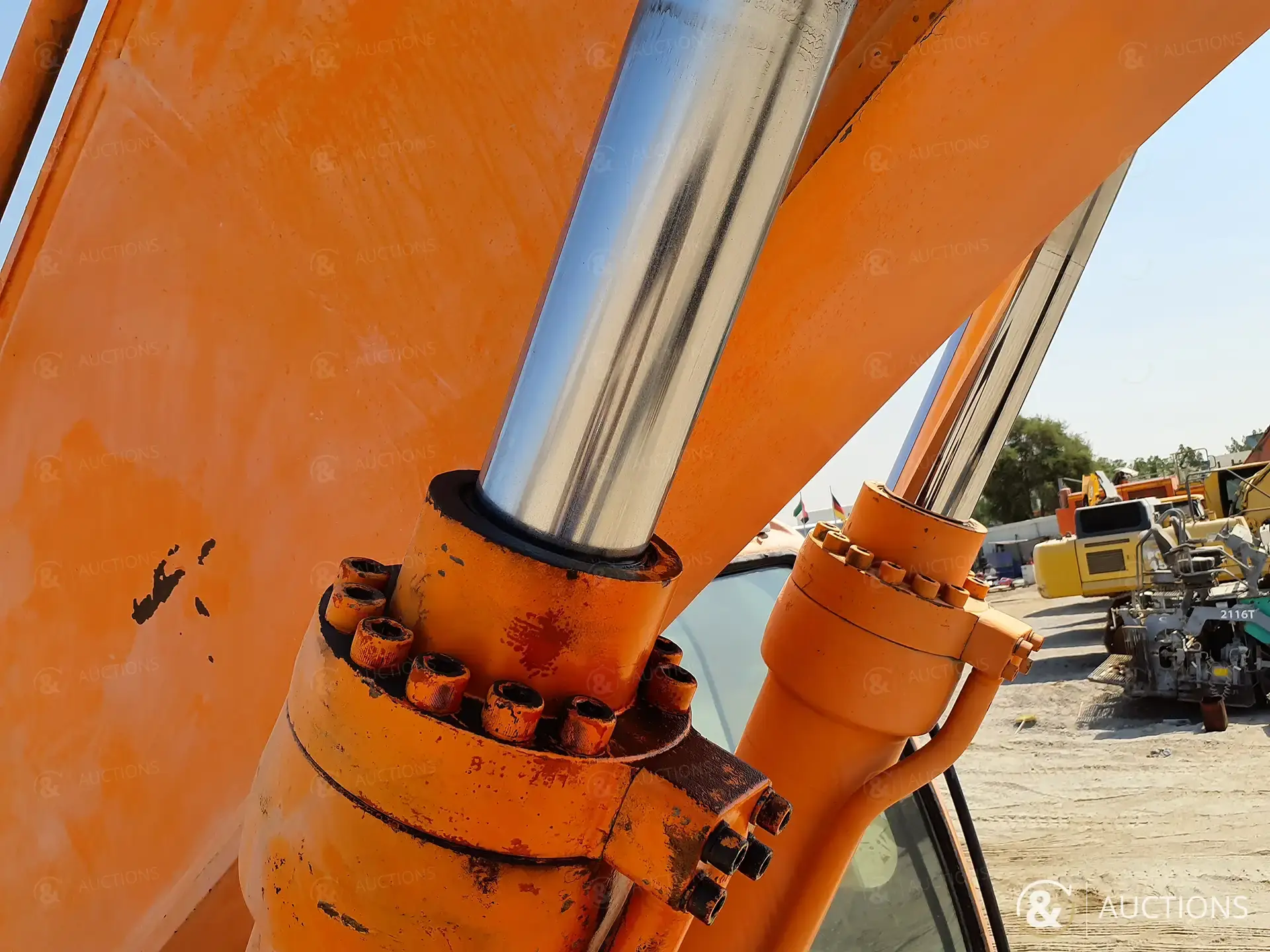

| Boom Hydraulic Jack | Ok |

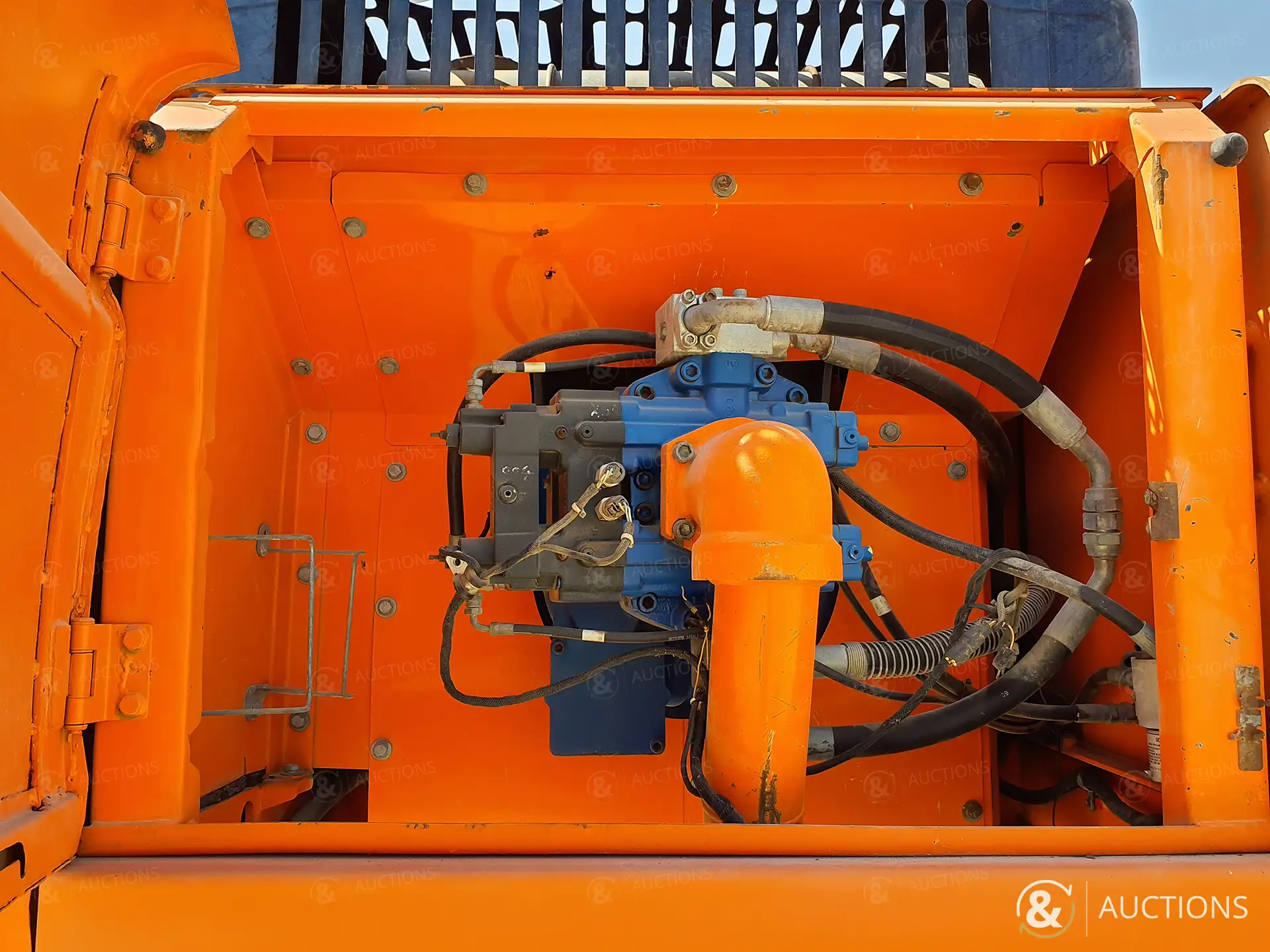

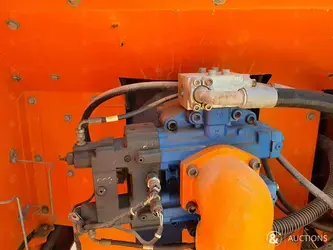

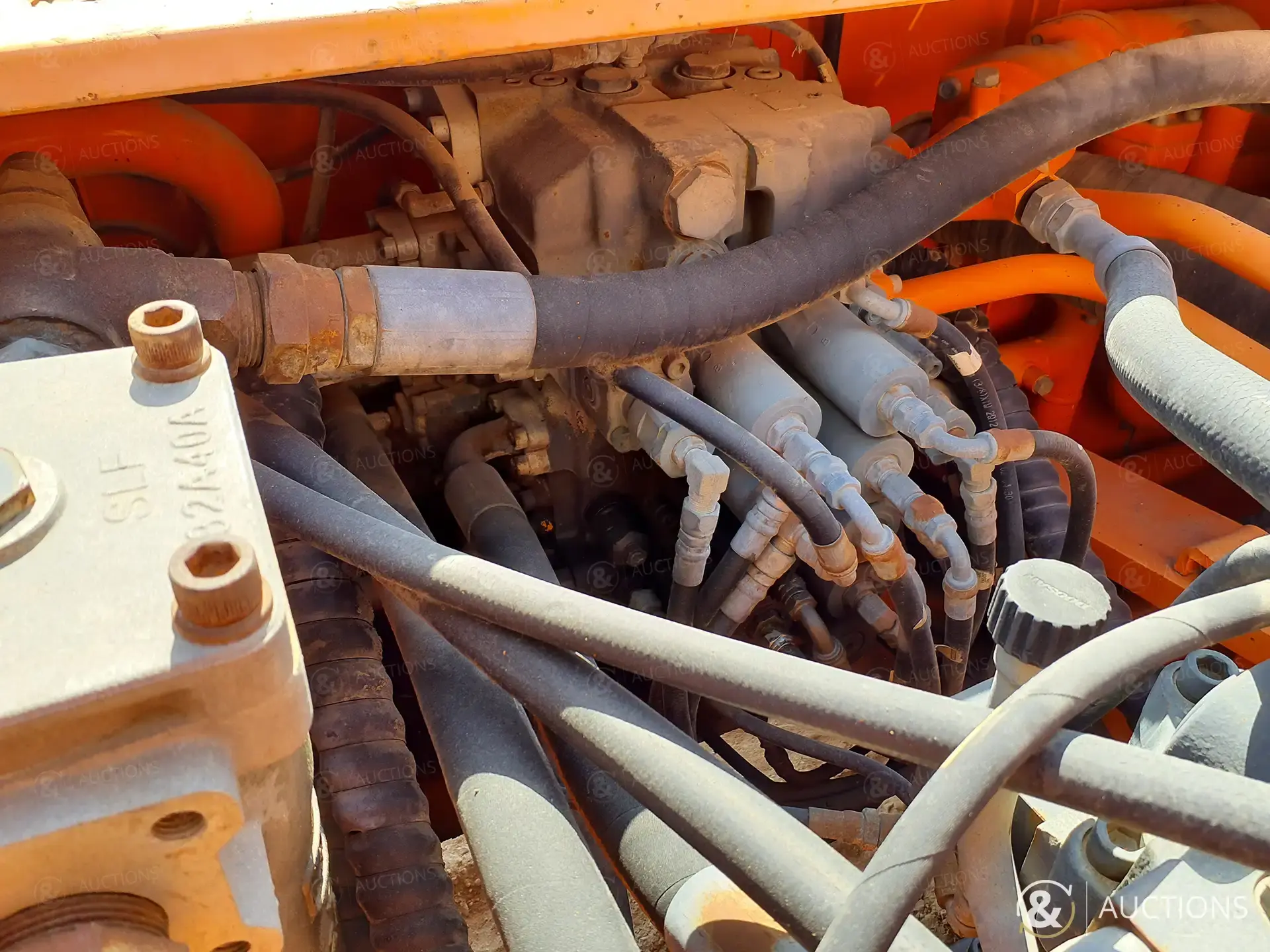

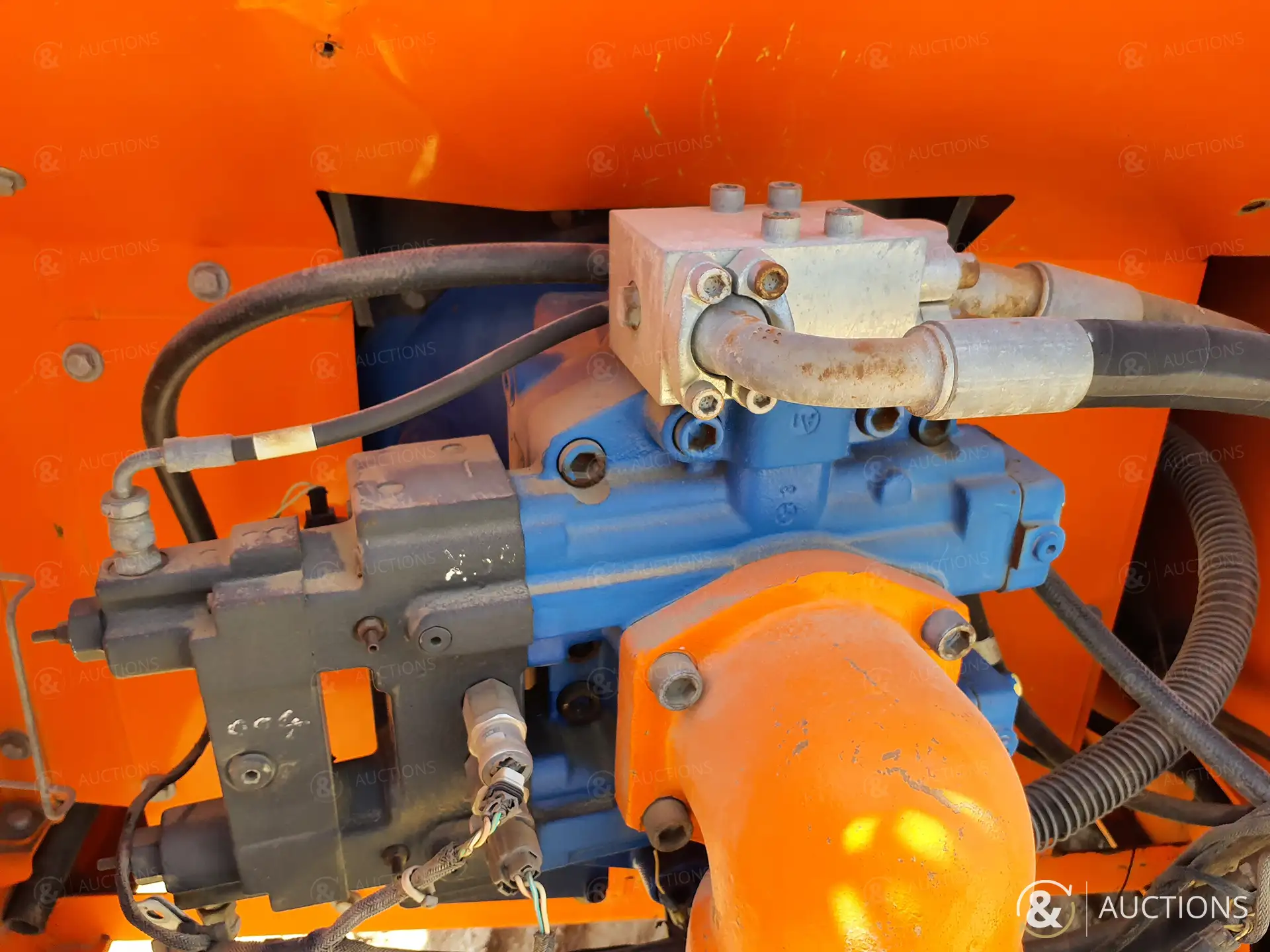

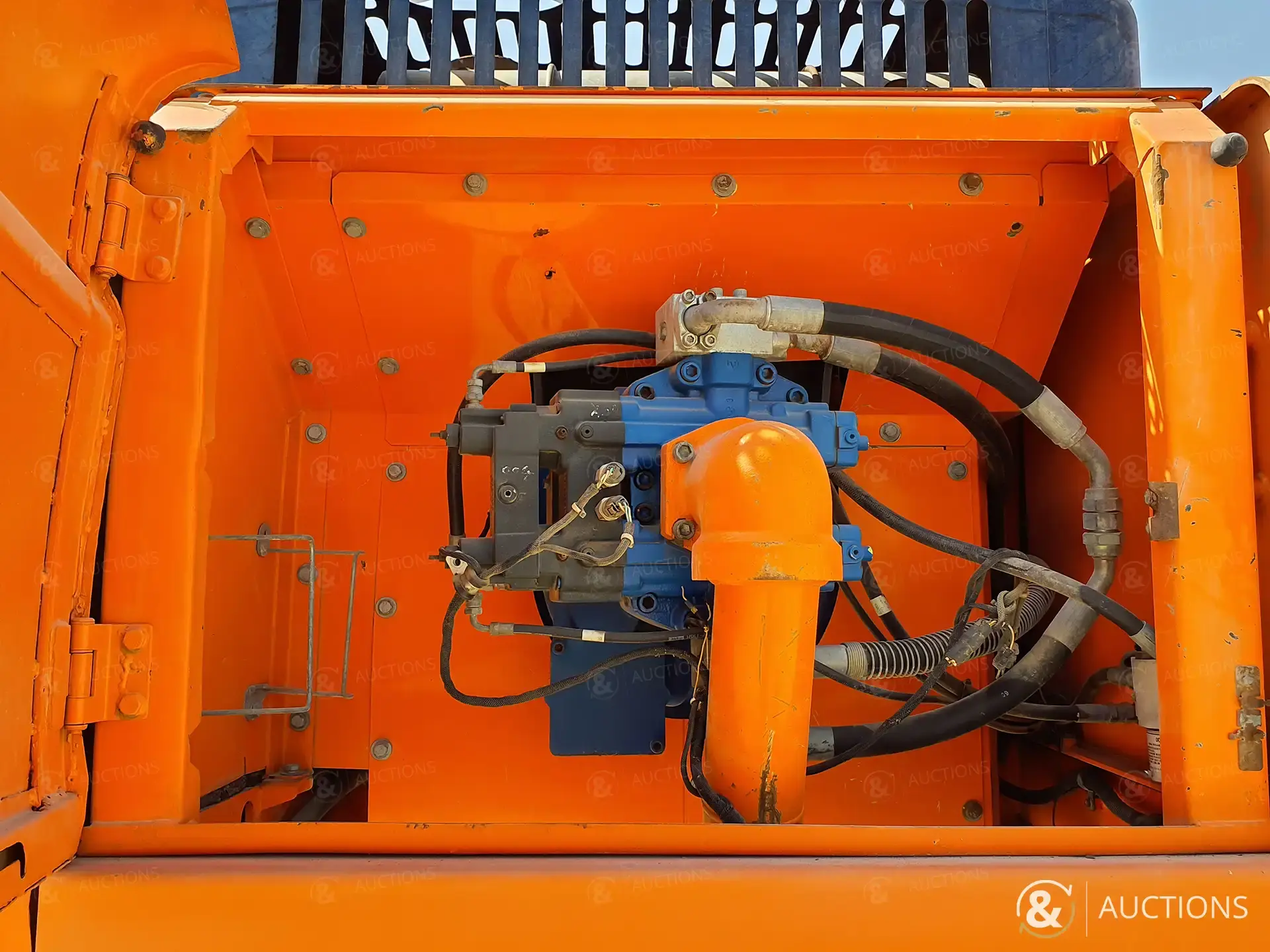

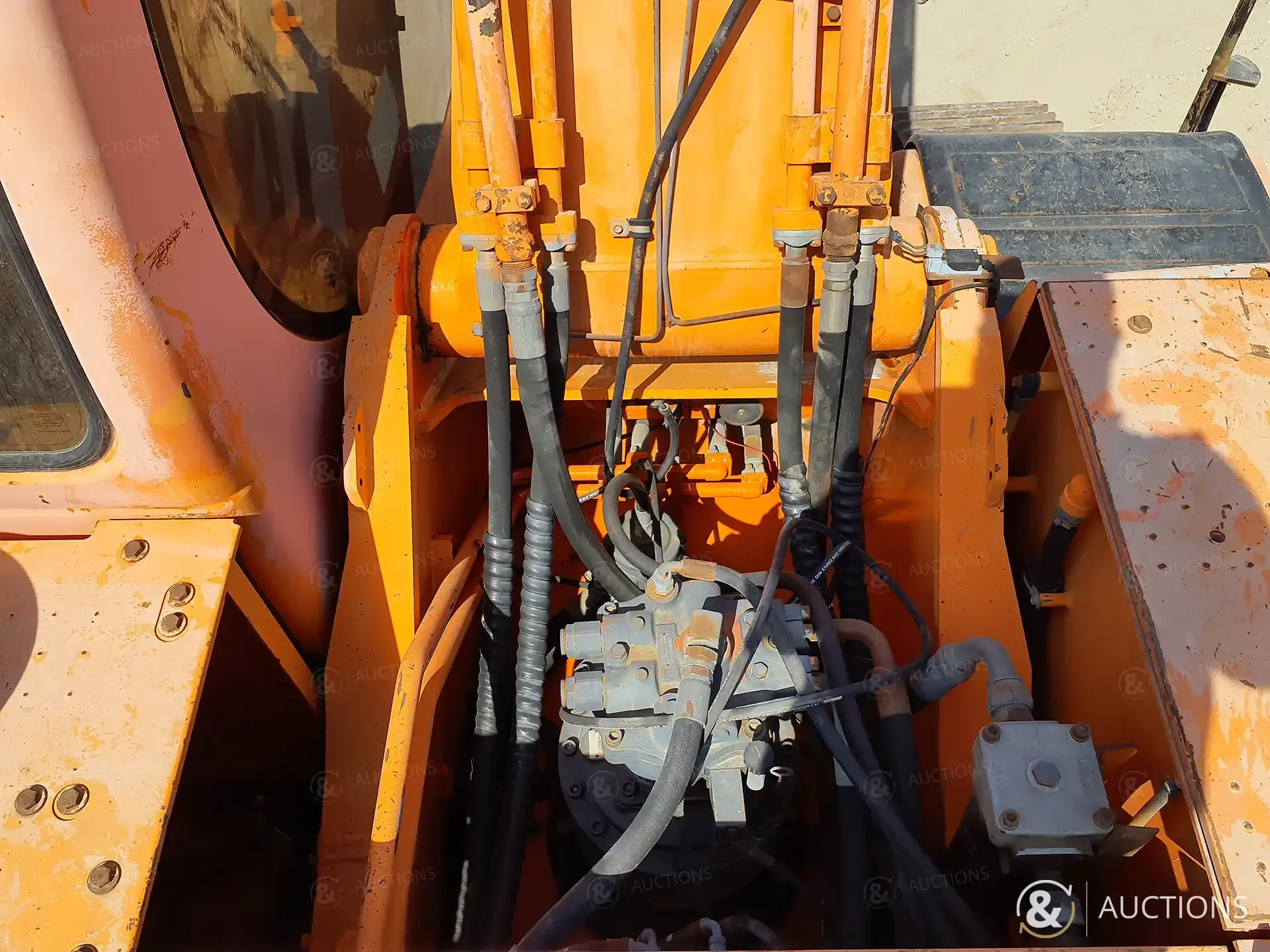

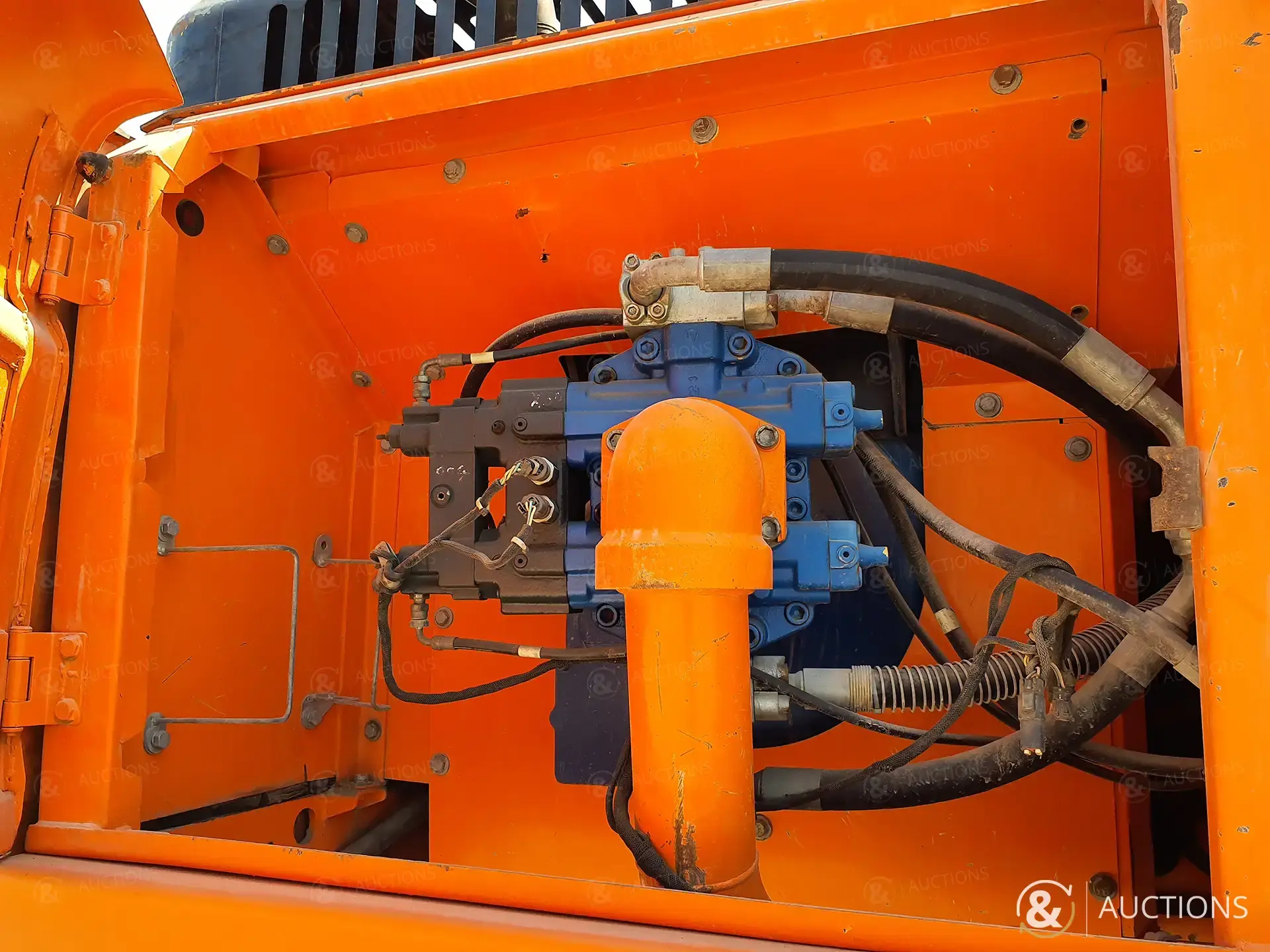

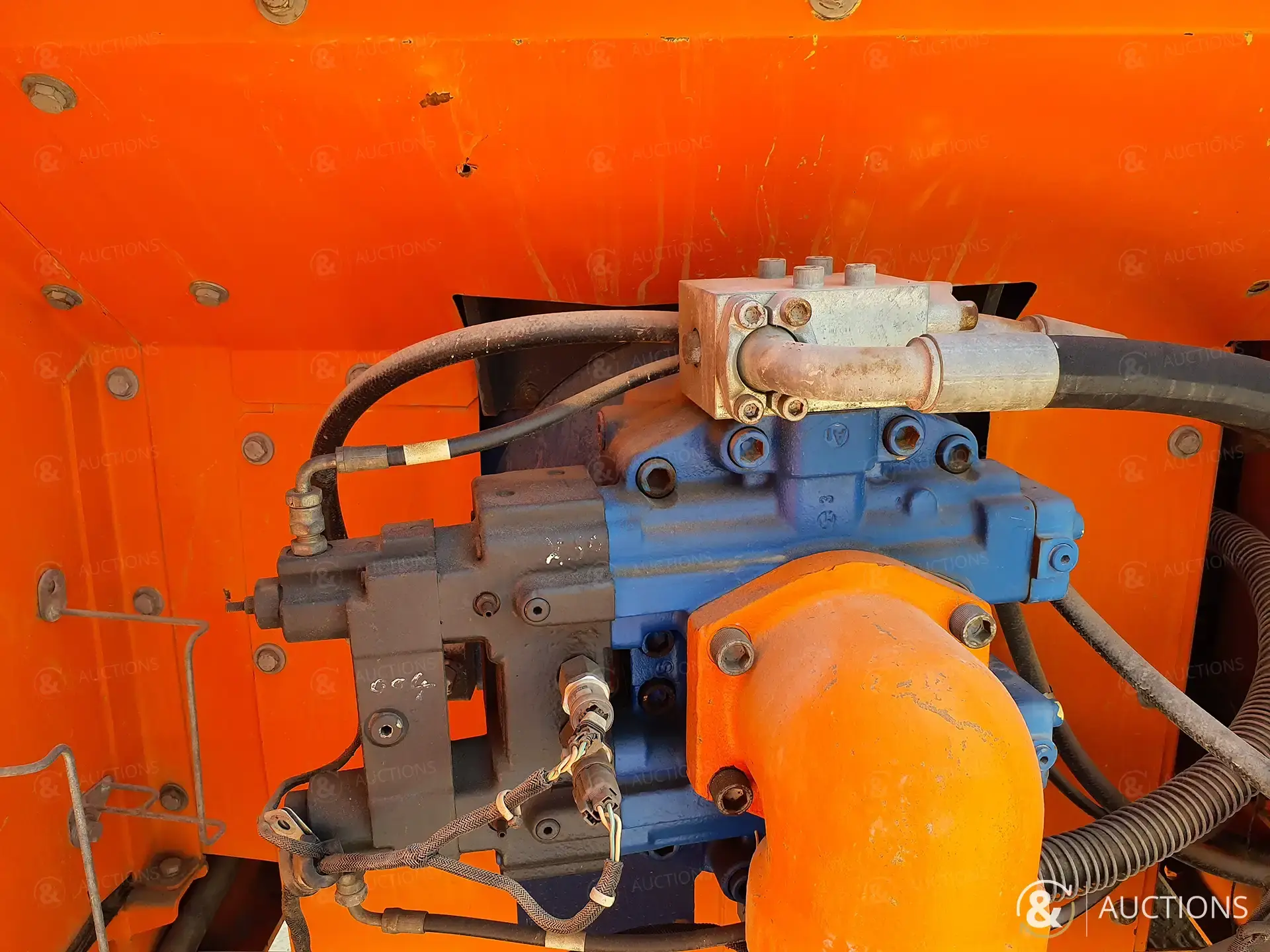

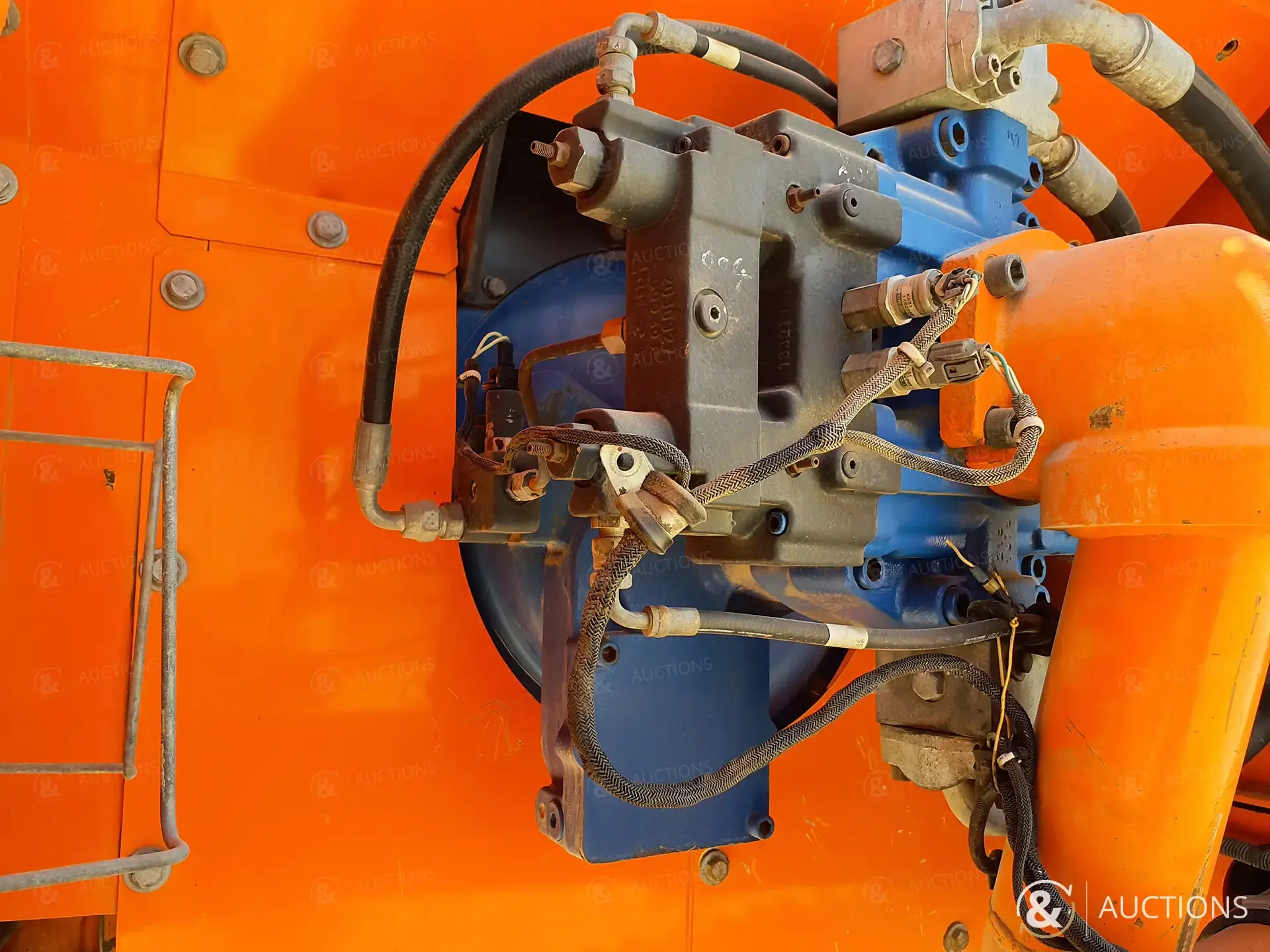

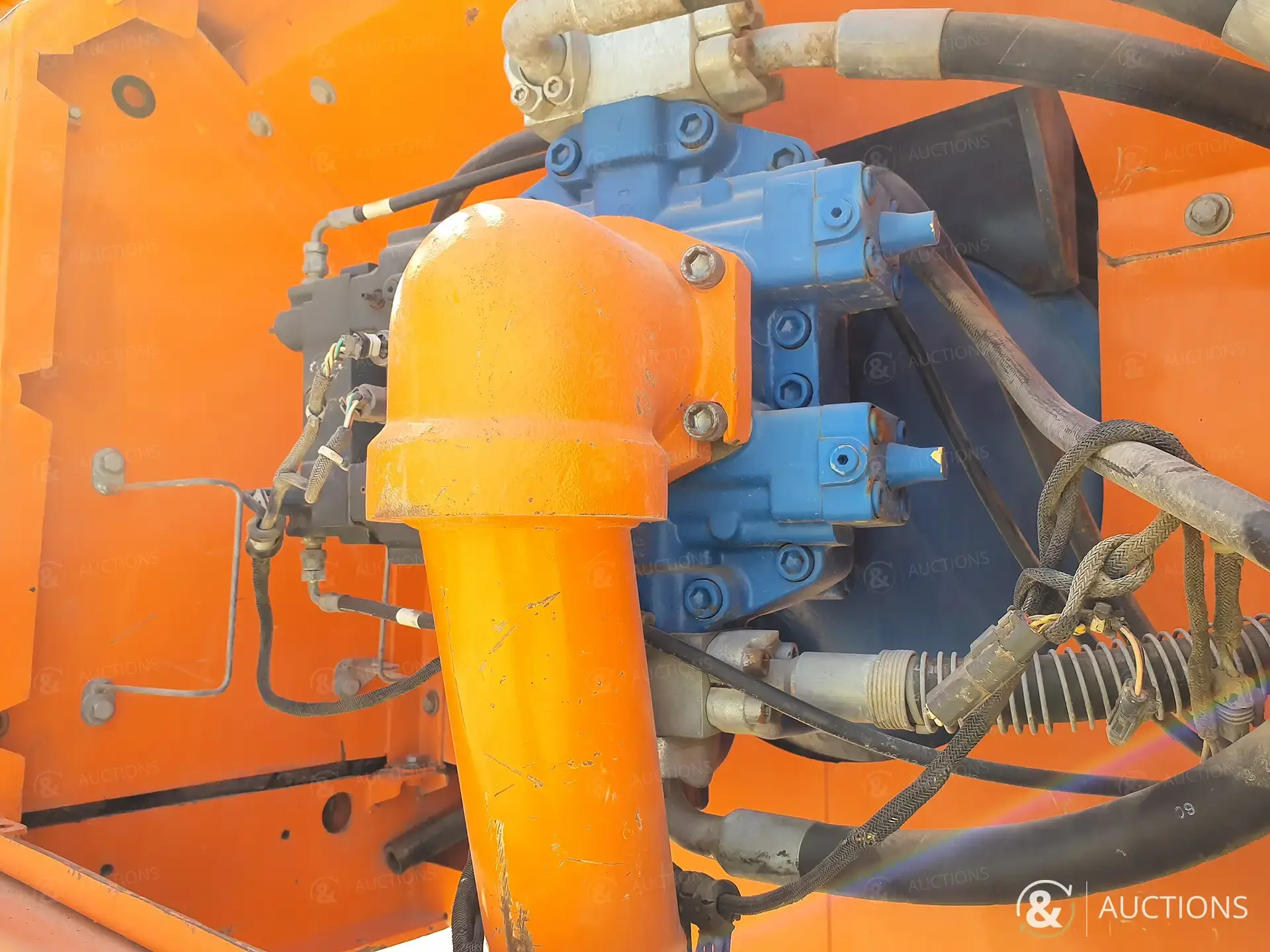

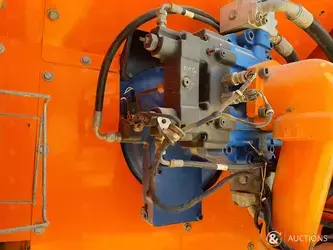

| Hydraulic Pump & Valve Block | Functional, little weak |
| Bucket Hydraulic Jack | Ok |
| Arm Hydraulic Jack | Ok |
Performance analysis
| Boom Pins Condition | Ok, minor loose |
| Excavator Self- Drift Test | Weak |
| Arm Pins Condition | Ok |

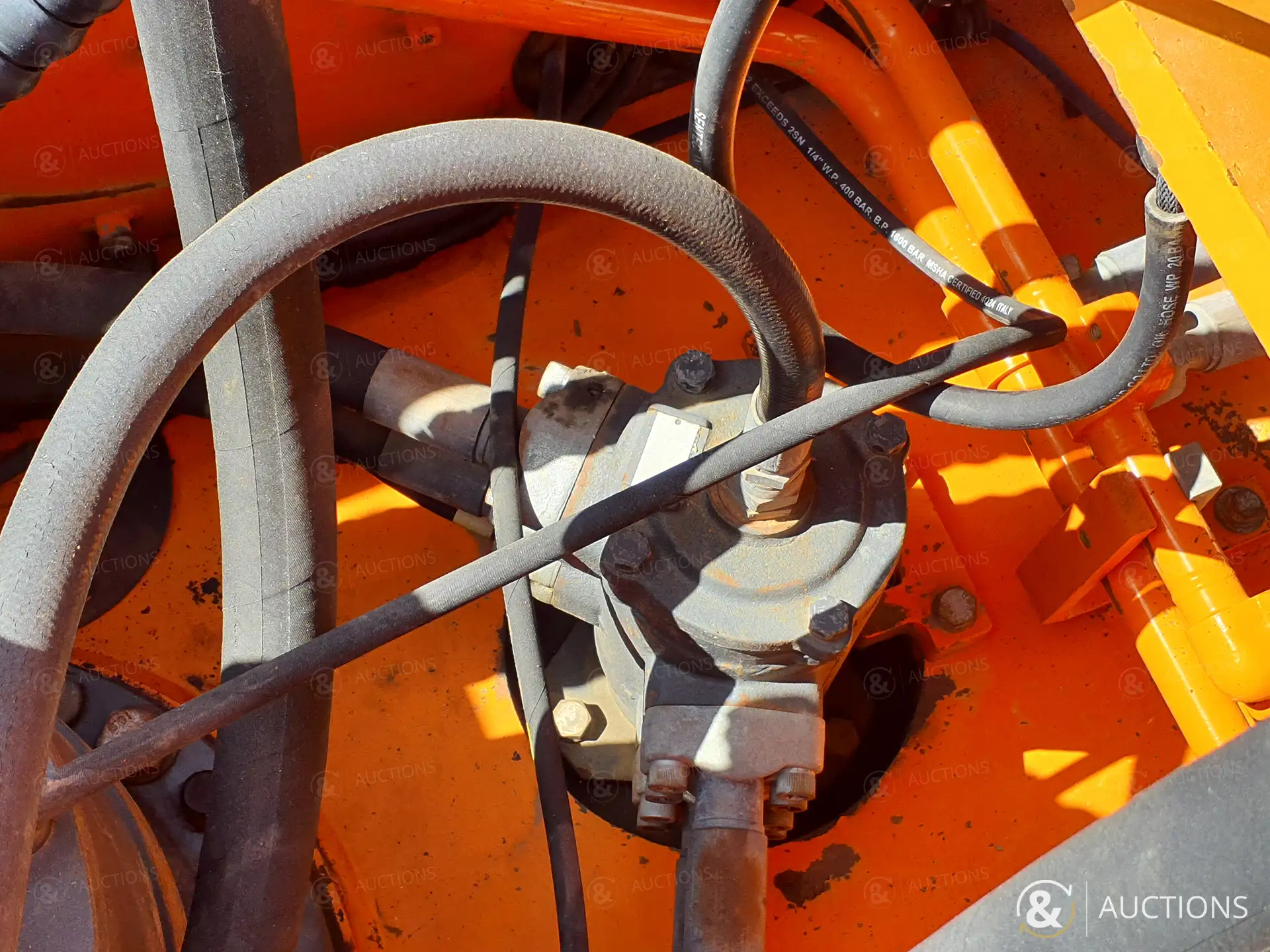

| Hydraulic Pump Noise Check | Ok, minor |
| Bucket Pins Condition | Ok, minor loose |

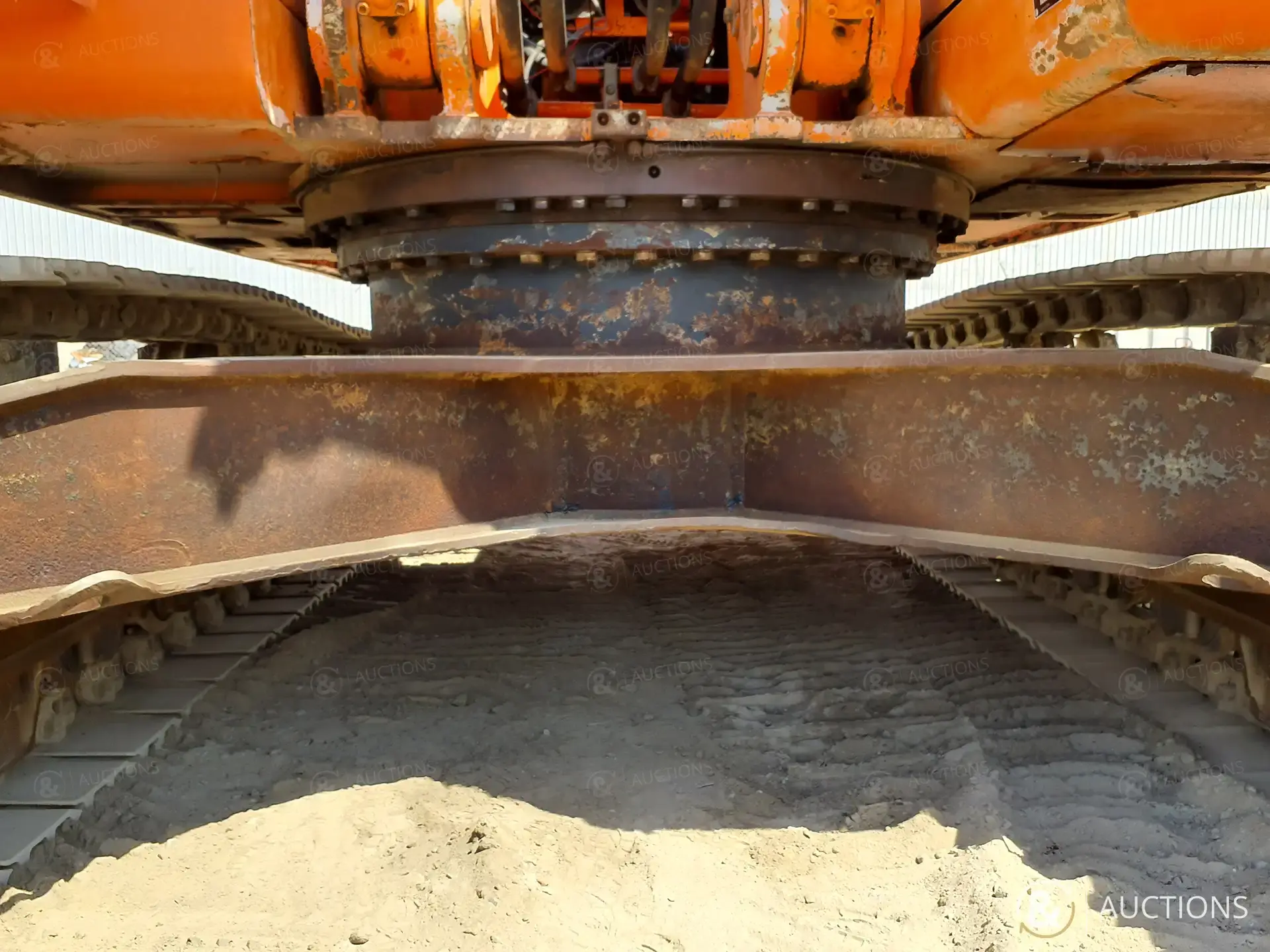

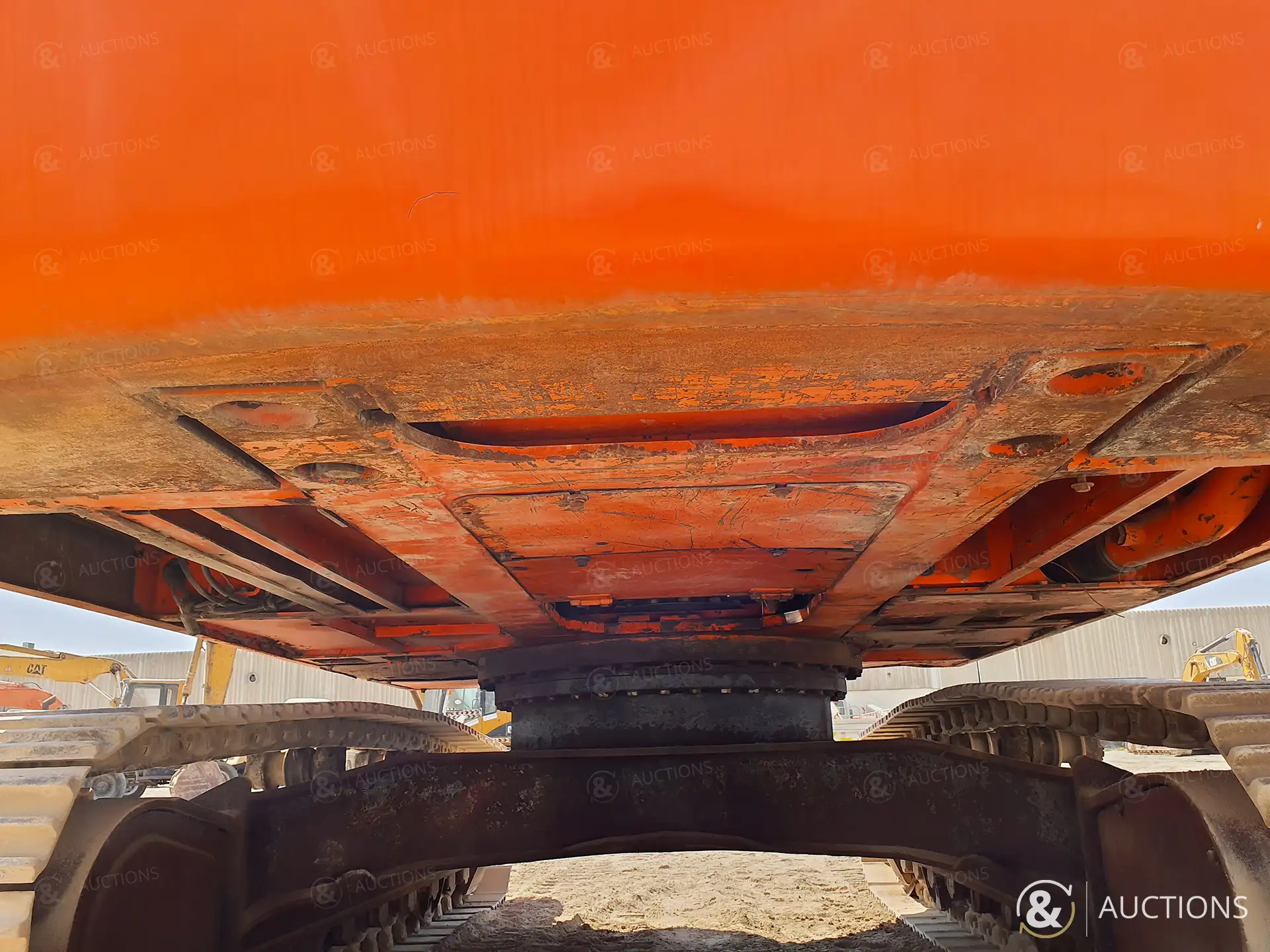

| Slewing Ring Bearing Movement Check | Ok |

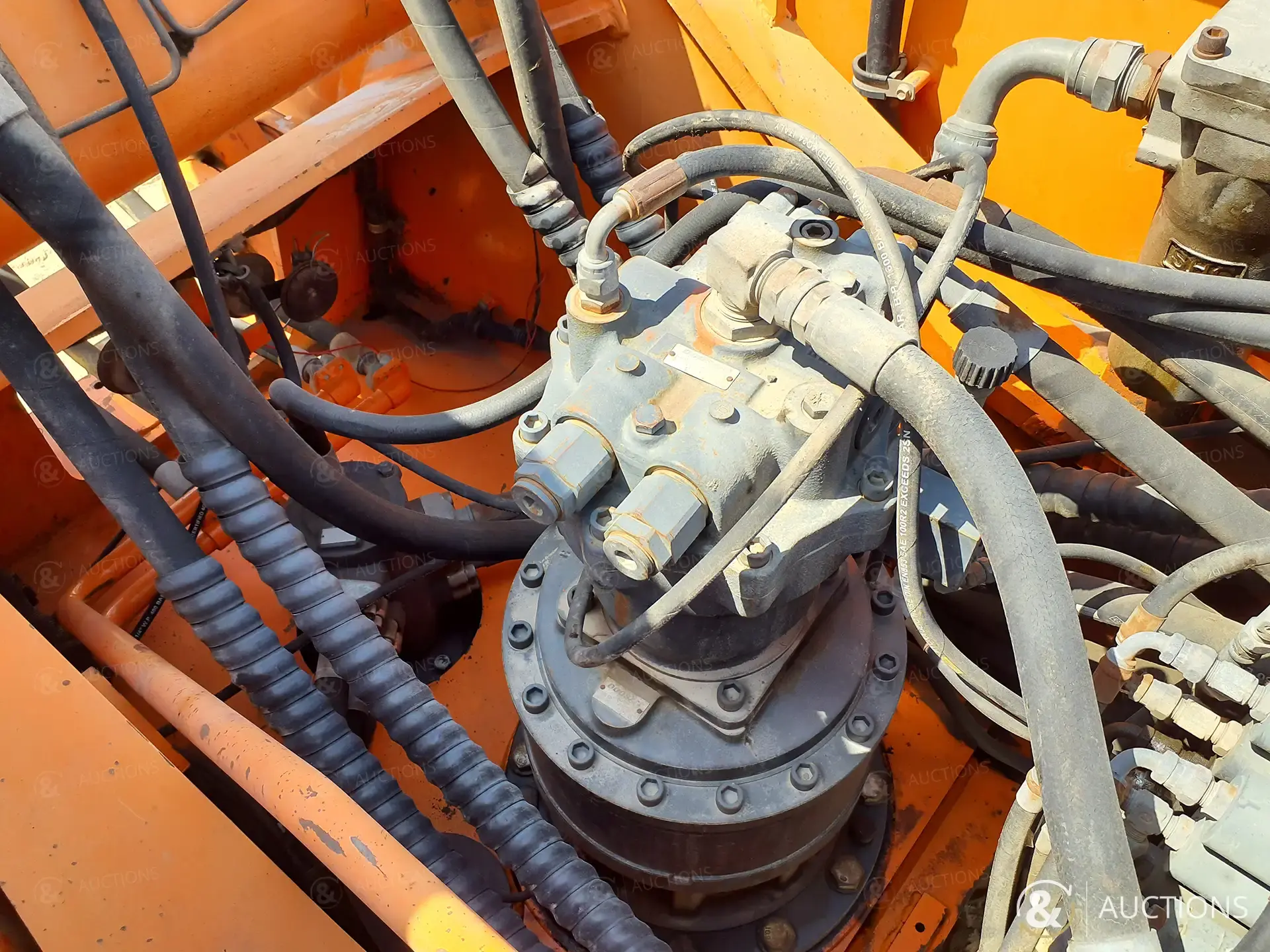

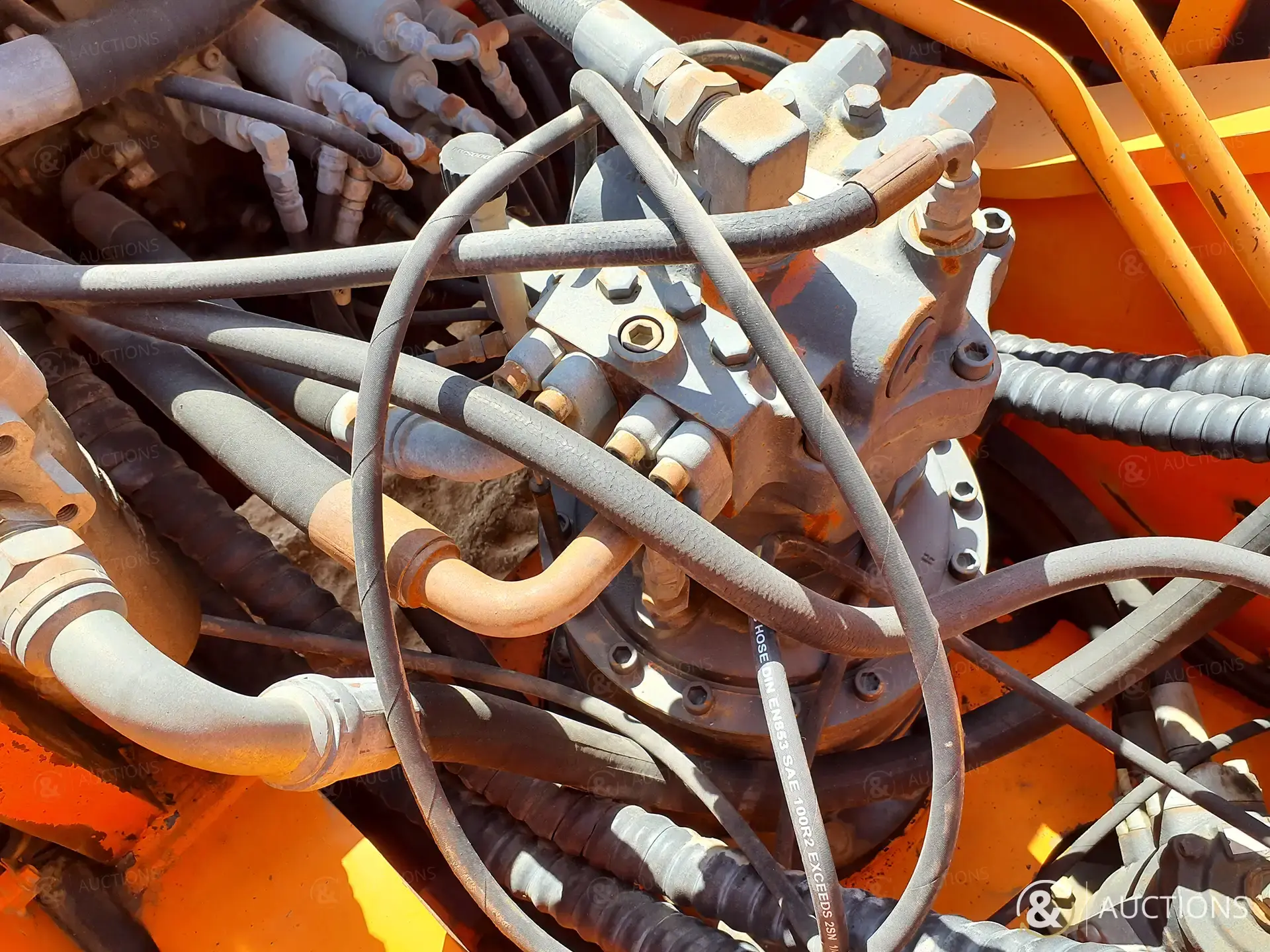

| Swing Drive And Brake Test | Ok |
| Drive Force Test | Ok |

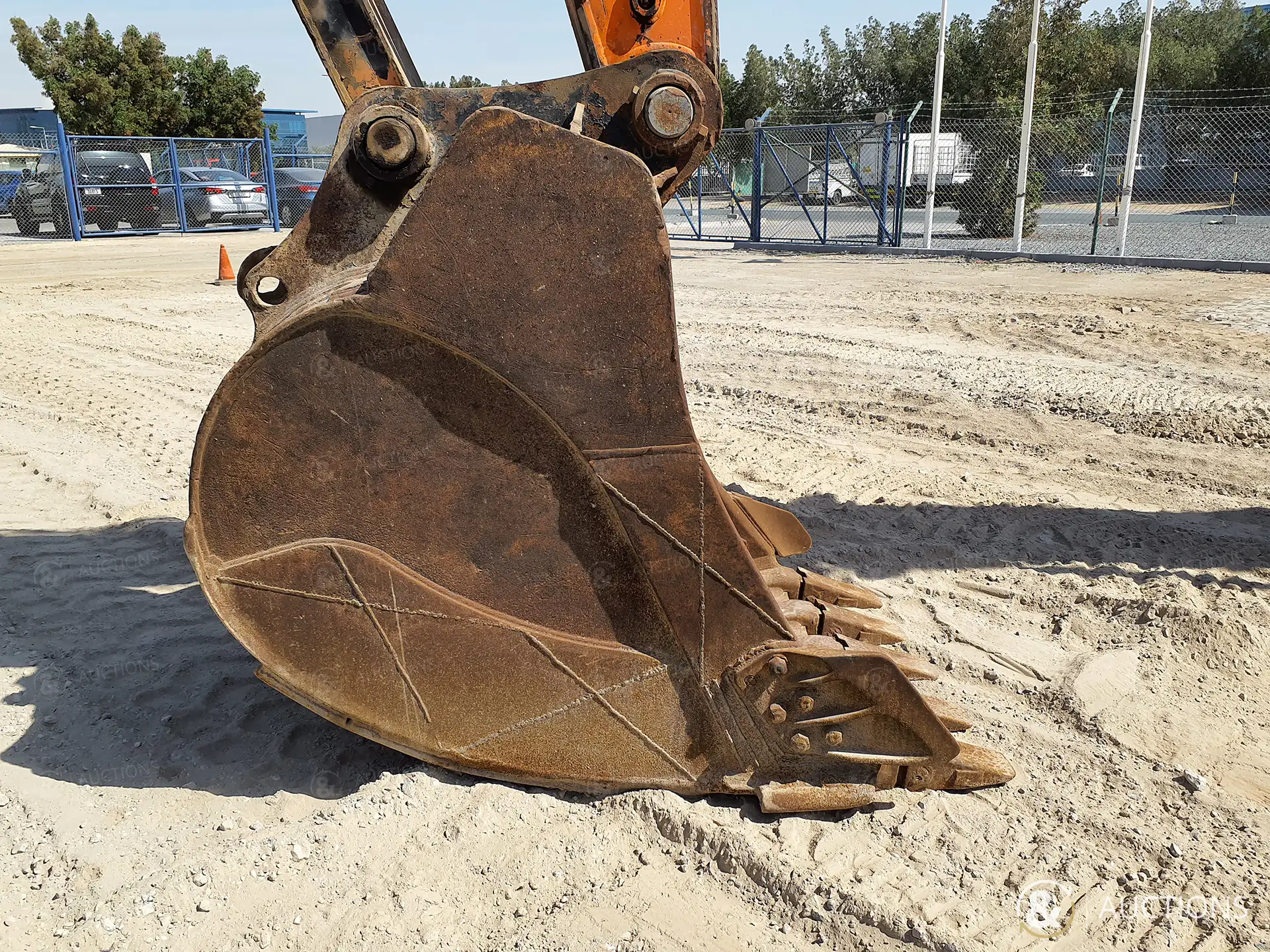

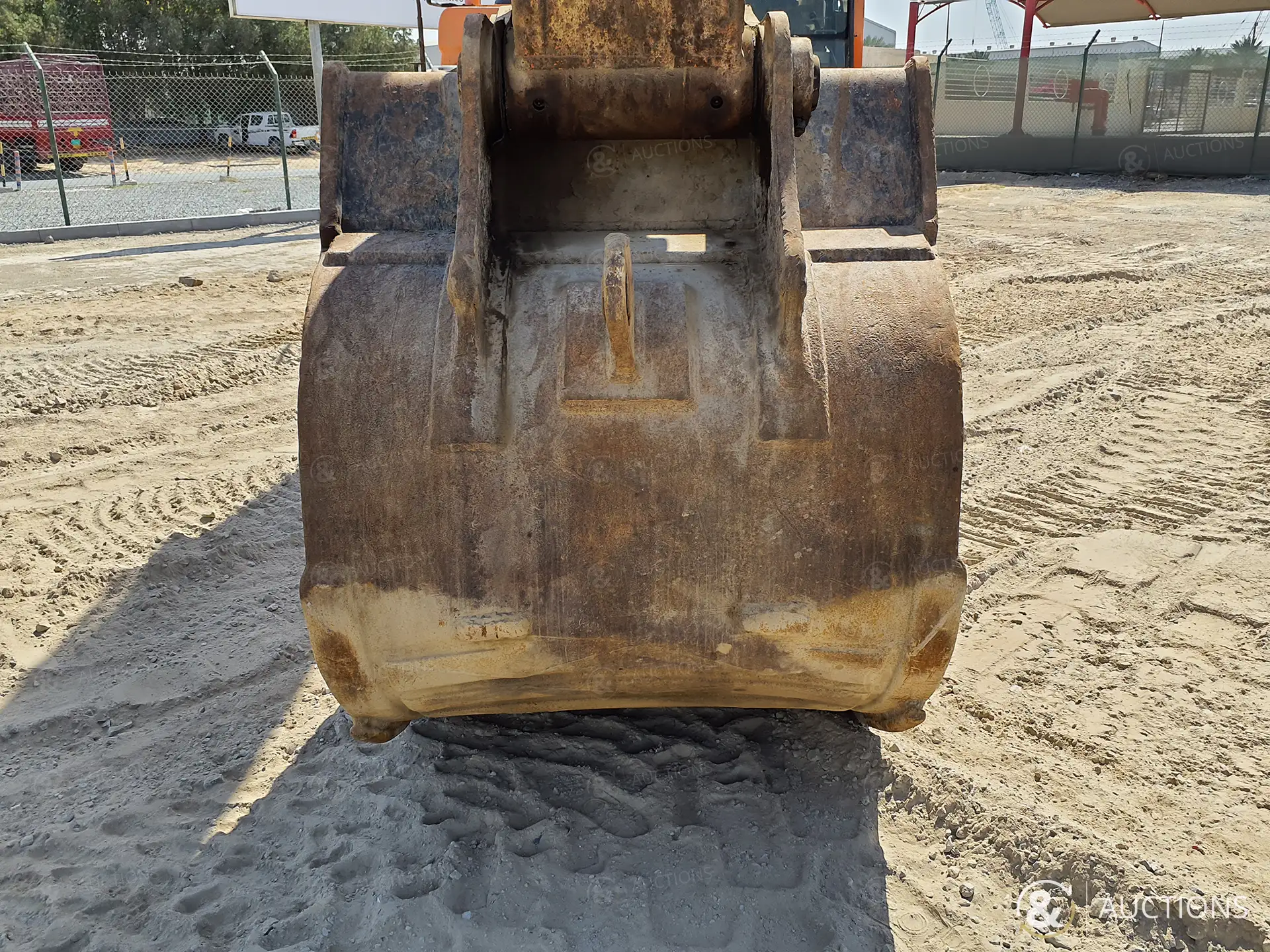

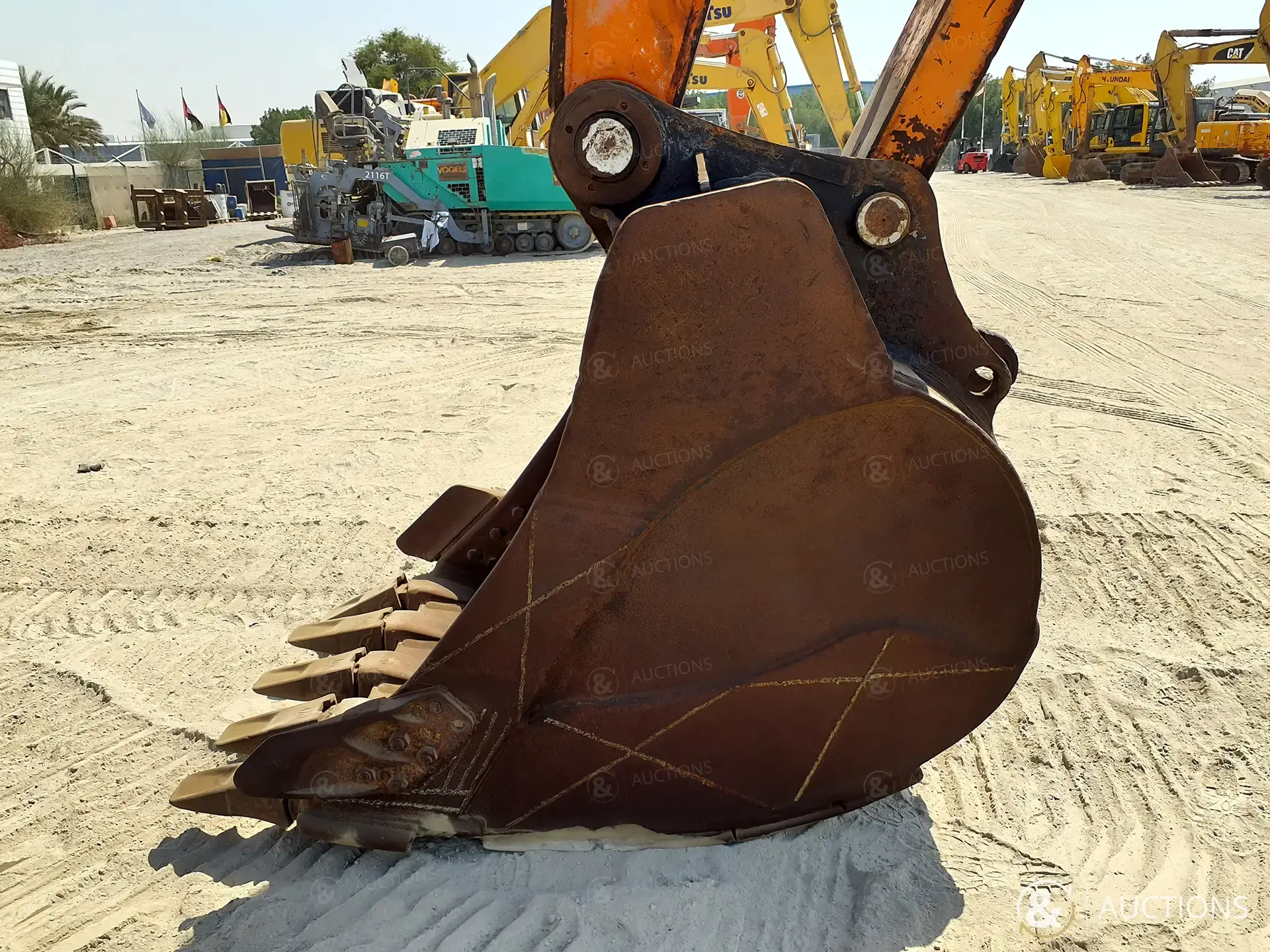

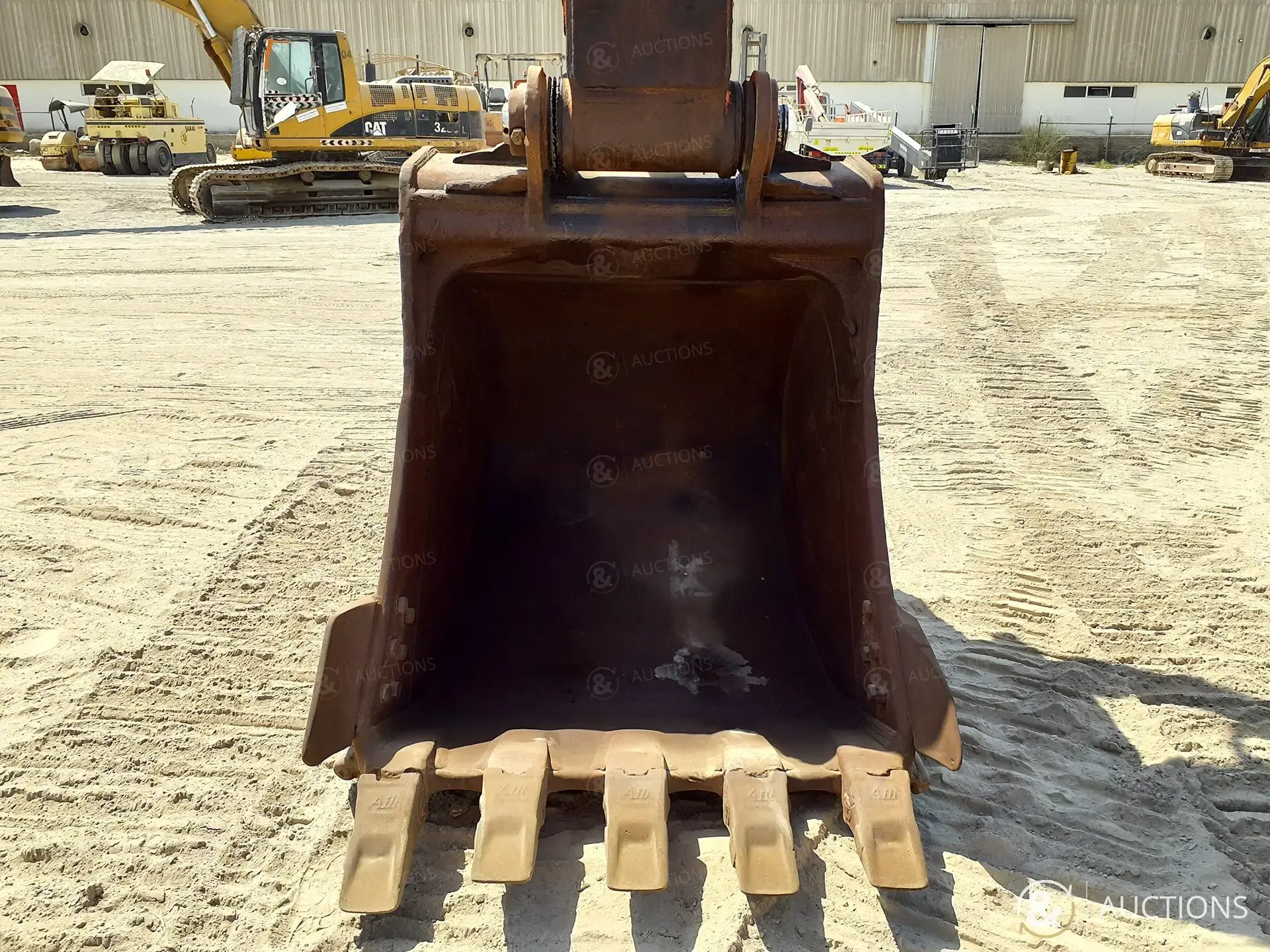

Attachments

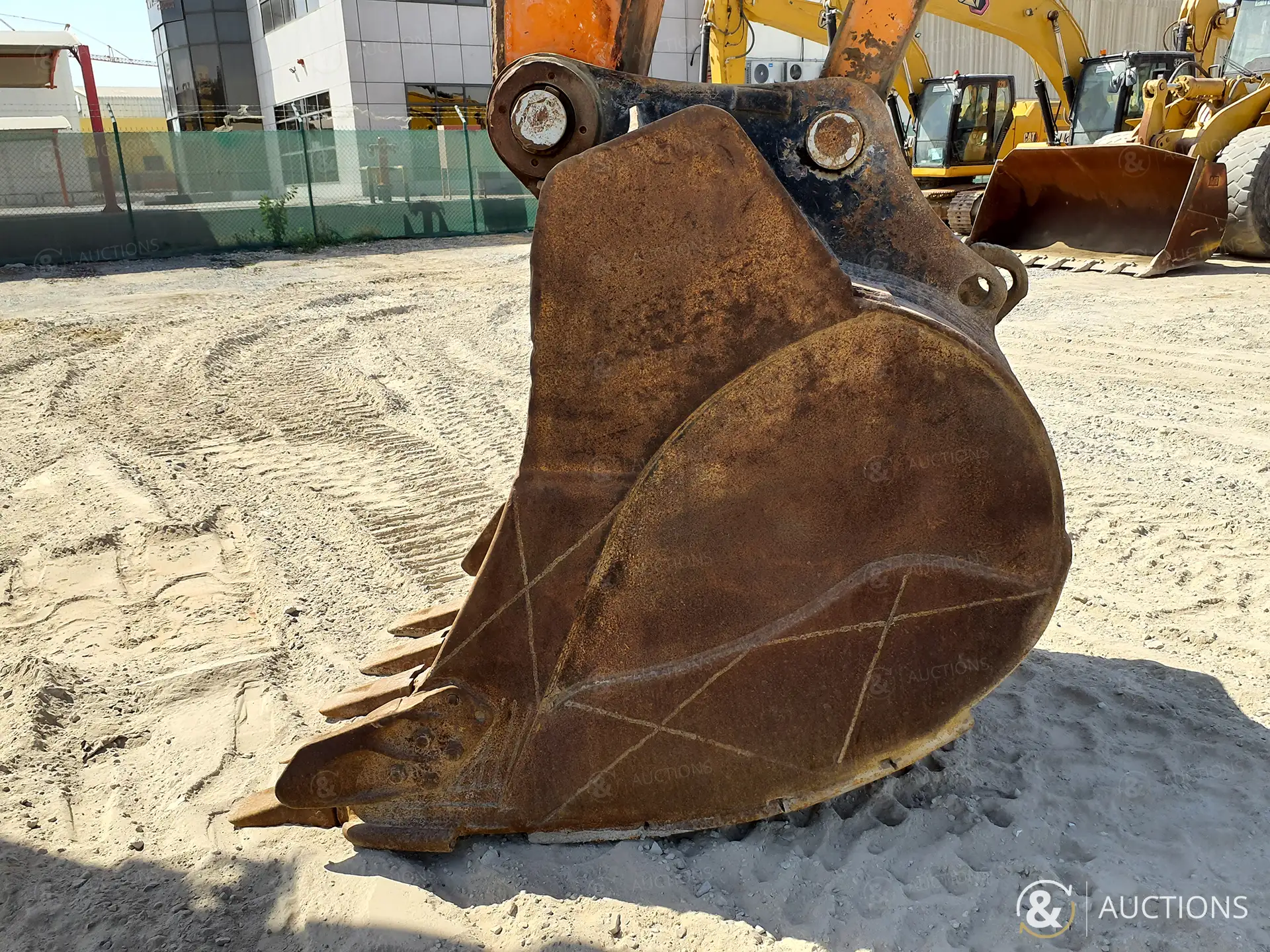

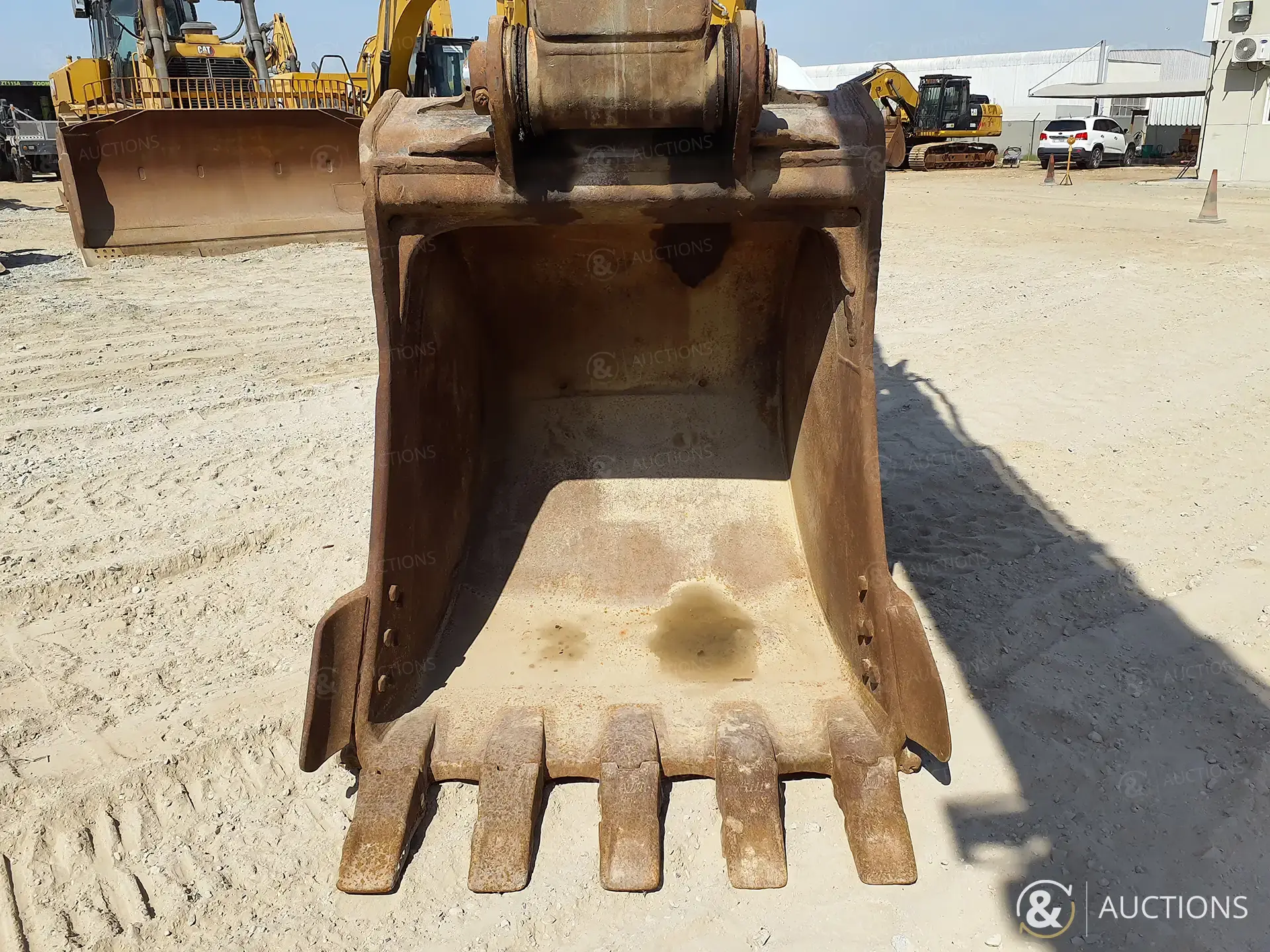

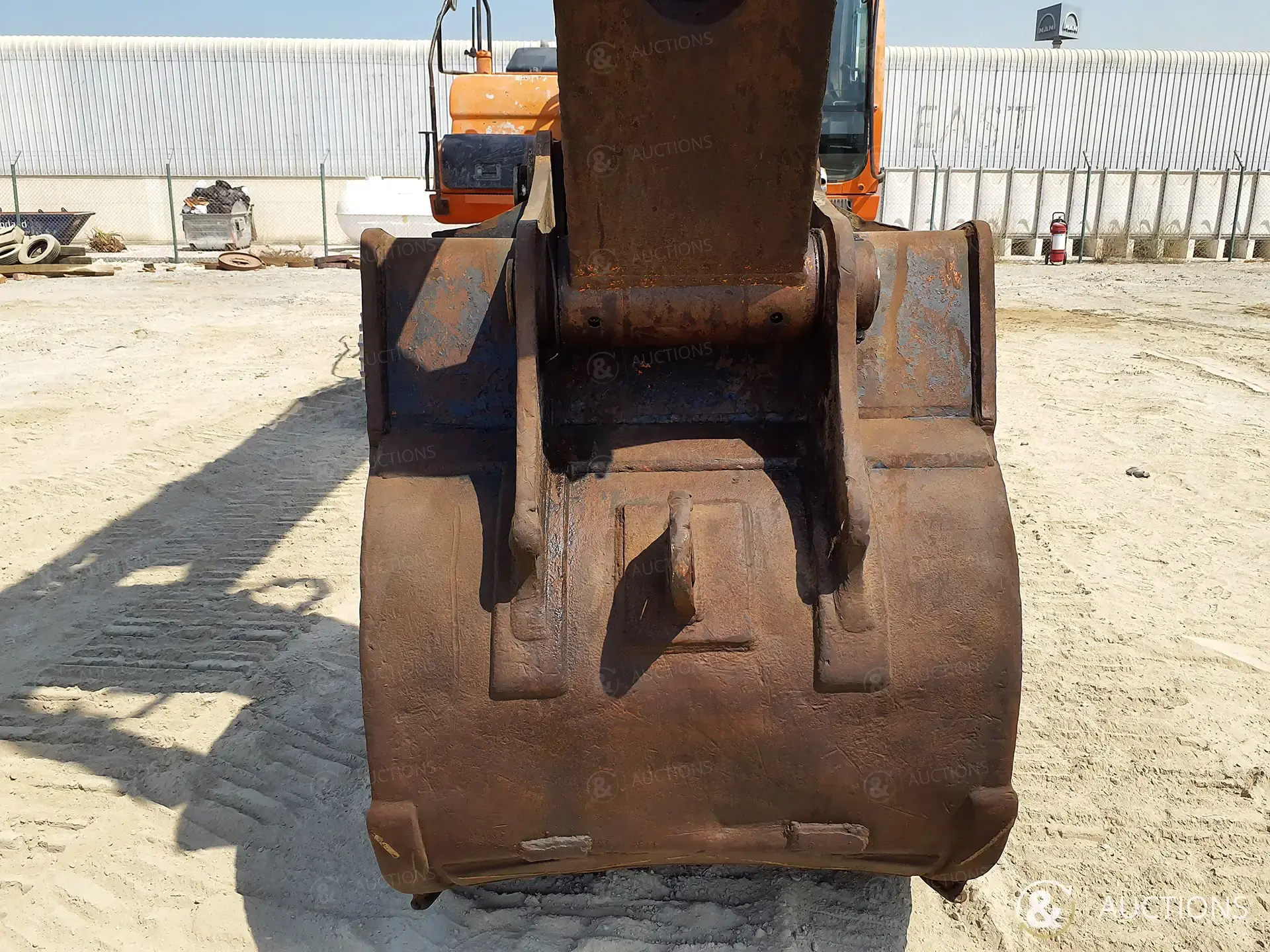

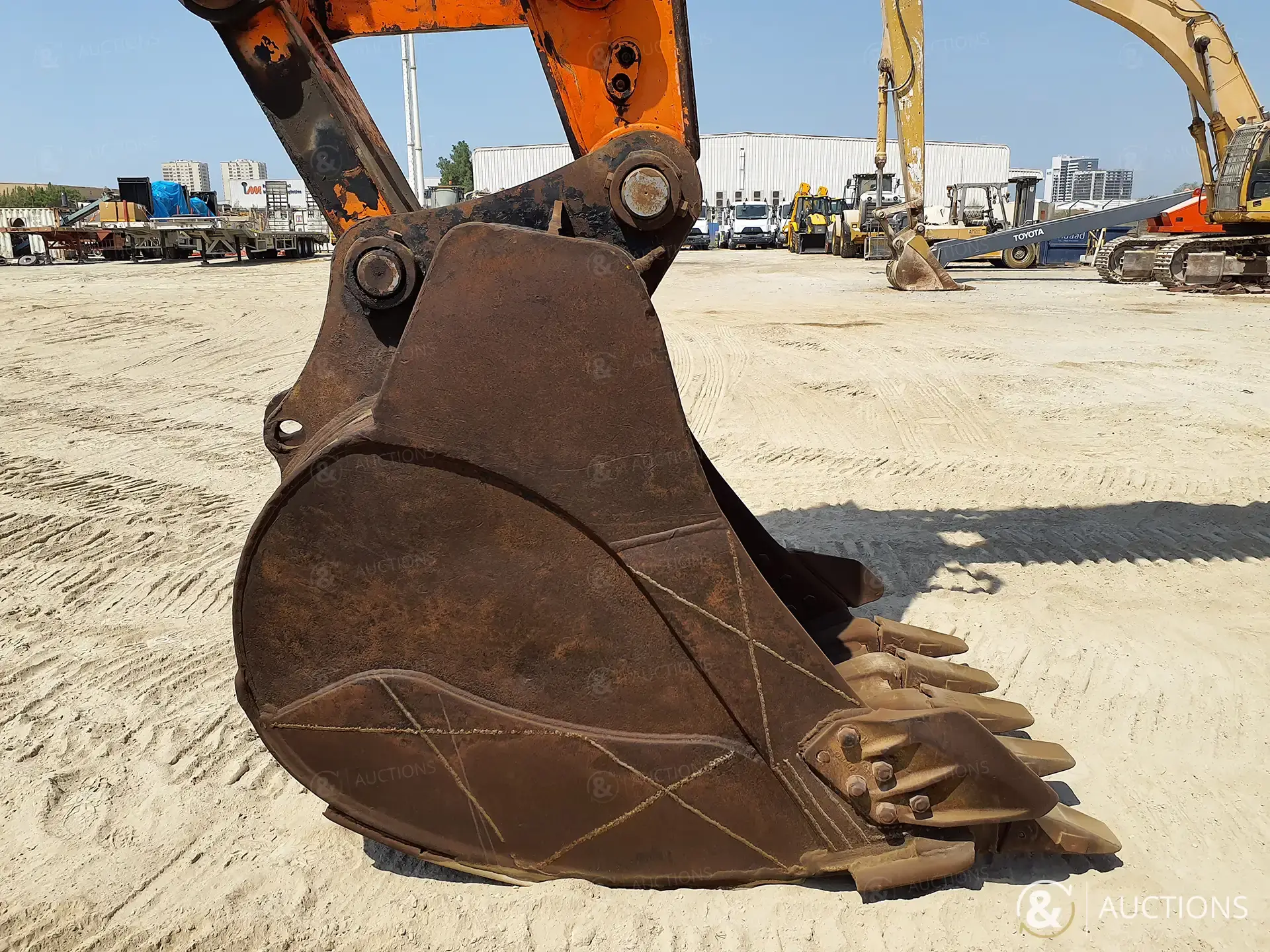

| Attachments Model | Bucket |
| Size | W1060, H1200, D1000 mm |
| Status | Ok |
| Coupler Status | Ok |
| Second Attachments Model | N/A |
| Size | N/A |
| Status | N/A |

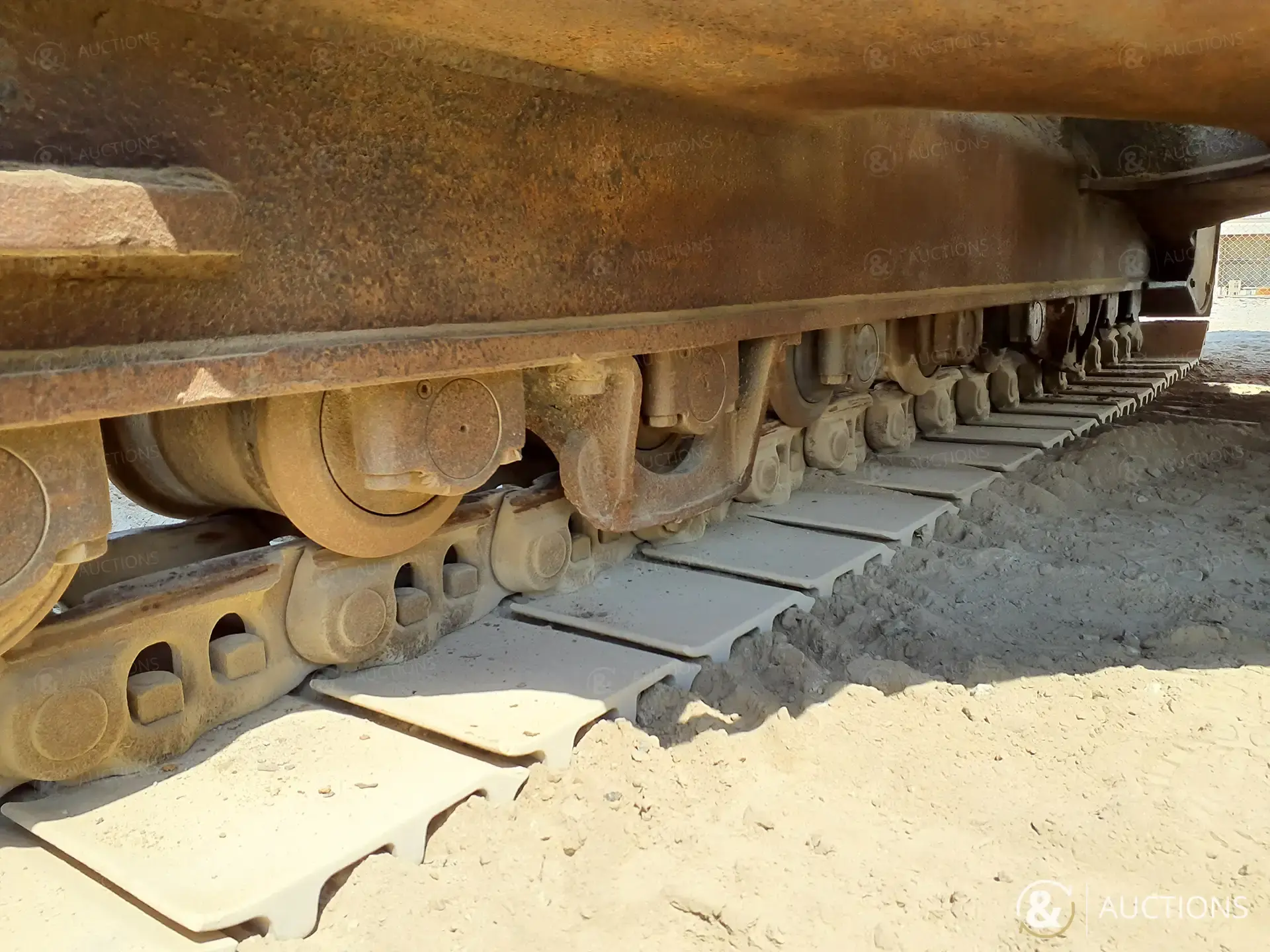

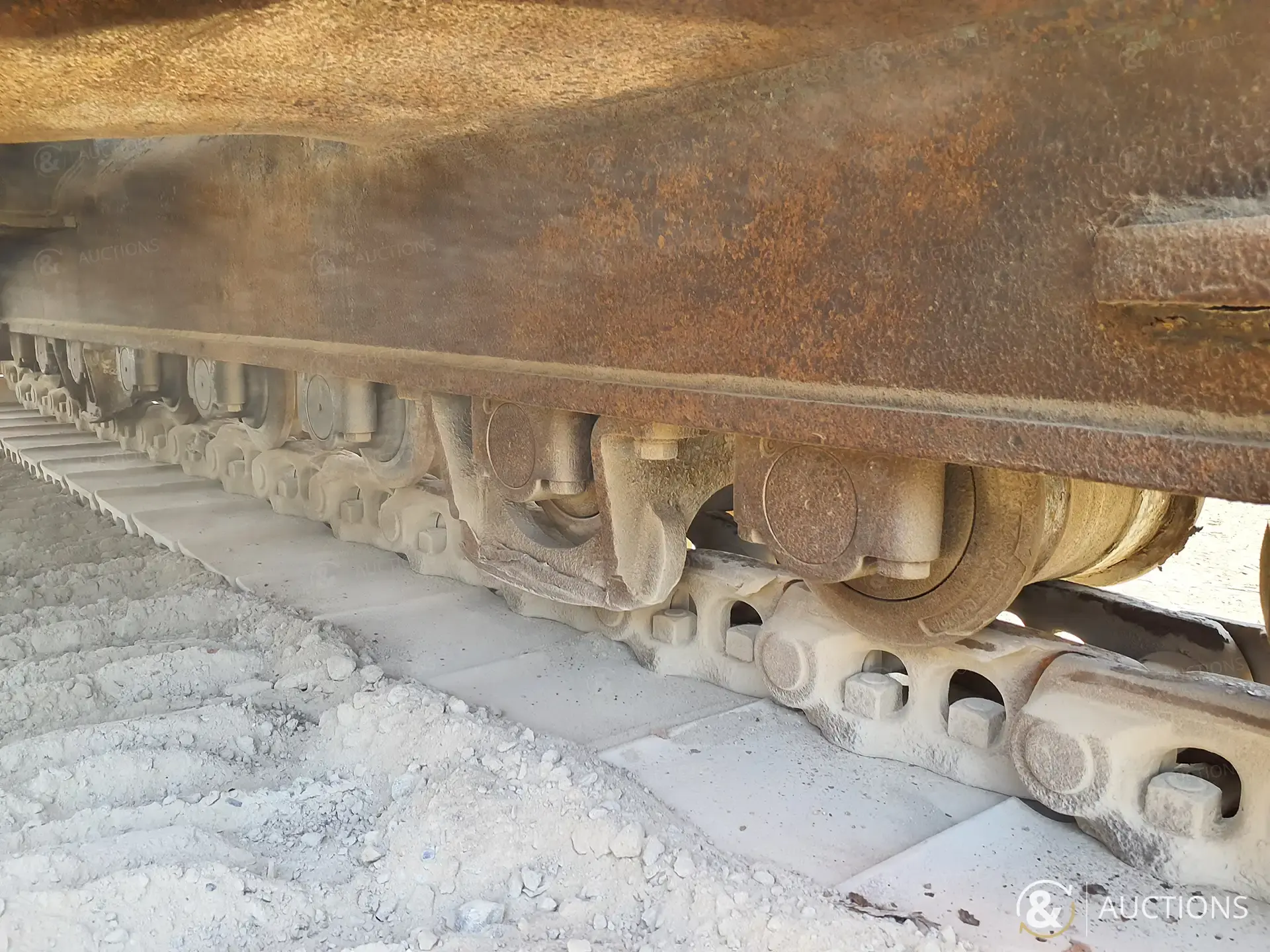

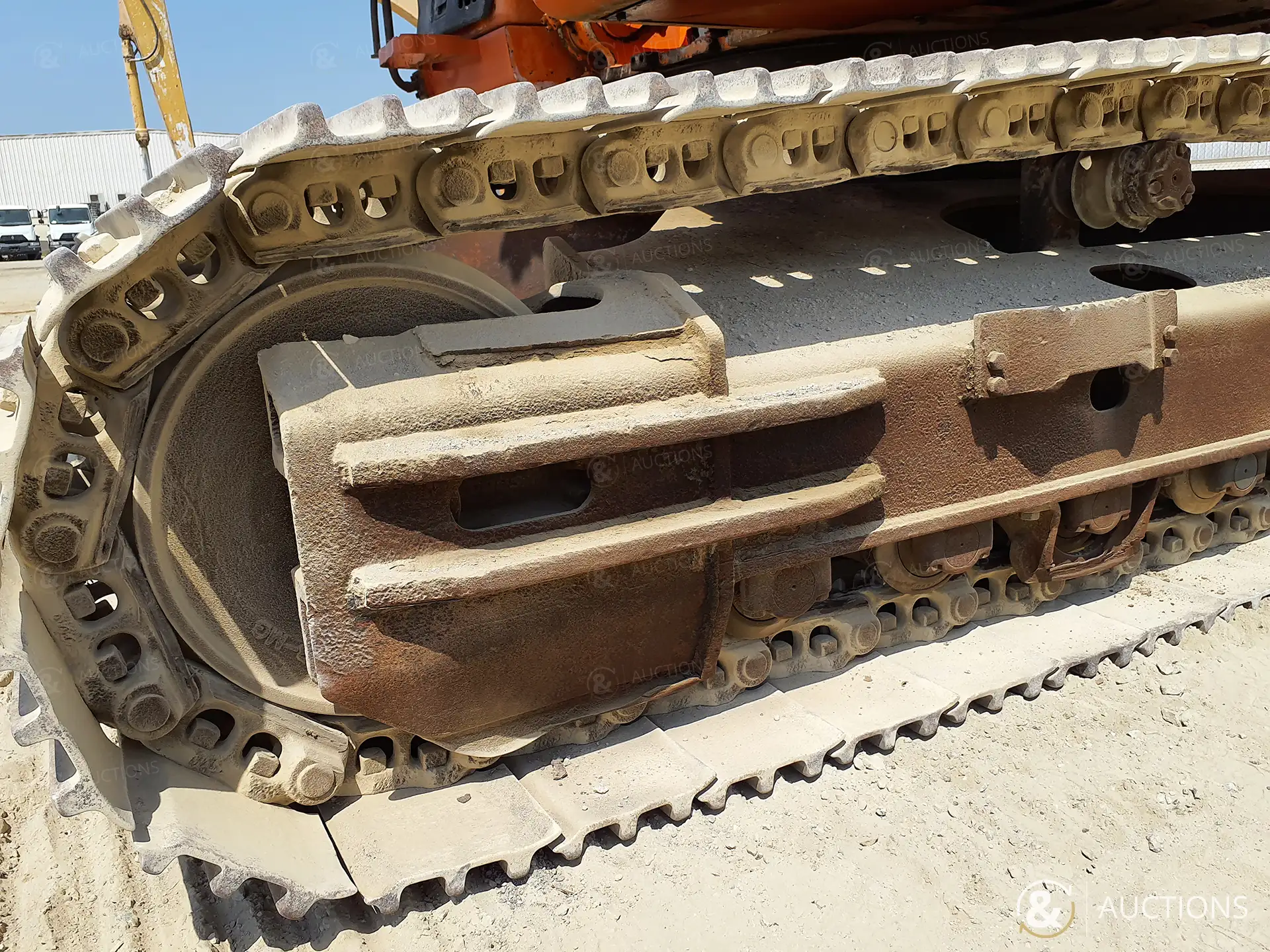

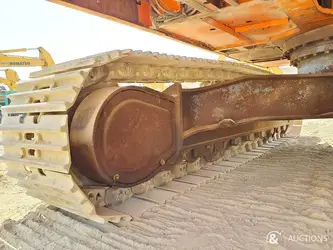

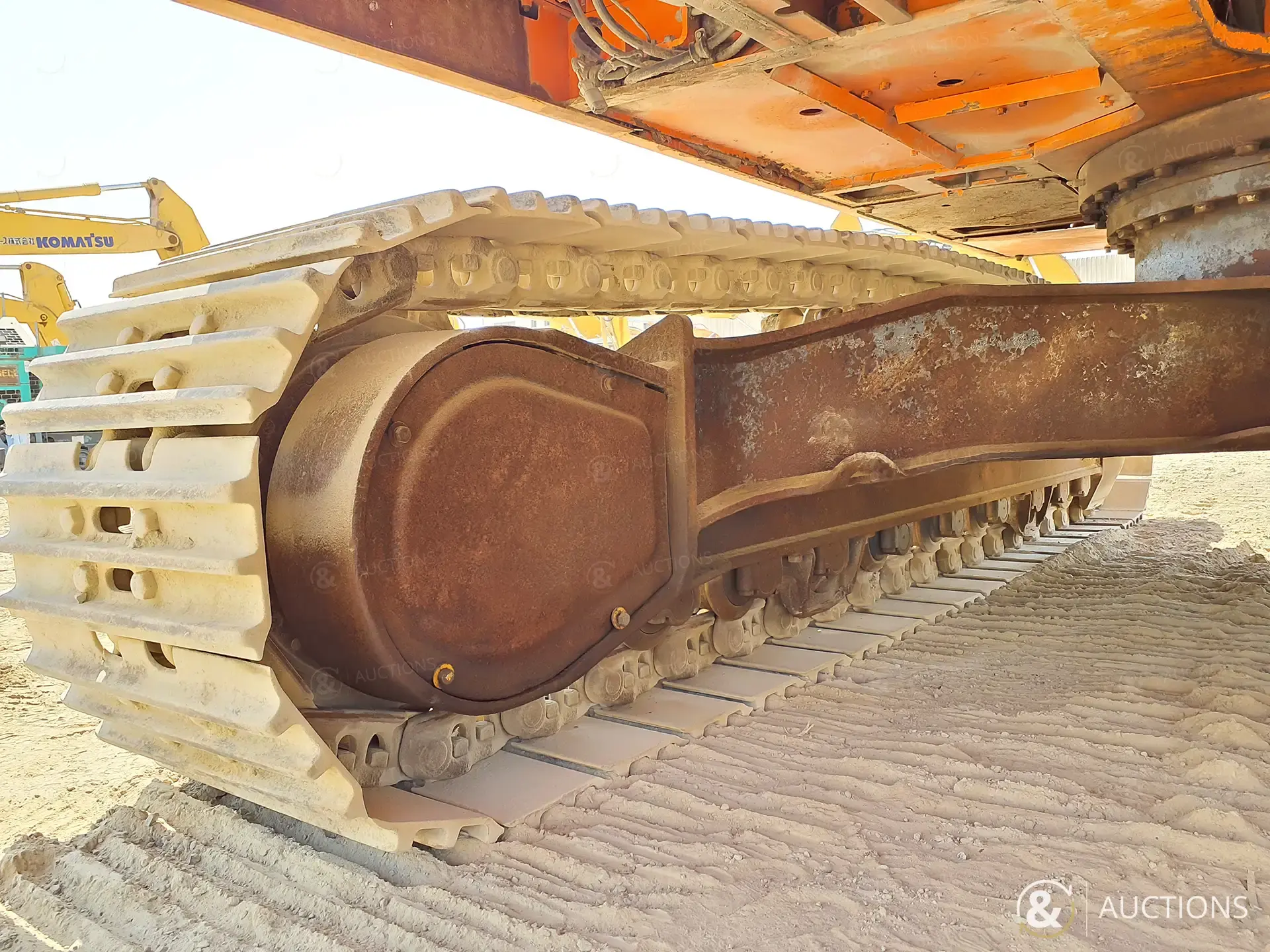

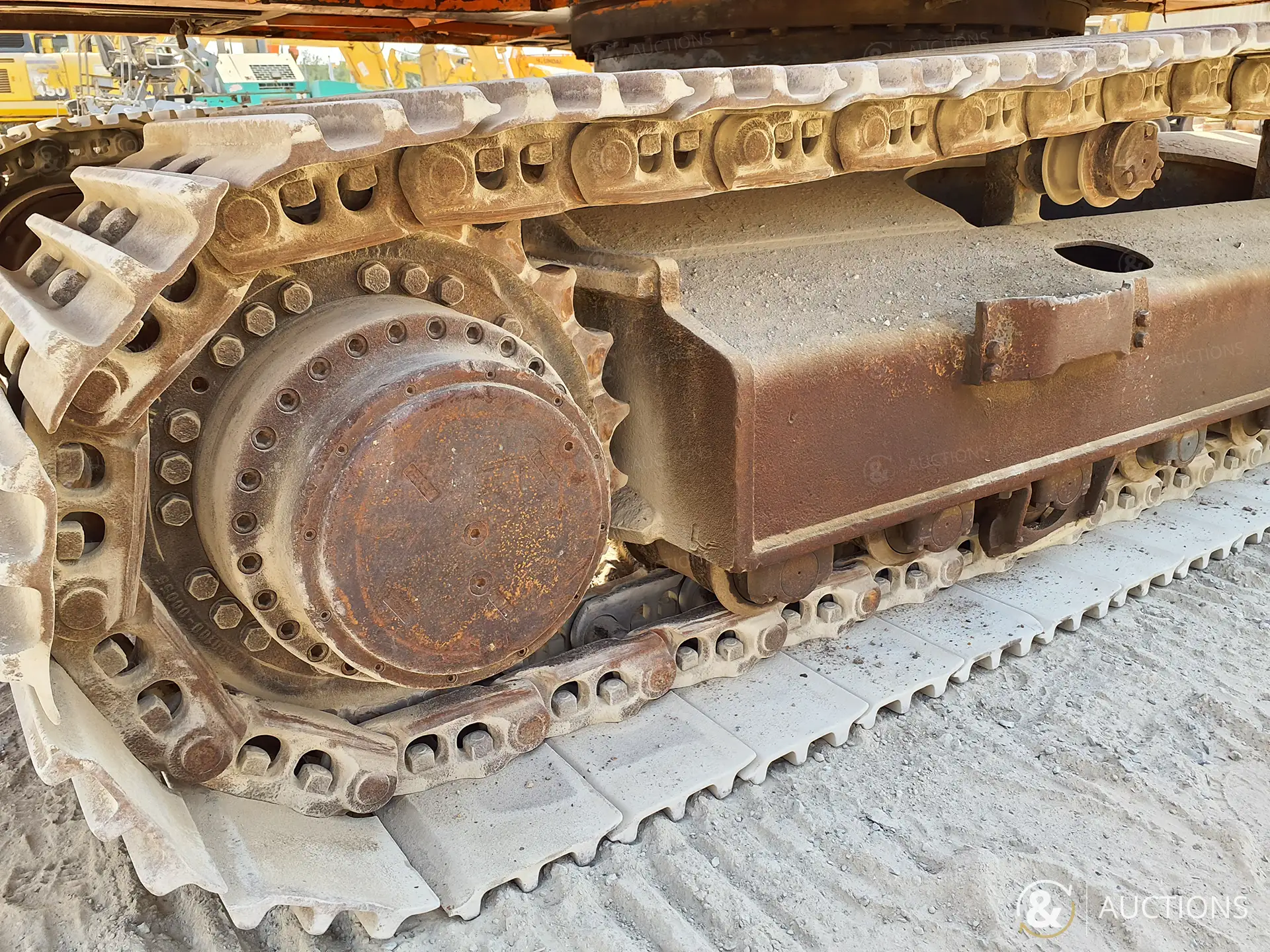

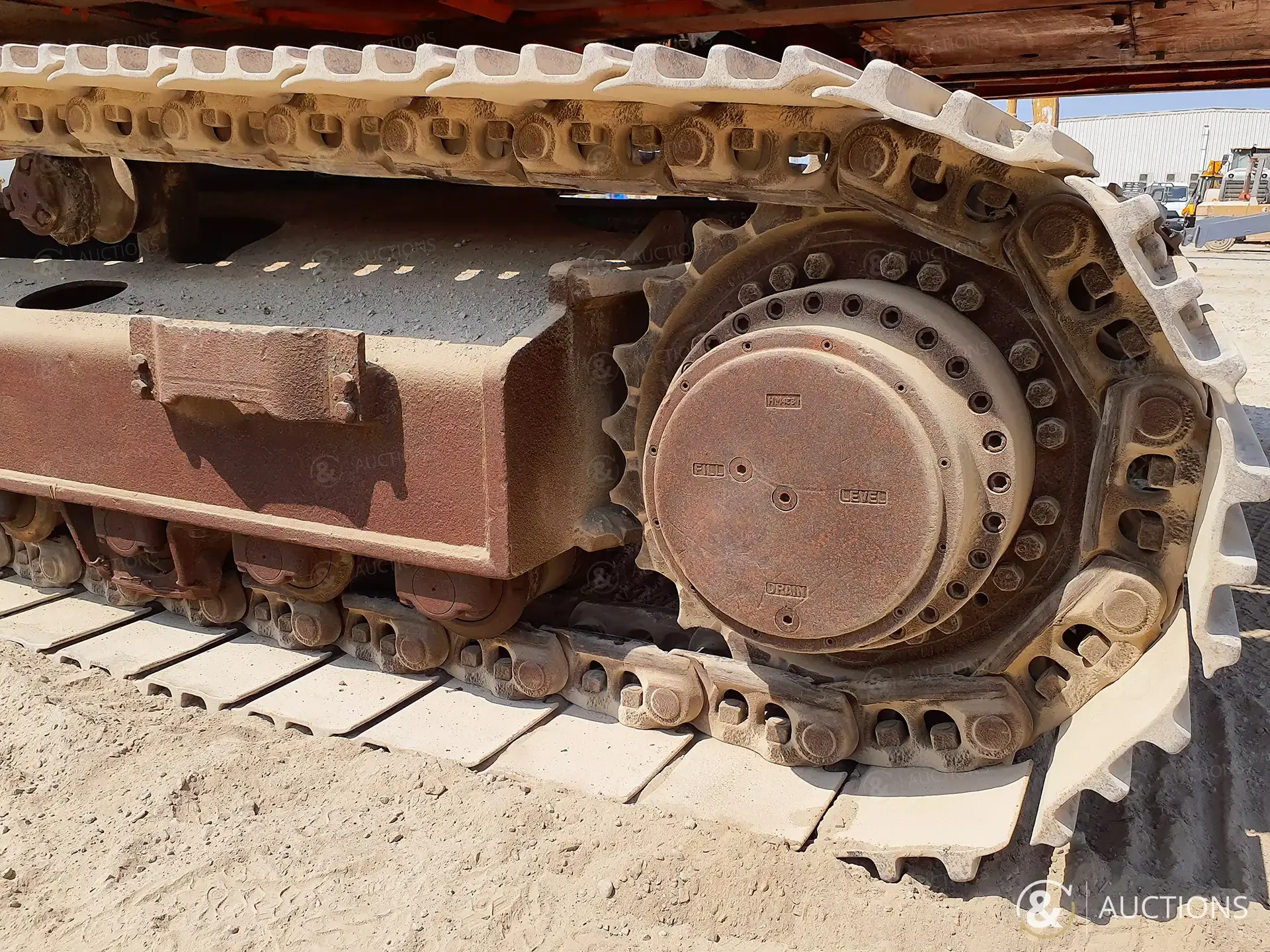

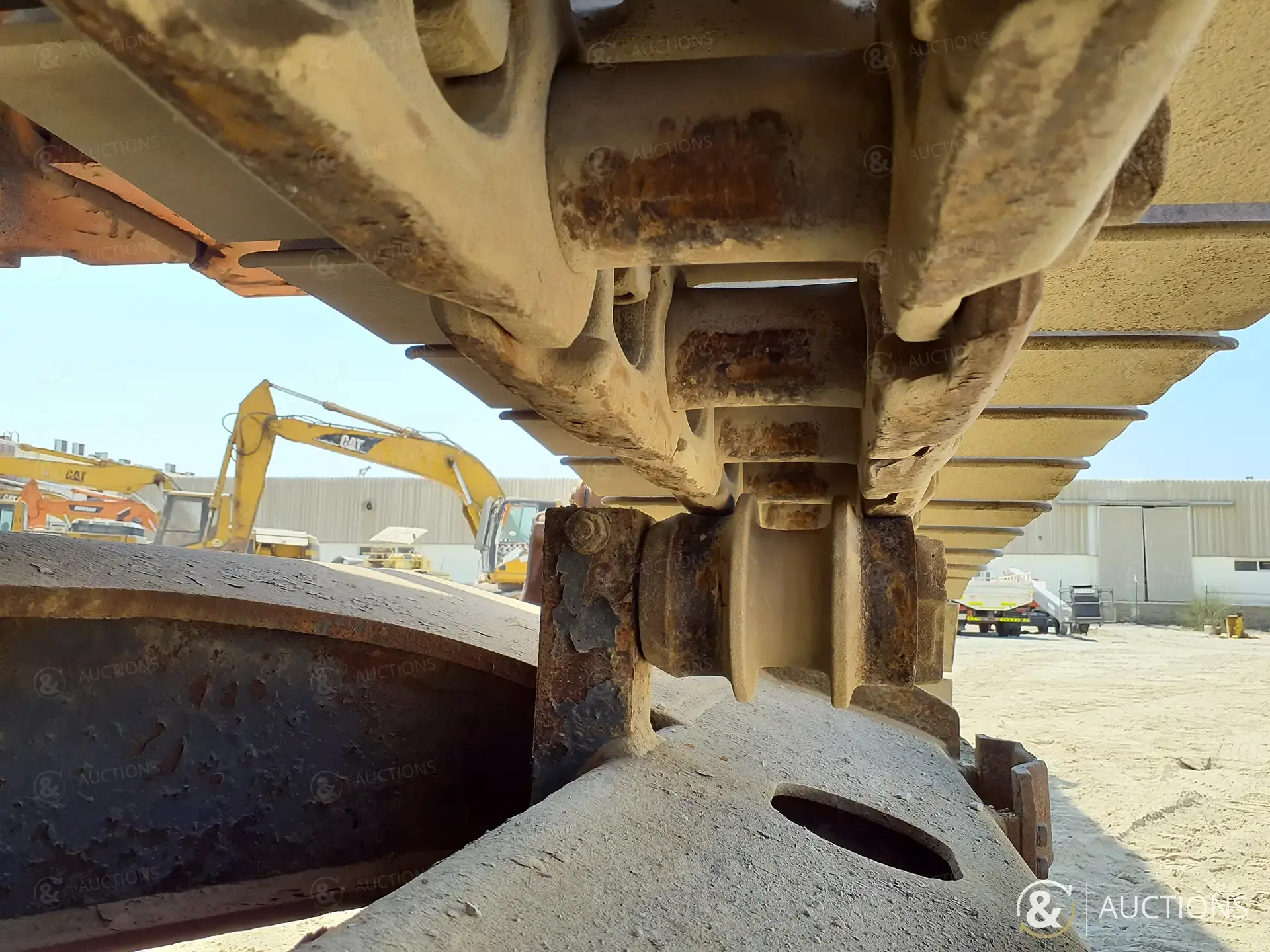

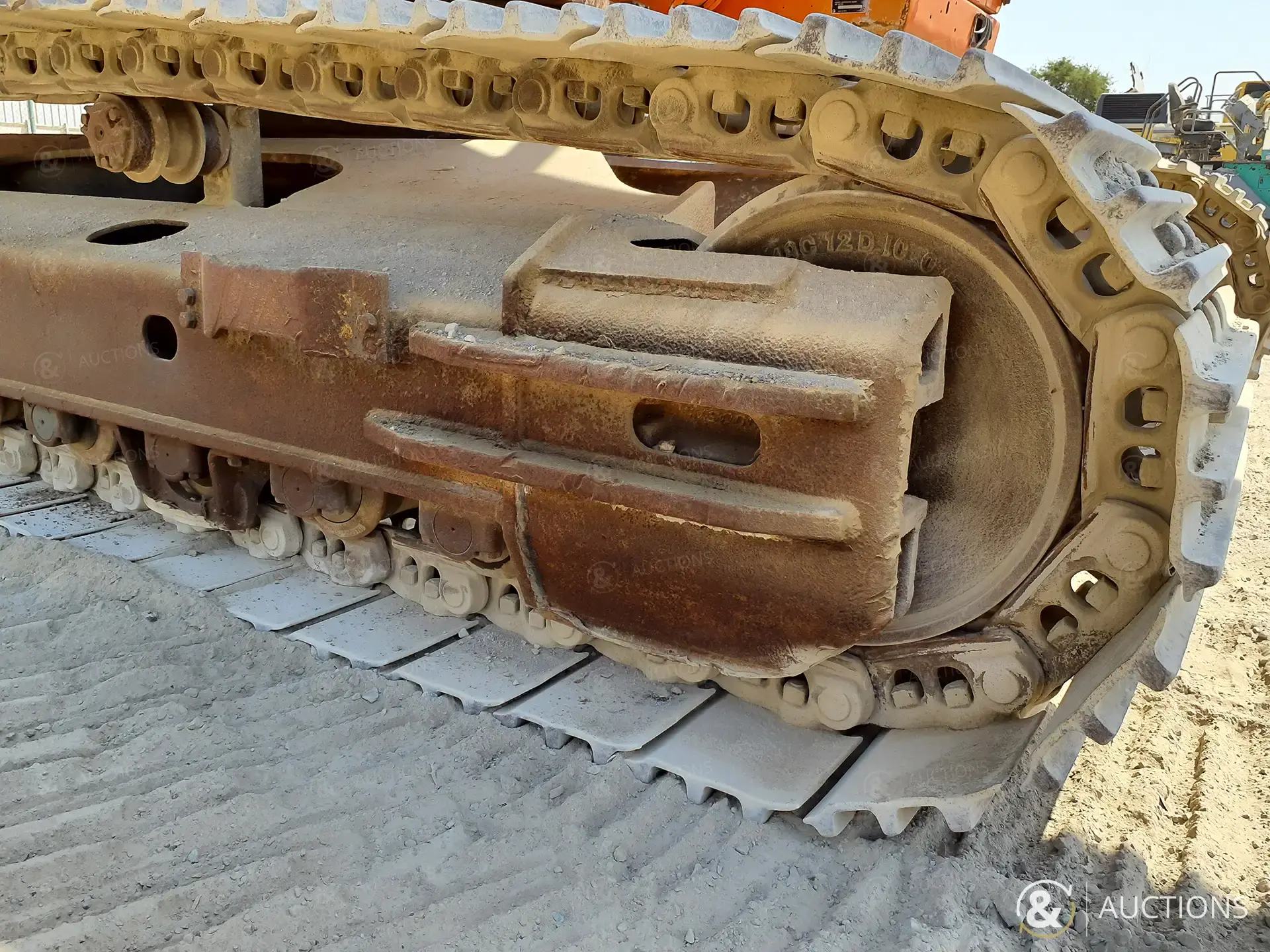

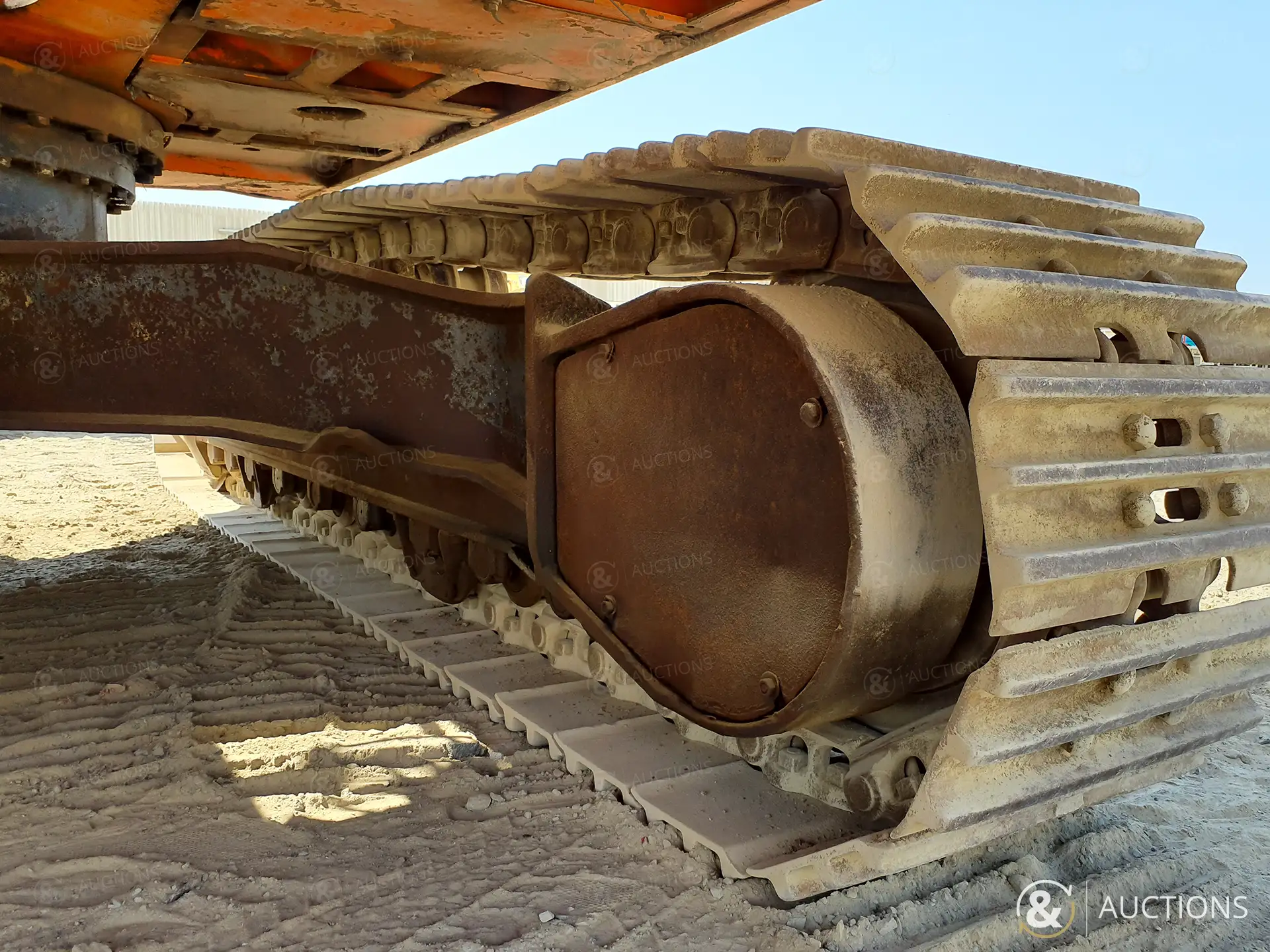

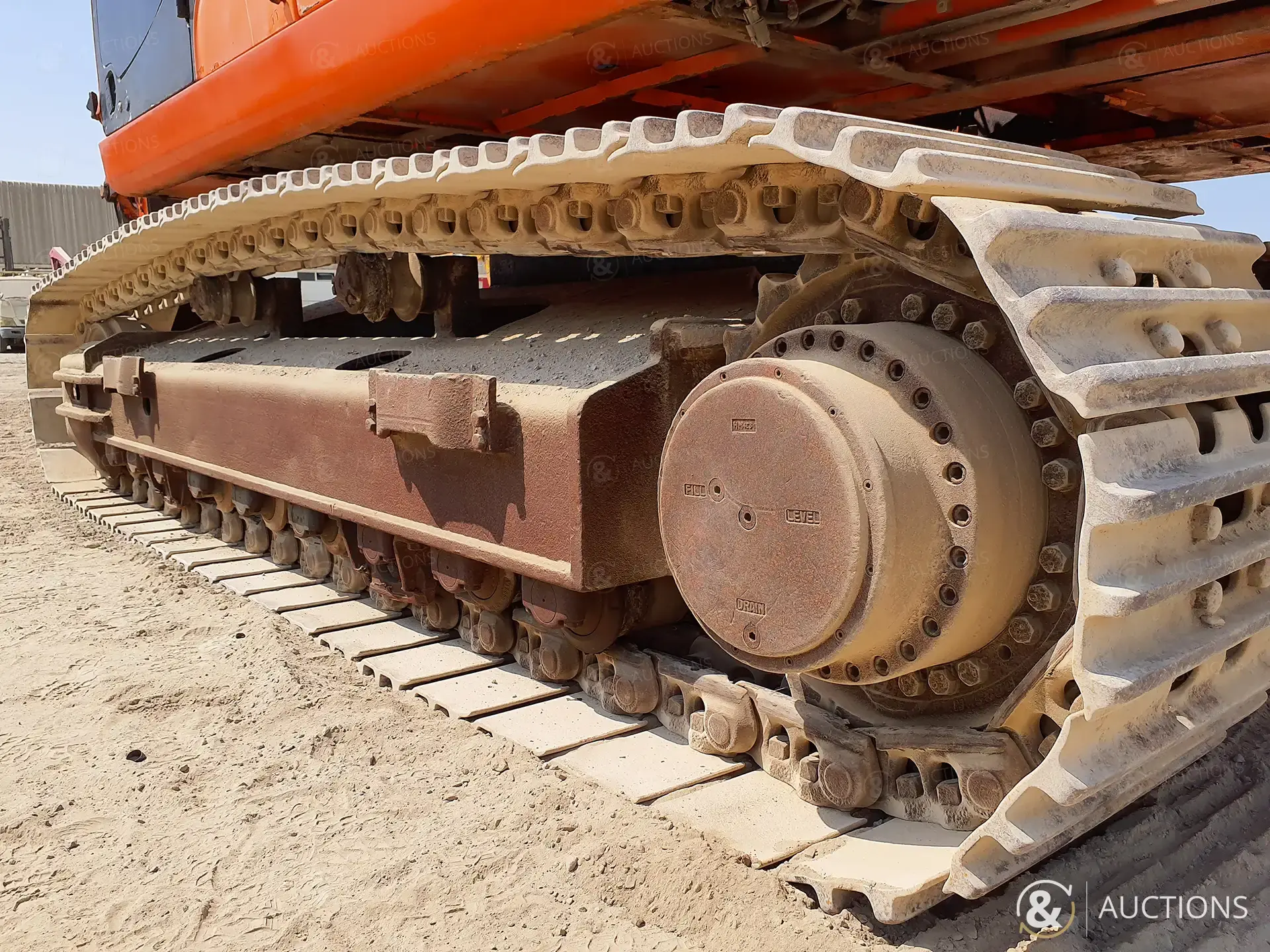

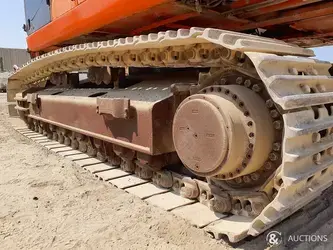

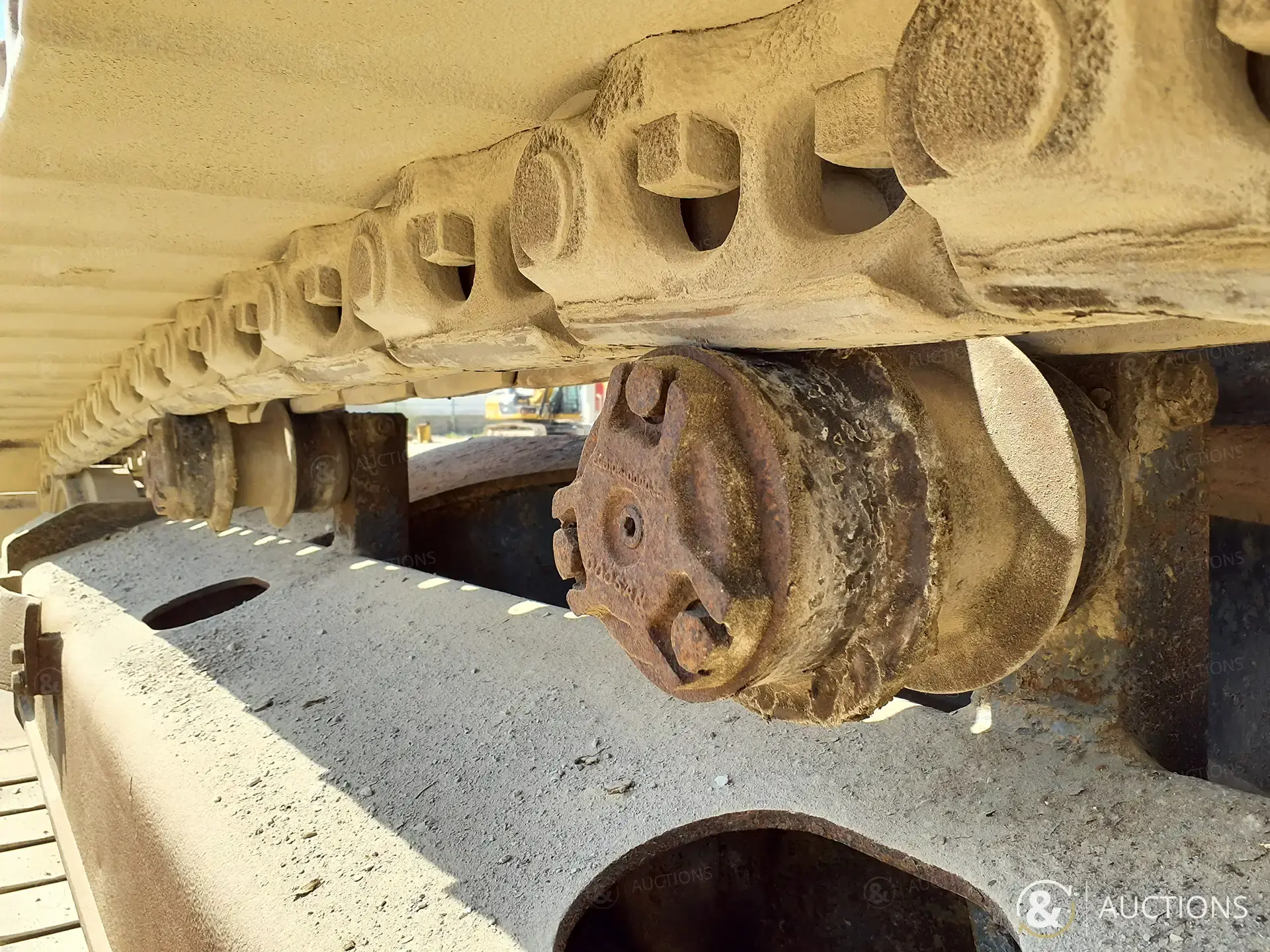

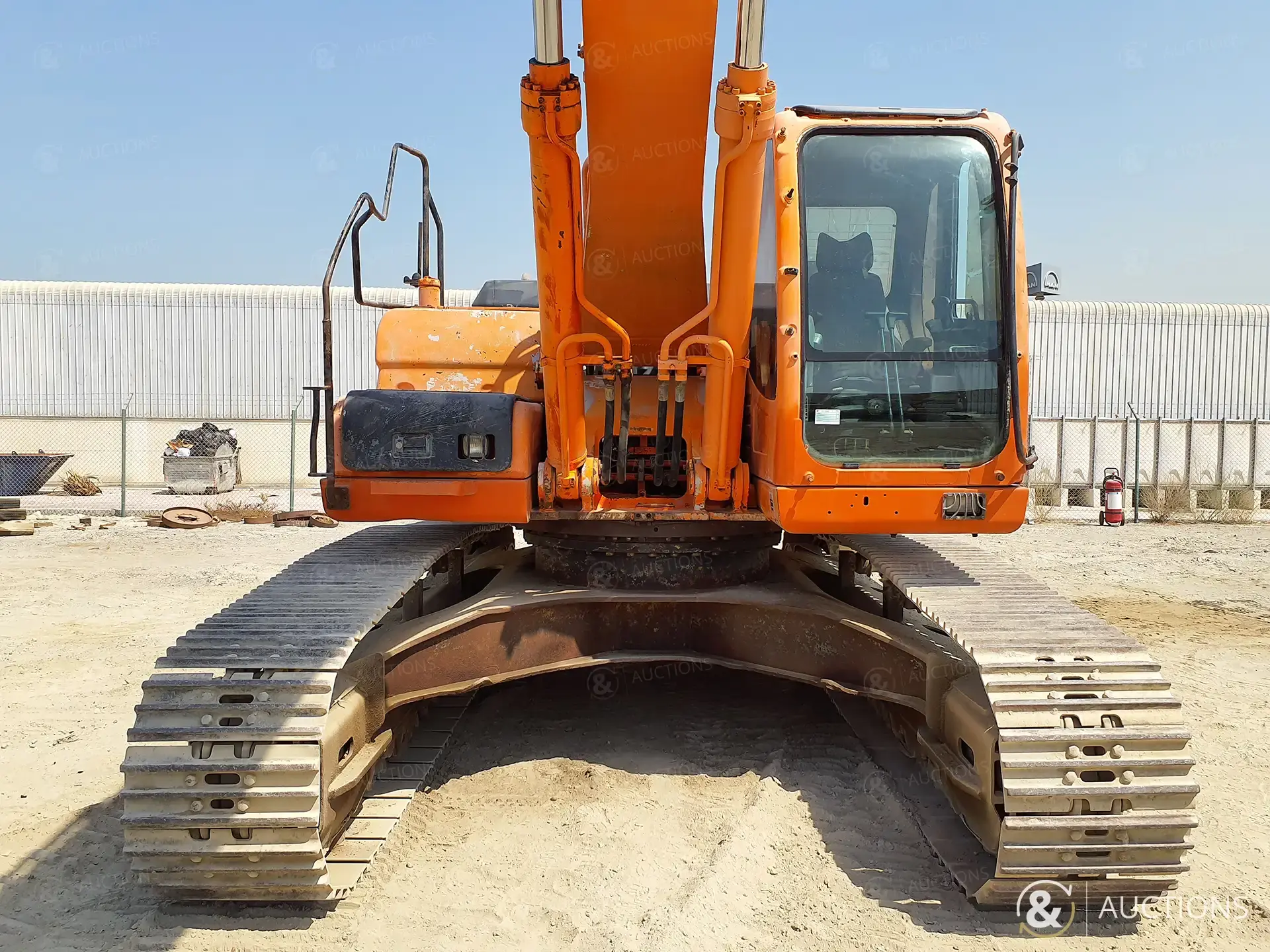

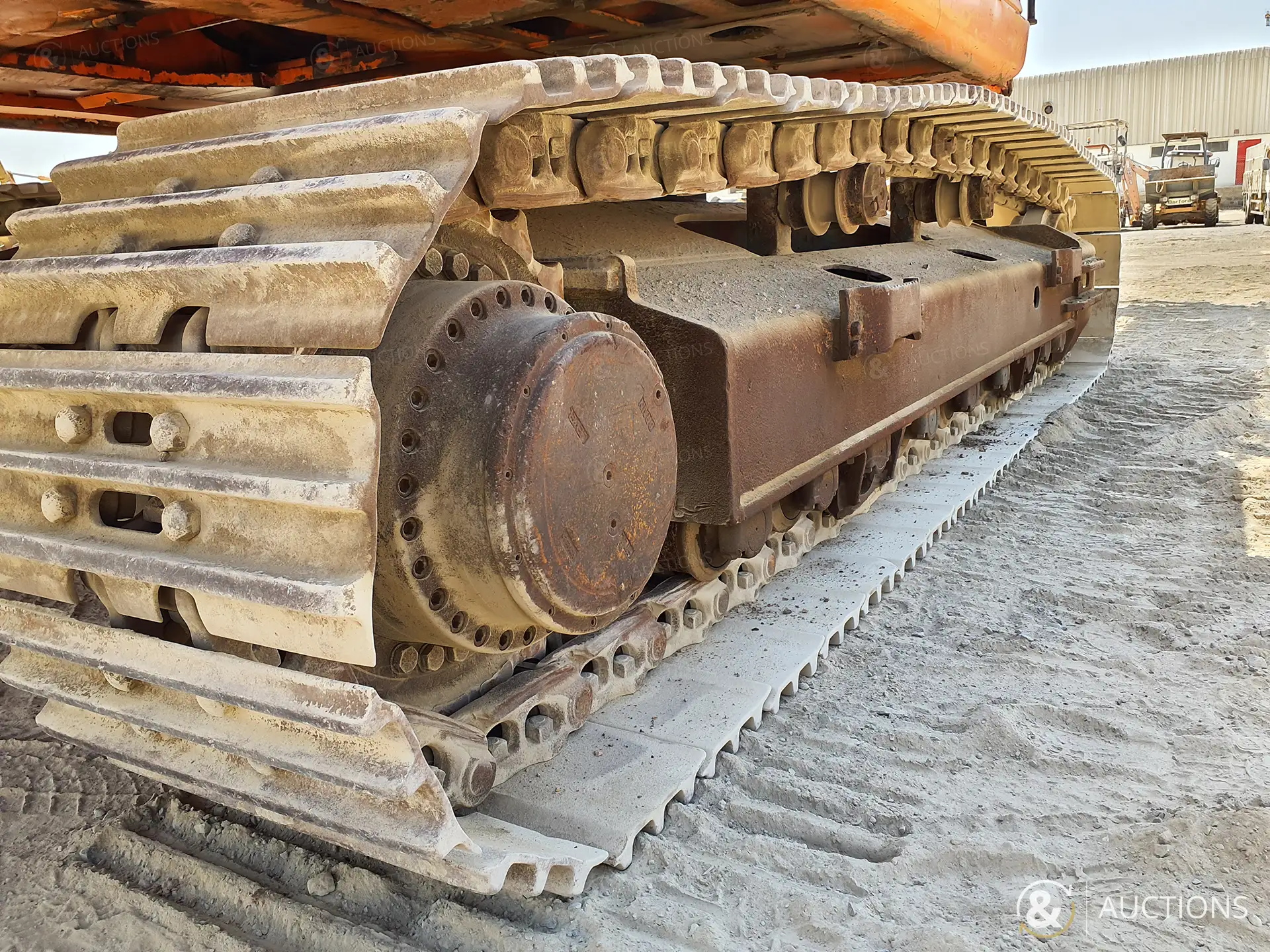

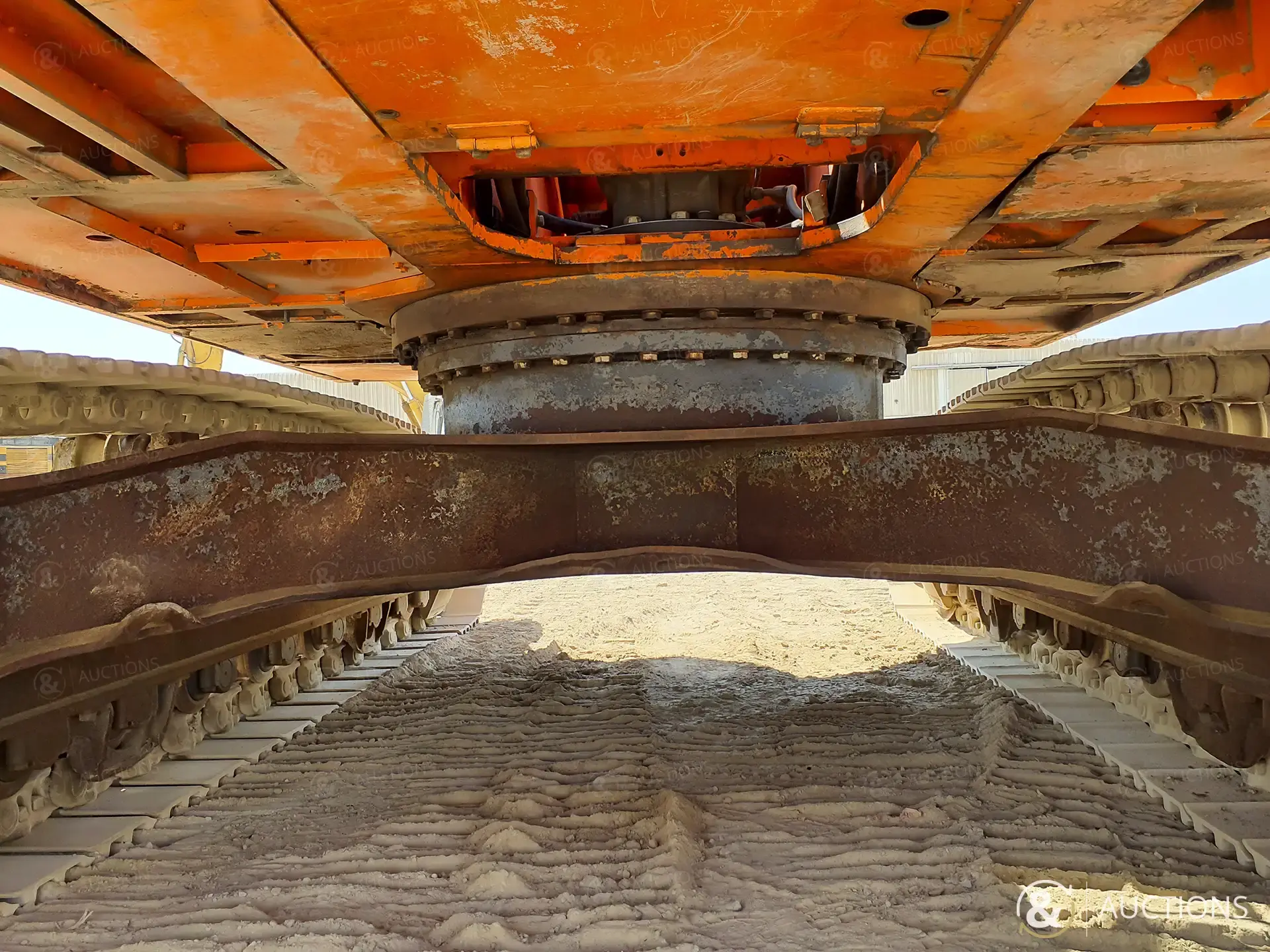

Undercarriage
| Bushings | 50% |
| Track Shoes | 60% |

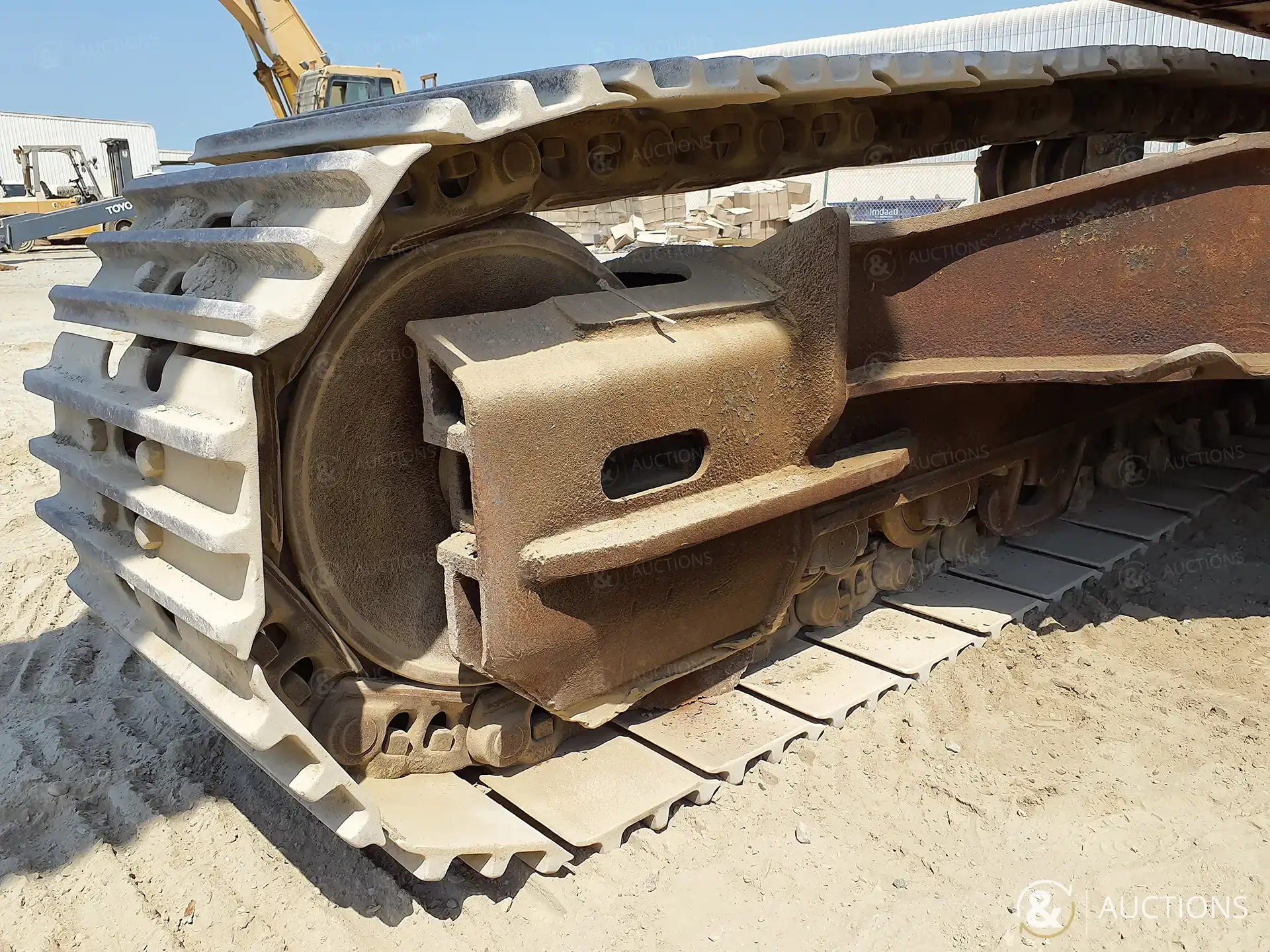

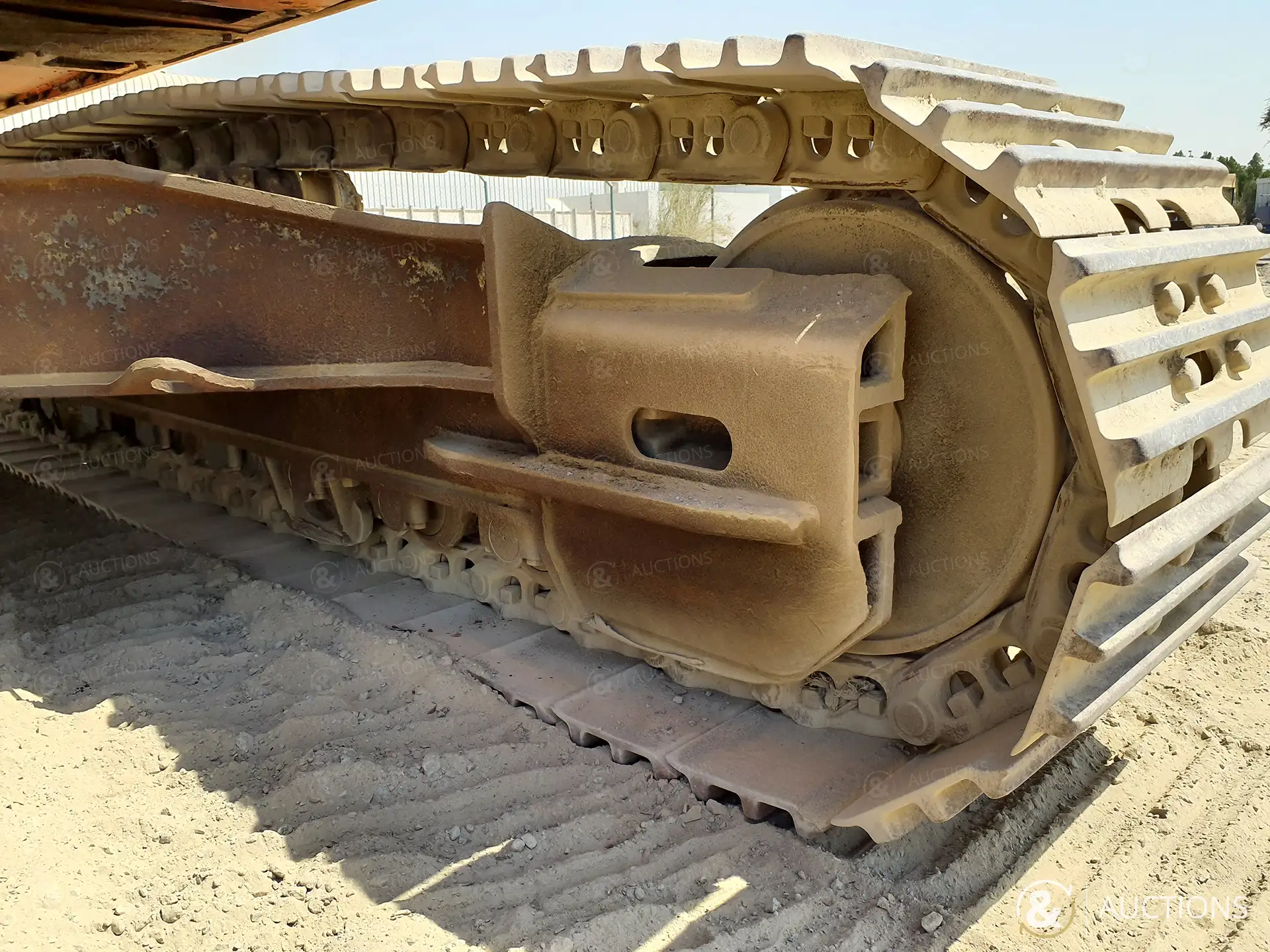

| Idlers | 60% |
| Shoe Width In Mm: | 600 |
| Track Pitch In Mm: | 80 |

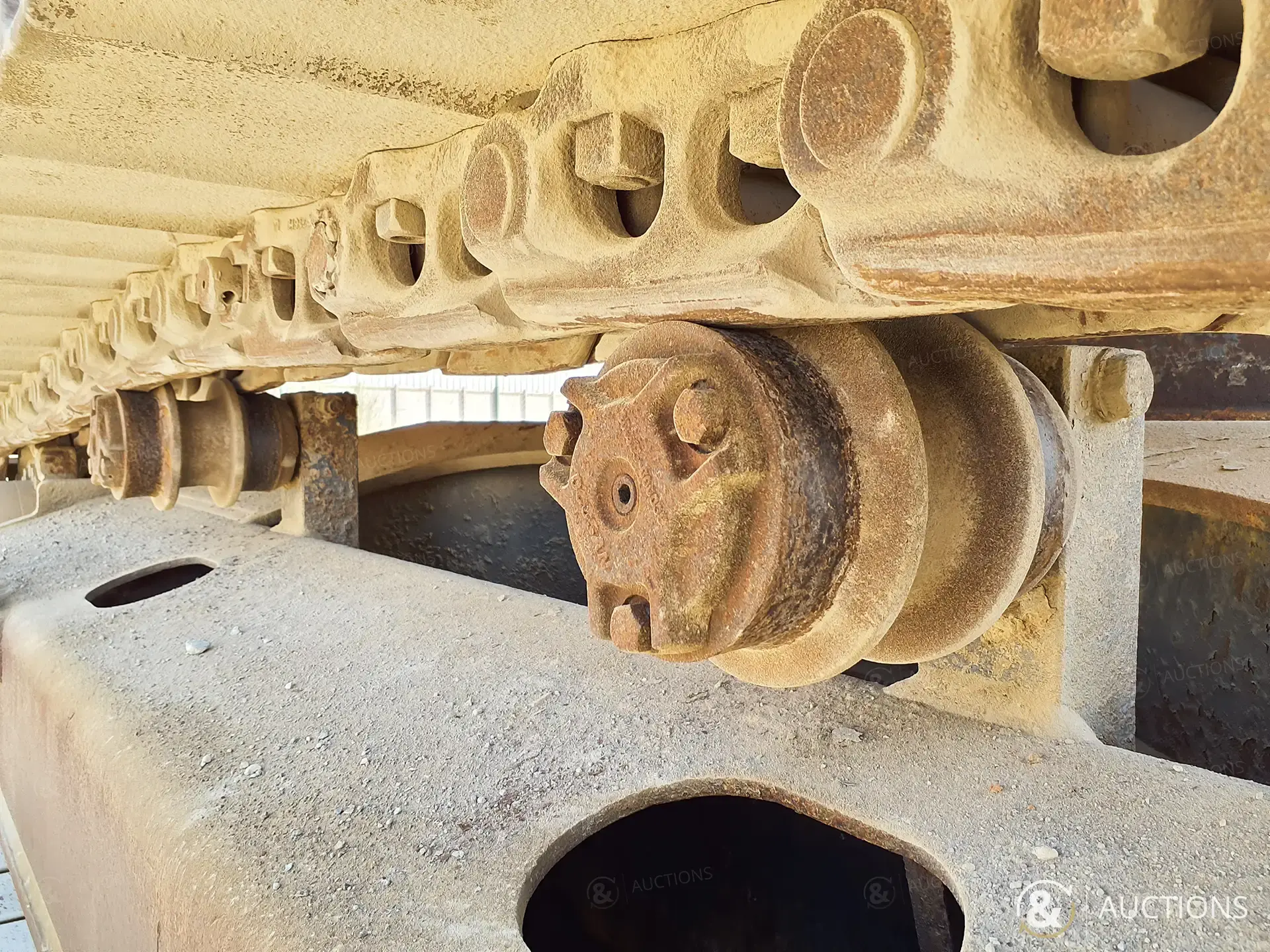

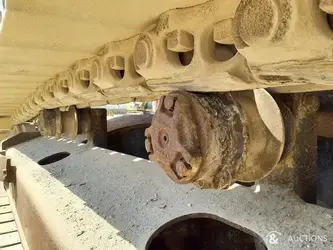

| Carrier Rollers | 50% |
| Track Rollers | 40% |

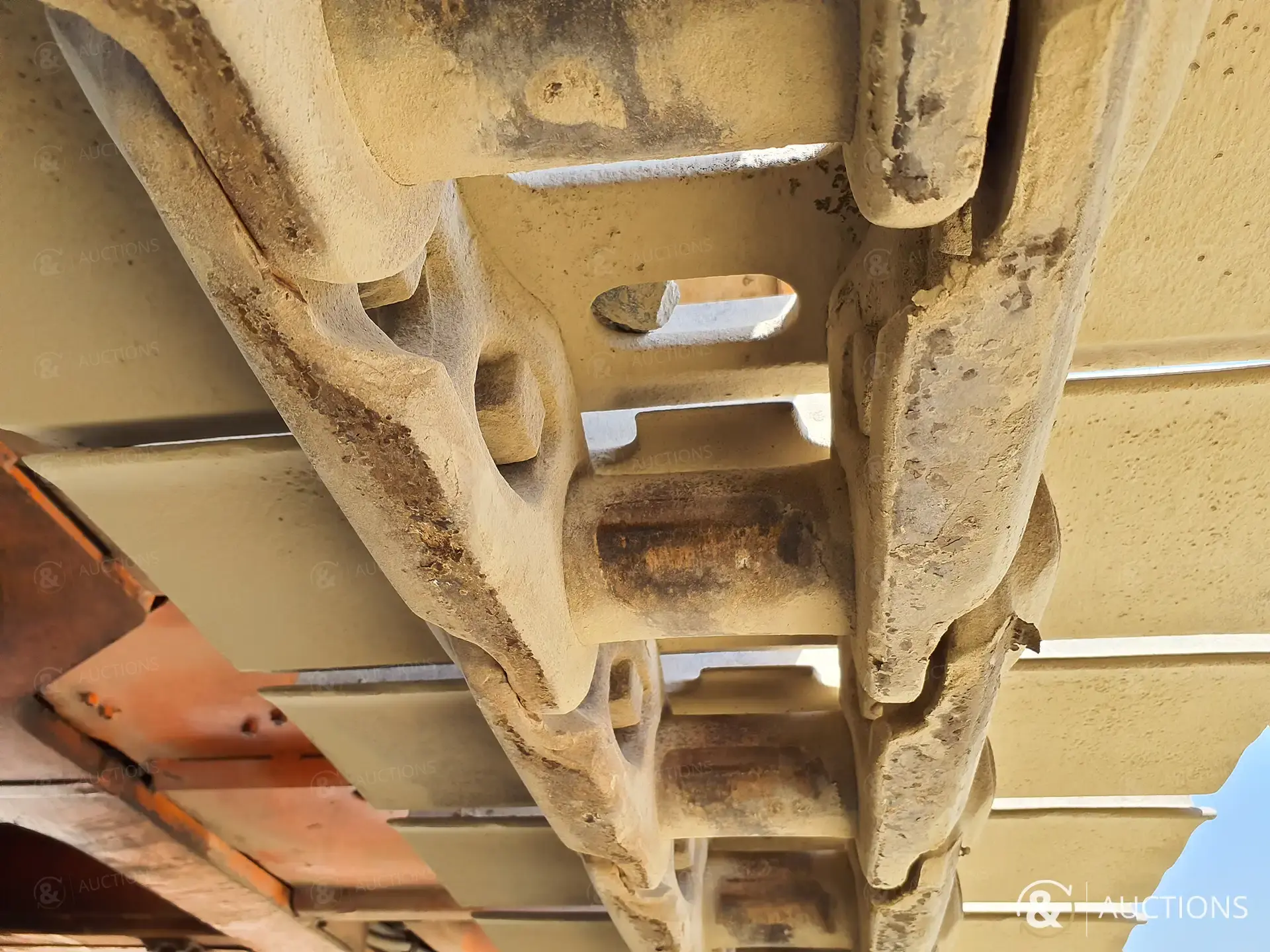

| Track Links | 60% |

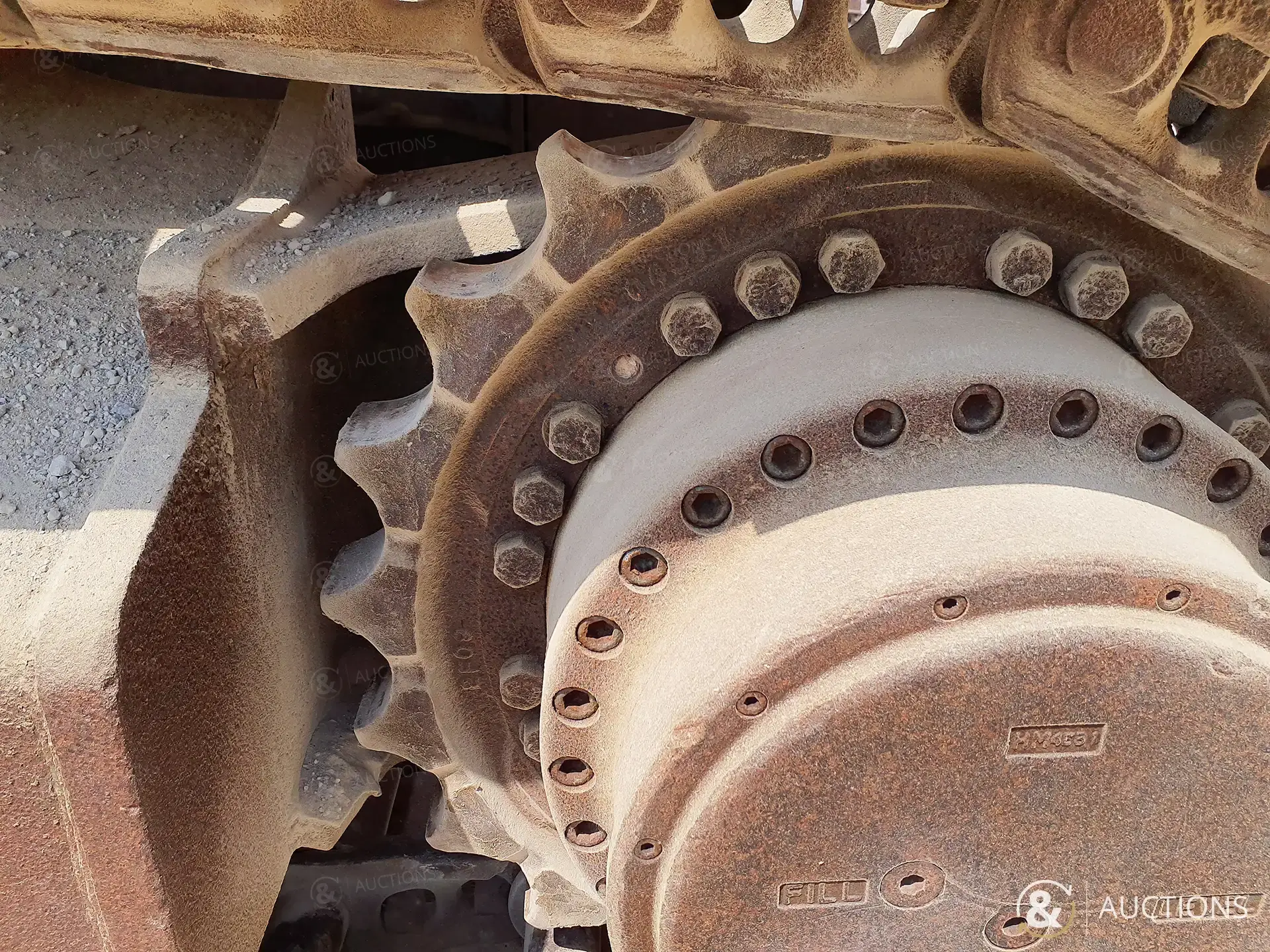

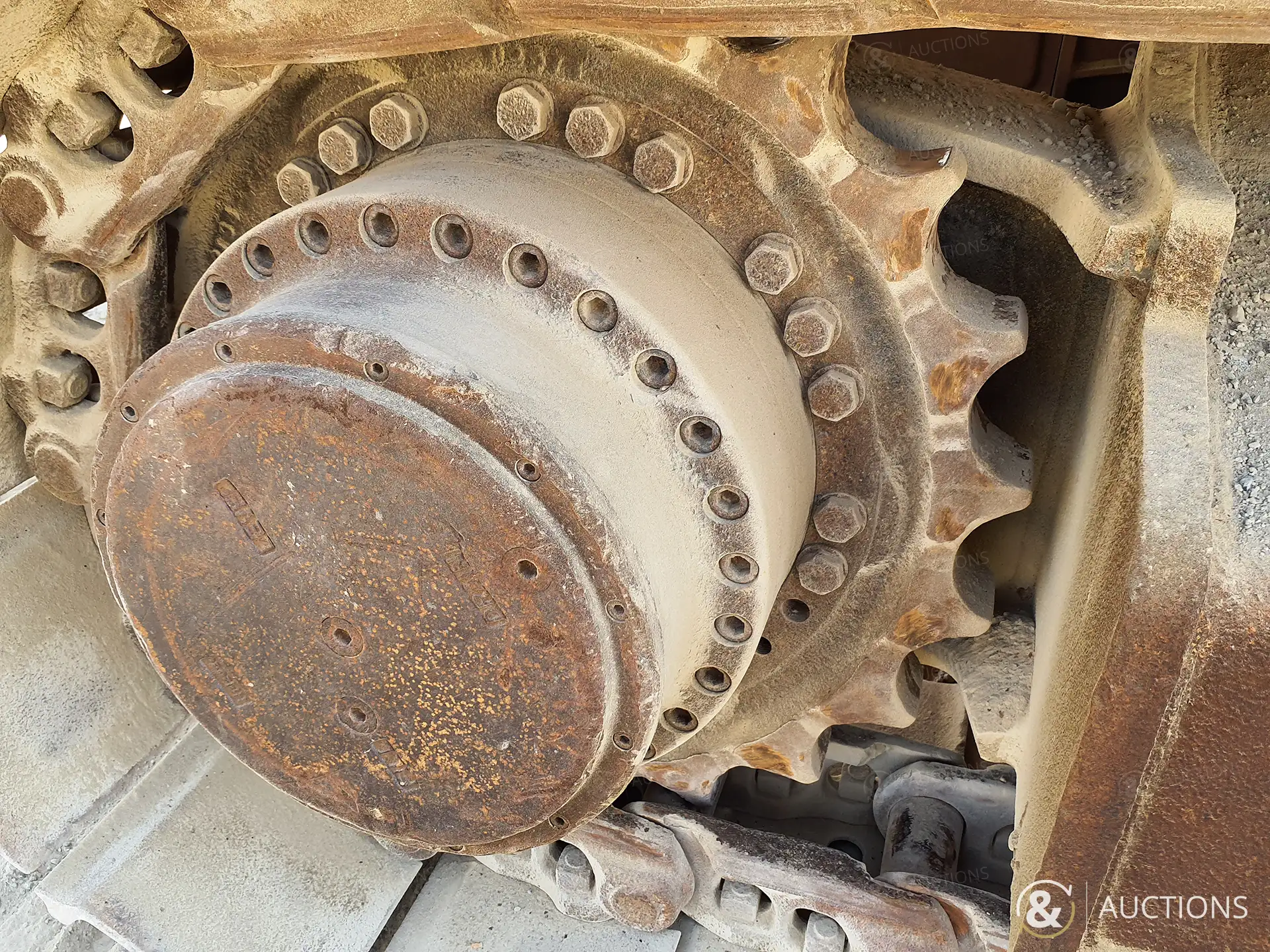

| Sprocket Segments | 60% |
تم التحقق من قبل P&E
تم التحقق من هذا العنصر بواسطة المعدات والآليات، كما خضع لإجراءات التحقق الخاصة بنا والتي تتضمن مراجعة الموقع والسعر وصلاحية الوثائق الجمركية.
