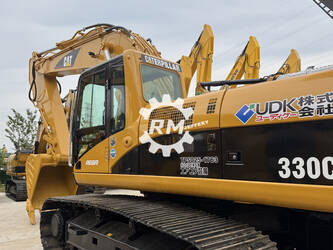

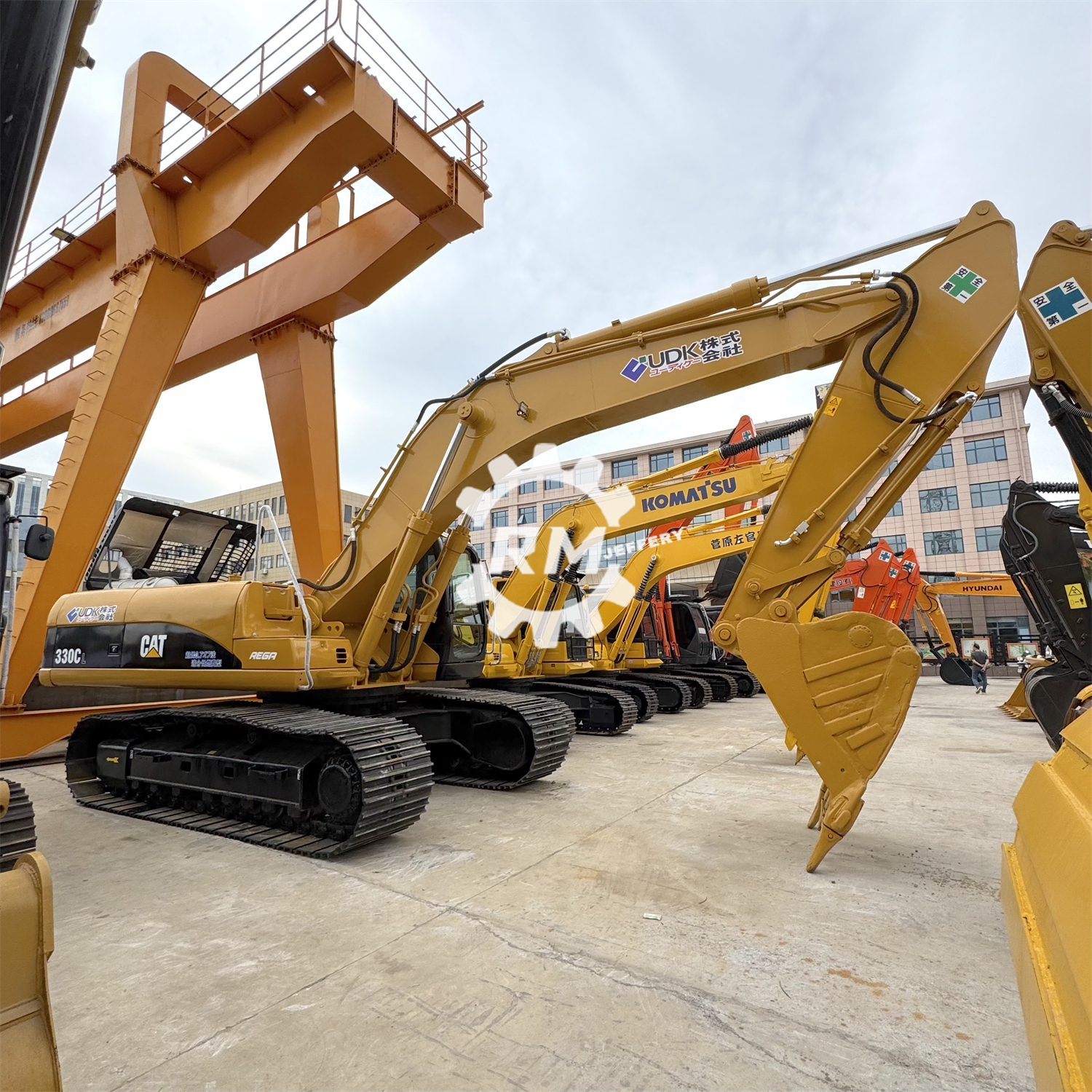

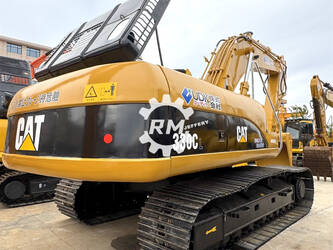

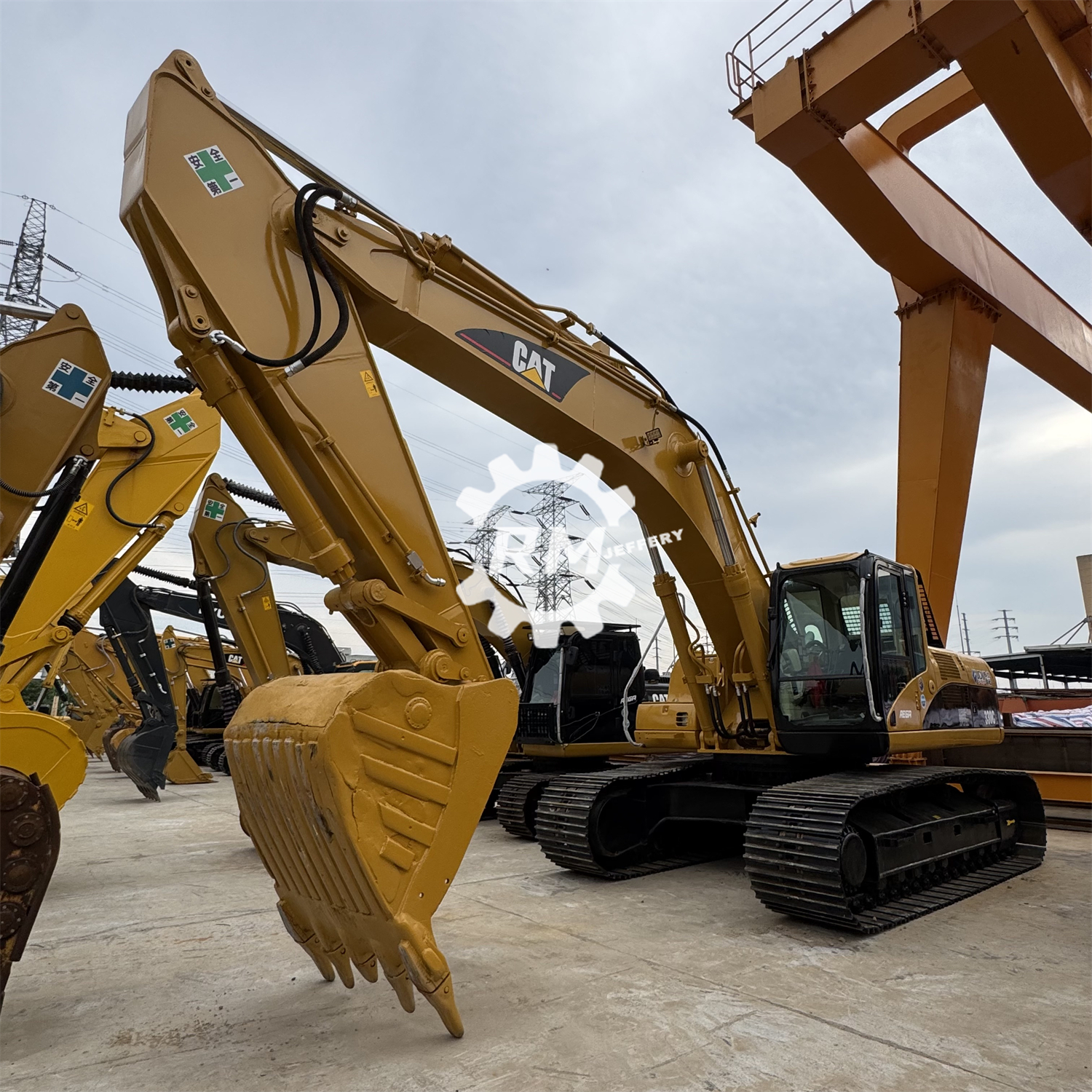

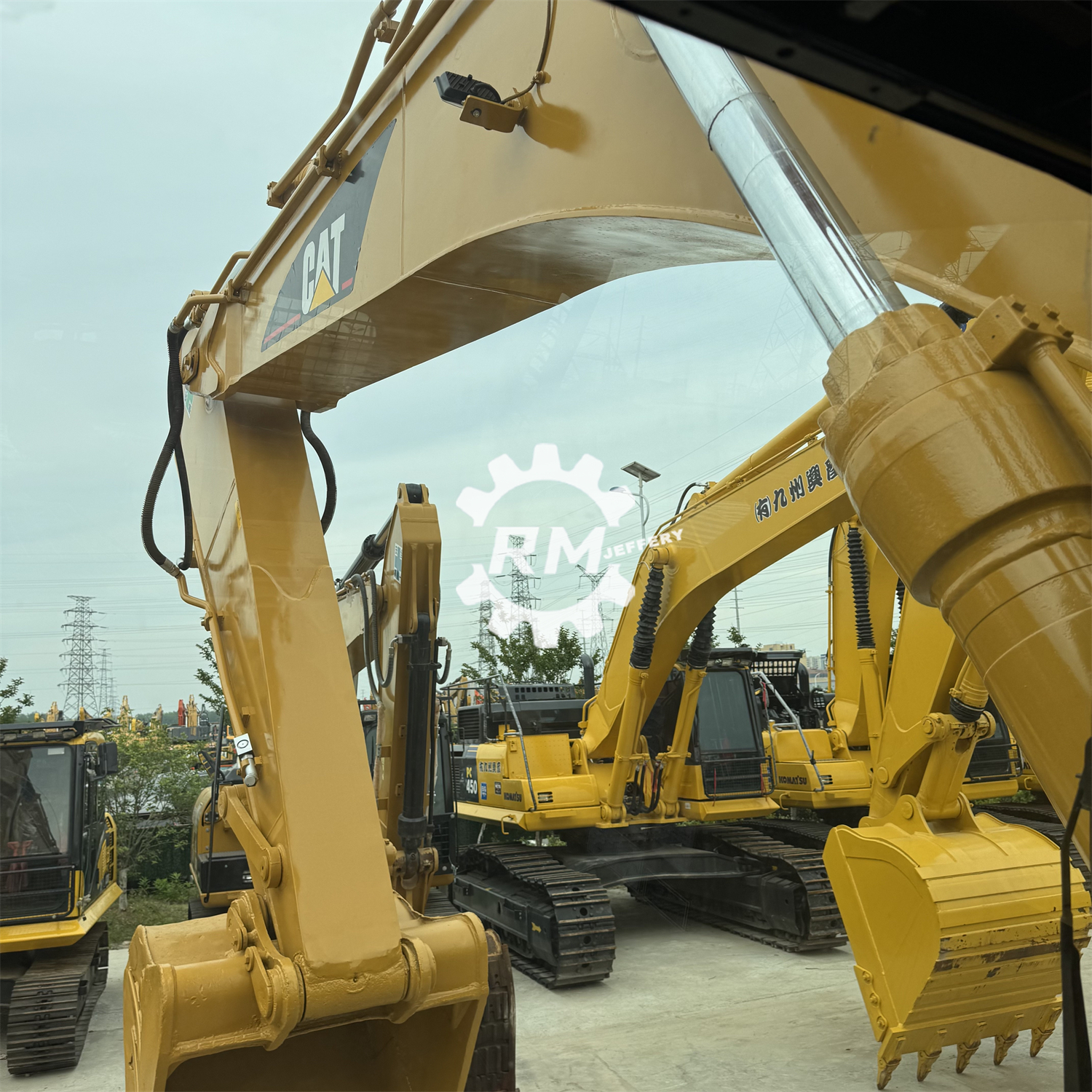

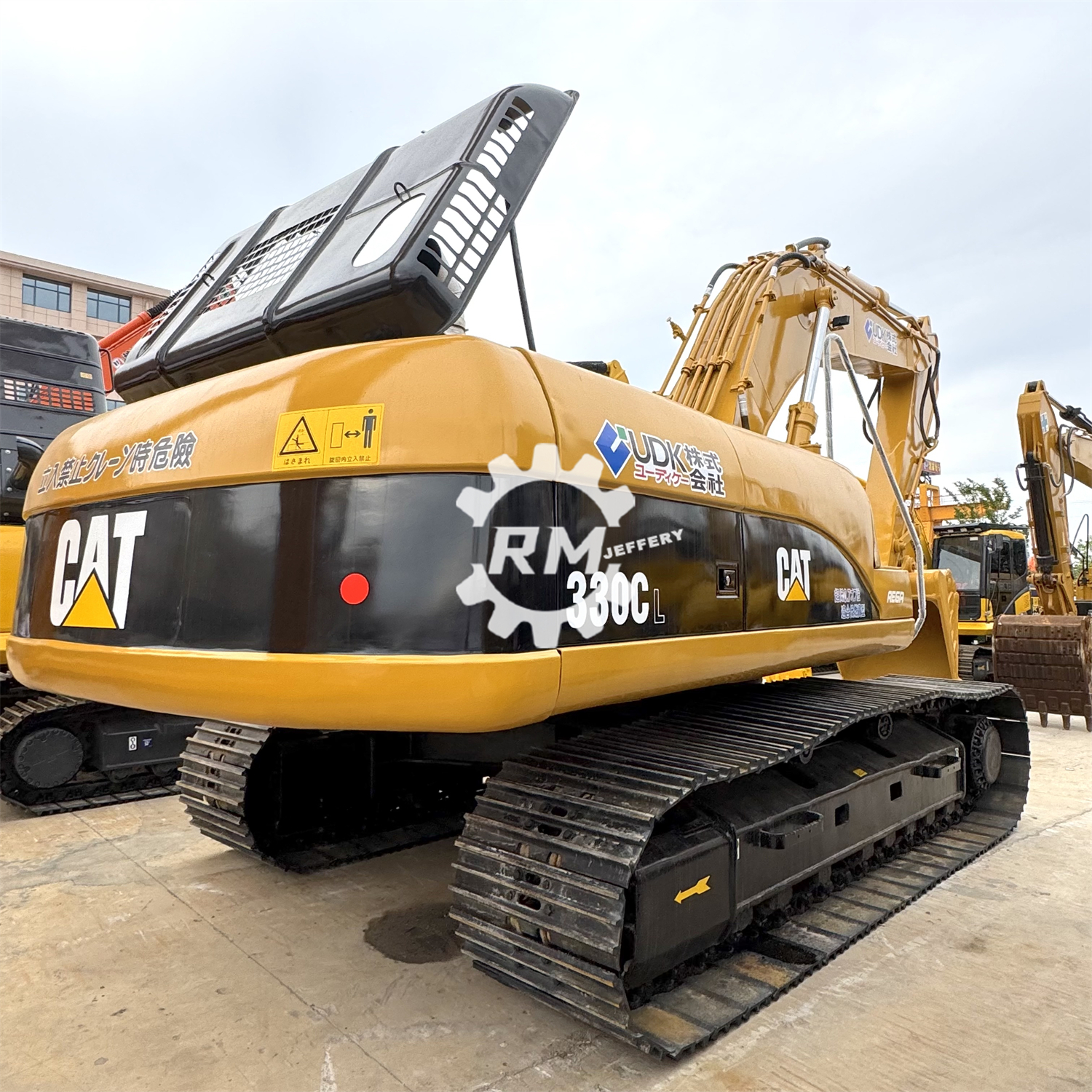

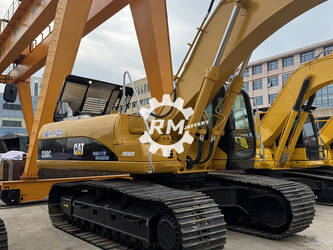

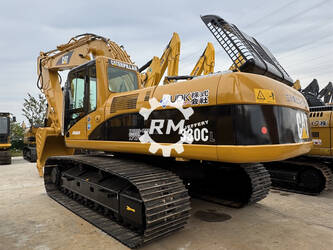

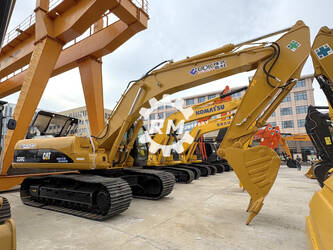

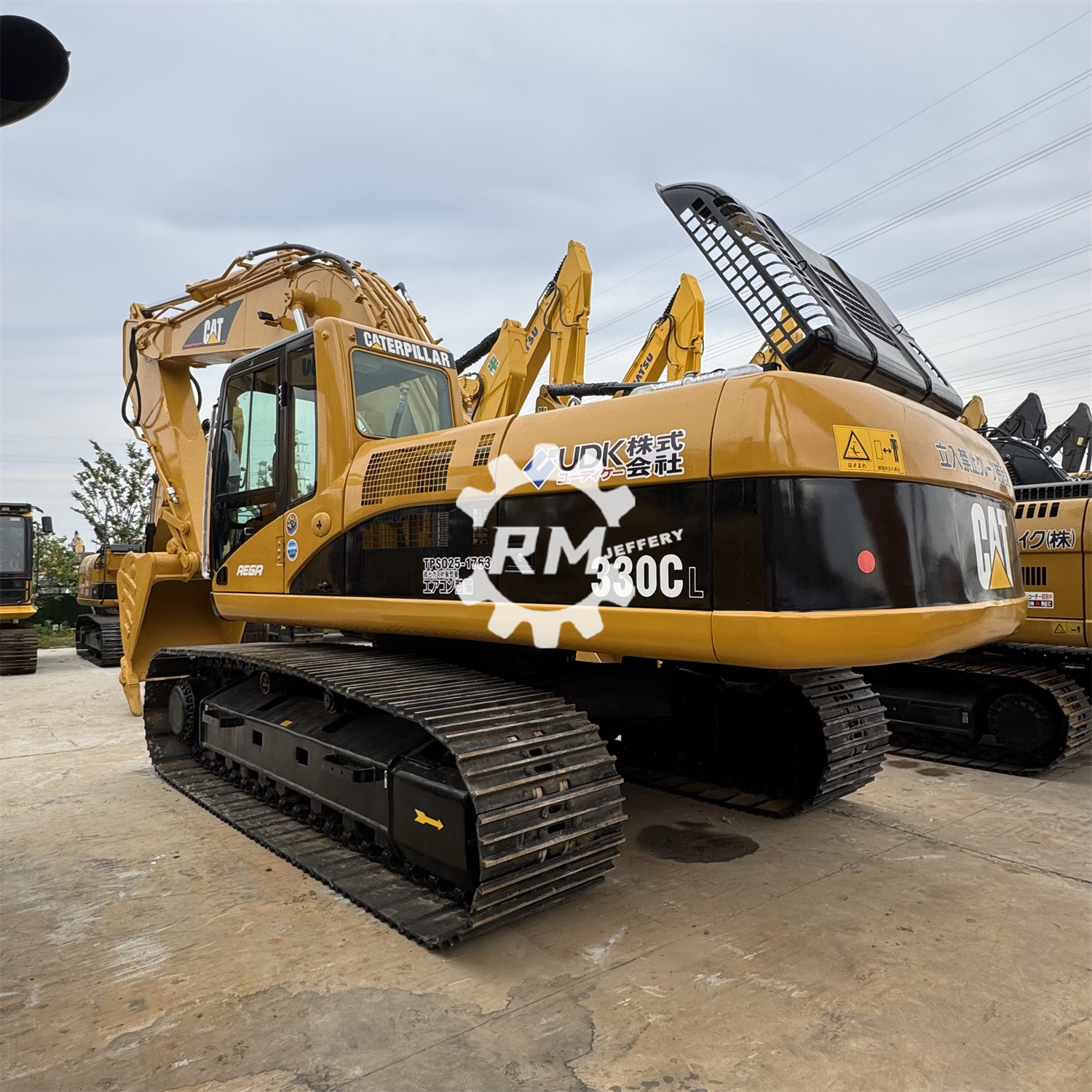

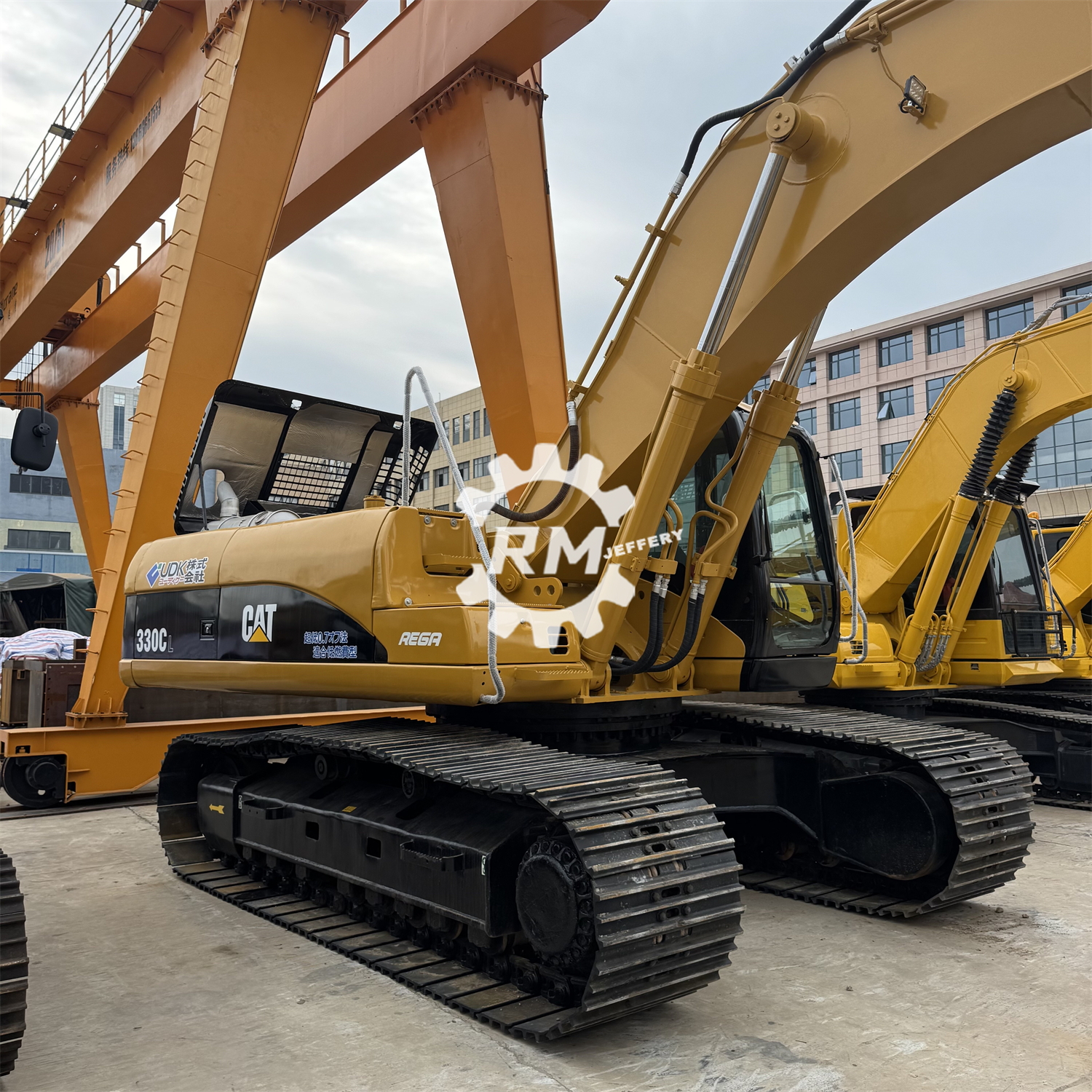

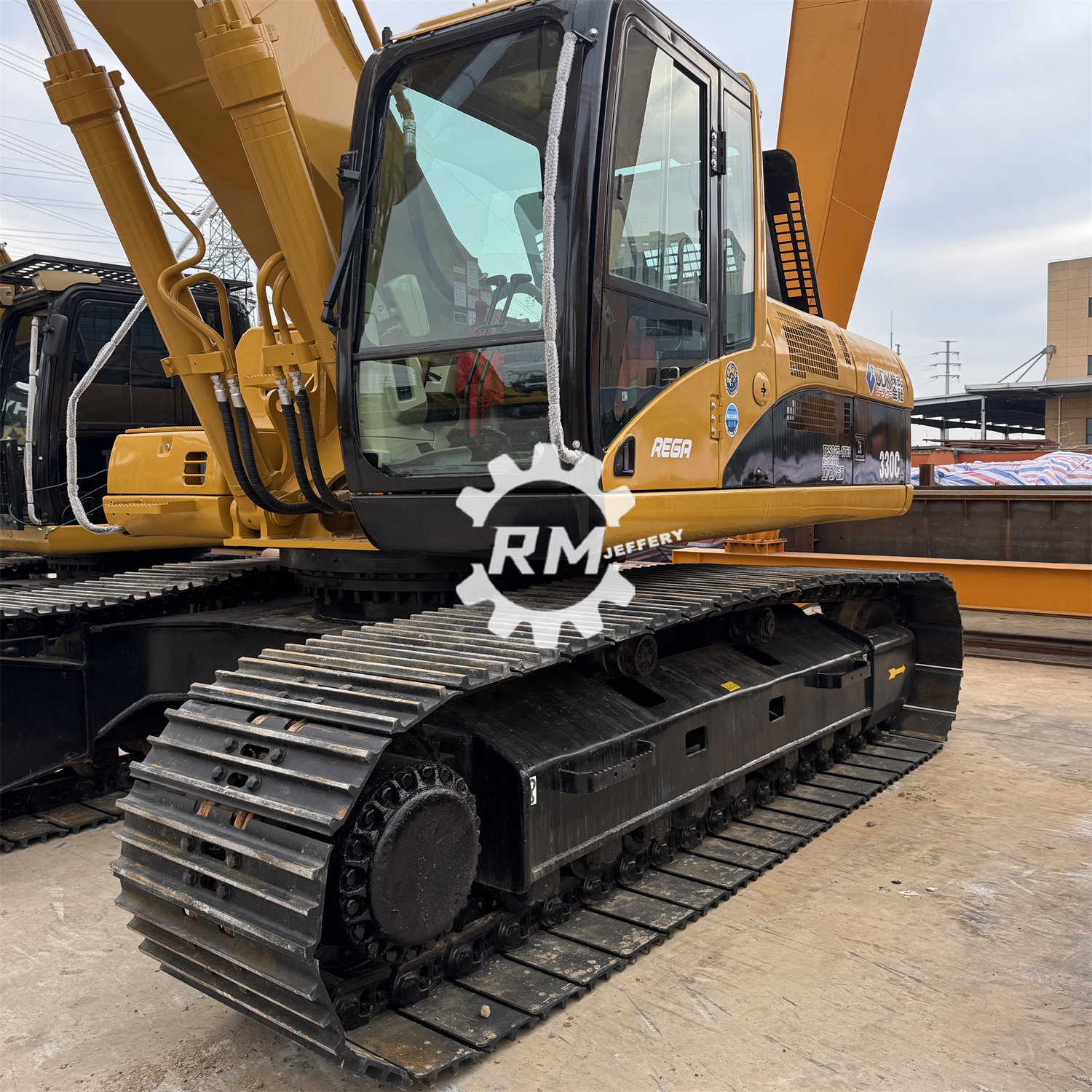

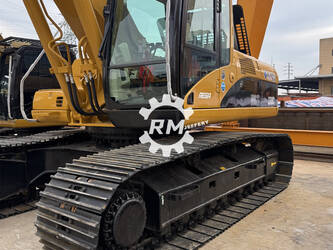

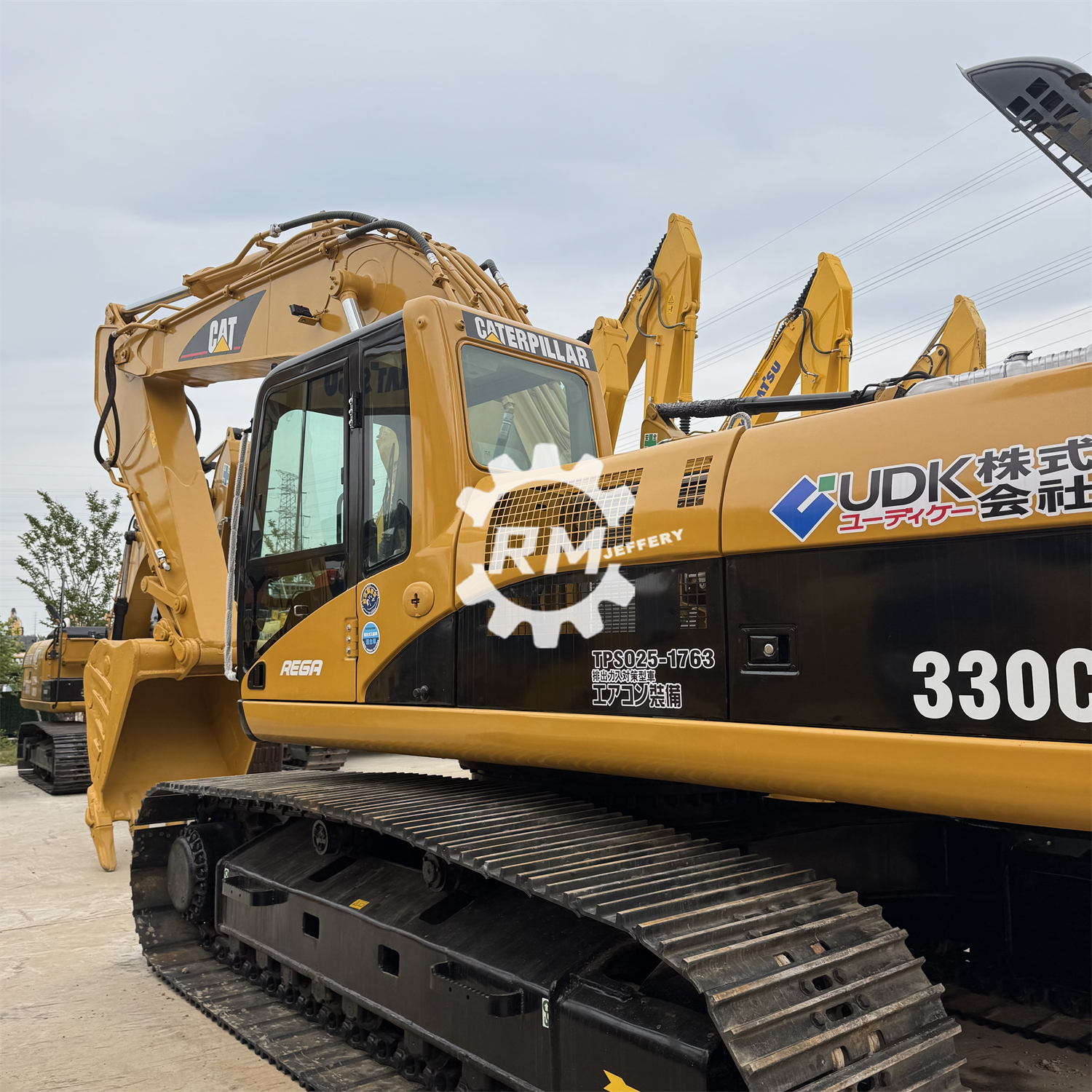

2008 كاتربيلر 330CL

Tonnage: 30 tons
Operating weight of the whole machine: 30800KG
Bucket capacity: 1.8 cubic meters
Arm length: 6.15 meters
Rod length: 3.2 meters
two
dynamical system
Engine model: Caterpillar C7.1 (some models may use C9 engine)
Rated power: 225 kW/2000 RPM (C7.1 engine)
Displacement: 7.01 liters (C7.1 engine)
hydraulic system
Main pump flow rate: 560 liters/minute
Hydraulic circuit pressure for walking: 35 megapascals
Rotary hydraulic circuit pressure: 29.8 megapascals

Main body size
Transport length: 10420 millimeters
Transportation width: 3390mm
Transportation height: 3060 millimeters
Minimum ground clearance: 490 millimeters
Scope of work
Maximum excavation radius: approximately 10.7 meters
Maximum excavation depth: about 7.3 meters
Maximum unloading height: approximately 6.9 meters
